METHVEN echo Basin Mixer Installation Manual

Download this manual

Enlarged version

Care and Cleaning:

Never use abrasives or abrasive cleaning agents to clean this product. Clean regularly with

contamination free warm soapy water and a damp soft cloth.

Methven warrants this product against manufacturing defects and that it is suitable for use

under the general operating conditions speciﬁed in this instruction sheet. However, regional

regulations apply and may aﬀect your warranty. Please refer to www.methven.com or call

customer service for full details.

New Zealand

Australia

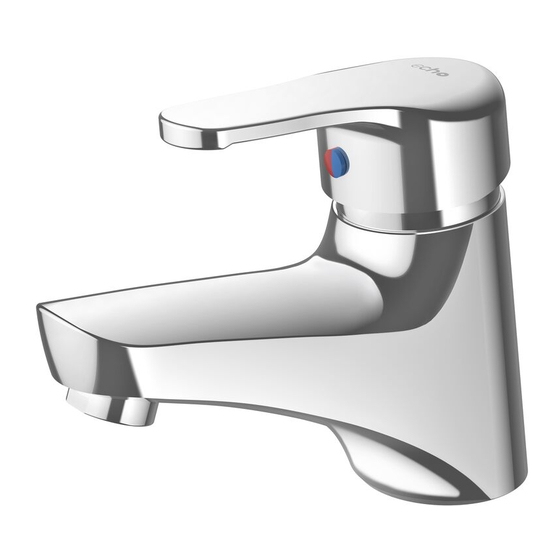

Basin Mixer

Installation Guide

Technical Speciﬁcations:

Operating Pressure:

Min:

kPa/

bar

Max:

kPa/ bar*

Operating Temperature:

Hot: Max

°C*

Cold: Min °C

Inlet Connections:

All ½" BSP

USE PARALLEL FITTINGS ONLY

* Regional speciﬁc regulations apply.

Please refer to your warranty statement

at www.methven.com

ISSUE A

Need help?

Do you have a question about the echo Basin Mixer and is the answer not in the manual?

Page 1 Never use abrasives or abrasive cleaning agents to clean this product. Clean regularly with contamination free warm soapy water and a damp soft cloth. Methven warrants this product against manufacturing defects and that it is suitable for use under the general operating conditions speciﬁed in this instruction sheet. However, regional regulations apply and may aﬀect your warranty.
Page 2 General: Installation: • Methven recommends this product is installed Max. benchtop thickness 40mm. Cut a single 35mm diameter hole. by a licensed plumber in compliance with all Insert o-ring provided into the groove in the bottom of the base ring.
