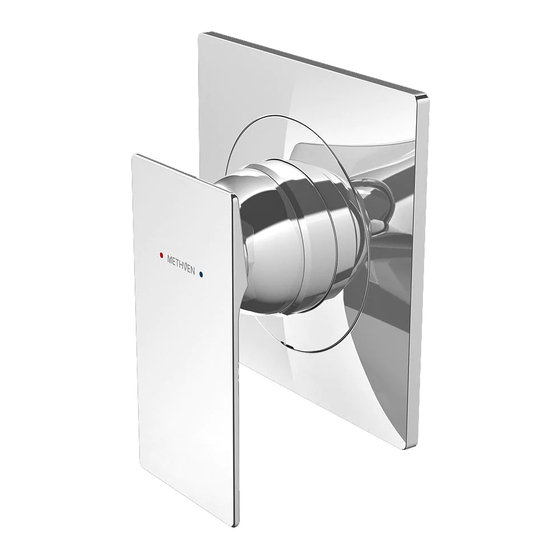

SURFACE | FUTURA | NAIDA
SHOWER MIXER WITH FASTFLOW II
Installation Guide
Technical Specifications:
Operating Pressure:
Unequal Pressure:
Hot: Min 17kPa
Cold: Min 300kPa
Equal Pressure:
Min 35kPa
If supply exceeds 500kPa a pressure
limiting valve must be installed.
Operating Temperature:
Hot: Min 55°C (at mixer), Max 80°C
Cold: Min 5°C
Inlet Connections:
All ½" BSP
* Regional specific regulations apply.
Please refer to your warranty statement
at www.methven.com
www.methven.com
Advertisement
Table of Contents
Related Manuals for METHVEN SURFACE SHOWER MIXER WITH FASTFLOW II
Summary of Contents for METHVEN SURFACE SHOWER MIXER WITH FASTFLOW II
- Page 1 If supply exceeds 500kPa a pressure limiting valve must be installed. Operating Temperature: Hot: Min 55°C (at mixer), Max 80°C Cold: Min 5°C Inlet Connections: All ½" BSP * Regional specific regulations apply. Please refer to your warranty statement at www.methven.com www.methven.com...
- Page 2 IMPORTANT: Please read all of the instructions before installation. General: • Methven recommends this product is installed by a licensed plumber in compliance with all relevant regional regulations. • All pipe work must be thoroughly flushed prior to the installation of the mixer.
- Page 3 JET SELECTION: Equal Pressure Systems Fitment of the primary nozzle into the mixer body Fit mixer as supplied. • Remove the dome cover and unscrew the lock nut. Unequal Pressure Systems • Take hold of the cartridge and with a gentle circular motion pull the cartridge straight out of the mixer body. Note: Do not turn the cartridge.
- Page 4 Never use abrasives or abrasive cleaning agents to clean this product. Clean regularly with contamination free warm soapy water and a damp soft cloth. Methven warrants this product against manufacturing defects and that it is suitable for use under the general operating conditions specified in this instruction sheet. However, regional regulations apply and may affect your warranty.
