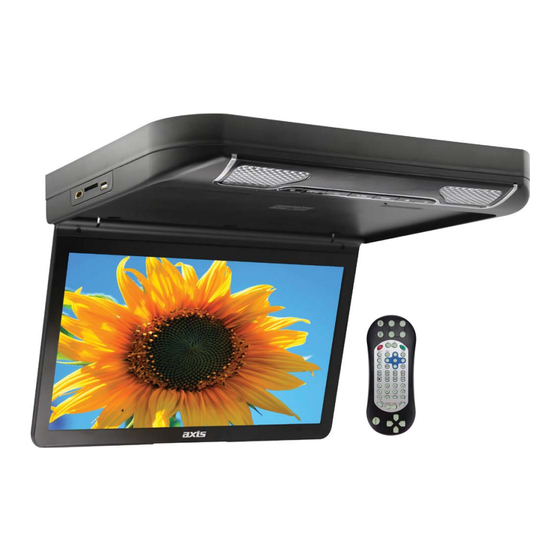

13.3 INCH SLIMLINE ROOFMOUNT HD
LED-TFT MONITOR PLAYER SYSTEM
with BUILT-IN DVD-CD PLAYER & HDMI
SPECIFICATIONS
GENERAL
- 13.3 Inch (33.8cm) HD LED-TFT Monitor
- 1080p Resolution
- PAL/NTSC Auto Colour System
- Slimline & Compact
- LED Backlight
- 16:9 Screen Format
- HDMI Input
- AV Input
- AV Output
- Multi-language OSD Menu
- IR Transmitter (2 Ch for Wireless Headphones)
- Wireless FM Modulator (8 Ch for Audio Output)
- Function Buttons on Pod
- Built-In Dome LED Lights (Auto Polarity)
- On-Board Stereo Speakers
- Universal Installation
- 12/24V DC Input / Negative Ground
- -10° ~ +60°C Operating Temperature
- 350(W) x 300(L) x 32(H)mm Dimensions (when closed)
AX1513
- Frequencies:
INSTRUCTION MANUAL
DVD/CD PLAYER/MULTIMEDIA
- DVD/CD/MP3/WMA/MPEG2/MPEG4/MKV/H.264/
AVS/VCI/RM/RMVB/AVI/VP6/VP8, etc Playback Systems
- USB 2.0 Port
- SD/MMC/MS Card Reader
- Supports 1080P
INCLUDED
- Full Function Remote Control
- Installation Hardware
- Installation Manual
FM 87.7MHz
FM 88.1MHz
FM 88.5MHz
FM 88.9 MHz
FM 106.7MHz
FM 107.1MHz
FM 107.5MHz
FM 107.9MHz
2
www.audioxtra.com.au
YEAR
WARRANTY
Advertisement
Table of Contents
Related Manuals for Axis AX1513
Summary of Contents for Axis AX1513
-
Page 1: Specifications
AX1513 13.3 INCH SLIMLINE ROOFMOUNT HD LED-TFT MONITOR PLAYER SYSTEM with BUILT-IN DVD-CD PLAYER & HDMI SPECIFICATIONS GENERAL DVD/CD PLAYER/MULTIMEDIA - 13.3 Inch (33.8cm) HD LED-TFT Monitor - DVD/CD/MP3/WMA/MPEG2/MPEG4/MKV/H.264/ - 1080p Resolution AVS/VCI/RM/RMVB/AVI/VP6/VP8, etc Playback Systems - PAL/NTSC Auto Colour System - USB 2.0 Port... - Page 2 Thank you for choosing this premium roof mount DVD multimedia system! We wish you countless hours of relaxation and entertainment from these versatile features. Numerous formats can seamlessly be played with viewing on its high definition colour monitor. There are three methods of enjoying the audio by selecting: 1) the on-board speakers, 2) the wireless IR transmission (using optional wireless headphones);...
- Page 3 FUNCTIONS: 1. Light Switch 2. Eject 3. Next Track / Decrease 4. Previous Track / Increase 5. Mode 6. Menu 7. Power Off 8. HDMI Input/USB/SD DVD Connection Diagram: Audio output(L) Audio output(R) (Red) (Yellow) (Black) (Blue) FM Antenna (Green) (Leave Disconnected) Adjust switch to change polarity of door light trigger.
-
Page 4: Remote Control
REMOTE CONTROL: SELECT Eject Monitor menu key OPERATION OF DVD SYSTEM/USB/SD: Play DVD/CD/MP3 • Turn on the player and insert a disc with the label facing up. • The disc will automatically play. • To stop, press STOP button on remote. •... -
Page 5: Disc Menu
To use FM function, please find the FM Mode icon in the menu. Select to open or close FM Mode. To transfer the sound to your car audio system, make sure your car radio frequency is exactly the same as the AX1513. * Contact your nearest AXIS stockist to purchase... -
Page 6: Installation
INSTALLATION 1. Remove 4 mounting screws (main chassis) and remove mounting plate. (picture 1) ① 2. Carefully align metal mounting plate with installation position and secure. Use correct screws to suit the vehicle and location. *NOTE: If the ceiling structure is curved or uneven, a backing board (eg plywood) may be required first ②... -
Page 7: Troubleshooting
TROUBLESHOOTING Faults Possible Reasons No sound and image Power is disconnected; the machine is not turned on No image Standby switch is pressed down; disc is scratched; signal wire is disconnected No sound Volume too low or the volume setup is not workable; No sound from Unit: Check if FM or IR transmit status has been selected &... - Page 8 AX1513...
