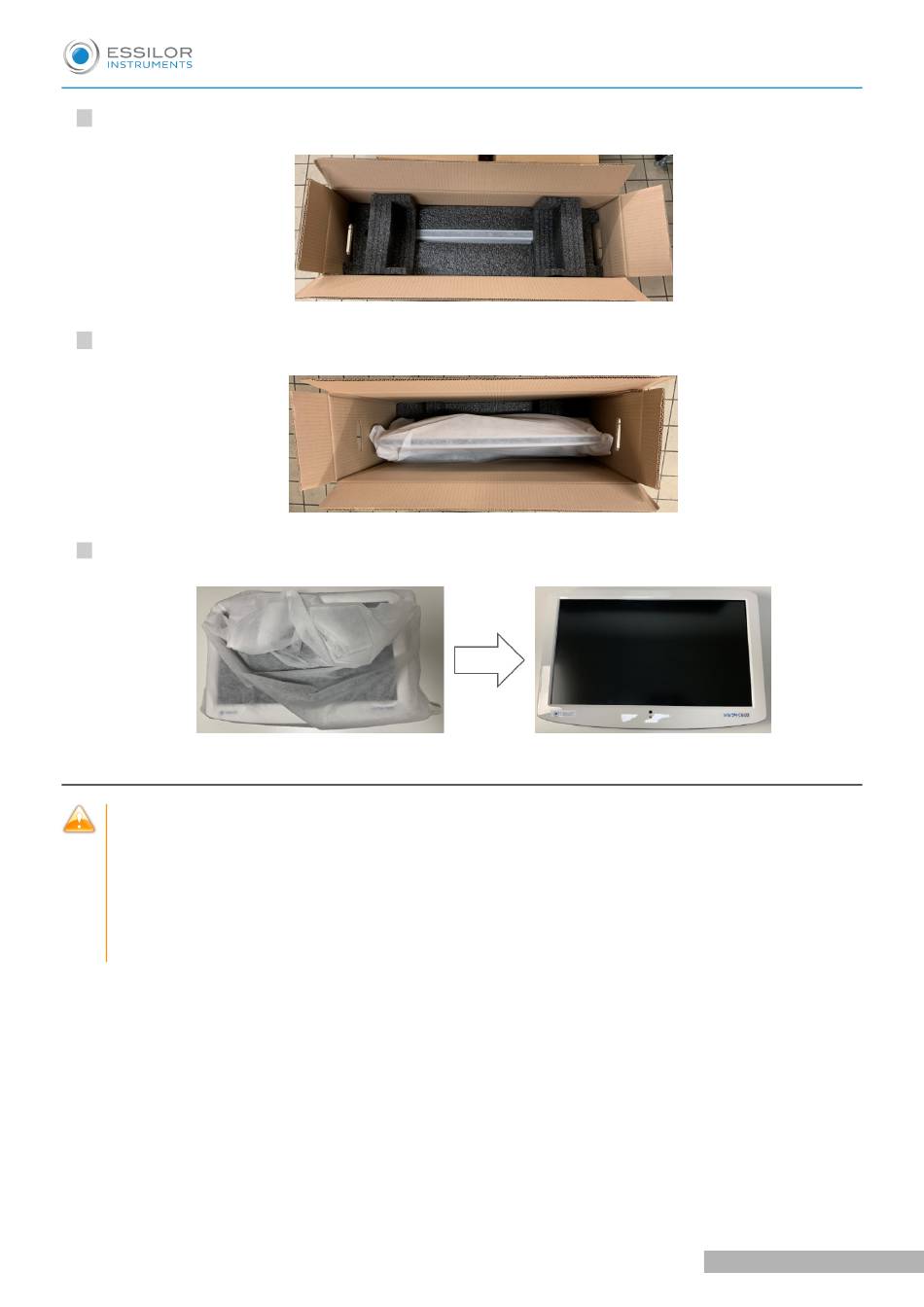

Remove the foam.
2
Gently remove the screen out of the box.
3
Remove the protective cover.
4
b. Installation
1. Find a suitable point on the wall to attach the wall mount bracket that will support the product.
> Make sure that the refraction distance meets the requirements for either direct view or mirror
arrangement.
2. Level the supplied wall mount bracket with the metal tabs facing up and out on your wall and mark the
holes for the installation.
3. Place the wall mount bracket on the wall, and screw or tap the screws (nail) into the holes.
4. Hang the product by lining up the holes on the back of the unit with the metal strips of the wall mount
bracket and hang the unit on these strips.
