Essilor Instruments APH 550 Maintenance Manual

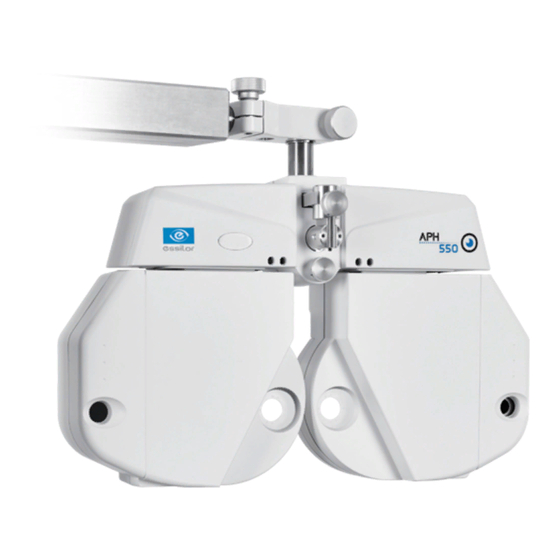

Automatic phoropter
Hide thumbs
Table of Contents

Advertisement

Quick Links

Automatic Phoropter
Maintenance Manual

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the APH 550 and is the answer not in the manual?

Questions and answers

Related Manuals for Essilor Instruments APH 550

Summary of Contents for Essilor Instruments APH 550

  • Page 1 Automatic Phoropter Maintenance Manual...
  • Page 2 Block Diagram ........................ 6 Connection Diagram ....................... 7 Wiring Diagram ......................9 Troubleshooting ......................12 Cleaning of Measuring Windows ................40 Maintenance Mode ....................... 41 Replacement procedure of each unit ................50 Rewriting procedures of the Software of APH 550 ............ 73...
  • Page 3 1 External and Internal Structural Diagram 1-1 External structural diagram (head) Name Name Name LD case assy Head rest adjustment knob assy 11 Measuring window 2 Face shield R assy Near point chart fixing knob 12 Measuring window 3 Face shield L assy Joint fixing knob assy 13 VD check windows Head rest...
  • Page 4 1-2 Internal structural diagram (head) Name Name Name assy assy assy 11 PD Motor control board LED board for lighting the left side near point chart assy assy Infrared communication board 12 Leveling adjustment knob assy assy Right side motor drive board LD-R 13 Chart stopper assy...
  • Page 5 1-3 External structural diagram (controller) Name LCD case 1 assy LCD case 2 Operation unit case assy Body case 1 Body case 2 Printer cover Open switch Operation dial assy LCD panel assy...
  • Page 6 1-4 Internal structural diagram (controller) Name Control board assy Operation board assy Printer control board assy Relay board assy Printer case LCD panel assy Thermal printer...
  • Page 7 External structural diagram (relay box) Name Power case Power switch Internal structural diagram (relay box) Name Communication board assy Switching power supply assy...
  • Page 8 2 Block Diagram...
  • Page 9 3 Connection Diagram...
  • Page 11 4 Wiring Diagram 4-1 Head Left motor drive board assy Right motor drive board assy Motor drive unit harness Position detecting sensor harness Position detecting sensor harness VD-L assy VD-R assy LED board assy for LED harness for LED harness for lighting right eyeball lighting eyeball lighting eyeball...
  • Page 12 4-2 Controller Operation harness Operation board assy Control printer harness Printer flame harness Thermal Control printer Printer control Flame Thermal printer harness board assy harness printer Printer Printer case Relay board assy harness...
  • Page 13 4-3 Relay box Communication board assy SWPS output harness Switching power supply assy SWPS input harness Inlet earth harness Power supply SW harness Earth harness 2 SWPS output harness...
  • Page 14 5 Troubleshooting General description of boards Error message “Connecting Failure” appears Error message “Right (Left) Communication Error” appears Error message “Printer Overheated” appears Error message “Paper Empty” appears Error message “Printer Cutter Error” appears Error message “PD Error” appears Error message “WD Error” appears Error message “Right Disk ○...
  • Page 15 5-1 General description of boards This product is composed with the peripheral devices, mainly such as 5 control boards, LED and sensor etc. The micro controller is mounted on 5 control boards below and they work with the instruction from the control board. When the red LED on the communication board is lighted, it is in the process of the program rewriting of the control board.
  • Page 16 5-2 Error message “Motor not connected” appears Main causes when error massage “Motor not connected” appears: ・ Failure of communication cable between head and relay box ・ Failure of motor control board assy ・ Failure of communication board assy “Motor not connected” appears. Check the connection of the communication cable.
  • Page 17 5-3 Error message “Right (Left) Communication Error” appears Main causes when error message “Right (Left) Communication Error” appears: ・ Failure of harness of motor drive unit ・ Failure of motor control board assy ・ Failure of right (left) side motor drive board assy “Right (Left) Communication Error”...
  • Page 18 5-4 Error message “Printer Overheated” appears Main causes when error message “Printer Overheated” appears: ・ Failure of thermal printer ・ Failure of printer control board assy “Printer Overheated” appears. Replace the thermal printer. Does “Printer Overheated” still appear? Replace the printer control board assy.
  • Page 19 5-5 Error message “Paper Empty” appears Main causes when error message “Paper Empty” appears: ・No printer papers in printer ・Failure of thermal printer ・Failure of printer control board assy “Paper Empty” appears. Are the printer Reset the papers. papers set properly? Replace the thermal printer.
  • Page 20 5-6 Error message “Printer Cutter Error” appears Main causes when error message “Printer Cutter Error” appears: ・ A printer paper is stuck in cutter portion ・ Failure of thermal printer ・ Failure of printer control board assy “Printer Cutter Error” appears. Are the printer papers Remove the paper.
  • Page 21 5-7 Error message "PD Error" appears Main causes when error message "PD Error" appears: ・ Failure of PD assy “PD Error” appears. Does “PD Error” still appear even after pressing the clear key and performing the initial operation? Replace the PD assy. Note: If the error is not displayed frequently, the device can be used without replacing the PD assy.
  • Page 22 5-8 Error massage “WD Error” appears Main causes when error message "WD Error" appears: ・ Failure of PD assy “WD Error” appears. Does “WD Error” still appear even after pressing the clear key and performing the initial operation? Replace the PD assy. Note: If the error is not displayed frequently, the device can be used without replacing the PD assy.
  • Page 23 5-9 Error message "Right Disk○ Error" or "Left Disk○ Error" appears ※"○" is a number. Main causes when error message "Right Disk○ Error" or "Left Disk○ Error" appears: ・ Failure of either LD-R assy or LD-L assy “Right Disk○ Error” or "Left Disk○...
  • Page 24 5-10 Error message "Right Lens 4-5 Error" or "Left Lens 4-5 Error" appears Main causes when error message "Right Lens 4-5 Error" or "Left Lens 4-5 Error" appears: ・ Failure of LD-R assy or LD-L assy: “Right Lens 4-5 Error” or "Left Lens4-5 Error"...
  • Page 25 5-11 Error message "Right Lens 6 In Error" or "Left Lens 6 In Error" appears Main causes when error message "Right Lens 6 In Error" or "Left Lens 6 In Error" appears: ・ Failure of LD-R assy or LD-L assy “Right Lens6 In Error”...
  • Page 26 5-12 Error message "Right Lens 6 Out Error" or "Left Lens 6 Out Error" appears Main causes when error message "Right Lens 6 Out Error" or "Left Lens 6 Out Error" appears: ・ Failure of LD-R assy or LD-L assy “Right Lens 6 Out Error”...
  • Page 27 5-13 Error message "Error7" appears Main causes when error message "Error7" appears: ・ Failure of control board assy “Error7" appears. Replace the control board assy.
  • Page 28 5-14 Error message "Error8" appears Main causes when error message "Error8" appears: ・ Failure of control board assy “Error8" appears. Replace the control board assy.
  • Page 29 5-15 Nothing is displayed on screen when turning power on Main causes when nothing is displayed on the screen when turning the power on: ・ Failure of communication cable connecting controller and relay box ・ Failure of switching power supply or LCD panel assy ・...
  • Page 30 Are the printer harness and the Replace the harness. control-printer harness normal? Is the screen display normal? Does the head move or it beep when operating the device Replace the control board assy. with the operation switches or the dial switch etc.? Is the screen display normal? Replace the LCD panel assy.
  • Page 31 5-16 No response when operating operation switch or dial switch on controller Main causes in case of no response when operating operation switch or dial switch: ・Failure of operation board assy ・Failure of relay board assy ・Failure of operation harness No response when operating the switches or dial switch.
  • Page 32 5-17 Touch panel does not work Main causes in case that touch panel does not work: ・Calibration of touch panel is misaligned ・Failure of control board assy ・Failure of LCD panel assy The touch panel does not work. Calibrate the touch panel. 【Refer to 7-3.】...
  • Page 33 5-18 Measurement result is not printed out/ printout is not normal Main causes when measurement result is not printed out/ printout is not normal: ・ Failure of thermal printer ・ Failure of printer control board assy ・ Failure of control board assy No print out/ printout is not normal.
  • Page 34 5-19 LED for lighting eyeball does not light up Main causes when LED for lighting eyeball does not light up: ・ Failure of harness of LED for lighting eyeball ・ Failure of LED board assy for lighting right (left) eyeball or control board assy ・...
  • Page 35 【B. In case that both LEDs do not light up】 The LED for lighting the eyeball does not light up. Is "PD LED Error" displayed? Replace the control board assy. Does the LED for lighting the eyeball light up? Is the harness of the LED for Replace the harness of the lighting the eyeball normal? LED for lighting the eyeball.
  • Page 36 5-20 LED for lighting near point chart does not light up Main causes when LED for lighting near point chart does not light up: ・Failure of LED board assy for lighting right/ left eyeball ・Failure of motor control board assy or control board assy ・Failure of peripheral harnesses of head unit The LED for lighting the near chart does not light up.
  • Page 37 5-21 Cannot switch chart Chart which can communicate with: LCD-700, CP-500 Main causes when it cannot switch the charts: ・Failure of infrared communication board assy, motor control board assy or control board assy ・Failure of infrared harness The chart cannot be switched. Is it operated with the remote Failure of the chart.
  • Page 38 5-22 Cannot communicate with autoref, lensmeter or PC Autoref which can communicate with: ARK070, AKR550, AKR750 Lensmeter which can communicate with:CLE60, CLE070, ALM500, ALM700 Main causes when it cannot communicate with autoref, lensmeter or PC: ・ Communication settings or cables are different ・...
  • Page 39 5-23 Power indicator of relay box does not light up Main causes when power indicator of relay box does not light up: ・ Blowout of a fuse ・ Failure of switching power supply assy ・ Failure of control board assy, printer control board assy, relay board assy, communication board assy, motor control board assy or motor drive board assy The power indicator of the relay box does not light up.
  • Page 40 【Checking procedures of switching power supply】 1. Unplug the connector indicated with the red circle. 2. Turn the power on. 3. It is normal if the green LED of the switching power supply lights up. 4. In case that the green LED does not light up, check if 24V is output between the pins of –V and +V of the switching power supply.
  • Page 41 5-24 Other Error Message Other error messages are shown on the list below. Error message Details of error Cannot communicate between control board assy and operation Button not connected board assy. Cannot communicate between control board assy and printer Printer not connected control board assy.
  • Page 42 6 Cleaning of Measuring Windows Clean the measuring windows according to the procedures below because it greatly affects the test results if they have fingerprints or dust etc. on. 1) Saturate K-dry cleaning material or soft cloth with the neutral detergent. 2) Clean the measuring windows in a circular motion.
  • Page 43 7 Maintenance Mode The maintenance mode includes the settings which are necessary for the maintenance such as the chart, evaluation of the hardware, correction of the adjustment data of the product and print-out. 7-1 Start-up of maintenance mode Turn the power on whole pressing the dial push key. Release the dial push key when it starts beeping and the screen on the right appears by pressing and holding the dial push key.
  • Page 44 7-2 Function of each menu of maintenance mode 7-2-1 Calibration PD,WD button The screen on the right appears by selecting this menu. Right button Left button The details of each button on the screen are described below. : Screen which can change the setting of PD,WD button PD and WD appears.
  • Page 45 【Retrieving and input of calibration value】 1. Connect APH550 and the PC. 2. Start up the hyper terminal and match the setting of the PC with the one of APH550. ※The setting procedures of the hyper terminal. ①Start up the hyper terminal of PC, input the setting name in “Name”...
  • Page 46 6. Send the data above from the hyper terminal. ※The sending procedures from the hyper terminal ①After starting up Hyper Terminal, select “Send Text File…” of “Transfer” in the menu bar. ②The screen is changed as shown on the right. Select the file saved on the procedure 5and press "Open".
  • Page 47 PD value display area Congestion operation button 1) Motor Check Check the performance of the motor by pressing the menu. ① PD drive motor The PD value display area is changed at the same time that the PD drive motor starts driving by rotating the dial switch.
  • Page 48 ⑤ Others Clear button: Each motor starts initialization. Motor Speed button : Changing the motor speed (refer to "7-2-4") OK button : Exit this mode Motor Speed Clear button button OK button 2) LED Check The screen on the right appears by selecting this menu.
  • Page 49 4) Button Check It is switched to the screen on the right by selecting this menu. It checks the performance of the buttons. It displays “ON” by pressing each button and displays “OFF” by releasing each button on the controller. Clear : Display “ON”...
  • Page 50 7-2-4 S/N Input Set the serial No. by selecting this menu. The set serial No. is printed out when printing out Adjust data. 7-2-5 System Item Change the setting of the chart by selecting this menu. 1) Chart Select the type of the chart or change the setting of the channel.
  • Page 51 4）Output PC Switch the output format of the data from APH550 to PC. A: Output only the data of APH550. B: Output the data of autoref, lensmeter and PC which are input into APH550. 7-2-6 Arrange Mode The usual menu screen appears by selecting this menu. Refer to the operation manual about the details and the settings of each item.
  • Page 52 8 Replacement procedure of each unit All maintenance operation most be done by technicians approve by Essilor instrument service center. 8-1 Head Removal of LD case assy, head rest, cover for hiding screw, head rest adjustment ・8-1-1 knob assy and near point chart fixing knob assy Replacement of motor control board assy, right side motor drive board assy, left side ・8-1-2 motor drive board assy, motor drive unit harness and sensor harness for detecting...
  • Page 53 Carefully read the followings before replacing each unit. (1) Insert the connector in the board all the way inside when replacing the board/harness. Also do not squeeze the harness at the time of assembling. (2) Apply screw lock after tightening it when screwing at where screw lock was originally applied. (3) Check the operation performance after replacing each unit.
  • Page 54 8-1 Head 8-1-1 Removal of LD case assy, Face shield, head rest, cover for hiding screw, Head rest adjustment knob assy, near point chart fixing knob assy 1) Remove 2 covers for hiding screw by using a thin pin etc. 2) Remove the PD case F after unscrewing 2 screws for fixing the case in the covers for hiding screw.
  • Page 55 5) Remove the right LD case B after unscrewing 4 screws for fixing the case. Screws for fixing case 6) Remove the left LD case F and B by following the procedures of 3), 4) and 5) above. 7) Set the PD value as minimum in case of removing the PD case B. Set the PD value as 48 after connecting the head unit, controller unit and relay box and turning the power on (refer to “PD input”...
  • Page 56 9) Remove the PD case B by unscrewing 4 screws for fixing the case. Screws for fixing case Screws for fixing case 10) Procedure of disassembling is finished. Reassemble it with the opposite procedures of disassembling. Do not squeeze the harness with the case at the time of assembling.
  • Page 57 8-1-2 Replacement of motor control board assy, right side motor drive board assy, left side motor drive board assy, motor drive unit harness and position detecting sensor harness 8-1-2-1 Replacement of motor control board assy 1) Remove the PD case F (refer to 8-1-1). 2) In case of replacement of the motor control board assy, remove 6 screws for fixing the board, 2 hexagonal posts and all of the harnesses connected to the board.
  • Page 58 8-1-2-3 Replacement of left side motor drive board assy Follow the procedures of the right side motor drive board assy. 8-1-3 Replacement of infrared communication board assy, LED board assy for lighting right side near point chart, LED board assy for lighting left side near point chart, head peripheral harness and infrared harness 1) Remove the PD case F and B (refer to 8-1-1).
  • Page 59 8-1-4 Replacement of VD-R assy, VD-L assy, LED board assy for lighting right eyeball, LED board assy for lighting left eyeball, LED harness for lighting eyeball and sensor relay harness 1) Remove the PD case F, and right LD case F and B (refer to 8-1-1). 2) Replace the VD-R assy after removing 2 fixing screws and LED board assy for lighting the right eyeball.
  • Page 60 8-1-5 Replacement of LD-R assy and LD-L assy 1) Load the calibration value to the PC, change it to the data of the parts for repairs and save it (refer to 7-2-1). 2) Remove the LD case assy, and the PD case F and B (refer to 8-1-1). 3) Replace the LD-R assy after removing the motor drive unit harness and the screws for fixing the LD-R assy (total 4 for back and front sides).
  • Page 61 8-1-6 Replacement of PD assy 1) Load the calibration value to the PC, change it to the data of the parts for repairs and save it (refer to 7-2-1). 2) Remove the LD case assy, the PD case F and PD case B (refer to 8.1.1). 3) Remove the LD-R assy, LD-L assy and the motor drive unit harness (refer to 8.1.5).
  • Page 62 8-1-7 Replacement of joint block assy, leveling adjustment knob assy and chart stopper 1) Remove the PD case F and the PD case B (refer to 8-1-1). 2) Remove the Leveling adjustment knob assy by rotating it in a counterclockwise direction. 3) Remove the chart stopper after removing the near point chart holder from the chart stopper and unscrewing 2 fixing screws.
  • Page 63 8-1-8 Replacement of measuring window and VD check window 1) Remove the right LD case F (refer to 8-1-1). 2) The measuring window is screwed in and fixed with a small amount of adhesive. Replace the measuring window 1 by rotating it in a counterclockwise direction. Apply adhesive as it was after replacing the measuring window 1.
  • Page 64 8-2 Controller 8-2-1 Replacement of LCD case 1 assy, LCD panel assy, control board assy and legs for controller 1) Unscrew 2 screws for fixing the LCD assy with the LCD panel facing down. 2) Replace the leg for the controller by peeling it off with the LCD panel facing down. 3) The LCD assy and the LCD case 2 are fixed with 2 internal tabs.
  • Page 65 7) Replace the LCD case 1 assy after unscrewing 4 fixing screws. 8) Replace the control board assy after removing 4 board fixing screws and all of the harnesses connected to the control board assy. Board fixing screws LCD case 1 assy Fixing screw LCD harness Fixing screws...
  • Page 66 8-2-2 Replacement of LCD case 2, body case 1 and 2, open switch, printer case, printer control board assy, relay board assy, thermal printer, printer cover, printer harness, control printer harness, flame harness and printer flame harness 1) Remove the LCD assy (refer to 8-2-1). 2) Cut the banding band which ties the harnesses.
  • Page 67 Flame harness LCD case 2 Hinge fixing screws Hinge fixing screws Fixing screws 1 Fixing screws 2 Body case 2 Printer assy Control printer harness Printer harness 9) Replace the printer control board assy after unscrewing 4 board fixing screws and removing all of the harnesses connected.
  • Page 68 12) Replace the printer flame harness after unscrewing the fixing screw (long). 13) At the time of reassembling after replacing 10), 11) and 12) above, be careful about the place of the screw clamp and the fixing order of the printer flame harness. Printer flame harness Fixing screws (short) Fixing screw (long)
  • Page 69 8-2-3 Replacement of operation dial assy, Operation unit case assy, operation board assy and operation harness 1) Remove the LCD assy, the body case 1 and 2, and the LCD case 2 (refer to 8-2-1 and 8-2-2). 2) Remove the operation unit assy after unscrewing 8 fixing screws and removing the operation unit harnesses on the side of the operation unit.
  • Page 70 Operation dial Flat-blade screwdriver Operation board assy 4) Remove the operation board assy after unscrewing 4 board fixing screws and removing the operation harnesses. Operation harness Tape Operation board assy Fixing screws 5) Replace the Operation unit case assy after removing the operation dial assy, the operation board assy and the operation button.
  • Page 71 8-3 Relay box 8-3-1 Replacement of communication board assy, switching power supply assy, power supply BKT, power supply case and harness 1) Remove the power supply case after removing 7 case fixing screws. Power supply BKT Fixing screws Fixing screws Power supply case 2) Replace the communication board assy after unscrewing 5 board fixing screws and removing all of the harnesses connected to the communication board assy.
  • Page 72 Inlet earth harness Earth harness 2 Power supply SW harness SWPS output harness SWPS input harness 4) The procedure of disassembling is finished. Reassemble it with the opposite procedures of disassembling. 8-3-2 Replacement of power supply switch 1) Remove the power supply case and the communication board assy (refer to 8-3-1). 2) Remove all of the harnesses connected to the power supply switch.
  • Page 73 Light blue Light blue To switching power supply To fuse holder Brown To switching power supply Brown To fuse holder 5) Reassemble it with the opposite procedures of the disassembling. 8-3-3 Replacement of fuse 1) Replace the fuse by holding 2 tabs as shown below and taking it out. Tabs Fuse holder Fuse...
  • Page 74 8-3-4 Replacement of leg of relay box 1) Turn the unit over. 2) Replace 4 fixing screws. Fixing screw Leg of relay box...
  • Page 75 9 Rewriting procedures of the Software of APH 550 The rewriting procedures of the software of APH550 are described below. 1. Preparation ・PC ・RS-232C straight cable ・Software rewriting application (ComUpdate.exe) 2. Procedures (1) Start up the application of software rewriting (ComUpdate.exe).
  • Page 76 (3) Designation of the program file Select the file from the file selecting button or edit the file name, and designate the program file to rewrite. File name File selecting button (4) Connection of APH550 and PC Connect the RS-232C cable with the relay box of APH550 and PC. (5) Switch APH550 to the mode of program rewriting.
  • Page 77 It has been started up properly if the screen as shown below is displayed. (6) Communication setting of APH550. ① The setting of the communication speed It is set as 115200bps by pressing the top button and set as 9600bps by pressing the bottom button.
