  • Page 1 SER MANUAL...

  • Page 2: Table Of Contents

    Length of cables, cords, etc. b. Recommended separation distance c. Electromagnetic emissions d. Magnetic and electromagnetic immunity e. Electromagnetic immunity, radio frequencies 4. Cleaning & Maintenance a. Cleaning b. Maintenance VIII. QR C Vision-C 600 - Polarized visual chart system > V1- 02-2021 (VRSQSE)

  • Page 4: Introduction

    I. I NTRODUCTION...

  • Page 5: Main Features Of The Chart Screen

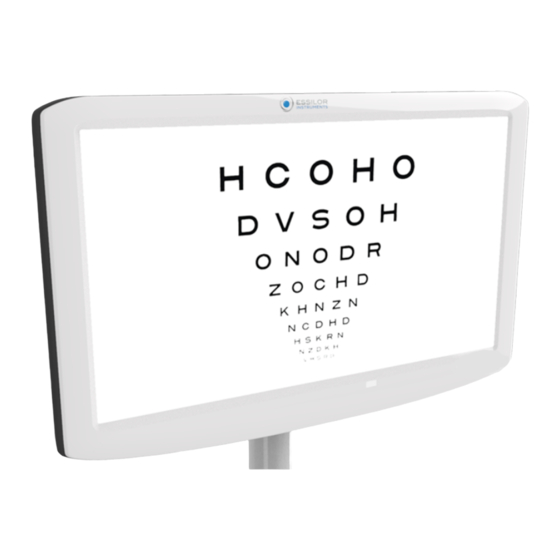

    QR Code Chapter (p.47). 1. Main features of the chart screen Vision-C 600 (VRS001) is a visual chart system, stand-alone type, which displays broad range of charts, based on LCD panel. 2. Instrument classification Vision-C 600 is a class I and B-type medical instrument.

  • Page 6: Copyright

    All reproduction of the content of this document, whether in part or as a whole, for the purpose of its publication or dissemination by any means and in any format whatsoever, even free of charge, is strictly prohibited without Essilor's prior written consent. Vision-C 600 - Polarized visual chart system > V1- 02-2021 (VRSQSE)

  • Page 7: Instrument

    II. I NSTRUMENT...

  • Page 8: Inspecting Instrument

    US: ref CA6096 Europe: ref VRSA05 Wall mounting bracket Power cable holder User manual Detachable parts Vision-C 600 is entirely compatible and designed to work with the Vision-R phoropters. Vision-C 600 - Polarized visual chart system > V1- 02-2021 (VRSQSE)

  • Page 9: Unpacking, Installation And Connection

    Be sure to mount the device away from a power outlet. Do not push the inserts too far into the wall. a. Unpackaging Open the box and remove the accessories box. Vision-C 600 - Polarized visual chart system > V1- 02-2021 (VRSQSE)

  • Page 10: Installation

    4. Hang the product by lining up the holes on the back of the unit with the metal strips of the wall mount bracket and hang the unit on these strips. Vision-C 600 - Polarized visual chart system > V1- 02-2021 (VRSQSE)
  • Page 11 > I SER MANUAL NSTRUMENT Size Components Screen plate, ion plate (x1) Wall plate Screw M4x16mm, ref. CV6273 (x4) Fastening screw ST6.3*65 vmm (x2) Expansion pipe (x2) Washer (x2) Vision-C 600 - Polarized visual chart system > V1- 02-2021 (VRSQSE)
  • Page 12 Unscrew and remove the part to be fixed on the wall. Position the wall part in order to mark the 2 fixing pants then, drill. Fit the wooden dowel provided. Screw the wall part of the support. Vision-C 600 - Polarized visual chart system > V1- 02-2021 (VRSQSE)
  • Page 13 Screw the other part with the 4 screws ref CV6273 (M4x16mm). Position the screen from above as shown below. Screw the security screw. Adjust the screen angle as needed. Vision-C 600 - Polarized visual chart system > V1- 02-2021 (VRSQSE)
  • Page 14 It is also possible put the chart screen on a support (ref. CS510). Installation of the power cord holder Put the power cable mounting holder. Screw the support to the right location. The scew is supplied. Vision-C 600 - Polarized visual chart system > V1- 02-2021 (VRSQSE)

  • Page 15: Connection

    Keep the original packaging with care in case the device needs to be transported again. 5. Identification and locating of the elements The Vision-C 600's main components are shown below. Vision-C 600 - Polarized visual chart system > V1- 02-2021 (VRSQSE)
  • Page 16 3. White LED (test Maddox) Rear face 1. Aeration 2. Speaker 3. Fixation zone 4. Aeration Connection 1. Power switch ON/OFF 2. Power IN DC 12V 3. RH45 Lan 4. USB1 5. USB2 Vision-C 600 - Polarized visual chart system > V1- 02-2021 (VRSQSE)

  • Page 17: Adjustments Before The Examination

    III. A DJUSTMENTS BEFORE THE EXAMINATION...

  • Page 18: Turning On/Off

    You can check the connection between the console keypad and the screen by clicking on the optotypes (they should appear on the screen). > The instrument is ready to be used. Turn off the instrument Press the ON/OFF switch on the chart screen. Vision-C 600 - Polarized visual chart system > V1- 02-2021 (VRSQSE)

  • Page 19: Positioning The Screen

    Optotypes are generated based on screen adjustment distances. 3. Settings a. Configuring the screen All the Vision-C 600 settings are configured on the console of the Vison-R. It is possible to modify the default settings of the screen by pressing on >...
  • Page 20 When [Chart Type] is set on [Vision-C 600], the IP communication is available. If the IP communication is set, [IR Channel] is replaced by [IP Address]. When [Vision-C 600] is selected, [Time before eco mode] and [Time before screen saver] are available as the [Vision-C 600 Configuration] button.

  • Page 21: Adjusting Optotypes From Console

    It is possible to generate optotypes from console by pressing on > of the keyboard of the console. Then, click on > The following page appears. Set the mirror mode [OFF] or [ON] regarding your configuration. Vision-C 600 - Polarized visual chart system > V1- 02-2021 (VRSQSE)
  • Page 22 And, set the distance from phoropter head to the screen in [Far Exam Distance] menu. Insert a USB key on the side of the console or, directly on the power supply. Select on the screen. Vision-C 600 - Polarized visual chart system > V1- 02-2021 (VRSQSE)
  • Page 23 The optotypes are adjusted. Then, connect the USB key on one of the USB port of the chart screen. Switch on the screen. > The update will start automatically. Vision-C 600 - Polarized visual chart system > V1- 02-2021 (VRSQSE)
  • Page 24 It is possible to generate optotypes from console by pressing on > of the keyboard of the console. Then, click on > The following page appears. Set the mirror mode [OFF] or [ON] regarding your configuration. Vision-C 600 - Polarized visual chart system > V1- 02-2021 (VRSQSE)
  • Page 25 Set the visual acuity: inch diopter And, set the distance from phoropter head to the screen in [Far Exam Distance] menu. Select on the screen. Press on to start the update. Vision-C 600 - Polarized visual chart system > V1- 02-2021 (VRSQSE)
  • Page 26 SER MANUAL DJUSTMENTS BEFORE THE EXAMINATION > The Vision-600 is downloading and upgrading the software. > Then, the system reboots. > The message [Waiting chart screen] appears on the keyboard. Vision-C 600 - Polarized visual chart system > V1- 02-2021 (VRSQSE)
  • Page 27 > A SER MANUAL DJUSTMENTS BEFORE THE EXAMINATION Don't do anything. > The system reboots a second time. At the end of the update press on Vision-C 600 - Polarized visual chart system > V1- 02-2021 (VRSQSE)

  • Page 28: Update The Screen

    IV. U PDATE THE SCREEN...

  • Page 29: Update By Usb Key

    The Vision-C 600's update is managing by the Vision-R 700 & Vision-R 800. When a new memory of the Vision-R 700 & Vision-R 800. is available, it is including the one of the Vision-C 600. 1. Update by USB key Click on >...
  • Page 30 > A warning popup appears. > Press on to confirm. > The optotypes are adjusted. Connect the USB key on one of the USB port of the chart screen. Vision-C 600 - Polarized visual chart system > V1- 02-2021 (VRSQSE)
  • Page 31 > U SER MANUAL PDATE THE SCREEN Switch on the screen. > The update will start automatically. Remove the USB key. > The chart screen will restart automatically. Vision-C 600 - Polarized visual chart system > V1- 02-2021 (VRSQSE)

  • Page 32: By Lan (Ip)

    2. By LAN (IP) Click on > of the console. Then click on > The following page appears: Set the [Link] setting with [IP]. Then, click on > The following page appears. Vision-C 600 - Polarized visual chart system > V1- 02-2021 (VRSQSE)
  • Page 33 SER MANUAL PDATE THE SCREEN Select on the screen. Press on to start the update. > The Vision-600 is downloading and upgrading the software. > Then, the system reboots. Vision-C 600 - Polarized visual chart system > V1- 02-2021 (VRSQSE)
  • Page 34 PDATE THE SCREEN > The message [Waiting chart screen] appears on the keyboard. Don't do anything. > The system reboots a second time. At the end of the update press on Vision-C 600 - Polarized visual chart system > V1- 02-2021 (VRSQSE)

  • Page 35: Troubleshooting

    V. T ROUBLESHOOTING...
  • Page 36 Please refer to the name plate and let us have the following information: Name of the instrument: VISION-C 600 Serial number: 9 digit-characters indicated on the name plate Detailed defects Your dealer has been trained by Essilor. Vision-C 600 - Polarized visual chart system > V1- 02-2021 (VRSQSE)

  • Page 37: Technical Data

    VI. T ECHNICAL DATA...
  • Page 38 Total weight: 7.9 Kg LEDs specifications Visible white LED: Color: white Chromaticity CCT: 5000 K Flux: 35.9 lm Class: NC Infra-red LED: Color: IR Wavelength: 850 nm Radiant intensity: 1000mW/sr Class: 2 Vision-C 600 - Polarized visual chart system > V1- 02-2021 (VRSQSE)

  • Page 39: Cautions & Warnings

    VII. C & W AUTIONS ARNINGS...

  • Page 40: Exclusion Of Liability Clause

    The covers are fragile, handling them while wearing jewelery or having long nails can lead to scratches. The white covers may yellow over time when exposed to ultraviolet light for an extended period. Vision-C 600 - Polarized visual chart system > V1- 02-2021 (VRSQSE)

  • Page 41: Power Supply

    Use only the power cord (Us or EUrope) provided with the device, model H05VV-F cord type 3G 10 mm², provided with VIIG plug. SJT 3x18 AWG provided with hospital grade plug Nema 5-15P HF for US/CAN ; 2 m in lenght. Vision-C 600 - Polarized visual chart system > V1- 02-2021 (VRSQSE)

  • Page 42: Computer Network

    The pictogram of the wheeled container appears on the label of the instrument. It indicates the obligation for separate collection and disposal of end-of- life/out-of-use electrical and electronic equipment. Vision-C 600 - Polarized visual chart system > V1- 02-2021 (VRSQSE)

  • Page 43: Electromagnetic Compatibility

    Shock-wave immunity IEC 61000-4-5 Conducted radio frequency disturbance immunity IEC 61000-4-6 Radiated Immunity - Magnetic Fields IEC 61000-4-8 Immunity to voltage dips, brief cuts and voltage IEC 61000-4-11 variations Vision-C 600 - Polarized visual chart system > V1- 02-2021 (VRSQSE)

  • Page 44: Recommended Separation Distance

    (UPS, etc.). Single phase: 0° 0% U for 250 cycles at 50Hz Voltage Interruptions (IEC61000-4-11) for 300 cycles at 60Hz is the AC mains voltage before applying the test level. Vision-C 600 - Polarized visual chart system > V1- 02-2021 (VRSQSE)

  • Page 45: Electromagnetic Immunity, Radio Frequencies

    Do not spray liquid on the screen or other parts of the product, regardless of the liquid, in order not to risk damaging the electronic boards. Do not use benzene, thinners, organic solvents, ether or gasoline to clean the instrument. Vision-C 600 - Polarized visual chart system > V1- 02-2021 (VRSQSE)

  • Page 46: Maintenance

    This product may malfunction due to the electromagnetic waves caused by cell phones, transceivers, radio- controlled toys, etc. Be sure to avoid having objects such as, which affect this product brought near product. Vision-C 600 - Polarized visual chart system > V1- 02-2021 (VRSQSE)

  • Page 47: Qr Code

    VIII. QR C...
  • Page 48 > QR C SER MANUAL Vision-C 600 - Polarized visual chart system > V1- 02-2021 (VRSQSE)
  • Page 49 > QR C SER MANUAL Vision-C 600 - Polarized visual chart system > V1- 02-2021 (VRSQSE)
  • Page 50 > QR C SER MANUAL Vision-C 600 - Polarized visual chart system > V1- 02-2021 (VRSQSE)
  • Page 51 Essilor Instruments USA 8600 W. Catalpa Avenue, Suite 703 Chicago, IL 60656 Phone: 855.393.4647 Email: info@essilorinstrumentsusa.com www.essilorinstrumentsusa.com...
