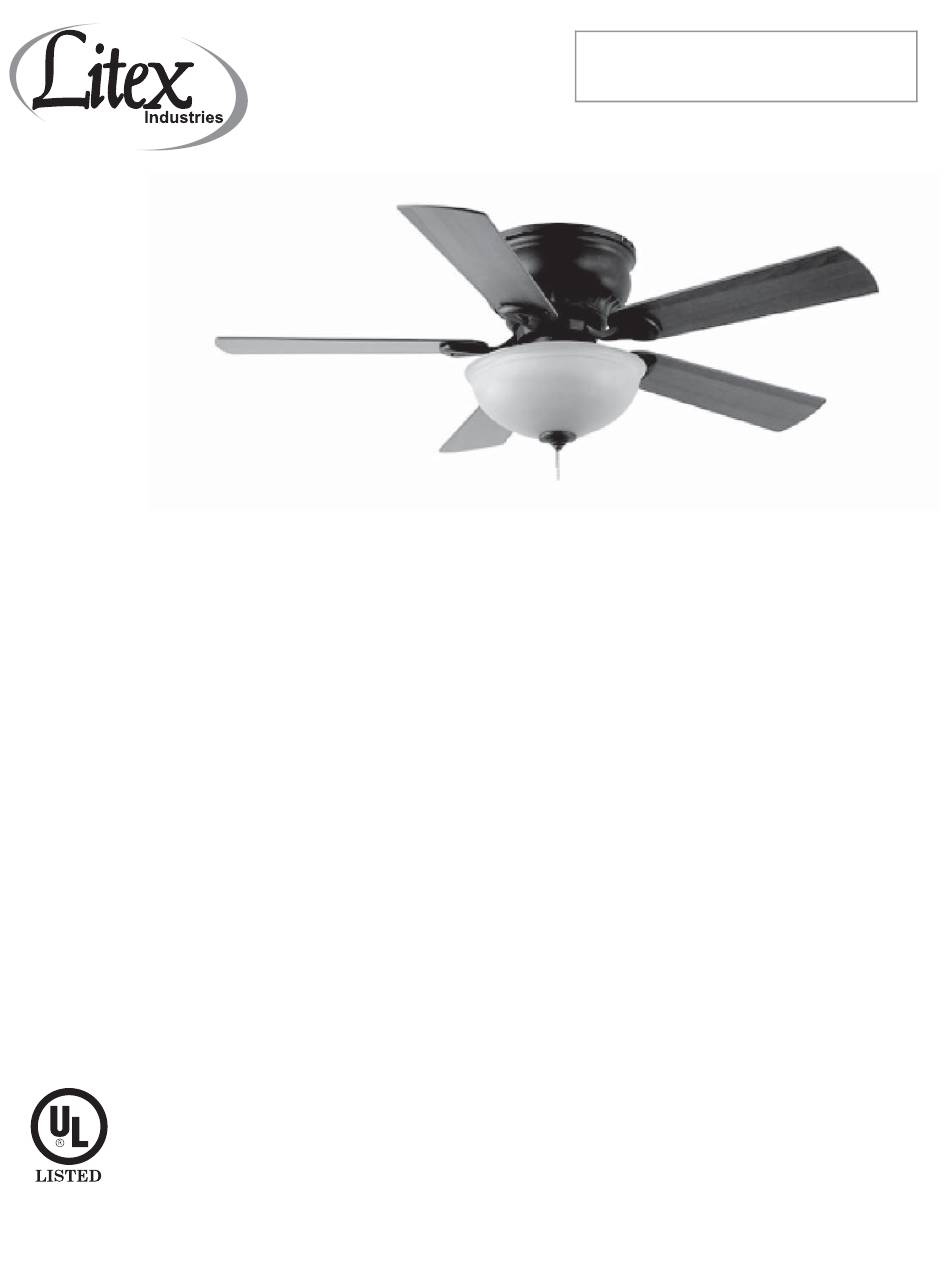

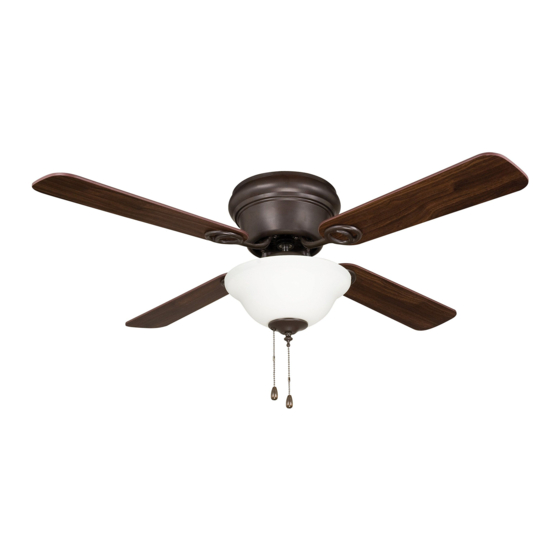

Installation Guide
For Model:
CSU44HRB5C1
E192641
net weight of fan: 15.7 lb. (7.12kg)
READ THESE INSTRUCTIONS AND
SAVE THEM FOR FUTURE USE

Table of Contents:

Wiring. pg. 5
Warranty. pg. 11
PRINTED IN CHINA

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the CSU44HRB5C1 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Litex CSU44HRB5C1

Summary of Contents for Litex CSU44HRB5C1

  • Page 1: Table Of Contents

    READ THESE INSTRUCTIONS AND SAVE THEM FOR FUTURE USE Installation Guide For Model: CSU44HRB5C1 Table of Contents: Safety Tips. pg. 1 Unpacking Your Fan. pg. 2 Parts Inventory. pg. 2 Installation Preparation. pg. 3 Hanging Bracket Installation. pg. 3 Fan Assembly. pg. 4 Wiring.

  • Page 2: Safety Tips

    SAFETY TIPS. WARNING: To reduce the risk of electrical shock, turn off the electricity to the fan at the main fuse box or circuit panel before you begin the fan installation or before servicing the fan or installing accessories. Read all instructions and safety information carefully before installing your fan and save these instructions. CAUTION: To avoid personal injury, the use of gloves may be necessary while handling fan parts with sharp edges.

  • Page 3: Unpacking Your Fan

    1. Unpacking Your Fan. Carefully open the packaging. Remove items from Styrofoam inserts. Remove motor housing and place on carpet or Styrofoam to avoid damage to finish. Do not discard fan carton or Styrofoam inserts should this fan need to be returned for repairs.

  • Page 4: Installation Preparation

    3. Installation Preparation. blade edge To prevent personal injury and damage, ensure that the hanging location allows the blades a inches clearance of 7ft. (2.13m) from the floor and 30in. 7 feet (76cm) (2.13m) (76cm) from any wall or obstruction. This fan is suitable for room sizes up to 225 square feet (20.9 square meters).

  • Page 5: Fan Assembly

    5. Fan Assembly. Install ball end of motor assembly into hanging hanging bracket opening. Align slot in ball with tab in bracket hanging bracket. DANGER: Failure to align slot in ball with tab in slot hanging bracket may result in serious injury or ball death.

  • Page 6: Wiring

    6. Wiring. CAUTION: Be sure outlet box is properly grounded and that a ground wire (GREEN or GREEN Bare) is present. Make sure all electrical connections comply with Local Codes or Ordinances and the National Electrical Code. If you are unfamiliar with electrical wiring or if the house/building BLACK wires are different colors than those referred to...

  • Page 7: Motor Housing Assembly

    metal post 7. Motor Housing Assembly. Locate 4 small metal posts on the outside edge of the hanging bracket. Now, locate the 4 metal bars on the inside of the motor housing. hanging bracket Raise motor housing to hanging bracket and align the 4 metal posts on the hanging bracket with the 4 metal bars on the motor housing.

  • Page 8: Light Kit Assembly (Optional). Pgs

    9. Light Kit Assembly (Optional). motor housing Remove 3 screws from top of light kit fitter. motor housing If you wish to use the light kit, remove finial, finial plate, threaded washer and rubber washer from bottom of light kit fitter. Save finial, finial plate, threaded washer and rubber washer for later use.
  • Page 9 9. Light Kit Assembly (Optional). (cont). Locate rubber washer, threaded washer, finial plate, and finial that were removed on the previous page. Place rubber washer inside glass motor housing shade over center hole. Raise glass shade in order to guide pull chains through corresponding holes at the bottom of the glass shade.
  • Page 10 9. Light Kit Assembly (Optional). (cont). WHITE BLACK If you do NOT wish to use the light kit, remove the hex nut and lock washer from the threaded rod at the top of the light kit fitter. hex nut Unscrew the switch housing cap to remove it lock washer from the light kit fitter, and then gently feed switch...

  • Page 11: Testing Your Fan

    10. Testing Your Fan. It is recommended that you test fan before motor housing finalizing installation. Restore power from circuit box and light switch (if applicable). Test fan speeds with the pull chain on switch housing. reverse Start at the OFF position (no blade movement). switch First pull will set the fan to HI.

  • Page 12: Troubleshooting

    Service at 1-800-527-1292 to arrange for return of fan. 1. Check wall switch to fan. Return fan, shipping prepaid, to Litex Industries, Ltd. We will 2. Verify that reverse switch is set completely in repair or ship you a replacement fan, and we will pay the return shipping cost.
