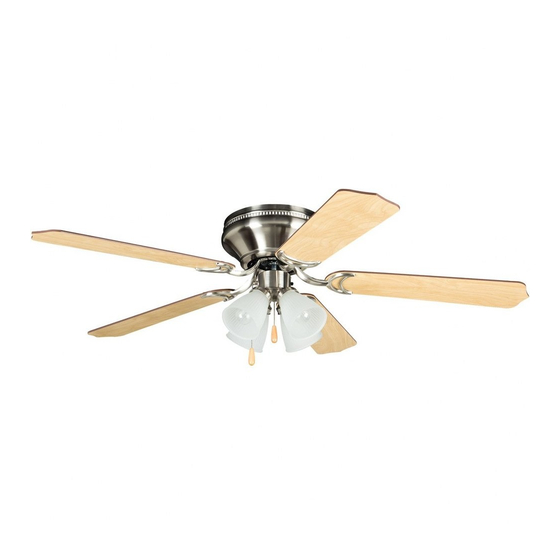

Litex BRC52BNK5C Installation Manual

Hide thumbs
1
2
3
4
5
6
7
8
9
Table of Contents

Advertisement

Quick Links

Installation Guide
For models:
BRC52BNK5C
BRC52ORB5C
E124404
net fan weight: 16.53 lb. (7.5 kg)
READ THESE INSTRUCTIONS AND
SAVE THEM FOR FUTURE USE

Table of Contents:

Wiring. pg. 4
Warranty. pg. 8
PRINTED IN CHINA

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the BRC52BNK5C and is the answer not in the manual?

Questions and answers

Related Manuals for Litex BRC52BNK5C

Summary of Contents for Litex BRC52BNK5C

  • Page 1: Table Of Contents

    READ THESE INSTRUCTIONS AND SAVE THEM FOR FUTURE USE Installation Guide For models: Table of Contents: BRC52BNK5C Safety Tips. pg. 1 Unpacking Your Fan. pg. 2 BRC52ORB5C Parts Inventory. pg. 2 Installation Preparation. pg. 3 Hanging Bracket Installation. pg. 3 Preparation for Wiring.

  • Page 2: Safety Tips

    SAFETY TIPS. WARNING: To reduce the risk of electrical shock, turn off the electricity to the fan at the main fuse box or circuit panel before you begin the fan installation or before servicing the fan or installing accessories. Read all instructions and safety information carefully before installing your fan and save these instructions.

  • Page 3: Unpacking Your Fan

    1. Unpacking Your Fan. Carefully open the packaging. Remove items from Styrofoam inserts. Remove motor housing and place on carpet or Styrofoam to avoid damage to finish. Do not discard fan carton or Styrofoam inserts should this fan need to be returned for repairs.

  • Page 4: Installation Preparation

    3. Installation Preparation. blade edge To prevent personal injury and damage, ensure that the hanging location allows the blades a inches clearance of 7ft. (2.13m) from the floor and 30in. 7 feet (76cm) (2.13m) (76cm) from any wall or obstruction. This fan is suitable for room sizes up to 400 12ft.

  • Page 5: Preparation For Wiring

    5. Preparation for Wiring. hanging bracket slot Remove 4 motor mounting screws and washers from underside of motor assembly. Leave rubber cushions in place. Lift motor assembly to hanging bracket and place one end of motor hanging assembly in hanging bracket slot. This will allow bracket motor assembly motor assembly to hang out of the way while...

  • Page 6: Fan Assembly

    7. Fan Assembly. hanging bracket opening Remove motor assembly from temporary hanging slot in hanging bracket. Carefully push wiring and wire connector into outlet box. Slide hanging bracket one end of motor assembly through one of the slot opening openings in the hanging bracket. Lift the other end and slide through opposite opening.

  • Page 7: Blade Assembly

    9. Blade Assembly. Time Saver: Washers for blade screws can be set on each blade screw prior to installing blades. motor housing Locate 15 blade attachment screws and washers provided in hardware pack. Hold one blade arm up to blade and align holes. Insert 3 blade blade attachment attachment screws (along with washers) with screws and washers...

  • Page 8: Testing Your Fan

    10. Light Kit Assembly (Optional). (cont.) reverse motor housing Remove 3 screws from light kit fitter. Locate BLUE and switch WHITE wires in the switch housing labeled FOR LIGHT. Remove and discard cardboard label and plastic that hold these 2 wires together. Connect WHITE wire from switch housing to WHITE wire from light kit fitter.

  • Page 9: Troubleshooting

    Service at 1-800-527-1292 to arrange for return of fan. 2. Verify that reverse switch is set completely in Return fan, shipping prepaid, to Litex Industries, Ltd. We will either direction. repair or ship you a replacement fan, and we will pay the 3.

This manual is also suitable for:

Brc52orb5c
