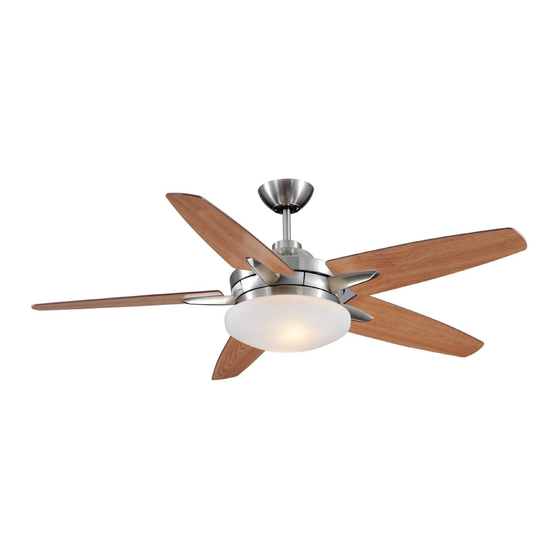

Litex E-AVA52BNK5CR Installation Manual

Hide thumbs

Table of Contents

Quick Links

Federal regulations require ceiling fans

with light kits manufactured or imported

after January 1, 2009, to limit total

wattage consumed by the light kit to

190W.

Therefore, this fan is equipped

with a wattage limiting device.

Installation Guide

For Model:

E-AVA52BNK5CR

E192641

net weight of fan: 26.46 lb (12 kg)

READ THESE INSTRUCTIONS AND

SAVE THEM FOR FUTURE USE

Need help?

Do you have a question about the E-AVA52BNK5CR and is the answer not in the manual?

Questions and answers

Summary of Contents for Litex E-AVA52BNK5CR

Page 1: Table Of Contents
190W. Therefore, this fan is equipped with a wattage limiting device. Installation Guide For Model: E-AVA52BNK5CR Table of Contents: Safety Tips. pg. 1 Unpacking Your Fan. pg. 2 Parts Inventory. pg. 2 Installation Preparation. pg. 3 Hanging Bracket Installation.
Page 2: Safety Tips
SAFETY TIPS. WARNING: To reduce the risk of electrical shock, turn off the electricity to the fan at the main fuse box or circuit panel before you begin the fan installation or before servicing the fan or installing accessories. READ ALL INSTRUCTIONS AND SAFETY INFORMATION CAREFULLY BEFORE INSTALLING YOUR FAN AND SAVE THESE INSTRUCTIONS.
Page 3: Unpacking Your Fan
1. Unpacking Your Fan. Carefully open the packaging. Remove items from Styrofoam inserts. Remove motor housing and place on carpet or Styrofoam to avoid damage to finish. Do not discard fan carton or Styrofoam inserts should this fan need to be returned for repairs.
Page 4: Installation Preparation
3. Installation Preparation. blade edge To prevent personal injury and damage, inches ensure that the hanging location allows the 7 feet (76 cm) (2.13m) blades a clearance of 7ft. (2.13m) from the floor and 30in. (76cm) from any wall or 12ft.
Page 5: Fan Assembly. Pgs
5. Fan Assembly. If you wish to extend the hanging length of your fan, set screw hole set screw you must remove the hanging ball from the 6in. stop pin downrod provided to use with an extended downrod (sold separately). [If you wish to use the 6in. downrod, please proceed to instructions following the dotted line below.] hanging ball...
Page 6: Wiring
5. Fan Assembly. (cont.) With the hanging bracket secured to the outlet box and able to support the fan, you are now ready to hang your fan. Grab the fan firmly with two hands. Slide downrod through opening in hanging bracket hanging bracket tab and let hanging ball rest on the hanging bracket.
Page 7: Canopy Assembly
7. Canopy Assembly. Locate 2 screws on underside of hanging bracket and remove screw closest to the open hanging bracket end of of the hanging bracket. Partially loosen the other screw. Lift canopy to hanging bracket. screw Place rounded part of slotted hole in canopy over loosened screw in hanging bracket and push up.
Page 8: Light Kit Assembly
9. Light Kit Assembly. motor housing Temporarily raise light kit fitter to fitter plate (on underside of motor) to determine which 2 screws in fitter plate align with slotted holes in light kit fitter and then lower light kit fitter and partially loosen these 2 screws.
Page 9: Remote Control Operation
10. Remote Control Operation. LIGHT button - Tap once to turn light ON or OFF. light dimmer setting Liquid crystal display shows the amount of brightness as a percentage. Holding the button down for more than 2 seconds will cycle light through brightness settings.
Page 10: Troubleshooting
Troubleshooting. Warranty. LITEX LIFETIME LIMITED WARRANTY: LITEX INDUSTRIES, LTD. warrants this fan to the original household purchaser for indoor use under the following provisions: 1-YEAR WARRANTY: LITEX INDUSTRIES, LTD. will replace or Problem: Fan fails to operate. repair any fan which has faulty performance due to a Solutions: defect in material or workmanship.
