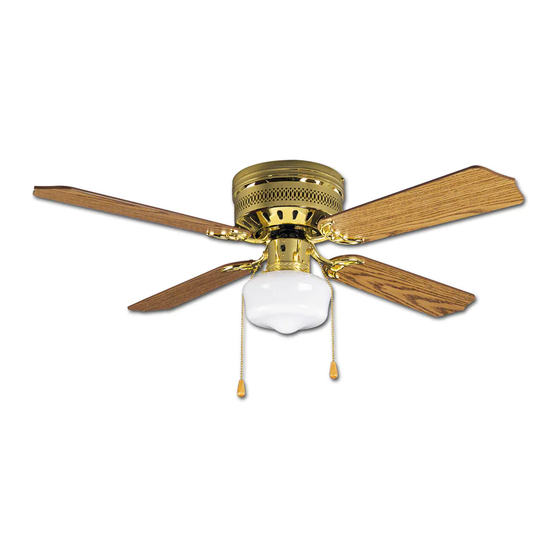

Installation Guide
For Models:
CC42AB4C
CC42BB4C
CC42WW4C
E124404
net weight of fan: 9.46 lbs. (4.29 KG)
READ THESE INSTRUCTIONS AND
SAVE THEM FOR FUTURE USE
Table of Contents:
Safety Tips. pg. 1
Unpacking Your Fan. pg. 2
Parts Inventory. pg. 2
Installation Preparation. pg. 3
Hanging Bracket Installation. pg. 3
Fan Assembly, Step One. pg. 4
Wiring. pg. 4
Fan Assembly, Step Two. pg. 5
Motor Housing Assembly. pg. 5
Blade Assembly. pg. 6
Light Assembly. pg. 7
Testing Your Fan. pg. 7
Troubleshooting. pg. 8
Parts Replacement. pg. 8
Warranty. pg. 8
PRINTED IN CHINA
Advertisement
Table of Contents
Related Manuals for Litex CC42AB4C
Summary of Contents for Litex CC42AB4C
-
Page 1: Table Of Contents
READ THESE INSTRUCTIONS AND SAVE THEM FOR FUTURE USE Installation Guide For Models: CC42AB4C Table of Contents: CC42BB4C Safety Tips. pg. 1 Unpacking Your Fan. pg. 2 CC42WW4C Parts Inventory. pg. 2 Installation Preparation. pg. 3 Hanging Bracket Installation. pg. 3 Fan Assembly, Step One. -
Page 2: Safety Tips
SAFETY TIPS. WARNING: To reduce the risk of electrical shock, turn off the electricity to the fan at the main fuse box or circuit panel before you begin the fan installation or before servicing the fan or installing accessories. Read all instructions and safety information carefully before installing your fan and save these instructions. -
Page 3: Unpacking Your Fan
1. Unpacking Your Fan. Carefully open the packaging. Remove items from Styrofoam inserts. Remove motor housing and place on carpet or Styrofoam to avoid damage to finish. Do not discard fan carton or Styrofoam inserts should this fan need to be returned for repairs. -
Page 4: Installation Preparation
3. Installation Preparation. blade edge To prevent personal injury and damage, ensure that the hanging location allows the blades a inches 7 feet (76cm) clearance of 7ft. (2.13m) from the floor and 30in. (2.13m) (76cm) from any wall or obstruction. This fan is suitable for room sizes up to 144 10ft. -
Page 5: Fan Assembly, Step One
hook 5. Fan Assembly, Step One. Remove single motor mounting screw from hook hanging end of motor assembly. Remove 2 motor bracket mounting screws from hanging bracket. Lift motor assembly to hanging bracket and slide hook end (with single screw hole) into square opening on hanging bracket (see diagram at right). -
Page 6: Fan Assembly, Step Two
7. Fan Assembly, Step Two. Carefully push wiring and wire nuts into outlet box. Leave hook end of motor assembly in square opening of hanging bracket and lift the other end of motor assembly toward hanging bracket. Align motor assembly screw holes with hanging bracket screw holes and, using motor mounting screws, secure motor assembly with motor... -
Page 7: Blade Assembly
9. Blade Assembly. Time Saver: Washers for blade screws can be set motor housing on each blade screw prior to installing blades. Locate 12 blade attachment screws and washers in hardware pack. Hold blade arm up to blade blade attachment and align holes. -
Page 8: Light Assembly
10. Light Assembly. Install 1 candelabra base 60 watt max. bulb (sold separately)--size A15C recommended. Remove 3 thumb screws from light kit plate. switch housing Use these thumb screws to attach glass shade thumb screw to light kit plate. Do not overtighten thumb thumb screw screws as glass may crack or break. -
Page 9: Troubleshooting
Problem: Fan fails to operate. Service at 1-800-527-1292 to arrange for return of fan. Solutions: Return fan, shipping prepaid, to Litex Industries, Ltd. We will 1. Check wall switch to fan. repair or ship you a replacement fan, and we will pay the 2.
