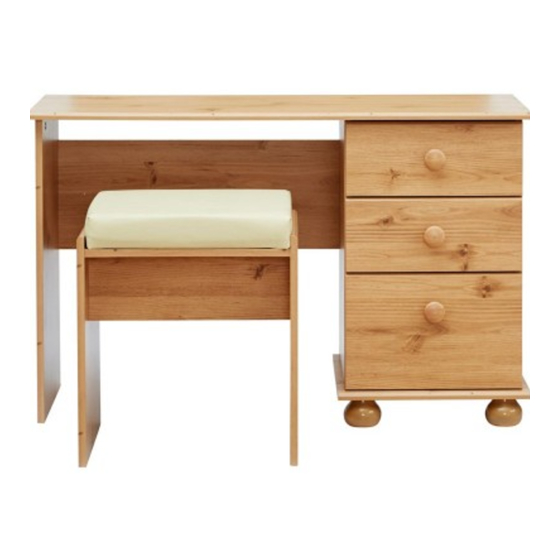

Argos Stirling 331/3639 Assembly Instructions Manual

Dressing table and stool

Hide thumbs

page of 20

/ 20
Bookmarks

Quick Links

Download this manual

Stirling - Dressing Table and Stool

Assembly Instructions -

Dimensions

Width - 105cm

Depth - 39cm

Height - 67cm

Important -

Please read these instructions fully before starting assembly

If you need help or have damaged or missing parts, call the Customer Helpline: 03456 400800

Please keep for future reference

331/3639

330/0446

MADE IN

BRITAIN

Issue 2 - 13/01/15

Need help?

Do you have a question about the Stirling 331/3639 and is the answer not in the manual?

Questions and answers

Summary of Contents for Argos Stirling 331/3639

Page 1 Stirling - Dressing Table and Stool Assembly Instructions - 331/3639 Please keep for future reference 330/0446 Dimensions Width - 105cm Depth - 39cm MADE IN Height - 67cm BRITAIN Important - Please read these instructions fully before starting assembly If you need help or have damaged or missing parts, call the Customer Helpline: 03456 400800 Issue 2 - 13/01/15...
Page 2 Safety and Care Advice Important - Please read these instructions fully before starting assembly • Warning: This unit weighs • Make sure you have enough • We do not approximately 30kgs. space to layout the parts before recommend the Please lift with care. starting.
Page 3 If you have damaged or missing components, call the Components - Panels Customer Helpline: 03456 400800 quoting the reference numbers below Please check you have all the panels listed below Base (D3010A) (D2993A) (1050 x 390mm) (405 x 390mm) Large Drawer Front Large Left Drawer Large Right Drawer Large Drawer...
Page 4 If you have damaged or missing components, call the Components - Fittings Customer Helpline: 03456 400800 quoting the reference numbers below Please check you have all the fittings listed below Note: The quantities below are the correct amount to complete the assembly. In some cases more fittings may be supplied than are required.
Page 5 If you have damaged or missing components, call the Assembly Instructions Customer Helpline: 03456 400800 quoting the reference numbers below Step 1 Prepare the large drawer front Screw 2 metal dowels into the large drawer front Note: Tighten the metal dowels up fully against the panels.
Page 6 Assembly Instructions Step 4 Fit the drawer base Slide the drawer base down the grooves in the large drawer sides and down into the groove in the large drawer front Step 5 Fit the large drawer back Fit the large drawer back between the large drawer sides Make sure that the...
Page 7 Assembly Instructions Step 7 Fit the wedgefixes Turn the large drawer assembly over and slide 2 wedgefixes into the front and back grooves, as shown, and tighten up the screws. Step 8 Prepare the 2 small drawer fronts Screw 2 metal dowels into each of the small drawer fronts Note: Tighten the metal...
Page 8 Assembly Instructions Step 10 Attach the small drawer sides to the small drawer frontS Push the small left drawer side and small right drawer side onto the back of the small drawer front Turn the small locking nuts on the small left drawer side small right drawer side Step 11...
Page 9 Assembly Instructions Step 13 Attach the handle Attach a handle to the small drawer front using screw Step 14 Fit the wedgefixes Turn the small drawer assembly over and slide 2 wedgefixes into the front and back grooves, as shown, and tighten up the screws.
Page 10 Assembly Instructions Step 15 Prepare one surface of the left side Place 3 runners the left side . Slide back the top of runner Finished and use the 2nd hole front edge from the front to fit the 1st screw Slide the runner back the other way and fit the 2nd screw...
Page 11 Assembly Instructions Step 16 Prepare the other surface of the left side Screw 2 metal dowels into the left side Finished front edge Step 17 Prepare the right side Place 3 runners the right side . Slide back the top of runner and use the 2nd hole from the front to fit the 1st screw...
Page 12 Assembly Instructions Step 18 Fit the base Fit the base onto the side panels using 4 screws p l a c h i Note: To make it easier to fit the base panel, s u r f a c place polystyrene blocks Polystyrene from the packaging block...
Page 13 Assembly Instructions Step 21 Prepare the fly end Insert 2 large locking nuts into the fly end Screw 2 metal dowels into the fly end Tap a wooden dowel into the fly end Step 22 Finished top edge Join the fly end and modesty Push the modesty onto the fly end...
Page 14 Assembly Instructions Step 24 Fit 2 plastic nails Tap 2 plastic nails into the bottom edge of the fly end as shown. Using 2 people, carefully stand the unit up. Warning: The unit is heavy. Lift with care. Step 25 Prepare the top Screw 6 metal dowels into the underside of the...
Page 15 Assembly Instructions Step 26 Fit the top Lower the top down onto the assembly. Use a screwdriver to tighten the 6 large locking nuts fitted to the left side , right side and fly end Using 2 people, carefully lay the unit back down onto its front edges.
Page 16 Assembly Instructions Example Step 28 Attach the Attach the Fit the overbalance strap to the wall strap to the unit protector Wall fixing Strap (not supplied) Strap To prevent possible Washer Washer Washer overbalancing we Screw recommend that this unit Screw is secured to a suitable (not supplied)
Page 17 Assembly Instructions Step 30 Prepare the 2 stool sides Screw 6 metal dowels into each of the 2 stool sides , as shown. Step 31 Prepare the stool base Insert 4 large locking nuts into the holes in the stool base Tap 2 wooden dowels into the ends of the stool base...
Page 18 Assembly Instructions Step 33 Prepare the 2 stool rails Insert 4 large locking nuts into each of the 2 stool rails Tap 2 wooden dowels into each stool rail Step 34 Fit the stool rails Push the 2 stool rails down onto the stool side as shown.
Page 19 Assembly Instructions Step 36 Fit the seat pad Position the seat pad onto the assembly and make sure that its 4 edges line up with the stool base Soft Hold the seat pad surface position and screw up through the 4 holes in Hard the stool base using...
Page 20 Lift with care. If you need help or have damaged or missing parts, call the Customer Helpline: 03456 400800 and quote the reference numbers on the component pages. Argos Ltd, 489-499 Avebury Boulevard, Central Milton Keynes, MK9 2NW ALR3110...
