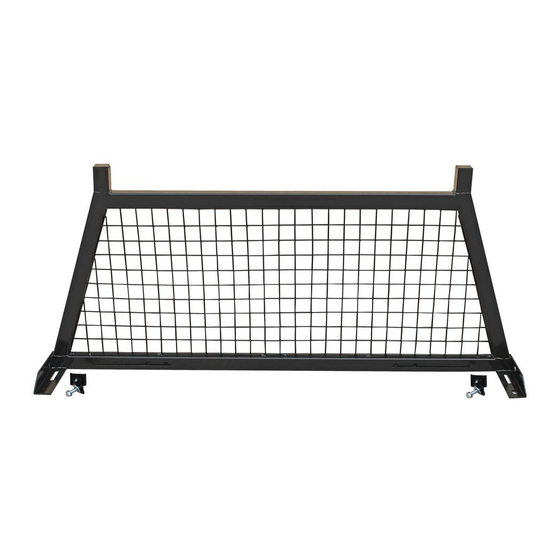

PICK-UP TRUCK
HEADACHE RACK
MOUNTING INSTRUCTIONS
#07715
Read and understand this entire manual before assembling and
installing. Keep this manual for the warnings and precautions. This
manual offers important information on how to assemble, use and
maintain this product.
WARNING
• This is a two person job
• If you are not a mechanical person don't attempt the installation, seek
out a qualified installer.
• Always use Tie Down straps to secure your load.
Advertisement
Table of Contents
Related Manuals for Erickson 07715
Summary of Contents for Erickson 07715
- Page 1 PICK-UP TRUCK HEADACHE RACK MOUNTING INSTRUCTIONS #07715 Read and understand this entire manual before assembling and installing. Keep this manual for the warnings and precautions. This manual offers important information on how to assemble, use and maintain this product. WARNING •...

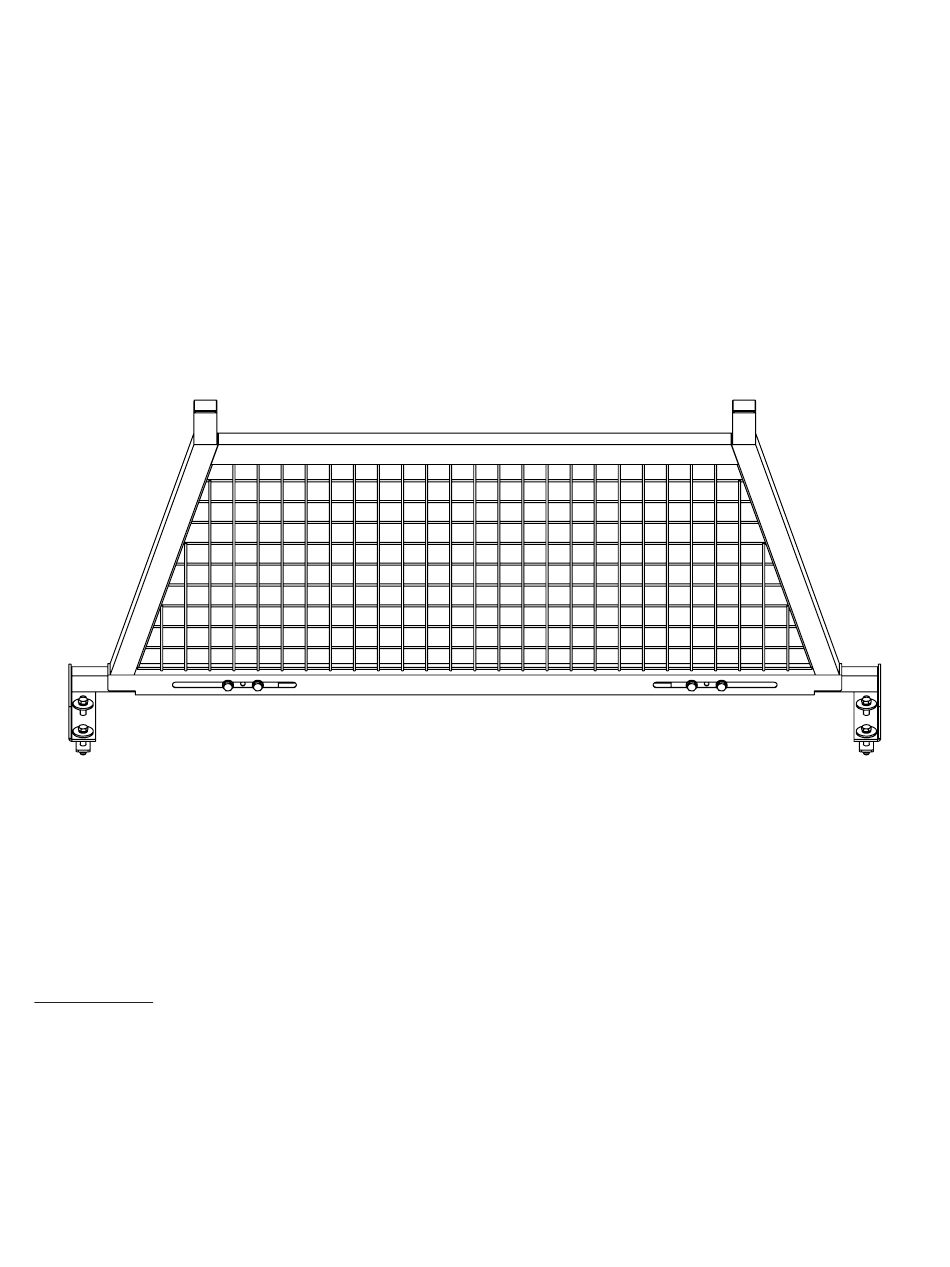

- Page 2 Item no: 07715 Installation Procedure 1. Note the 3 main components, mesh rear window guard, and the left and right L-brackets. ANCHOR HOLE RIGHT SIDE BRACKETS WIDTH ADJUSTING SLOTS LEFT SIDE BRACKETS ANCHOR HOLE 2. Window guard must have the width adjusting slots facing the truck box area.
- Page 3 Item no: 07715 3. Note the mounting brackets use the stake pocket anchor holes for mounting. 4. Take the long bolt with flat washer and drop in the front hole of the right bracket, attach the black U-clamp, make sure the ends of the clamp are facing...
- Page 4 Item no: 07715 5. Slide the window guard over the right bracket now and install the 2 bolts and washers in the width adjusting slots, do not tighten just snug them up at this point. 6. Slide the left bracket into the window guard and install the 2 bolts and...
- Page 5 Item no: 07715 7. Repeat step #4 mounting the left bracket. 8. Adjust the window guard to make sure that it is centered and that you have the same spacing on each side. Once the preceding step is done, complete the tightening process of all bolts previously lightly tightened during the installation.
- Page 6 Item no: 07715 Part Description Quantity Part Description Quantity End Cap Bracket Rack Frame U-Clamp Rigth side bracket M12 x 30 flat hex bolt M12 x 75 flat head hex M12 lock washer bolt M12 lock washer Left side bracket...
- Page 7 Limits of implied Warranty and Consequential Damage Erickson Manufacturing Ltd. disclaims any obligation to cover any loss time, use of this product, freight, or any incidental or consequential claim by anyone from using this product. THIS WARRANTY IS IN LIEU OF ALL OTHER WARRANTIES EXPRESS OR IMPLIED, INCLUDING WARRANTIES OF MERCHANTABILITY OR FITNESS FOR A PARTICULAR PURPOSE.
