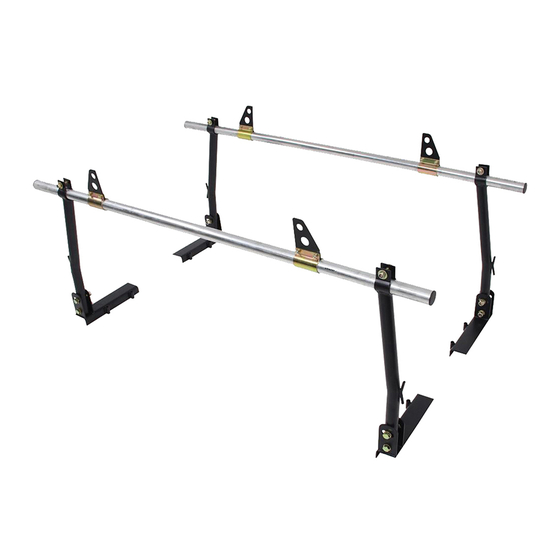

- Page 1 Item no: 07706 800 lb. STEEL TRUCK RACK INSTRUCTION MANUAL READ ALL SAFETY WARNINGS AND INSTRUCTIONS. Failure to follow the warnings and instructions may result in serious injury. Save all warnings and instructions for future reference.
- Page 2 Item no: 07706 Triangular stop 4x M8 * Bolt 8x Cross Bar 2 x Mounting sleeve 4x 8 Washers 8x 8 Spring Washers 8x M8 Nut 8x 1. Slide 2 mounting sleeves (14) onto one of the cross bars (4). Insert the triangular stops(13) into the mounting sleeve(14), secure with M8*25 Bolts(15) and 8 washers(16),8 spring washers(17),M8 nuts(18).
- Page 3 Item no: 07706 12 Washer 4x M12 Lock Nut 4x M12* 55 Bolt 4x 4. Place the assembled cross bar onto the opening tops of each post (3), tighten with M12*55 Bolts” (19), 12 washers (6), and M12 Lock nuts (20).
- Page 4 Item no: 07706 READ ALL SAFETY WARNINGS AND INSTRUCTIONS. Failure to follow the warnings and instructions may result in serious injury. Save all warnings and instructions for future reference. INSTALLATION PRECAUTIONS 1. Follow DOT regulations regarding installation and use. 2. Park truck on a flat, level, hard surface well away from traffic. Place transmission in park/ neutral and set parking brake.
- Page 5 Limits of implied Warranty and Consequential Damage Erickson Manufacturing Ltd. disclaims any obligation to cover any loss time, use of this product, freight, or any incidental or consequential claim by anyone from using this product. THIS WARRANTY IS IN LIEU OF ALL OTHER WARRANTIES EXPRESS OR IMPLIED, INCLUDING WARRANTIES OF MERCHANTABILITY OR FITNESS FOR A PARTICULAR PURPOSE.
