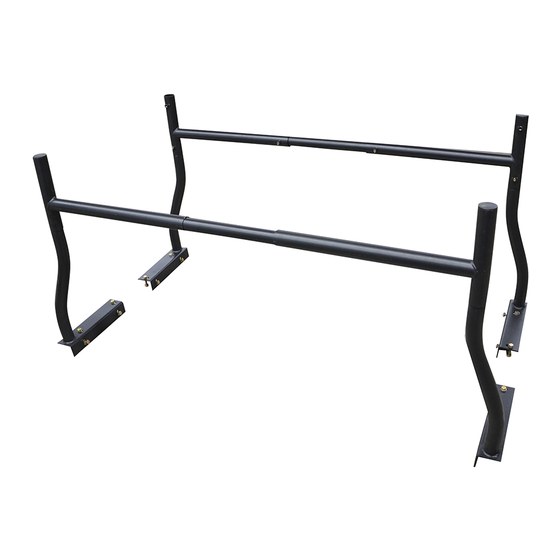

MANUAL
ITEM# 07710
UNIVERSAL UTILITY
TRUCK RACK
WARNING: Read carefully and understand all ASSEMBLY AND OPERATION
!
INSTRUCTIONS: before operating. Failure to follow the safety rules and other basic
safety precautions may result in serious personal injury.

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the 07710 and is the answer not in the manual?

Questions and answers

Related Manuals for Erickson 07710

Summary of Contents for Erickson 07710

  • Page 1 MANUAL ITEM# 07710 UNIVERSAL UTILITY TRUCK RACK WARNING: Read carefully and understand all ASSEMBLY AND OPERATION INSTRUCTIONS: before operating. Failure to follow the safety rules and other basic safety precautions may result in serious personal injury.

  • Page 2: Intended Use

    Item no: 07710 INTENDED USE This unique truck rack transports anything from construction materials and ladders to kayaks and more! TECHNICAL SPECIFICATIONS Property Specification Minimum Length 57in. Maximum Length 77in. Minimum Width 13.8in. Minimum Height 33.5in. Maximum Weight Capacity 500 lbs.

  • Page 3: Work Area Safety

    Item no: 07710 WARNING WORK AREA SAFETY • Inspect the work area before installation. Keep work area clean, dry, free of clutter, and well lit. Cluttered, wet, or dark work areas can result in injury. Installing the truck rack in confined work areas may put you dangerously close to other cutting tools and rotating parts.
  • Page 4 Item no: 07710 WARNING RACK USE AND CARE • Do not over fill the rack. Racks do a better and safer job when used in the manner for which they are designed. Plan your work, and do not overload. • Check for damaged parts before each use. Carefully check that the rack will operate properly and perform its intended function.
  • Page 5 Item no: 07710 1. Set the rack to the high (Fig. 1) or low (Fig. 2) position, whichever is best for the cargo and the truck, by flipping the Left and Right Crossbraces (1 and 2). For bowed canoes, the high position is recommended. If you choose to flip the Crossbraces (1 and 2), you will have to remove and replace the Caps.
  • Page 6 Item no: 07710 3. Center the Crossbraces (1 and 2) left to right and secure them with M10*15 Allen Head Set Screw (D). (Fig. 4) 4. Secure the Crossbrace (1 and 2) to each Upright leg with M10*15 Allen Head Set Screw (D). (Fig. 4) FIG 4 5.

  • Page 7: Parts Diagram

    Item no: 07710 PARTS DIAGRAM PARTS LIST Item # Description Quantity Left Crossbrace Right Crossbrace Crossbrace Extention Left Upright Right Upright...

  • Page 8: Hardware List

    Item no: 07710 HARDWARE LIST HARDWARE DECRIPTION QUANTITY M10*45 Hex Bolt M10 Flat Washer M10 Lock Nut M10*15 Allen Head Set Screw...
  • Page 9 Limits of implied Warranty and Consequential Damage Erickson Manufacturing Ltd. disclaims any obligation to cover any loss time, use of this product, freight, or any incidental or consequential claim by anyone from using this product. THIS WARRANTY IS IN LIEU OF ALL OTHER WARRANTIES EXPRESS OR IMPLIED, INCLUDING WARRANTIES OF MERCHANTABILITY OR FITNESS FOR A PARTICULAR PURPOSE.
