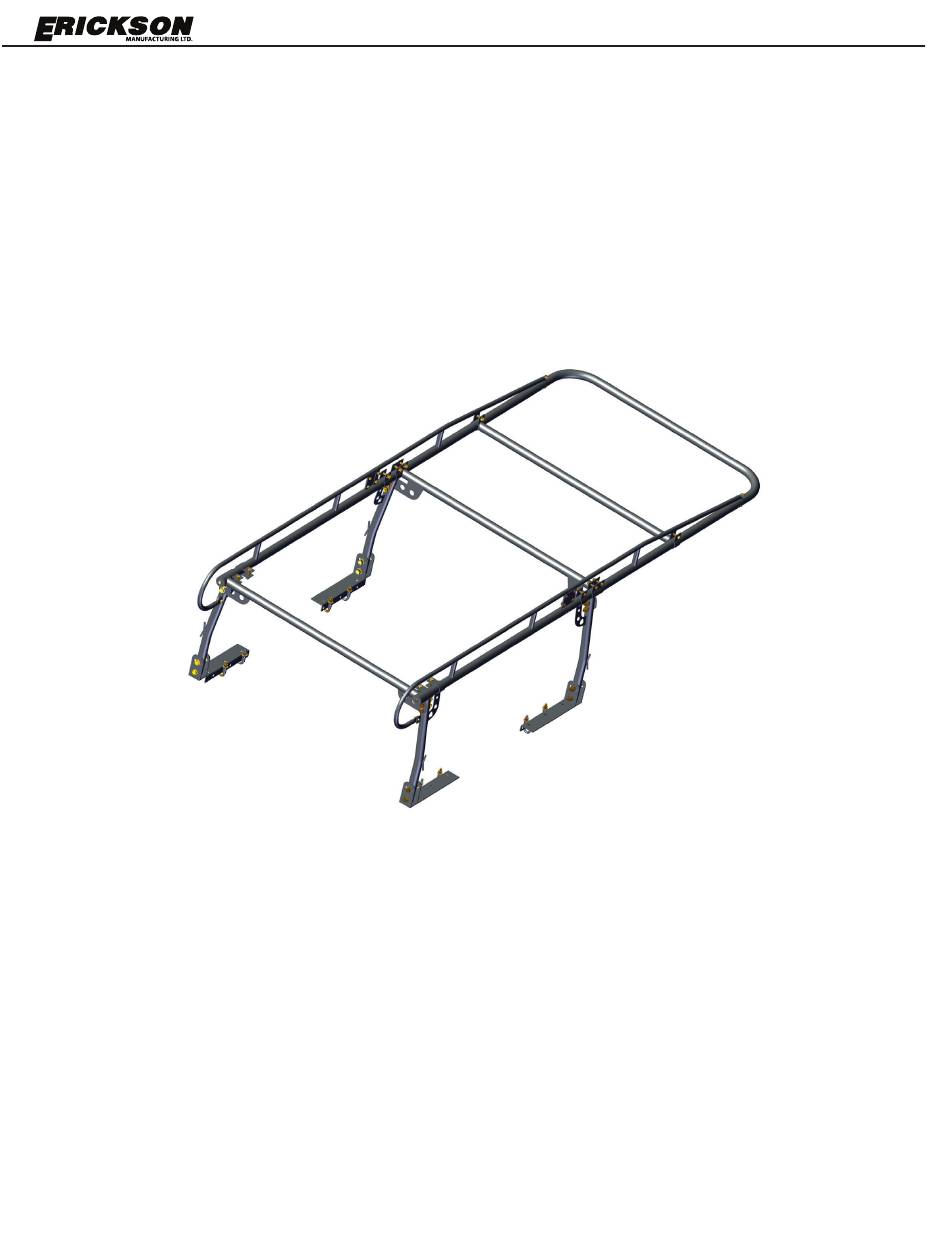

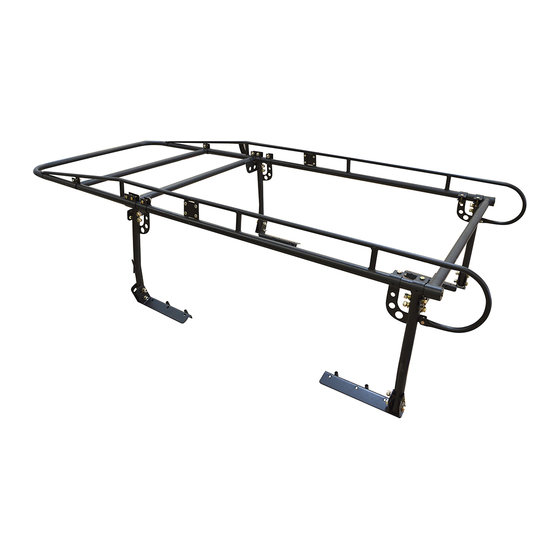

- Page 1 Item no : 07707 1000 LB. CONTRACTOR TRUCK RACK INSTRUCTION MANUAL...
-
Page 2: Installation Precautions
: 07707 READ ALL SAFETY WARNINGS AND INSTRUCTIONS. Failure to follow the warnings and instructions may result in serious injury. Save all warnings and instructions for future reference. INSTALLATION PRECAUTIONS 1. Follow DOT regulations regarding installation and use. -
Page 3: Warranty
Limits of implied Warranty and Consequential Damage Erickson Manufacturing Ltd. disclaims any obligation to cover any loss time, use of this product, freight, or any incidental or consequential claim by anyone from using this product. THIS WARRANTY IS IN LIEU OF ALL OTHER WARRANTIES EXPRESS OR IMPLIED, INCLUDING WARRANTIES OF MERCHANTABILITY OR FITNESS FOR A PARTICULAR PURPOSE. -
Page 4: Parts List
PARTS LIST item no : 07707 Item# Description Q’ty Item# Description Q’ty Front Side Bar M16 Lock nut Cross Bar A Back Side Bar Cross Bar B Rear right leg M10*70 Carriage Bolt Rear left leg 10 washer Cross Bar C... -
Page 5: Installation Tips
INSTALLATION TIPS Item no : 07707 Tip: Do not completely tighten nuts and bolts until very end once mounted on vehicle. Tip: Laying out all the parts before building will eliminate searching and speed up construction. - Page 6 : 07707 Step 1: Bolt Package 1 Constructing front section of rack Item # Description M10*65 Carriage Bolt A. Slide Cab Bar (Item 25) onto Front Side Bar’s (Item 1) 10 Washer i) Use Item # 4,5,6 from Bolt Package 1 to secure (Fig#1)
- Page 7 Item no : 07707 Step 2: Constructing rear section of rack a) Slide the Left (Item 18) and Right (Item 17) Rear Legs onto the Rear-Side Bars (Item 16) i) Make sure cleat faces outside ii) Secure using Part 7,8,9 from Bolt Package 2 (Fig# 4)
- Page 8 : 07707 Step 3: Mounting front and rear section together a) Mount a Connecting Plate (Item 21) onto each side of Front Side Bars (Item 1) b) Slide Rear Side Bars (Item 16) into Front Side Bar (Item 1) and secure Connecting Plate (Item 21) to rear section.
- Page 9 Item no : 07707 Step 5: Mounting the truck rack onto vehicle a) Lift truck rack up onto bed rails so lip hangs inside truck box i) Position rear feet first. Make sure not to impede tailgate operation ii) Front legs are adjustable, slide into desired position iii) WARNING: Position the rack as close to the cab as possible.
