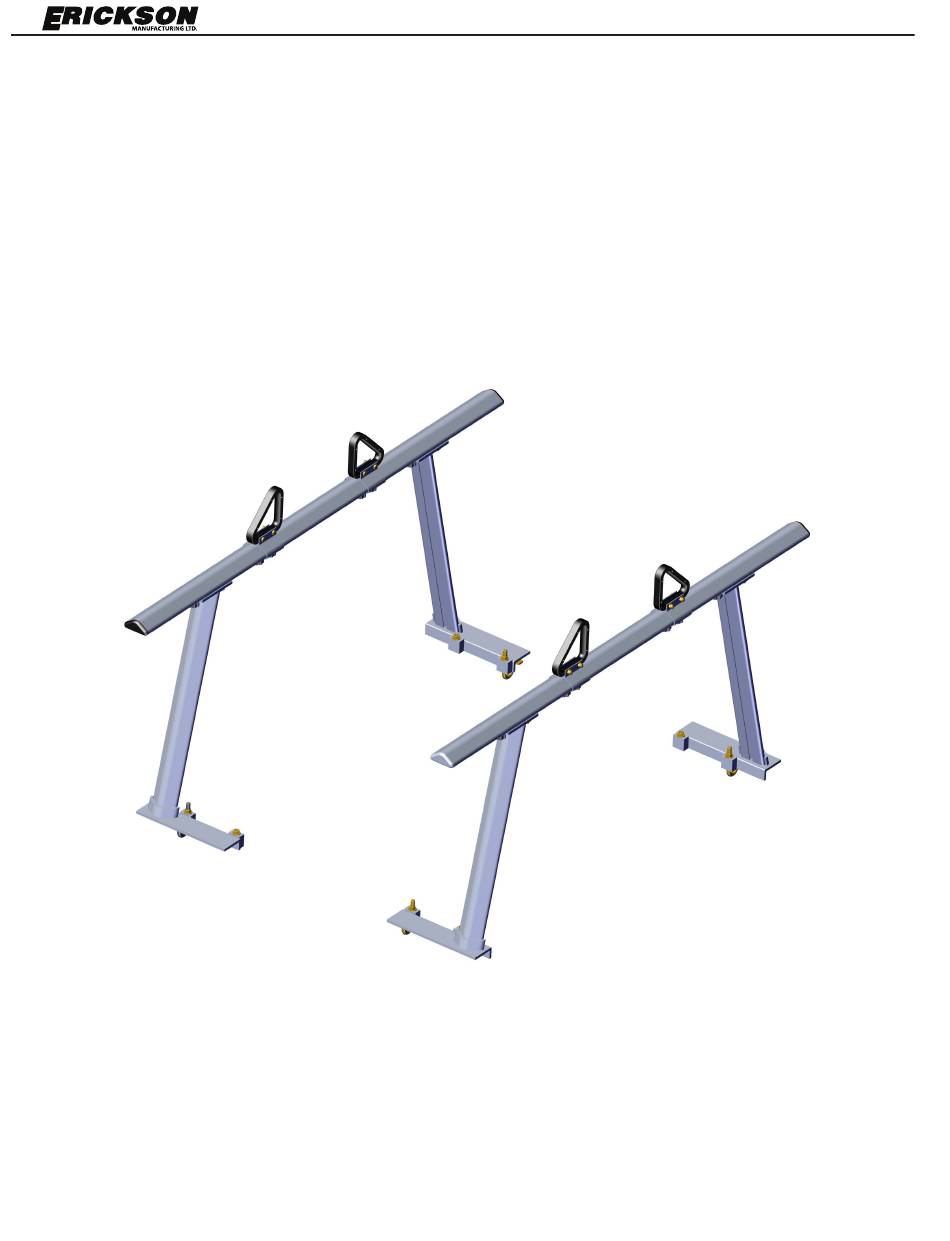

- Page 1 Item no: 07705 800 lb. ALUMINUM TRUCK RACK INSTRUCTION MANUAL...
- Page 2 Item no: 07705 INSTALLATION INSTRUCTIONS Triangular stop 4x M8*40 Bolt 8x M8 Lock nut 8x Cross Bar 2x Mounting sleeve 4x M10*25 bolt 12x Adjustment knob 1. Slide triangular stop (3) into a mounting sleeve (4), tighten with M8*40 bolt (5) and M8 lock nut (6). Repeat until all 4 triangular stops are assembled.
- Page 3 Item no: 07705 Post B 2x Post A 2x M10*25 bolt 12x M12 nut 8x 12 spring washer 8x 12 Washer 10 washer 16x 10 spring washer 12x Clamp 8x M 10 locking nut 8x 2. Tighten Post A (1) and assemble cross bar with M10*25 bolt (7), 10 spring washer (8), 10 washer (17) and M10 locking nut (16).
- Page 4 Item no: 07705 Item# Description Q’ty Item# Description Q’ty Post A Adjustment knob Post B Clamp Triangular stop 12 washer Mounting sleeve 12 spring washer M8*40 Bolt M12 nut M8 Lock nut Cross Bar M10*25 bolt Plastic end cover 10 spring washer...
- Page 5 Item no: 07705 READ ALL SAFETY WARNINGS AND INSTRUCTIONS. Failure to follow the warnings and instructions may result in serious injury. Save all warnings and instructions for future reference. INSTALLATION PRECAUTIONS 1. Follow DOT regulations regarding installation and use. 2. Park truck on a flat, level, hard surface well away from traffic. Place transmission in park/ neutral and set parking brake.
- Page 6 Limits of implied Warranty and Consequential Damage Erickson Manufacturing Ltd. disclaims any obligation to cover any loss time, use of this product, freight, or any incidental or consequential claim by anyone from using this product. THIS WARRANTY IS IN LIEU OF ALL OTHER WARRANTIES EXPRESS OR IMPLIED, INCLUDING WARRANTIES OF MERCHANTABILITY OR FITNESS FOR A PARTICULAR PURPOSE.
