MANUAL
ITEM# 07494
50" x 30.25" x 4"

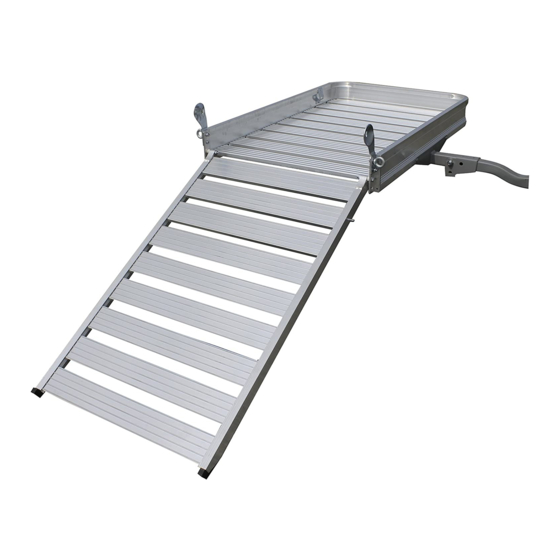

Deluxe Aluminum Cargo
Carrier with Ramp
WARNING:
To avoid personal injury and/or property damage, please read and follow ALL of these
instructions before assembling and operating.
Only use the cargo carrier with a properly installed 2 in hitch receiver capable of
supporting the Cargo Carrier and its load Refer to Hitch Manufacturers specifications and load
capacities before using.
Advertisement
Table of Contents
Related Manuals for Erickson 07494
Summary of Contents for Erickson 07494
- Page 1 MANUAL ITEM# 07494 50” x 30.25” x 4” Deluxe Aluminum Cargo Carrier with Ramp WARNING: To avoid personal injury and/or property damage, please read and follow ALL of these instructions before assembling and operating. Only use the cargo carrier with a properly installed 2 in hitch receiver capable of supporting the Cargo Carrier and its load Refer to Hitch Manufacturers specifications and load capacities before using.
- Page 2 Item no: 07494 Tools Needed: Open Wrench (1 pc.) Open Wrench (1 pc.) Adjustable Wrench (1 pc.) Hex Key (1 pc.) Size=24mm Size=16mm Size = 30mm Size=6mm ASSEMBLY CARRIER ASSEMBLY STEP 1 Place carrier（#1（on a flat（secure work area able to support weight of carrier. Fasten support bracket（#3（to carrier underside, align the square hole and use M10 carriage bolt（#2（...
- Page 3 Item no: 07494 STEP 2 Rotate the carrier 180 degree, align left spoon-shaped mounted plate（#8（with the two holes on L-type corner of the carrier, tighten with lifting bolt（#7（（M10 Hexagon socket button head screws（#6 （（M10 lock nut（#5（. Repeat the same step with right spoon-shaped mounted plate（#17（, tighten with lifting bolt（#7（（M10 Hexagon socket button head screws（#6（（M10 lock nut（#5（for right side.
- Page 4 Item no: 07494 STEP 4 Insert folding bar(#9) into receiver bar (not included), tighten with M16 bolt（#14（, M16 flat washer（#16（, M16 spring washer（#15（and secure in place with （#10（. See FIG 4. FIG 4 Ramp Folds up Ramp Folds down and into carrier...
- Page 5 Item no: 07494 Part# Description Q’ty Carrier M10 carriage bolt Support bracket U clamp M10 lock nut M10 hexagon socket button head screw Lifting bolt Spoon-shaped mounted plate Folding bar Safety Pin M16 lock nut M16 bolt 5/8”locking bolt M16 bolt...
- Page 6 Item no: 07494 SAFETY WARNINGS AND PRECAUTIONS WARNING: When using product, basic safety precautions should always be followed to reduce the risk of personal injury and damage to equipment. Only use the cargo carrier with a properly installed 2 in hitch receiver capable of supporting the Cargo Carrier and its load.
- Page 7 • Problems cause by parts that are not Erickson Manufacturing Ltd. parts. Limits of implied Warranty and Consequential Damage Erickson Manufacturing Ltd. disclaims any obligation to cover any loss time, use of this product, freight, or any incidental or consequential claim by anyone from using this product. THIS WARRANTY...
