'TAILGATE EXTENDER'
'HIGH-MOUNT ADAPTER'
To avoid personal injury and/or property damage, please read and follow
1. Never overload Big Bed
2" receiver
2. A
is required to use the Big Bed. Refer to manufacturer's hitch capacity.
3. Long and heavy loads reduce control of steering, and braking capability. Use extreme caution when
hauling longer loads. Test control before accelarating.
4. Ensure that the locking pin (B & C), hitch pin (not included) are securely fastened to the Big Bed.
5. The load must rest and extend beyond the horizontal support of the apparatus.
6. Secure the load by utilizing the tie-down hook holes with weight appropriate strap. Fasten a red
flag to mark the end of the load.
7. Do not leave the Big Bed in the receiver unless in use.
8. Check Government regulations for specific laws in your province or state on the allowable overhang
out the back of your vehicle.
9. Proper use of this product is critical to safety, and beyond the control of Erickson Manufacturing
Ltd. Erickson Manufacturing Ltd. neither guarantees nor is liable for any damage resulting from
improper use. The liability of this product is limited to its purchase price if it proves to be defective
in material and/or workmanship.

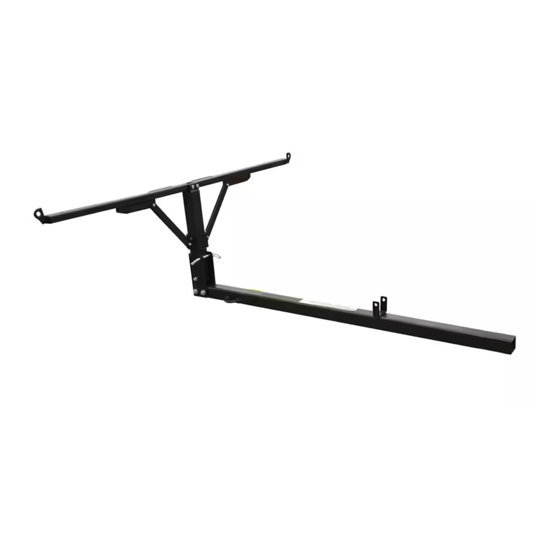

Ideal for short-bed trucks, SUVs, vans, rhino/gators, and all other vehicles capable of hauling a load.
We recommend using your new Big Bed 'High-Mount Adapter' for the following:
•
Canoes
•
Extension ladders
•
Oversized sheets of plywood and drywall
ALL instructions before assembling and operating.
. Maximum capacity is 400 lb. (Evenly distributed load).
®
Usage
Item no: 07601
1/4
Advertisement
Table of Contents
Related Manuals for Erickson Big Bed
Summary of Contents for Erickson Big Bed
- Page 1 Test control before accelarating. 4. Ensure that the locking pin (B & C), hitch pin (not included) are securely fastened to the Big Bed. 5. The load must rest and extend beyond the horizontal support of the apparatus.
- Page 2 *Recommended - Insert the locking pin (B & C), and bolts (D) and nuts (E) into the three holes of part (F). Insert part (A) into the cavity of part (F) and stow in clean-dry area. Re-assemble the Big Bed...
- Page 3 Ensure the apparatus is secure to the vehicle. Spread the apparatus (K). Step 3 Ensure the height of the vehicle cab/sports rack is equal to Big Bed ‘High-Mount Adapter’. The height can be raised/lowered by adjusting the locking pin (B & C) in part (F & K) Step 4 Evenly distribute the load across the Big Bed ‘High-Mount Adapter’.
- Page 4 • Problems cause by parts that are not Erickson Manufacturing Ltd. parts. Limits of implied Warranty and Consequential Damage Erickson Manufacturing Ltd. disclaims any obligation to cover any loss time, use of this product, freight, THIS WARRANTY IS or any incidental or consequential claim by anyone from using this product.
