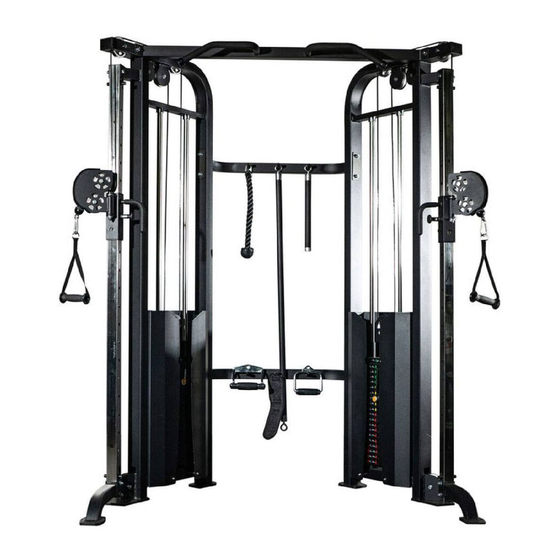

- Page 1 FUNCTIONAL TRAINER FNTLTNR 400883 Operator’s Manual Read the Operator’s Manual entirely. When you see this symbol, the subsequent instructions and warnings are serious follow without exception. Your life and the lives of others depend on it!
- Page 2 PARTS DIAGRAM / EXPLODED VIEW...
- Page 3 PARTS LIST KEY BOX DESCRIPTION LEFT MAIN FRAME RIGHT MAIN FRAME REAR CROSS FRAME LEFT BASE FRAME RIGHT BASE FRAME (11) LEFT COVER (12) RIGHT COVER WITH LOGO (13) FIXING FRAME (14) GUIDE ROD (15) BUSH (16) FIXING SHAFT (22) WEIGHT STACK (23) RIGHT TOP WEIGHT STACK...
- Page 6 ASSEMBLY INSTRUCTIONS STEP 1 Assemble the Left Main Frame (1), Right Main Frame (2), and Rear Cross Frame (3) using Fixing Plate (13), Flat Washer Φ11*Φ20*2 (68), Nut M10 (71) and Hex Bolt M10*75 (58). PLEASE TIGHTEN ALL BOLTS.
- Page 7 ASSEMBLY INSTRUCTIONS STEP 2 1. Connect Handlebar Frame (76), Left Main Frame (1) and Right Main Frame (2), using Fixing Plate (28), Flat Washer Φ11*Φ20*2 (68), Nut M10 (71) and Hex Bolt M10*100 (56). 2. Assemble the Left Base Frame (4), Right Base Frame (5) on Left Main Frame (1) and Right Main Frame (2), using Flat Washer Φ11*Φ20*2 (68), Nut M10 (71) and Hex Bolt M10*75 (58).
- Page 8 ASSEMBLY INSTRUCTIONS STEP 3 1. Put the Bumper Cushion (36) on the Left Main Frame (1), Insert the Guide Rod (14) into the Left Main Frame (1). Incline the guide rod (14), then put the Weight Stack (22), Left Top Weight Stack (23), and bushes (15) into Guide Rod (14).
- Page 9 ASSEMBLY INSTRUCTIONS STEP 4 1. Install the Left Cover (11), Right Cover with Logo (12) and Right Cover (75) on the Left Main Frame (1), and Right Main Frame (2), using Flat Washer Φ6.6*Φ12*1.6 (69), Spring Washer Φ6(70) and Hex Bolt M6*15 (65). 2.
- Page 10 APPENDIX - FULL ASSEMBLY/EXPLODED VIEW...
- Page 11 FULL PARTS LIST DESCRIPTION DESCRIPTION LEFT MAIN FRAME (39) PULLEY SPACER BUSH RIGHT MAIN FRAME (40) SAFETY HOOK REAR CROSS FRAME (41) HANDLE LEFT BASE FRAME (42) HANDLE RIGHT BASE FRAME (43) TRICEPS ROPE LEFT ADJUSTABLE FRAME (44) HAND GRIP RIGHT ADJUSTABLE FRAME (45) ANKLE STRAPS...
- Page 12 BUMPER CUSHION (35) END CAP □60*2 (73) 60*50*6 BUMPER CUSHION (36) (74) SCREW M5*10 Φ60*Φ26*26 (37) RUBBER FOOT CAP (75) RIGHT COVER (38) RUBBER SLEEVE (76) HANDLEBAR FRAME ACKNOWLEDGEMENT OF RISK AND RELEASE OF LIABILITY The use of any equipment, including this one, involves the potential risk of injury. Apart from any warranty claim that might be presented for a claimed defect in material or workmanship of the product, you accept and assume full responsibility for any and all injuries, damages (both economic and non-economic), and losses of any type, which may occur, and you fully and forever release and discharge Titan, its insurers,...
- Page 13 NEED HELP? CONTACT US FIRST. 1-888-410-1503 info@titan.fitness www.titan.fitness © 2021 Titan Brands...
