Sensia NUFLO MC-III Quick Start Manual

Hide thumbs

Advertisement

Quick Links

Download this manual
Quick Start Guide

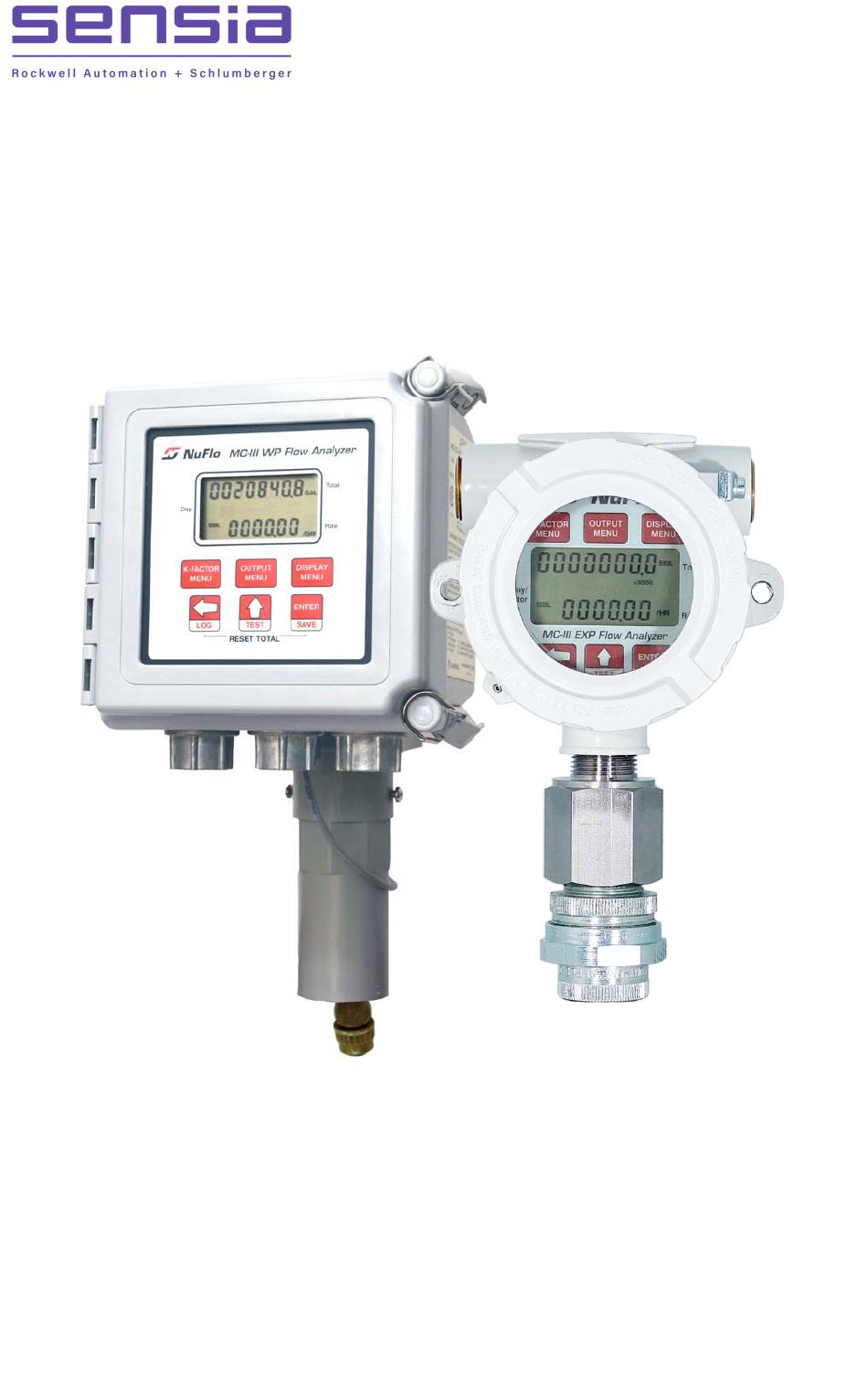

NUFLO MC-III
Flow
TM
Analyzer
A Quick Reference on
Mounting, Wiring, & Configuring
the MC-III EXP or WP Flow Analyzer
For complete instructions, see
MC-III EXP User Manual, Part No. 9A-50165003
MC-III WP User Manual, Part No. 9A-50165009
in the MC-III software Help menu
Part No. 2296694-01, Rev. 03

Advertisement

loading
Need help?

Need help?

Do you have a question about the NUFLO MC-III and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Sensia NUFLO MC-III

Summary of Contents for Sensia NUFLO MC-III

  • Page 1 Quick Start Guide NUFLO MC-III Flow Analyzer A Quick Reference on Mounting, Wiring, & Configuring the MC-III EXP or WP Flow Analyzer For complete instructions, see MC-III EXP User Manual, Part No. 9A-50165003 MC-III WP User Manual, Part No. 9A-50165009 in the MC-III software Help menu Part No.
  • Page 2 Mounting Your MC-III MC-III EXP 1. Position the MC-III EXP above the flowmeter pickup adapter. 2. Plug the connector of the MC-III EXP cable into the magnetic pickup and hand-tighten the knurled nut on the connector. 3. Mount the MC-III EXP on the flowmeter pickup adapter with the display facing the desired direction, and tighten all sections of the pipe union. Before mounting an ATEX-approved device, see “MC-III EXP (ATEX)” below. Pipe plugs Caution: Do not use Teflon tape on threads of the union, adapter, or pipe plugs. MC-III EXP (ATEX) ATEX-approved MC-III EXPs are fitted with a standoff tube adapter when pur- Explosion-proof enclosure chased with an ATEX-approved Barton 7000 Series or NuFlo turbine meter.
  • Page 3 MC-III WP 1. Position the MC-III WP above the flowmeter. 2. Plug the MC-III WP cable connector into the magnetic pickup and hand- tighten the knurled nut on the connector. 3. Screw the MC-III WP mount onto the flowmeter threads surrounding the magnetic pickup. 4. With the display facing the desired direction, tighten the two screws on either side of the mount to prevent horizontal shifting. 5. With the display oriented vertically in the desired direction, tighten the two hex- head bolts on either side of the top section of the mount to prevent vertical shifting.
  • Page 4 Wiring Your MC-III CAUTION—All field wiring must conform to the National Electrical Code, NFPA 70, Article 501-4(b) for installations within the United States or the Canadian Electric Code for installations within Canada. Local wiring ordinances may also apply. All field wiring must have a wire range of 22 to 14 AWG and terminal block screws must be tightened to a minimum torque of 5 to 7 in-lb to secure the wiring within the ter- minal block.
  • Page 5 1. If the battery/battery pack is not already connected to the circuit board, attach the battery cable to connector J1. 2. Connect the flowmeter signal cable to terminal block TB1. BATTERY CONNECTION EXT POWER A&S TURBINE MAGNETIC PICKUP = 3.9 V RESET SWITCH 3. If an external power supply is to be used (the battery will provide backup power), wire the power supply to terminal block TB3. For MC-III WP Div. 2 installations, connect a protective overcurrent device rated at 0.5A maximum (circuit breaker or fuse) to the positive supply line of the DC power supply in the safe area. A disconnect switch for the power supply must also be installed in the safe area. A Zener diode (Part No. 1.5KE33CA) must be installed for CE approval. EXT POWER A&S POWER SUPPLY 6 to 30 GROUND SCREW REQUIRED FOR DIV. 2 INSTALLATIONS TB3 MARKING: RESET SWITCH...
  • Page 6 Wiring Your MC-III 4. If a pulse output is to be used, wire the power supply and the pulse readout device to terminal block TB2. The maximum current rating of the pulse output circuit is 60 mA at 50 VDC. A Zener diode (Part No. 1.5KE56CA) must be installed for CE approval. EXT POWER Resistor may be included in pulse readout device. Size the resistor to limit the current A&S to 60 mA. Leave this POWER SUPPLY end of shield 5 to 50 VDC disconnected.
  • Page 7 6. If a flowmeter frequency output is to be used to provide flow rate and/ or total information to peripheral equipment, wire the power supply and the frequency readout device to terminal block TB3. The readout device must operate with 50 mA or less. Leave this POWER SUPPLY TB3 MARKINGS: end of shield 5 to 30 VDC GND = SIGNAL GROUND disconnected. A&S = AMP & SQUARE EXT POWER FREQUENCY READOUT DEVICE A&S Resistor may be included in frequency readout device.
  • Page 8 Configuring with the Keypad Most routine functions can be configured from the six-button keypad. This guide provides instructions for entering a calibration factor, and selecting the units for the total and flow rate displays. For instructions on configuring all other parameters, see the MC-III user manuals.

  • Page 9: Calibration Factor

    Parameter changes typically require four basic steps: 1. Select a menu (K-FACTOR, OUTPUT, OR DISPLAY). 2. Press UP ARROW to change the parameter or value displayed. 3. Press LEFT ARROW to advance to the next configurable parameter or value. 4. Press ENTER to save the new configuration setting. Enter a Select a K-Factor Unit. Press K-FACTOR MENU. K-FACTOR Calibration Factor MENU Press UP ARROW until the correct unit is displayed. 00000000 TEST Select a Decimal Point Position. Press LEFT ARROW to select X1000 the decimal point. X1000 Press UP ARROW to change the position of the decimal point. TEST Press LEFT ARROW to save the decimal point selection and proceed with entering a calibra- tion factor.
  • Page 10 Configuring with the Keypad Select a Unit of Measure for Volume 00000000 X1000 STANDARD X1000 000000 /SEC /MIN /DAY Select a Volume Unit. Press DISPLAY MENU. DISPLAY MENU Press UP ARROW until the correct unit is displayed. Note—If a calculated divisor was entered, select user-defined (no TEST units visible). To read the volume in terms of thousands of units (ex. 1.0 = 1,000 bbl), continue pressing UP ARROW until both the unit of choice TEST and the X1000 option are displayed. Select a Decimal Point Position. Press LEFT ARROW until the decimal point in the Total display begins blinking.
  • Page 11 Select a Unit of Measure for Rate 00000000 00000000 X1000 X1000 STANDARD STANDARD X1000 X1000 000000 000000 /SEC /SEC /MIN /MIN /DAY /DAY Select the Volume Portion of the Flow Rate Unit. Press DISPLAY MENU. DISPLAY MENU Press LEFT ARROW until a volume unit of measure is displayed in the rate display portion of the LCD window. These units are located to the left or just above the Rate display. Press UP ARROW until the desired unit of measure is displayed. Note—If a calculated divisor was entered, select user-defined TEST (no units visible).
  • Page 12 Connecting to the MC-III Step 1: Install the MC-III Software Follow the instructions on the cover of the CD packet to load the software. An MC-III icon will appear on the computer desktop when installation is complete. Step 2: Connect the Computer to the MC-III Note—An RS-485 converter is required to connect a computer to the MC-III flow analyzer. The instructions below are for an RS-485-to USB converter (Part No.
  • Page 13 Step 3: Run the Program 1. Double-click the MC-III icon on the desktop or select Start-Programs- NuFlo-MC-III-MC-III to launch the software. A Welcome screen will appear, followed by a Device Autorun Options screen. 2. Select Launch the Configuration Wizard and follow the instructions on the screen. For access to all configurable parameters, select Go to MC-III Main (see the MC-III user manuals for instructions). To automate a function to run each time the software connects with the instrument, click on the function on the Device Autorun Options screen and check the Always do... checkbox at the bottom of the screen.
  • Page 14 Configuring with Software Gas Volume Correction Gas turbine meters measure gas in actual cubic feet (ACF). To measure gas in terms of standard cubic feet (SCF), flowing gas pressures and temperatures must be referenced back to standard conditions, based on fixed (average) parameters. These parameters are accessible only through MC-III interface software. To configure the instrument to measure gas flow in standard cubic feet, perform the following steps: 1. Select Go to MC-III Main from the Device Autorun Options screen. 2. Click the K-Factor Entry icon in the scroll bar at left. 3. In the Gas Volume Correction section of the K-Factor Entry screen, check the Enable volume correction checkbox (see screen on page 15). The STANDARD annunciator will appear on the LCD. 4. Adjust atmospheric pressure, if desired. 5. Enter the base pressure and unit and the base temperature and unit. 6. Enter the working pressure, working temperature, and corresponding units.

  • Page 15: Multipoint Linearization

    Multipoint Linearization The MC-III can be calibrated with up to 12 calibration points using MC-III interface software. (Only single-point calibration is supported through the Configuration Wizard.) To configure the instrument with these parameters, perform the following steps: 1. Select Go to MC-III Main from the Device Autorun Options screen. 2. Click the K-Factor Entry icon in the scroll bar at left (see screen on page 14). 3. Select the factor units. 4. Select the multipoint checkbox. 5. Enter the number of calibration points desired using the “plus” and “minus” buttons (up to 12 points maximum). 6. Click on each activated calibration point field, and enter the appropriate frequency (Hz) and calibration factor. 7. Repeat for all calibration points. 8. Press Apply or OK to save the new calibration settings.
  • Page 16 Global headquarters: Sensia LLC 200 Westlake Park Blvd Houston, TX 77079 +1-866-773-6742...
