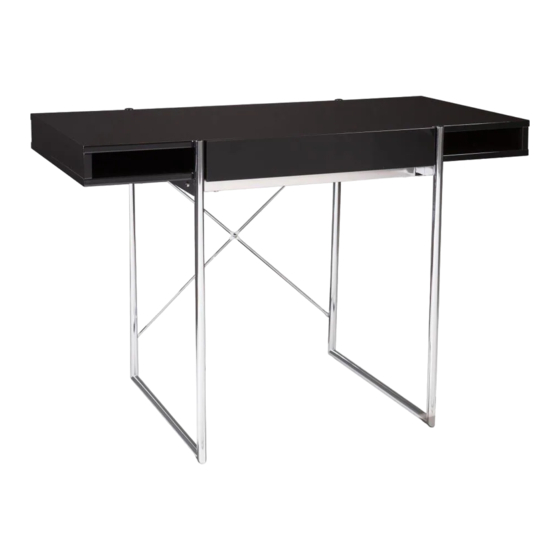

- Page 1 HO731100TX Brayton Desk For assistance with assembly, contact. Assembly Instructions Southern Enterprises Inc. Customer Service 1-800-633-5096 service@seidal.com www.seifurniturestore.com PO: 13876 Top supports up to 50 lb. Per drawer supports up to 10 lb.
- Page 2 HO731100TX Brayton Desk Parts List Please review all parts and hardware before disposing of any packaging. Call SEI Customer Service if missing any 'hardware. Carefully study the diagrams below. You may receive extra hardware with your unit. 2PCS 2PCS 2PCS...
-
Page 3: Drawer Assembly
HO731100TX Brayton Desk Assembly Instructions Drawer Assembly Step 1: Attach Drawer Front Panel (9) to Drawer Box (10) using Bolts (G). Step 2: Attach Wood Dowels with Glue to Top Board (4). Figure 2... - Page 4 Step 3: Attach Side Panels (7) and Middle Panels (8) to Top Board (4). Attach Wood Dowels (B) to Side Panels (7) and Middle Panels (8) using Glue (I). Figure 3 Step 4: Insert Back Panel (6) along the grooves of Side Panels (7). Figure 4 Step 5: Attach Bottom Board (5) to Side...
- Page 5 Step 6: Attach Cross Bars (2) to Side Frames (1) using Bolts (E) and Nuts (F). Tighten with Open Wrench (K). Attach Levelers (A) to the bottom of Side Frames (1). Figure 6 Step 7: Attach Stretchers (3) to Side Panels (1) using Bolts (D).
-
Page 6: Parts Replacement Form
90 days of your receipt, we are under no obligation to provide parts or replacement merchandise. Please contact Southern Enterprises at 800-633-5096 or in Dallas 972-869-0111/ 9am – 4pm Mon-Fri Central time if you have product issues or email us at service@seidal.com. Please ask for customer service representative for issues involving damages or replacement parts.
