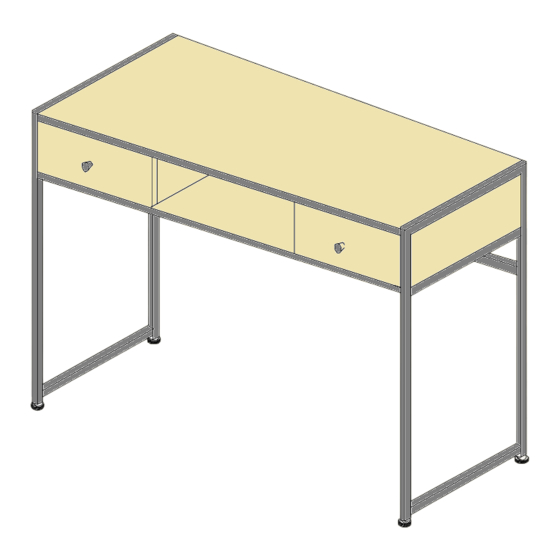

- Page 1 HO731500TX Norcross Desk For assistance with assembly, contact. Assembly Instructions Southern Enterprises Inc. Customer Service 1-800-633-5096 service@seidal.com www.seifurniturestore.com PO: 13876 Top supports up to 50 lb. Per drawer supports up to 10 lb.
- Page 2 HO731500TX Norcross Desk Parts List Please review all parts and hardware before disposing of any packaging. Call SEI Customer Service if missing any hardware. Carefully study the diagrams below. You may receive extra hardware with your unit. 2PCS Right Side Frame...
- Page 3 4PCS 2PCS 12PCS 6PCS Levelers Handles Wood Dowels Cam Bolts 6PCS 4PCS 12PCS 8PCS Cam Locks Bolts 1/4”x1-1/4” Bolts 1/4”x1/2” Screws 1-1/2” 16PCS 12PCS 4PCS 2PCS Screws 1” Screws 1/2” Philips Head Bolts 7/8” Philips Head Bolts 3/4” Glue Allen Wrench Care and Cleaning Instructions: For replacement parts or questions, please Before using, wipe with a clean, dry cloth.
- Page 4 HO731500TX Norcross Desk Assembly Instructions Step 1: Drawer Assembly Attach Drawer Side Boards (16) to Drawer Back Boards (15) using Screws (I). Insert Drawer Bottom Boards (17) along the grooves of Drawer Side Boards (16). Attach Drawer Front Boards (14) to Drawer Side Boards (16) using Screws (I).
- Page 5 Step 2: Attach Wood Dowels with Glue (M) and Cam Bolts (D) to Top Board (5) as shown. Figure 2 Step 3: Attach Left Side Panel (7), Right Side Panel (8), Right Middle Panel (9), and Left Middle Panel (10) to Top Board (5) and secure the panels using Cam Locks (E).
- Page 6 Step 5: Attach Bottom Board (6) to Left Side Panel (7), Right Side Panel (8), Right Middle Panel (9), and Left Middle Panel (10) using Screws (H). Figure 5 Step 6: Attach Stretchers (3) and Back Stretcher (4) to Right Side Frame (1) and Left Side Frame (2) using Bolts (G).
- Page 7 Step 8: Line up the metal glides and insert the assembled Right Drawer Box and Left Drawer Box to the Desk Drawer Frames as shown. 13(L) 12(R) Figure 8 Step 9: Your Norcross Desk assembly is now complete. Figure 9...
- Page 8 90 days of your receipt, we are under no obligation to provide parts or replacement merchandise. Please contact Southern Enterprises at 800-633-5096 or in Dallas 972-869-0111/ 9am – 4pm Mon-Fri Central time if you have product issues or email us at service@seidal.com. Please ask for customer service representative for issues involving damages or replacement parts.
