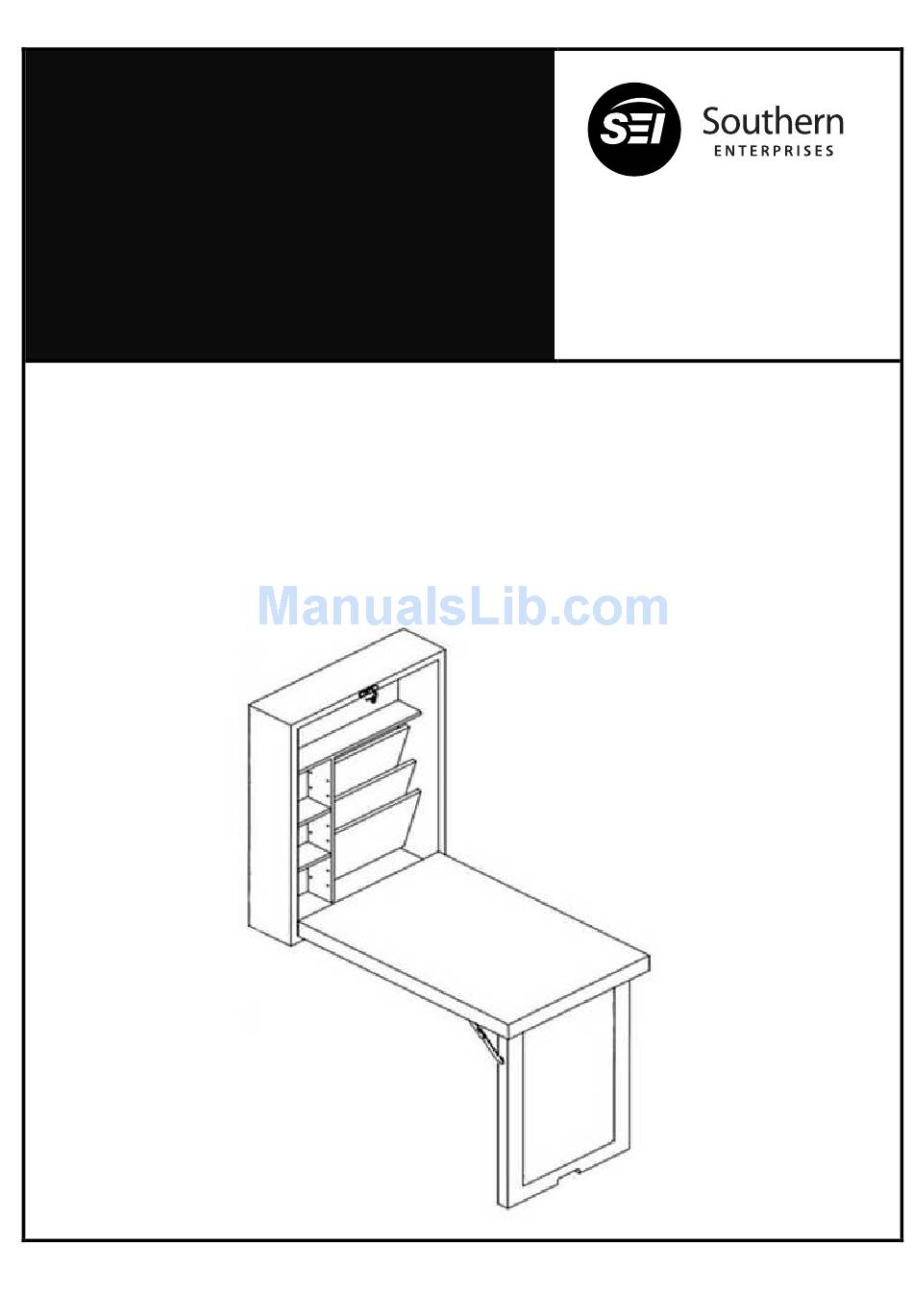

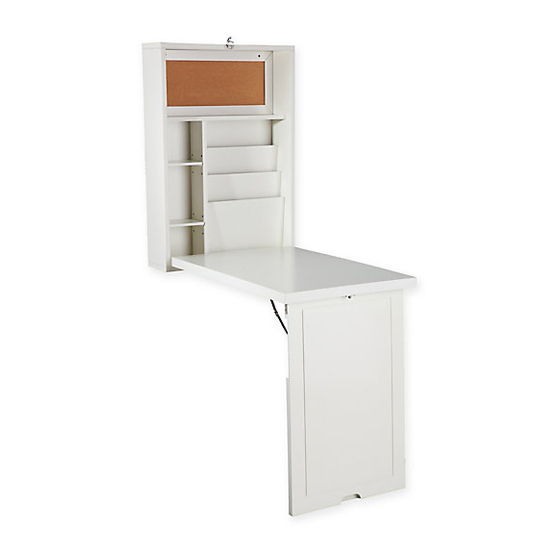

- Page 1 HO9290R0TX-WALNUT/ HO9292R0TX-ANTIQUE WHITE For assistance with assembly contact: HO9291R0TX-BLACK Southern Enterprises Inc. Fold-out Convertible Desk Customer Service 1-800-633-5096 service@seidal.com Assembly Instruction www.seidal.com PATENT NUMBER D618939 Max Top Load = 20 lb...
- Page 2 HO9290R0TX-WALNUT/HO9292R0TX-ANTIQUE WHITE/HO9291R0TX-BLACK Fold-out Convertible Desk Parts List Please review all parts and hardware before disposing of any packaging. Call Customer Service if missing hardware. Using a screw that is too long will cause damage. Before beginning assembly, separate each type of screw. Carefully study the screw diagrams below.
- Page 3 HO9290R0TX-WALNUT/HO9292R0TX-ANTIQUE WHITE/HO9291R0TX-BLACK Assembly Instruction Step 1: Locate fold-out convertible desk on a solid wall and at a comfortable height off the floor, normally eye level. Step 2: Measure the wall and mark the width and height of desk as Figure 1.
- Page 4 Step 5: Attach bracket (7) by using screw (8) to the bottom of the unit as shown. Step 6: Insert plastic anchors into the two bottom mounting holes. (When doing this, you will need a hammer help you). Step 7: With an assistant, open and attach cabinet (1) to wall using washer (5), screw (6/9) as shown.
- Page 5 Step8: Insert pin (3) into the hole of cabinet (1) as shown then put on shelf (2). Place level on top surface to make sure product is level...
- Page 6 90 days of your receipt, we are under no obligation to provide parts or replacement merchandise. Please contact Southern Enterprises at 800-633-5096 or in Dallas 972-869-0111/ 9am – 4pm Mon-Fri Central time if you have product issues or email us at service@seidal.com. Please ask for customer service representative for issues involving damages or replacement parts.
