Summary of Contents for thomann Stageworx BLS-315 Pro Lighting Stand B Kit

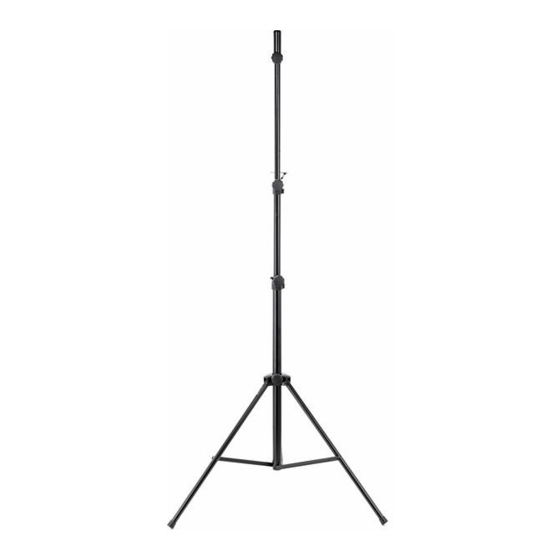

- Page 1 BLS-315 Pro Lighting Stand B Kit speaker / light stand...
- Page 2 Musikhaus Thomann Thomann GmbH Hans-Thomann-Straße 1 96138 Burgebrach Germany Telephone: +49 (0) 9546 9223-0 E-mail: info@thomann.de Internet: www.thomann.de 28.01.2021, ID: 511221...
-
Page 3: Table Of Contents
Table of contents Table of contents General information..........................4 1.1 Further information........................... 5 1.2 Notational conventions........................6 1.3 Symbols and signal words....................... 6 Safety instructions............................. 8 Features............................... 12 Operating..............................13 Technical specifications........................18 Protecting the environment......................20 BLS-315 Pro Lighting Stand B Kit speaker / light stand... -
Page 4: General Information
Our products and user manuals are subject to a process of continuous development. We there‐ fore reserve the right to make changes without notice. Please refer to the latest version of the user manual which is ready for download under www.thomann.de. BLS-315 Pro Lighting Stand B Kit... -
Page 5: Further Information
General information 1.1 Further information On our website (www.thomann.de) you will find lots of further information and details on the following points: Download This manual is also available as PDF file for you to download. Use the search function in the electronic version to find the topics of Keyword search interest for you quickly. -
Page 6: Notational Conventions
General information 1.2 Notational conventions This manual uses the following notational conventions: Instructions The individual steps of an instruction are numbered consecutively. The result of a step is indented and highlighted by an arrow. Example: Switch on the device. Press [Auto]. ð... - Page 7 General information Signal word Meaning DANGER! This combination of symbol and signal word indicates an immediate dangerous situation that will result in death or serious injury if it is not avoided. CAUTION! This combination of symbol and signal word indicates a pos‐ sible dangerous situation that can result in minor injury if it is not avoided.
-
Page 8: Safety Instructions
Safety instructions Safety instructions Intended use This speaker / light stand is used for stable fixing and height-adjustable installation of loud‐ speaker cabinets and lights. Use the product only as described in this user manual. Any other use or use under other operating conditions is considered to be improper and may result in personal injury or property damage. - Page 9 Safety instructions Safety DANGER! Danger for children Ensure that plastic bags, packaging, etc. are properly disposed of and are not in the reach of babies and young children. Choking hazard! Ensure that children do not detach any small parts (e.g. knobs or the like) from the product.
- Page 10 Safety instructions CAUTION! Danger of tipping on unsuitable surfaces When the speaker stand is installed on soft or uneven ground, the stand may tip over and cause injuries and property damage. Install the stand only on even and solid surfaces. CAUTION! Danger of tipping due to overload In case of overload, the stand may tip over and cause injuries and property...
- Page 11 Safety instructions NOTICE! Possible staining The plasticiser contained in the rubber feet of this product may possibly react with the coating of your parquet, linoleum, laminate or PVC floor and after some time cause permanent dark stains. In case of doubt, do not put the rubber feet directly on the floor, but use felt-pad floor protectors or a carpet.
-
Page 12: Features
Features Features Professional speaker and light stand Material: Steel / magnesium compound Individually reinforced legs for high stability Height: 150 to 310 cm Stand space diameter 120 cm Pipe diameter: 28 mm 35 mm adapter for suitable speaker box 28 mm adapter with M8×15 thread for single mounting of a spotlight (item no. 293511) Centric load capacity up to 30 kg Optional accessories: –... -
Page 13: Operating
Operating Operating Unpack and check carefully there is no transportation damage before using the product. Keep the equipment packaging. To fully protect the product against vibration, dust and moisture during transportation or storage use the original packaging or your own packaging material suitable for transport or storage, respectively. - Page 14 Operating CAUTION! Danger of tipping on unsuitable surfaces When the speaker stand is installed on soft or uneven ground, the stand may tip over and cause injuries and property damage. Install the stand only on even and solid surfaces. CAUTION! Danger of tipping due to overload In case of overload, the stand may tip over and cause injuries and property damage.
- Page 15 Operating NOTICE! Possible staining The plasticiser contained in the rubber feet of this product may possibly react with the coating of your parquet, linoleum, laminate or PVC floor and after some time cause permanent dark stains. In case of doubt, do not put the rubber feet directly on the floor, but use felt-pad floor protectors or a carpet.
- Page 16 Operating Setup Unfold the feet of the tripod until the cross braces are in a horizontal position. Fix this position with the safety screw on the slider to which the three feet are attached. Pull out the two safety pin and loosen the two safety screws on the extension tubes. Pull out the upper extension tube to the desired height and slide the safety pin through the corresponding grid hole.
- Page 17 Operating Dismounting Remove spotlight or speaker box. Pull out the safety pin on the lower extension tube. Loosen the safety screw on the lower tube clamp and slide the lower extension tube all the way down. Tighten the safety screw on the lower tube clamp. Pull out the safety pin on the upper extension tube.
-
Page 18: Technical Specifications
Technical specifications Technical specifications Height, max. 3.10 m Adjustable tripod height 1.50 m … 3.10 m Floor space Æ 1.20 m Tripod tube diameter Æ 28 mm Flange, Æ 35 mm Holder type Adapter, Æ 35 mm/36 mm Adapter, Æ 28 mm, M8×15 thread Load, max. - Page 19 Technical specifications Further information Stand type Lighting stand Incl. crossbar Crank Material Steel-magnesium compound BLS-315 Pro Lighting Stand B Kit speaker / light stand...
-
Page 20: Protecting The Environment
Protecting the environment Protecting the environment Disposal of the packaging mate‐ rial For the transport and protective packaging, environmentally friendly materials have been chosen that can be supplied to normal recycling. Ensure that plastic bags, packaging, etc. are properly disposed of. Do not just dispose of these materials with your normal household waste, but make sure that they are collected for recycling. - Page 21 Notes BLS-315 Pro Lighting Stand B Kit speaker / light stand...
- Page 22 Notes BLS-315 Pro Lighting Stand B Kit speaker / light stand...
- Page 24 Musikhaus Thomann · Hans-Thomann-Straße 1 · 96138 Burgebrach · Germany · www.thomann.de...
