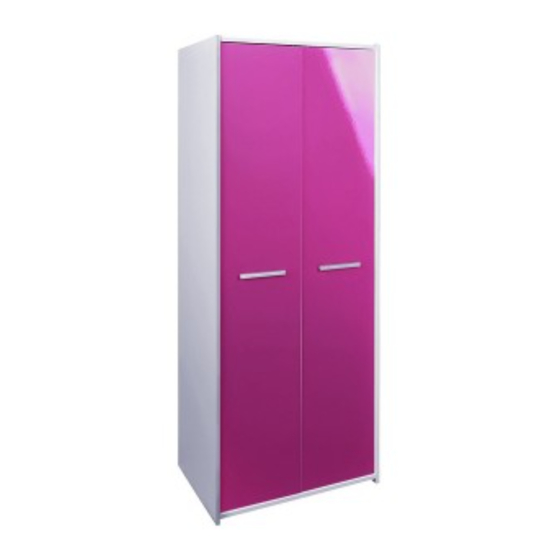

New Sywell - 2 Door Robe
Assembly Instructions -
Dimensions
Width - 70.5cm
Depth - 50cm
Height - 172cm
Important -
Please read these instructions fully before starting assembly
If you need help or have damaged or missing parts, call the Customer Helpline: 08456 400800
Please keep for future reference
282/4150
266/3768
267/7606
266/2965
281/8960
MADE IN
BRITAIN
Issue 5 - 21/07/14
Advertisement
Related Manuals for Argos New Sywell 282/4150
Summary of Contents for Argos New Sywell 282/4150
- Page 1 New Sywell - 2 Door Robe Assembly Instructions - 282/4150 Please keep for future reference 266/3768 267/7606 266/2965 281/8960 Dimensions Width - 70.5cm Depth - 50cm MADE IN Height - 172cm BRITAIN Important - Please read these instructions fully before starting assembly If you need help or have damaged or missing parts, call the Customer Helpline: 08456 400800 Issue 5 - 21/07/14...
-
Page 2: Care And Maintenance
Safety and Care Advice Important - Please read these instructions fully before starting assembly • Warning: This unit weighs • Make sure you have enough • We do not approximately 40.5kgs. space to layout the parts before recommend the Please lift with care. starting. - Page 3 If you have damaged or missing components, call the Components - Panels Customer Helpline: 08456 400800 quoting the reference numbers below Please check you have all the panels listed below (D2559A) (674 x 494mm) Left Side Right Side Base (D2560A) (D2561A) (D2562A) (1711 x 496mm)
- Page 4 If you have damaged or missing components, call the Components - Fittings Customer Helpline: 08456 400800 quoting the reference numbers below Please check you have all the fittings listed below Note: The quantities below are the correct amount to complete the assembly. In some cases more fittings may be supplied than are required.
- Page 5 If you have damaged or missing components, call the Assembly Instructions Customer Helpline: 08456 400800 quoting the reference numbers below Step 1 Prepare the left side Screw 5 metal dowels into the left side Note: Tighten the metal dowels up fully against the panels.
- Page 6 Assembly Instructions Step 3 Prepare the top Tap 4 wooden dowels into the top Note: Wooden dowels must not stick out from the edge by more than 10mm or they may damage other panels. Finished front edge Insert 4 large locking nuts into the top Note: The arrow on the...
- Page 7 Assembly Instructions Step 5 Fit the top and base to the right side Push the top base onto the right side Use a screwdriver to tighten the 4 large Finished locking nuts fitted to front edge Finished p l a the top base.
- Page 8 Assembly Instructions Step 8 Fit the left side Push the left side onto the assembly. Use a screwdriver to tighten the 5 large locking nuts fitted to the top , base rail Finished Step 9 front edge Fit the back and plastic nails Square up the unit by making sure that...
- Page 9 Assembly Instructions Step 10 Fit the hanging rail and shelf studs Push the hanging rail into the rail holders fitted to the side panels. Push the 2 shelf studs up into the holes in the to act as door buffers. Step 11 Prepare the 2 doors Push fit 3 hinges...
- Page 10 Assembly Instructions Step 12 Fit doors and handles Note: The easiest way to attach each door to fit the top hinge first, then align and fit the other hinges. Push the hinge onto the front part of the hinge plate The recess at the bottom of screw B goes into the slot in the hinge plate.
- Page 11 Assembly Instructions Step 13 Adjust the doors if needed Before adjusting the doors, use a spirit level to check the base (or top) of the unit is level, front-to-back and side-to-side in the 3 positions shown. Use suitable packing pieces (not supplied) to make the unit level BEFORE making any adjustment to the hinges,...
- Page 12 Lift with care. Assembly is complete If you need help or have damaged or missing parts, call the Customer Helpline: 08456 400800 and quote the reference numbers on the component pages. Argos Ltd, 489-499 Avebury Boulevard, Central Milton Keynes, MK9 2NW ALR3010...
