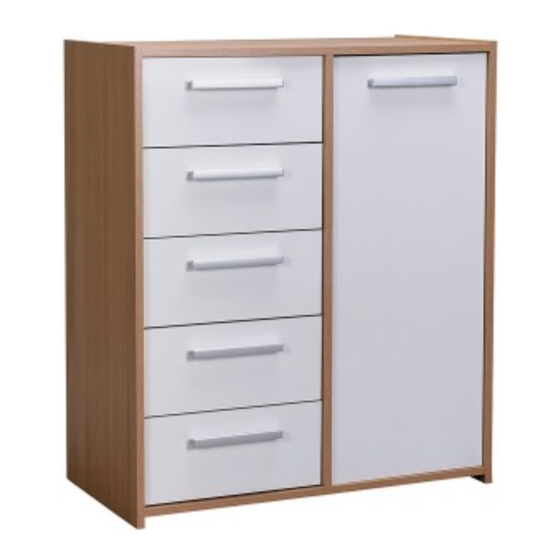

New Sywell - 5 Drawer 1 Door Chest
Assembly Instructions -
Dimensions
Width - 74.5cm
Depth - 40cm
Height - 88.5cm
Important -
Please read these instructions fully before starting assembly
If you need help or have damaged or missing parts, call the Customer Helpline: 08456 400800
Please keep for future reference
259/1892
282/6990
278/7589
278/1750
MADE IN
BRITAIN
Issue 4 - 22/07/14
Advertisement
Related Manuals for Argos New Sywell 259/1892
Summary of Contents for Argos New Sywell 259/1892
- Page 1 New Sywell - 5 Drawer 1 Door Chest Assembly Instructions - 259/1892 Please keep for future reference 282/6990 278/7589 278/1750 Dimensions Width - 74.5cm Depth - 40cm MADE IN Height - 88.5cm BRITAIN Important - Please read these instructions fully before starting assembly If you need help or have damaged or missing parts, call the Customer Helpline: 08456 400800 Issue 4 - 22/07/14...
- Page 2 Safety and Care Advice Important - Please read these instructions fully before starting assembly • Warning: This unit weighs • Make sure you have enough • We do not approximately 32.5kgs. space to layout the parts before recommend the Please lift with care. starting.
- Page 3 If you have damaged or missing components, call the Components - Panels Customer Helpline: 08456 400800 quoting the reference numbers below Please check you have all the panels listed below Left Side Right Side Divider Door (D2596A) (D2553A) (D2554A) (D2556A) (883 x 396mm) (883 x 396mm) (828 x 393mm)
- Page 4 If you have damaged or missing components, call the Components - Fittings Customer Helpline: 08456 400800 quoting the reference numbers below Please check you have all the fittings listed below Note: The quantities below are the correct amount to complete the assembly. In some cases more fittings may be supplied than are required.
- Page 5 If you have damaged or missing components, call the Assembly Instructions Customer Helpline: 08456 400800 quoting the reference numbers below Step 1 Prepare the drawer fronts Screw 2 metal dowels into the holes shown on the back of each drawer front Note: Tighten the metal dowels up fully against...
- Page 6 Assembly Instructions Step 4 Fit the drawer base Slide the drawer base down the grooves in the drawer sides and down into the groove in the drawer front Step 5 Fit the drawer back Fit the drawer back down onto the drawer base Make sure that the drawer base...
- Page 7 Assembly Instructions Step 8 Prepare the base Tap 4 wooden dowels into the base Note: Wooden dowels must not stick out from Finished the edge by more than front edge 10mm or they may damage other panels. Insert 4 large locking Turn the base over nuts into the base...
- Page 8 Assembly Instructions Step 10 Prepare the divider Place 5 runners the divider . Slide back the top of the runner and use the 2nd hole from the front to fit Finished the 1st screw front edge Tap 2 wooden dowels into the divider Slide the runners back the other way and...
- Page 9 Assembly Instructions Step 12 Fit the base Push the base onto the divider Use a screwdriver to tighten the 2 large locking nuts fitted to the divider p l a c h i s u r f a c Finished front edge Step 13 Prepare the right side...
- Page 10 Assembly Instructions Step 14 Fit the right side Push the right side onto the top base Use a screwdriver to tighten the 4 large locking nuts fitted to the top and base Step 15 Prepare the left side Place 5 runners the left side .
- Page 11 Assembly Instructions Step 16 Fit the left side Push the left side onto the assembly. Use a screwdriver to tighten the 4 large locking nuts fitted to the top and base Step 17 Fit the back The measurement from top corner X to bottom corner X must be Square up the unit by equal to the measurement from top corner Y to bottom corner Y making sure that...
- Page 12 Assembly Instructions Step 18 Fit the drawers Starting with the bottom drawer, slide both the runners forward and locate the drawer sides between them, lining up the holes in the drawer wrap with the 2nd 'threaded' holes in the runners Working from the inside of the drawer, insert 2 screws...
- Page 13 Assembly Instructions Step 20 Fit the shelf Insert the 4 shelf studs at the required height. Lower the shelf down onto the shelf studs Make sure that the plastic sleeve is fully pushed onto the shelf stud. Step 21 Prepare the door Push fit 2 hinges into the door...
- Page 14 Assembly Instructions Step 22 Fit door and handle Note: The easiest way to attach the door is to fit the top hinge first, then align and fit the other hinges. Push the hinge onto the front part of the hinge plate The recess at the bottom of screw B goes into the slot in the hinge plate.
- Page 15 Assembly Instructions Step 23 Adjust the door if needed Before adjusting the door, use a spirit level to check the top (or base) of the unit is level, front- to-back and side-to-side in the 3 positions shown. Use suitable packing pieces (not supplied) to make the unit level BEFORE making any...
- Page 16 Lift with care. If you need help or have damaged or missing parts, call the Customer Helpline: 08456 400800 and quote the reference numbers on the component pages. Argos Ltd, 489-499 Avebury Boulevard, Central Milton Keynes, MK9 2NW ALR3016...
