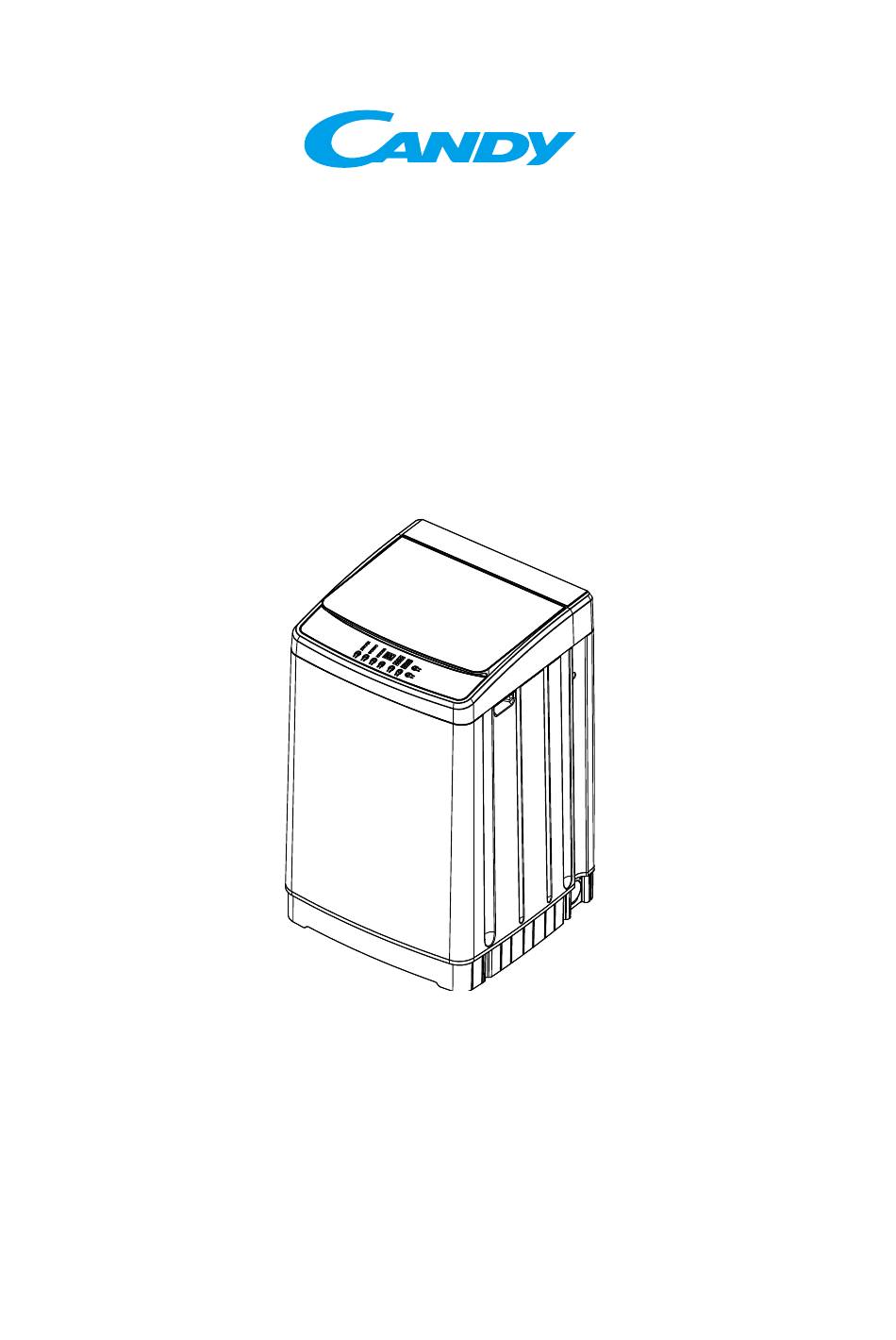

- Page 1 FUZZY LOGIC CONTROL FULLY AUTOMATIC WASHING MACHINE Model: CATL 7080 WKI CATL 7088 LVSI INSTRUCTION MANUAL ------------------------------------------- Please read instructions carefully before using...
- Page 2 .IMPORTANT SAFEGUARDS………… 。 。 ……………… … 1. This product belongs to Class I appliances. Please pay attention to electricity safety when using: This machine uses a single-phase two-pole grounded power outlet, the outlet must be reliably grounded, and the grounding terminal should not be connected with gas pipelines, water pipes and other utilities.
- Page 3 9. Please avoid direct sunlight to the washing machine, do not be near heat sources such as heating. 10. Do not place the machine on a carpet. Do not place the machine with a drain function on a place where there is no floor drain. 11.
- Page 4 avoid danger. 20. Never disassemble, repair, or modify this unit by yourself. 21. User manual must have such below warning. a). This appliance is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliance by a person responsible for their safety.
-
Page 5: Parts Description
PARTS DESCRIPTION AND LOADING LIST 1、Parts description 1. Top lid 9. Housing 2. Washing powder box 10. Adjustment foot 3. Filter 11. Inlet valves 4. Bleaching agents injection port 12. Rear control panel 5. Impeller 13. Power cord 5. Top loader 14. -
Page 6: Installation Method
Inlet pipe Bottom lid board User manual Some models have been Drain pipe parts installed randomly Self-tapping screws USING ADVICE 1. Low-bubble detergent is recommended during the use of this machine. 2. It is recommended to use the washing machine in an environment of 0°C to 40°C. - Page 7 a. Choose to place the washing machine in a dry place without direct sunlight. b. There should be a floor drain at the place where the washing machine is placed, and the water flow is unobstructed. At the same time, the floor drain should be flush with or slightly lower than the place where the washing machine is placed, so as to prevent the damage caused by the water leakage of the washing machine.
- Page 8 （1） （2）、 Check the level of the If you have a spirit level, set the washing machine visually. bubble in the spirit level. 2、Install the bottom cover: The bottom cover is placed between the top of the washing machine box and ...
- Page 9 Double thread water inlet a. To ensure that there is a sealing pad in the joint of the water inlet and the installation is smooth. b. According to the diagram, the water inlet is aligned with the tap and the nut on the water inlet is tightened.
-
Page 10: Connection Of The Drain Hose
2) Connection between water inlet and Washing machine a. Before connecting, please check whether the sealing gasket in the water inlet nut has fallen off or not. Gasket b. Put water inlet nut on inlet valve joint. Inlet valve joint c. -
Page 11: Control Panel
Is the drain pipe hung? The hanging height of the drain pipe shall not be greater than 0.9m, is it too high? 2. Pretreatment of laundry: Check whether there are special requirements for washing and whether it can be washed or machine washed. - Page 12 1. INDICATOR STATUS MEANING Aflashinglightindicatesthattheprogramisrunning. Thelightisontoshowthestatustoberunorselected. ThedigitaldisplayflashesquicklyanddisplaysE1~E7andE9,indicatingabnormality. Whentheprogramisset,thedigitaldisplayshowsthetotalrunningtime. Thedigitaldisplayshowsthetotaltimeofpresetduringtheprocedure. Thedigitaldisplayshowsremainingtimeaftertheprogramstart. 2. BUTTON INSTRUCTIONS 1) “ON/OFF” BUTTON Press the Power “ON/OFF” button to turn on the power or cut off the power. 2). “START/PAUSE” BUTTON After turning on the power, press the “Start/Pause” button to start or pause the washing machine. 3) “PROGRAM”...
-
Page 13: Operation Method
appropriate water level; smart program when the washing machine to determine the weight of the clothes and automatically set the water level according to the results. 5) “PRESET” BUTTON The preset time can be set. 6) “CHILD LOCK” BUTTON After the program starts, press the buttons of 【Spin】 and 【Preset】 for 1.5 seconds. After one buzzing, the washing machine enters the "Child Lock"... - Page 14 After turning on the power, if there is water in the washing tub, the washing machine cannot enter the blur function. The default is the 5 water level of the Normal program. After turning on the power, press the "Start/Pause" button directly and the default intelligent program can automatically judge the water level.
-
Page 15: Maintenance
prompt the user to deal with the problem. The next step will not continue until the "Rinse" button is pressed. 4. "Preset" operation method 1) After turning on the power, the user wants to start the preset program. After setting the program, water level, process and other options, the user can press the "preset"... -
Page 16: Troubleshooting
3. The whole machine is clean. Clean the surface of the washing machine and the water in the barrel with a clean soft cloth. Open the cover for a period of time (about 1 hour) and air dry. Close the cover again. Do not spray water directly on the washing machine, or use a thinner, detergent, ... - Page 17 washing machine. button operation is invalid during the laundry process. This is the default setting of the washing machine. It needs to be paused before it can be operated. 1. Common default and solution： Problem Display Cause Solution No display The power plug is not plugged Plug in the power plug and press in and the power switch is not...
- Page 18 Insufficient The faucet is not on, the water Open the tap or wait until the water water is stopped or the water pressure is normal before use. injection pressure is low. After 30 Open the cover, close the cover, minutes, the water level is less and re-enter the water inlet than the set water level.
-
Page 19: Specification Sheet
SPECIFICATION SHEET Model CATL 7080 WKI, CATL 7088 LVSI Power 220~240V/50Hz Rated washing / dehydration 8.0kg volume（kg） Rated input power（W） Washing: 500W Spinning: 500W Water pressure（MPa） 0.03~0.85MPa Water proof class IPX4 Noisy Washing：62dB(A) Spinning：72dB(A) Product size（mm） 600x595x955 Packing size（mm） 650x650x1015 Product net weight（kg）... -
Page 20: Program Timetable
PROGRAM TIMETABLE Rinse Progr Total Washing Spinning time The first rinsing The second rinsing The third rinsing spin ning Drai Drai Washi Drai about Norm ng 3 51mi mins Drai Drai about Spee 15mi spin ning Drai Drai Washi Drai about ng 5 mins... - Page 21 spin ning Drai Drai Washi Drai about Stron ng5mi 57mi Drai Drai about mins Drai about Spin mins Drai Drai about Rinse +Spin mins Drai Drai about 71mi clean...
