Installation and Maintenance Guide
Information for Installation and Users
IDI 1000F Series
Monitor Suspension System
Model IDI 1000F-1H
Adapter to IDI-03 Rails

Advertisement

loading
Need help?

Need help?

Do you have a question about the 1000F Series and is the answer not in the manual?

Questions and answers

Summary of Contents for idi 1000F Series

  • Page 1 Installation and Maintenance Guide Information for Installation and Users IDI 1000F Series Monitor Suspension System Model IDI 1000F-1H Adapter to IDI-03 Rails...
  • Page 2: Table Of Contents

    Installation and Maintenance Guide for IDI 1000F Series Suspension System Model IDI 1000F-1H Adapter to IDI-03 Rails The text of this manual was originally written, approved and published by the manufacturer in English. The information in this manual is subject to change without notice.

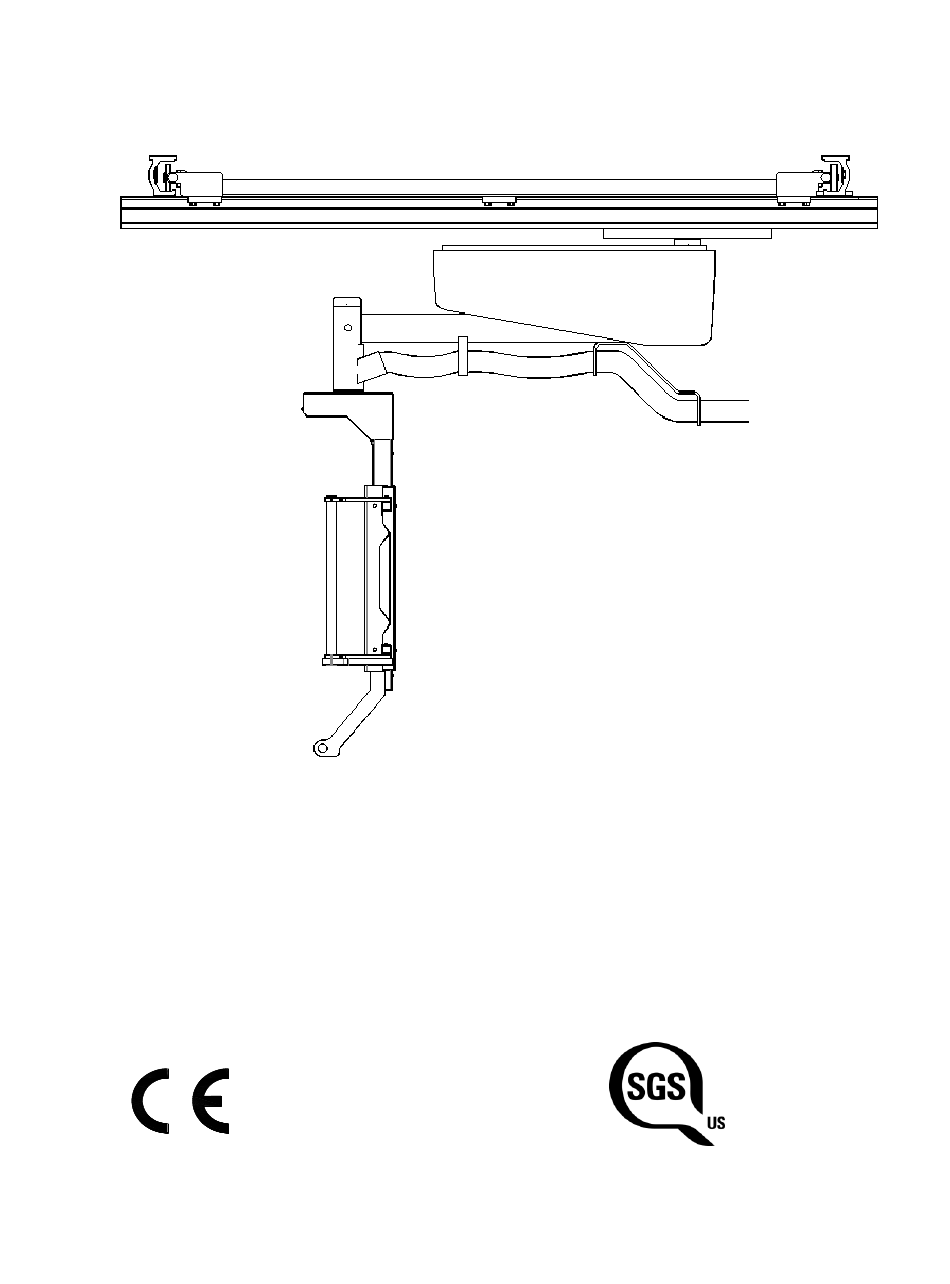

  • Page 3 IDI 1000F-1H Adapter to IDI-03 Rails A. INTRODUCTION The IDI 1000F-1H Flat Panel Suspension System transports monitors used in medical imaging procedures. The system features a counterbalanced arm with vertical travel and internal cable routing. The mobile package includes clip-mounted ceiling rails.
  • Page 4: Symbols

    Installation and Maintenance Guide for IDI 1000F Series Suspension System Model IDI 1000F-1H Adapter to IDI-03 Rails B. SYMBOLS Attention, consult accompanying documents. Failure to follow these instructions can cause accidents resulting in serious injury to patient, user, and damage to equipment.
  • Page 5: General Safety

    Installation and Maintenance Guide for IDI 1000F Series Suspension System Model IDI 1000F-1H Adapter to IDI-03 Rails C. GENERAL SAFETY Attention, consult accompanying documents. Failure to follow these instructions can cause accidents resulting in serious injury to patient, user, and damage to equipment.
  • Page 6: Safety Hazards

    Installation and Maintenance Guide for IDI 1000F Series Suspension System Model IDI 1000F-1H Adapter to IDI-03 Rails D. SAFETY HAZARDS Installers and Operators using this equipment should understand the safety issues and operating instructions provided. Comments and questions regarding safety should be addressed to: Customer Support Image Diagnostics, Inc.
  • Page 7 IDI 1000F-1H Adapter to IDI-03 Rails INSTALL CEILING RAILS Refer to the Adapter Plan drawing IDI #D240-224 to determine the rail-to-grid attachment points. Attach the pair of ceiling rails to the room mounting grid with Rail Mounting Kits. (Refer to the Longitudinal Ceiling Rail Assembly IDI #D240-514 and Rail Mounting Kit diagram shown below for information on orientation of rails and mounting kits.) Hand tighten hardware.
  • Page 8 Installation and Maintenance Guide for IDI 1000F Series Suspension System Model IDI 1000F-1H Adapter to IDI-03 Rails INSTALL CEILING RAIL END STOPS The two adjustable end stops provided are to be positioned at diagonal ends of the rails. Load one Rail End Stop into a rail with the Rubber Bumper facing inward as shown below. Load the other Rail End Stop into the opposite side of the other rail also with the Rubber Bumper facing inward.
  • Page 9 Installation and Maintenance Guide for IDI 1000F Series Suspension System Model IDI 1000F-1H Adapter to IDI-03 Rails BUILD TRANSVERSE BRIDGE Remove Ceiling Rail Guide Wheel Units from the Rail Adapter Carriage that has them as shown to the right. Mount the two Guide Wheel Units into the Ceiling Rail by tilting them until the horizontal guide wheel can seat into the bottom cavity of the Ceiling Rail.
  • Page 10 Carriages and under the washers and nuts as shown above. Hand tighten the rail mounting hardware. Slide the IDI Rails back and forth to center them under the Adapter Carriages and to align both ends. Make adjustments to the Triangulation Bars and Rail Clips until the rails are spaced 17 1/8"...
  • Page 11 IDI 1000F-1H Adapter to IDI-03 Rails INSTALL RAIL END PLATES Install End Plates onto only one end of the movable IDI Rails. Make sure rubber bumpers face inwards as shown below. Use thread locker Loctite #242 on all threads. END-LOAD GANTRY Remove packing material from Carriage.
  • Page 12 Installation and Maintenance Guide for IDI 1000F Series Suspension System Model IDI 1000F-1H Adapter to IDI-03 Rails INSTALL MONITOR MOUNT NOTE TO INSTALLER: It is important that the load be balanced on the monitor mount. C 6X Remove wireway cover at top of monitor mount.
  • Page 13 Installation and Maintenance Guide for IDI 1000F Series Suspension System Model IDI 1000F-1H Adapter to IDI-03 Rails MOUNTING MONITOR Maximum total weight of monitors. To mount a monitor to the system, first remove the monitor mount brackets (front and rear and on each side of the central pivot body) by unscrewing the two screws that hold the front bracket to the rear bracket as shown below.
  • Page 14 Installation and Maintenance Guide for IDI 1000F Series Suspension System Model IDI 1000F-1H Adapter to IDI-03 Rails NOTE TO INSTALLER: Ground stud has been provided to properly ground monitor. Terminal strip has been provided for distribution of line voltage to monitor. Cut and strip monitor power cord to fit.
  • Page 15 Installation and Maintenance Guide for IDI 1000F Series Suspension System Model IDI 1000F-1H Adapter to IDI-03 Rails INSTALL MOBILE CABLE HANDLING ASSEMBLY See diagram below for reference. Slide nut plates (items 1) into rail track. Position standoffs approximately 48" (122cm) from each other.
  • Page 16 Installation and Maintenance Guide for IDI 1000F Series Suspension System Model IDI 1000F-1H Adapter to IDI-03 Rails Slide cable trolley assembly(s) onto cable hanger shaft (item 4) as shown below. Install free end of shaft into other shaft support. Tighten second socket head cap screw (item 5). Use thread locker LOCTITE #242 on hardware.
  • Page 17 Installation and Maintenance Guide for IDI 1000F Series Suspension System Model IDI 1000F-1H Adapter to IDI-03 Rails BALANCE SYSTEM Note: System balance has been set at factory based upon quoted monitor weight. Note initial settings written on Spring Data label (blank label is shown below for reference).
  • Page 18 Installation and Maintenance Guide for IDI 1000F Series Suspension System Model IDI 1000F-1H Adapter to IDI-03 Rails YOKE BALANCE ADJUSTMENT WARNING! Yoke has been leveled at manufacturers. Make adjustment only absolutely necessary to compensate for an unbalanced load. NOTE: Prior to yoke adjustment - payload must be secure.
  • Page 19: Maintenance

    Installation and Maintenance Guide for IDI 1000F Series Suspension System Model IDI 1000F-1H Adapter to IDI-03 Rails G. MAINTENANCE "Authorized Technician" All maintenance procedures should be done by an experienced technician with demonstrated knowledge and skills (electrical and mechanical) relative to this type of equipment.
  • Page 20 Installation and Maintenance Guide for IDI 1000F Series Suspension System Model IDI 1000F-1H Adapter to IDI-03 Rails Annual Maintenance Check: Clean carriage wheels and guides and the rails where carriage wheels and guides ride inside the rails. Check that the rail mounting hardware has not become loose.
  • Page 21: Customer Support

    Installation and Maintenance Guide for IDI 1000F Series Suspension System Model IDI 1000F-1H Adapter to IDI-03 Rails Clean and touch up painted surfaces. Check that all mounting hardware is tight and that there is no wear at: • the end of the gantry core arm.
  • Page 22: Disposal Guidelines

    Installation and Maintenance Guide for IDI 1000F Series Suspension System Model IDI 1000F-1H Adapter to IDI-03 Rails For technical assistance, be sure you have the complete model and serial number before contacting the local or national service office. Customer Support Image Diagnostics, Inc.
  • Page 23 Installation and Maintenance Guide for IDI 1000F Series Suspension System Model IDI 1000F-1H Adapter to IDI-03 Rails REVISIONS TO THIS MANUAL Date Description December 2011 Preliminary Release May 2012 ECO 324 Removed references to “Toshiba.” September 2018 D000-1098 REV C 06-SEP-2018 Image Diagnostics, Inc.
