Manufacturer of Quality Medical Products

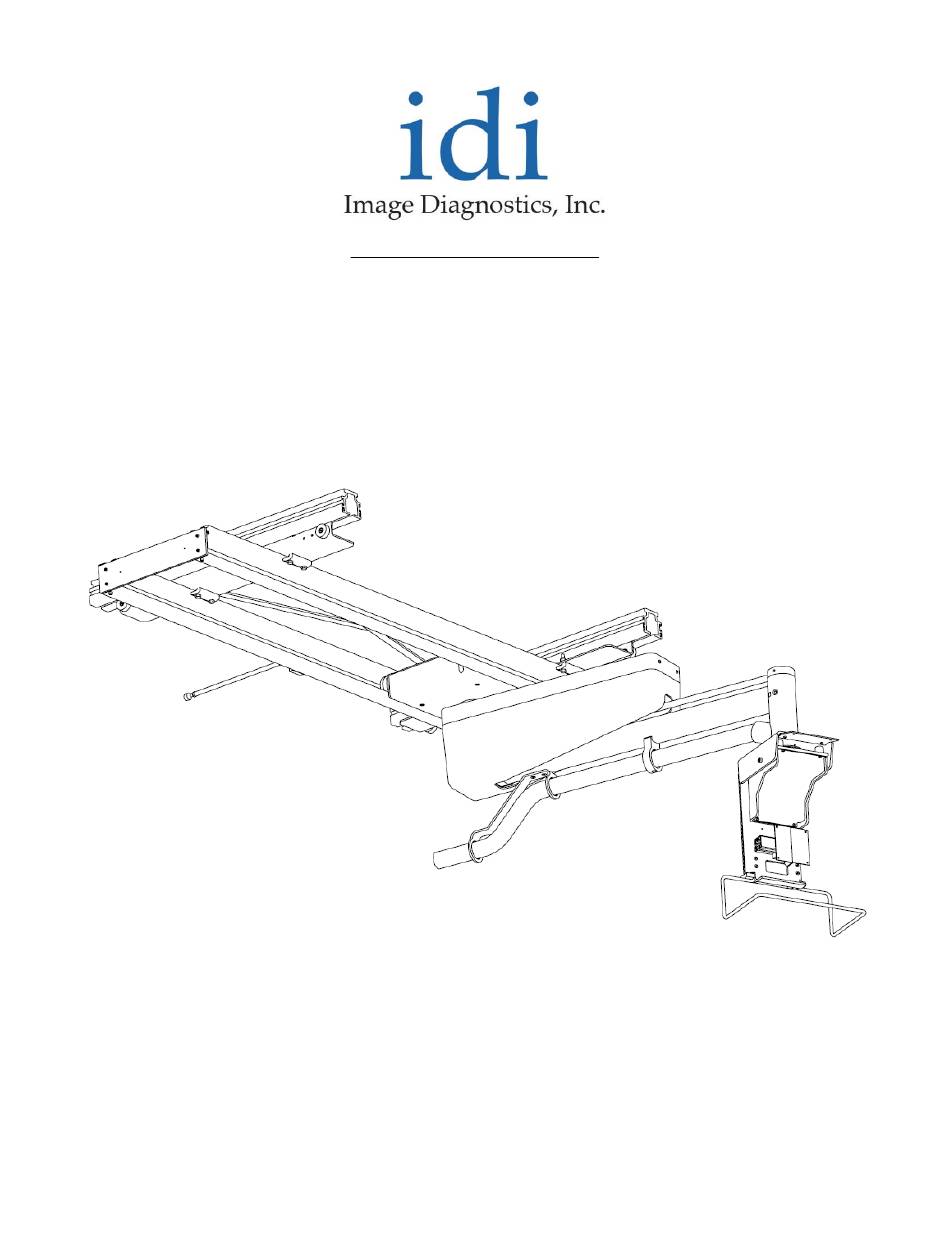

IDI Monitor Suspension System
Model IDI 1000F-1 and 1000F-2
with Adapter for Canon DST-1000A Ceiling Rails
Installation and Maintenance Guide
The text of this manual was originally written, approved and published by the manufacturer in
English. The information in this manual is subject to change without notice.
1
L240-1429 REV A
Image Diagnostics, Inc.
Page

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the 1000F-1 and is the answer not in the manual?

Questions and answers

Related Manuals for idi 1000F-1

Summary of Contents for idi 1000F-1

  • Page 1 Manufacturer of Quality Medical Products IDI Monitor Suspension System Model IDI 1000F-1 and 1000F-2 with Adapter for Canon DST-1000A Ceiling Rails Installation and Maintenance Guide The text of this manual was originally written, approved and published by the manufacturer in English.

  • Page 2: Table Of Contents

    Installation and Maintenance Guide for IDI Suspension System mounted to Canon DST-1000A Rails Contents INTRODUCTION ..............................3 SYMBOLS ................................4 GENERAL SAFETY ............................6 SAFETY HAZARDS............................7 INSTALLATION ..............................8 INSTALL DST-1000A CEILING RAIL ADAPTERS ..................8 INSTALL RAIL X/Y STOP ..........................10 INSTALL CROSS RAIL END PLATE .......................

  • Page 3: Introduction

    Installation and Maintenance Guide for IDI Suspension System mounted to Canon DST-1000A Rails A. INTRODUCTION The IDI 1000F Flat Panel Suspension System is designed to mount monitors used in medical imaging procedures to the ceiling which can be repositioned by rolling along guide rails.

  • Page 4: Symbols

    Installation and Maintenance Guide for IDI Suspension System mounted to Canon DST-1000A Rails B. SYMBOLS Consult accompanying documents. Failure to follow these instructions can cause accidents resulting in serious injury to patient, user, and damage to equipment. Warning! Information or instructions shown near this symbol must be adhered to in order to prevent a potentially hazardous situation which if not avoided, could result in death, personal injury or damage to the equipment.
  • Page 5 Installation and Maintenance Guide for IDI Suspension System mounted to Canon DST-1000A Rails Indication of European Conformity for sale in the European Economic Area (EEA). Item complying to Type B applied part per IEC 60601-1. Date of manufacture of the device.

  • Page 6: General Safety

    Installation and Maintenance Guide for IDI Suspension System mounted to Canon DST-1000A Rails C. GENERAL SAFETY Attention. Consult accompanying documents. Failure to follow these instructions can cause accidents resulting in serious injury to patient, user, and damage to equipment. Only qualified persons may install, operate or maintain this equipment.

  • Page 7: Safety Hazards

    Installation and Maintenance Guide for IDI Suspension System mounted to Canon DST-1000A Rails D. SAFETY HAZARDS Installers and Operators using this equipment should understand the safety issues and operating instructions provided. Comments and questions regarding safety should be addressed to: Customer Support Image Diagnostics, Inc.

  • Page 8: Installation

    Installation and Maintenance Guide for IDI Suspension System mounted to Canon DST-1000A Rails E. INSTALLATION UNPACK No special handling is required for unpacking this equipment at the site. Conventional shipping materials are used. Recycle or disposal of shipping material per local regulations...
  • Page 9 IDI supplied Cross Rails. Figure 3 4. Place and orientate 6ft.-8in. IDI Cross Rails against the inner rail clips (from assembly step 3) and mount remaining four outer rail clips as shown in Figure 3. Slide the Cross Rails until...

  • Page 10: Install Rail X/Y Stop

    1. The X/Y stop unit should have a T-nut fastened to it with two socket head cap screws. Loosen the screws for the T-nut and insert the X/Y Stop unit’s T-nut into one end of the IDI Cross Rail nearest to the opposing system in the room. See Figure 4 for correct orientation.

  • Page 11: Install Cross Rail End Plate

    Installation and Maintenance Guide for IDI Suspension System mounted to Canon DST-1000A Rails INSTALL CROSS RAIL END PLATE 1. Install only one Cross Rail End Plate sub-assembly at the far end of the Cross rails, making sure that the rubber bumpers face in towards the rails. See Figure 5. Use Loctite #242 on all threads.

  • Page 12: End-Load Monitor Mount Carriage

    (Refer to instructions on pages 17-19) 5. Install the second Cross Rail End Plate on the open end of the IDI Cross Rails, making sure the rubber bumpers face in towards the carriage. (See Figure 5 for reference) Use Loctite #242 on all threads.

  • Page 13: Install Monitor Mount

    Installation and Maintenance Guide for IDI Suspension System mounted to Canon DST-1000A Rails INSTALL MONITOR MOUNT NOTE TO INSTALLER: It is important that the load be balanced on the monitor mount. Consider any differences in size and weight of the monitors. Refer to Figure 6 for steps 1-6.

  • Page 14: Install Monitor(S)

    Installation and Maintenance Guide for IDI Suspension System mounted to Canon DST-1000A Rails INSTALL MONITOR(S) 11 kg Maximum weight of any individual monitor. 25 LBS 44 kg Maximum total weight of monitors. 96 LBS 1. On monitor mounts designed for two monitors (1000F-2), the plastic covers shown in Figure 7 will need to be temporarily removed to gain access to the rear of the monitor mounting brackets.
  • Page 15 Installation and Maintenance Guide for IDI Suspension System mounted to Canon DST-1000A Rails 4. Monitor can be tilted and rotated by hand. If monitor fails to stay in position and tilts without any outside assistance by hand, tighten the socket head cap screw on the pivot point of the bracket.

  • Page 16: Set Rotational Limits

    Installation and Maintenance Guide for IDI Suspension System mounted to Canon DST-1000A Rails SET ROTATIONAL LIMITS If desired, the rotational stop pin bumper can be relocated to one of four possible mounting locations. See Figure 9. FOUR POSSIBLE STOP PIN...

  • Page 17: Electrical Connections

    Installation and Maintenance Guide for IDI Suspension System mounted to Canon DST-1000A Rails ELECTRICAL CONNECTIONS 1. Colors of conductors in power supply cords must be in accordance with IEC publication 60227 (amendment #1) or with IEC publication 60245. Wiring Color Codes:...

  • Page 18: Install Stationary Cable Handling Assembly

    INSTALL STATIONARY CABLE HANDLING ASSEMBLY 1. Determine which end of the IDI Cross Rail the Stationary Cable Handling Assembly will be positioned onto. If it is to be at the far end of the rail, slide the assembly into the rail track prior to positioning the Mobile Cable Handling Assembly.

  • Page 19: Install Mobile Cable Handling Assembly

    Installation and Maintenance Guide for IDI Suspension System mounted to Canon DST-1000A Rails INSTALL MOBILE CABLE HANDLING ASSEMBLY 1. Slide two Nut Plates into the outer track of the Cross Rails. Apply Loctite #242 to the threads of two standoffs and then assemble into nut plates hand tight only. See Figure 12.

  • Page 20: Dress Cables

    Installation and Maintenance Guide for IDI Suspension System mounted to Canon DST-1000A Rails 6. Position shaft/cable handling assembly created from steps 1-5 to desired location along length of rail. Torque standoffs to nut plates approximately 35 to 50 inch-pounds (4.2 to 6.0Nm) and tighten socket head cap screws.

  • Page 21: Adjust Weight Counterbalance

    Installation and Maintenance Guide for IDI Suspension System mounted to Canon DST-1000A Rails ADJUST WEIGHT COUNTERBALANCE Note: System balance has been set at factory based upon quoted monitor weight. 1. Note initial settings from gas spring data label. See Figure 15.

  • Page 22: Yoke Balance Adjustment

    Installation and Maintenance Guide for IDI Suspension System mounted to Canon DST-1000A Rails YOKE BALANCE ADJUSTMENT WARNING! Yoke has been leveled at manufacturers. Make adjustment only if absolutely necessary to compensate for an unbalanced load. NOTE: Prior to yoke adjustment, payload must be secure and arm horizontal.

  • Page 23: Maintenance

    Installation and Maintenance Guide for IDI Suspension System mounted to Canon DST-1000A Rails G. MAINTENANCE "Authorized Technician" All maintenance procedures should be done by an experienced technician with demonstrated knowledge and skills (electrical and mechanical) relative to this type of equipment.
  • Page 24 Installation and Maintenance Guide for IDI Suspension System mounted to Canon DST-1000A Rails Pad attached to the underside of the monitor mount bracket must be complete and undamaged Figure 17 3. Operational check Articulate all the movable sections and confirm the following: •...
  • Page 25 Installation and Maintenance Guide for IDI Suspension System mounted to Canon DST-1000A Rails Figure 19 4. Perform a complete functional inspection: -Rotate monitor mount assembly through complete range. -Raise and lower monitor mount assembly. -Roll carriages to complete range of rails.

  • Page 26: Customer Support

    Customer Support Image Diagnostics, Inc. 310 AUTHORITY DRIVE FITCHBURG, MA 01420 Or call IDI at (978)829-0009 or send fax to (978)829-0027 or call Toll Free at (877)304-5434 L240-1429 REV A Image Diagnostics, Inc. Page...

  • Page 27: Disposal Guidelines

    Installation and Maintenance Guide for IDI Suspension System mounted to Canon DST-1000A Rails DISPOSAL GUIDELINES Most of the components used in this suspension system are made of metal, usually aluminum or steel, and are easily recycled. The gas springs are nearly 100% recyclable. They must be decompressed, with the remaining oil drained, before processing.
