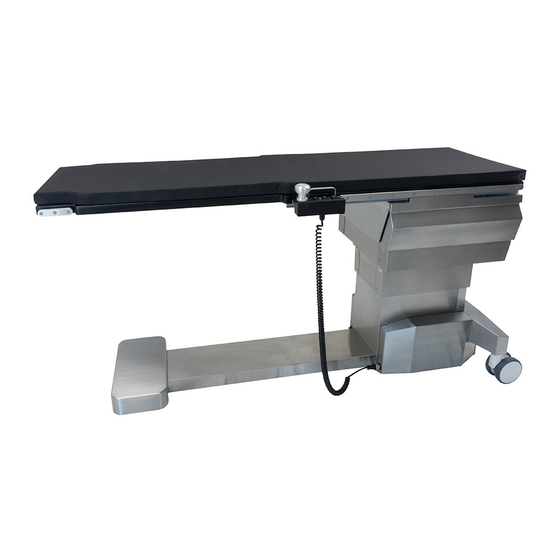

WARNING! Read operator

SETUP/PATIENT PREPARATION:

Moving table:

•
To move table, set caster lock pedal to FLOAT or
STEER position.
•
To secure table mobility, set caster lock pedal to LOCK
position.

AC Power:

1) Plug power cord into properly grounded outlet.
2) Protect power cord from damage by casters or other
equipment.

Controls:

1) Emergency Stop Pushbutton disables all tabletop motion
control when engaged.
2) If tabletop motion controls fail to operate, make sure
that the Emergency Stop Pushbutton is NOT pushed in.

BATTERY OPERATION (DC POWER):

1) The table is FULLY functional, but motions are slower.
2) Connect to AC power for a minimum of 8 hours daily to
ensure a proper battery charge.
3) Failure to push in Emergency Stop Pushbutton when
table is not in use and not connected to AC power for
longer than 72 hours, may result in permanent damage
to the batteries.

CPR:

Return table to level, retract tabletop to minimize
overhang and lower table position to a comfortable
height to perform CPR.
manual prior to use

BRAKES:

The 100-4T G3 table braking system utilizes a passive magnetic
brake; it remains engaged in the event of a complete loss of
electrical power. Power is necessary to release brakes.
Braking force is limited by the magnet strength. Use caution when
applying pressure to the side of the table as the brakes may be
overcome if more than 70 pounds of force is applied.
To reduce potential motion during patient transfers with larger
patients, release the table brake and move the top in the direction
the patient will be pulled during loading or unloading until the table
top transverse travel limit is reached. Release the panning handle to
re-engage the lock and then transfer the patient.

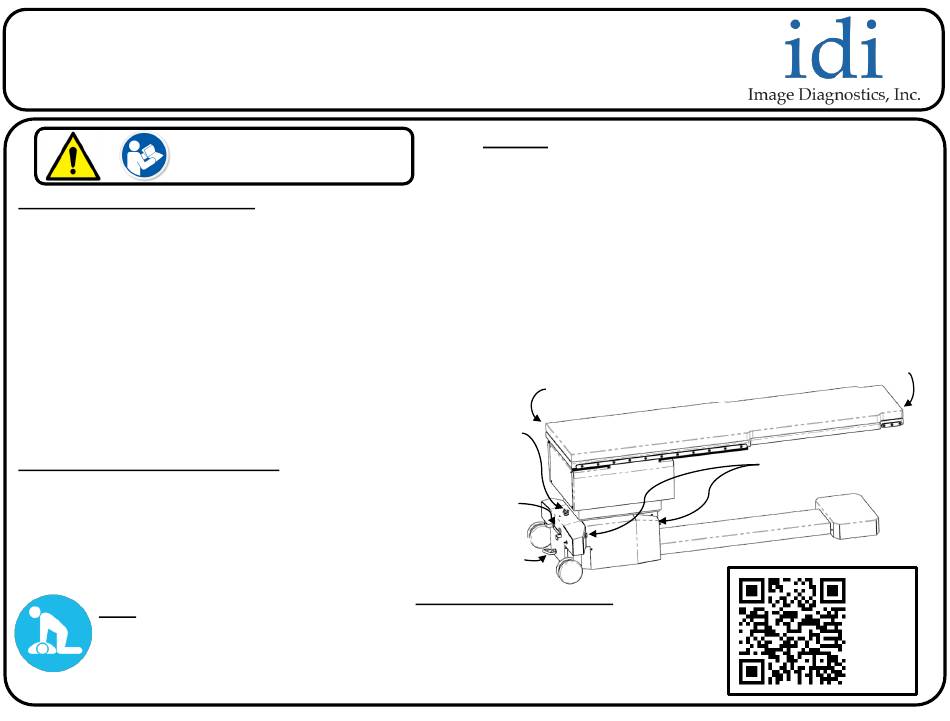

PEDESTAL END OF TABLETOP
EMERGENCY
STOP
PUSHBUTTON
POWER CORD
HOLDER
CASTER LOCK
PEDAL

CLEANING AND STORAGE:

1) Unplug power cord and wrap it around
the cord holder.
2) Push in Emergency Stop Pushbutton.
3) Set caster lock pedal to LOCK position.
4) Clean and disinfect table.
IMAGING END OF TABLETOP
CONNECTION POINT FOR
HAND OR FOOT CONTROLS
CONNECT HERE
Scan to
Access
User
Manuals
Online
