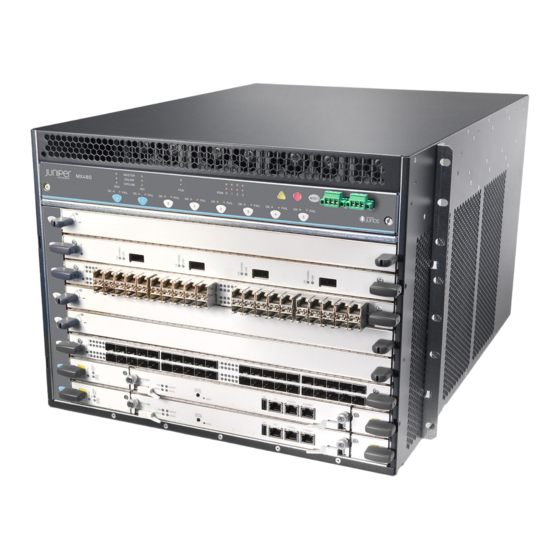

Juniper MX480 Manual
Hide thumbs
Also See for MX480:
- Hardware manual (552 pages) ,
- Quick manual (31 pages) ,
- Manual (35 pages)
Advertisement
Table of Contents
Removing Components from the MX480 Chassis Before Installing It Without a Lift
Removing the Power Supplies Before Installing the MX480 Router Without a Lift
If you cannot use a mechanical lift to install the router (the preferred method), you
can install it manually. To make the router light enough to install manually, you first
remove most components from the chassis. The procedures for removing components
from the chassis are for initial installation only, and assume that you have not
connected power cables to the router. The following procedures describe how to
remove components from the chassis, first from the rear and then from the front:
1. Removing the Power Supplies Before Installing the MX480 Router Without a
Lift on page 1
2. Removing the Fan Tray Before Installing the MX480 Router Without a
Lift on page 2
3. Removing the SCBs Before Installing the MX480 Router Without a Lift on page 3
4. Removing the DPCs Before Installing the MX480 Router Without a Lift on page 4
5. Removing the FPCs Before Installing the MX480 Router Without a Lift on page 5
Remove the leftmost power supply first and then work your way to the right. To
remove the AC or DC power supplies for each power supply (see Figure 1):
Attach an electrostatic discharge (ESD) grounding strap to your bare wrist, and
1.
connect the strap to one of the ESD points on the chassis.
On an AC-powered router, switch the AC input switch on each power supply to
2.
the off ( O ) position. On a DC-powered router, Move the DC circuit breaker on
each DC power supply to the off ( O ) position.
We recommend this even though the power supplies are not connected to power
sources.
Loosen the captive screws on the bottom edge of the power supply faceplate.
3.
Pull the power supply straight out of the chassis.
4.
Removing Components from the MX480 Chassis Before Installing It Without a Lift
1
Advertisement
Table of Contents
Related Manuals for Juniper MX480
Summary of Contents for Juniper MX480
- Page 1 2. Removing the Fan Tray Before Installing the MX480 Router Without a Lift on page 2 3. Removing the SCBs Before Installing the MX480 Router Without a Lift on page 3 4. Removing the DPCs Before Installing the MX480 Router Without a Lift on page 4 5.
- Page 2 Figure 1: Removing a Power Supply Before Installing the Router Removing the Fan Tray Before Installing the MX480 Router Without a Lift To remove the fan tray (see Figure 2 ): Attach an electrostatic discharge (ESD) grounding strap to your bare wrist, and connect the strap to an approved site ESD grounding point.
- Page 3 Figure 2: Removing the Fan Tray Removing the SCBs Before Installing the MX480 Router Without a Lift To remove the SCBs (see Figure 3): Place an electrostatic bag or antistatic mat on a flat, stable surface. Attach an electrostatic discharge (ESD) grounding strap to your bare wrist, and connect the strap to an approved site ESD grounding point.
- Page 4 Figure 3: Removing an SCB Removing the DPCs Before Installing the MX480 Router Without a Lift To remove a DPC (see Figure 4): Have ready an antistatic mat for the DPC. Also have ready rubber safety caps for each DPC using an optical interface on the DPC that you are removing.
- Page 5 Figure 4: Removing a DPC Removing the FPCs Before Installing the MX480 Router Without a Lift To remove an FPC (see Figure 5): Have ready an antistatic mat for the FPC. Also have ready rubber safety caps for each PIC using an optical interface on the PIC that you are removing.
- Page 6 Tools Required to Install the MX480 Router Without a Mechanical Lift Installing the MX480 Chassis in the Rack Manually Reinstalling Components in the MX480 Chassis After Installing It Without a Lift Published: 2010-01-22 Removing the FPCs Before Installing the MX480 Router Without a Lift...
