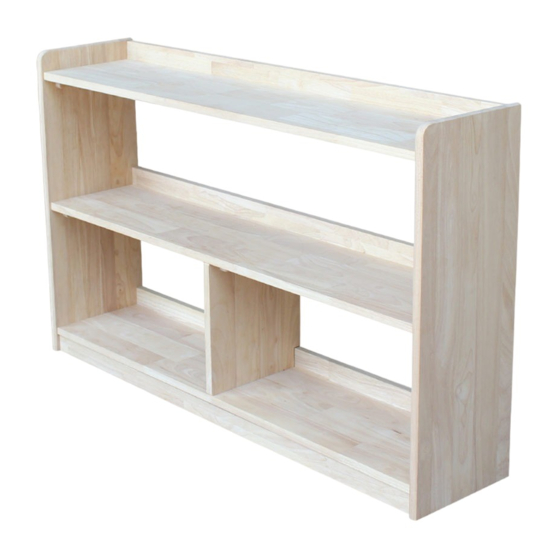

- Page 1 ASSEMBLY INSTRUCTIONS Description : ABBY BOOKCASE 48X11X30H Item No. : SH-14830 ITEM NO.: SH-14830 Printed in Vietnam ISSUED MAY 26, 2017 - 1 -...
- Page 2 BEFORE ASSEMBLY Thank you for purchasing this quality product. This product has been designed for easy assembly and constructed for durability. All parts were checked prior to packaging to insure quality. Prior to beginning assembly, however, make sure all parts and hardware are included and free of obvious defect.
- Page 3 PART LIST When unpacking, please be careful not to discard any parts with the packaging. Before continuing, please make sure you have the following parts: Description Q’ty Sketch Description Q’ty Sketch Side panel Vertical panel (L-R) Bottom panel Center panel Top panel Connecter HARDWARE LIST...
- Page 4 STEP 1 Insert vertical panel (B) into the bottom panel (C), and center panel (D) as shown below. Then attach vertical panel (B) to the bottom panel (C), and center panel (D) with bolts (1), and washers (2) and (3) as shown below. Tighten with Allen key (8). STEP 2 Insert connecter (F), and bottom panel (C), and panels (D) and (E) into the side panels (A) as shown below.
- Page 5 STEP 3 Attach connecter (F) to side panels (A) with screws (4) as shown below. Tighten with a screwdriver. Attach L-brackets (6) to bottom panel (C) and connecter (F) with screws (5) as shown below. Tighten with a screwdriver. STEP 4 Attach steel bands (7) to the unit with screws (5) and attach steel bands (7) to the wall with screws (4) as shown below (to secure the product and prevent tipping).
