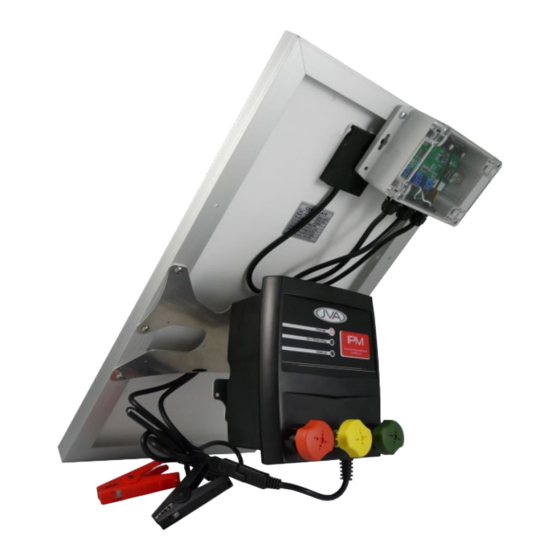

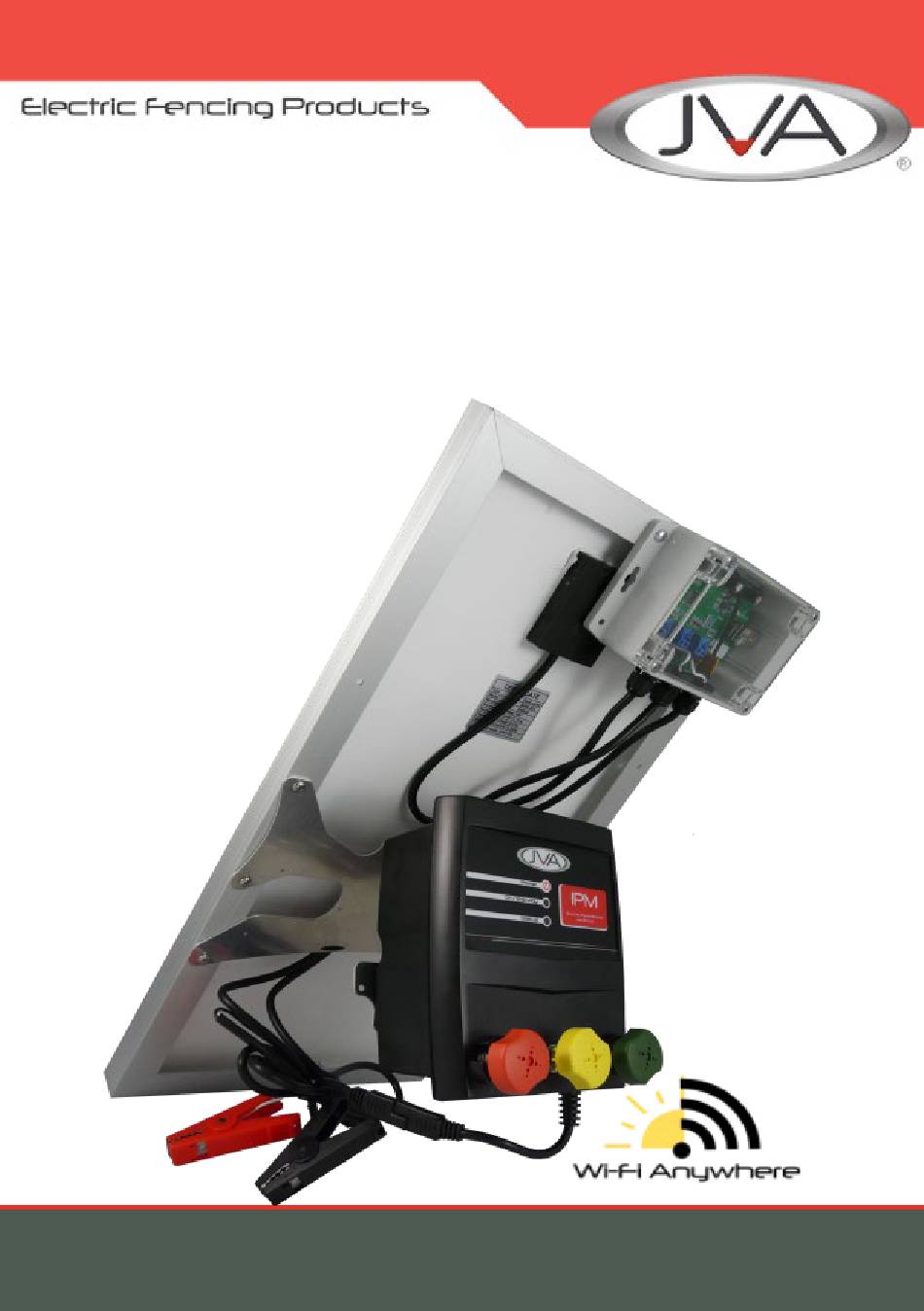

- Page 1 JVA Solar Wi-Fi Fence Monitor Quick Start Guide WA20M PTE2701 The JVA Logo is a registered trademark of JVA Technologies © JVA Technologies...
-
Page 2: Specifications
The Wi-Fi can then be used to connect an IP device or Internet of Things (IoT) device to the Cloud (Internet). The JVA Solar Wi-Fi Fence Monitor is paired with the Wingle at the fac- tory, all you need to do is: 1. -
Page 3: Troubleshooting
Check battery polarity versed Batt level flashing Battery disconnected Check battery connec- tions Bad battery Check battery voltage USB_5V LED off USB device drawing Unplug USB device, too much current check for damage/ seek manufacturer advice JVA WA20M Page 3... - Page 4 Out of Wi-Fi range Move closer to Wingle (~10m) SIM card not inserted Re-insert SIM card correctly If the unit is still not working correctly, contact your nearest JVA distribu- tor for technical support. Troubleshooting the IP Monitor Fault Liklely Cause Remedy...
- Page 5 10m away from Wingle, move closer. 5 Red flashes IP Monitor has incor- Default the IP monitor rect password and re-configure If the unit is still not working correctly, contact your nearest JVA distributor for technical support. JVA WA20M Page 5...
-
Page 6: Before You Start
Off when no solar power detected D6 (USB_5V) Solid on when USB Power is turned on Batt Level Bottom LED flashes if no battery is disconnected or bad Shows battery level from bottom to top: 25% to 100% Page 6 © JVA Technologies www.jva-fence.com... - Page 7 6. 6. Select the “Device Type” as “IP Monitor” 7. Set alarm thresholds for voltage and current accordingly. The IPEC app will notify you if the IP Monitor hits or exceeds these thresholds. 8. Press “OK” JVA WA20M Page 7...
- Page 8 • End of Fence Voltage Monitoring • Cut detection • Fence Load detection Limitations: • No Current monitoring • No fence armed state control 1. Relay function not available on IPM variant (PTE2606) - requires IPM-R Page 8 © JVA Technologies www.jva-fence.com...
- Page 9 Red Terminal to Energiser Output (high voltage) Advantages: • Current Monitoring • Voltage Monitoring • Ability to control the fence armed state Limitations: • No cut detection 1. Relay function not available on IPM variant (PTE2606) - requires IPM-R JVA WA20M Page 9...
- Page 10 Once connected, the Batt Level indicator lights will show the approximate voltage level of the battery. If everything is connected, the IP Monitor will have a Green status light. This will now be available and online in the IP Energiser Controller ap- plication. Page 10 © JVA Technologies www.jva-fence.com...
- Page 11 Region Number Australia 0731 030 582 South Africa 0861 782 349 World Wide +61 731 030 582 For more information on our complete range of electric fencing products please see the JVA website at https://www.jva-fence.com.au JVA WA20M Page 11...
- Page 12 Tel : +61 (0)499 000 455 Email : sales@jva-fence.com.au www.jva-fence.com The JVA Logo is a registered trademark of JVA Technologies © JVA Technologies...
