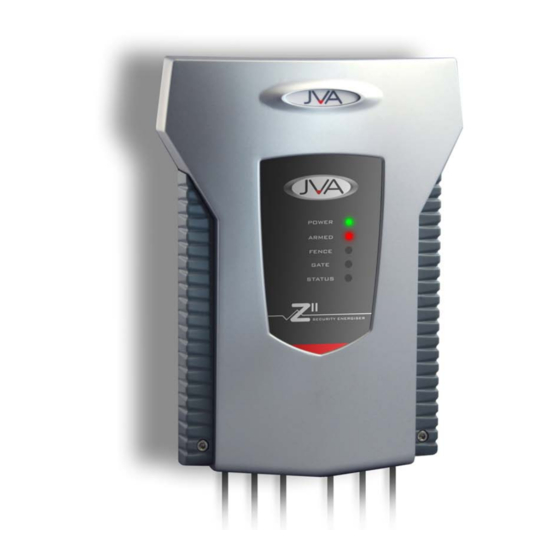

JVA Z11 User Manual
Hide thumbs
Also See for Z11:
- Installer manual (52 pages) ,
- Manual (48 pages) ,
- Quick start manual (16 pages)
Advertisement
Quick Links
Advertisement
Related Manuals for JVA Z11
Summary of Contents for JVA Z11
- Page 1 J VA T E CH N O LO G I E S www.jva-fence.com...
-
Page 2: Low Voltage Wiring
SIREN 2 Way Switched 12V output. 30W max, shared between Si- ren and Strobe. Low side switched STROBE 2 Way Switched 12V output. 30W max, shared between Si- ren and Strobe. Low side switched Page 2 © JVA Technologies www.jva-fence.com... - Page 3 Label Type Description 16Vac 3 Way 16Vac 1.5A power input plus earth. Connection of the earth is only required where local safety or wir- ing codes demand it. This should be connected to the cabinet or mains earth NOT the fence earth. Batt Battery battery...
- Page 4 Arm the energizer once again, after 3 pulses (unless you configured it oth- erwise) the unit should go into alarm as the fence will appear to be cut. Check that any sirens, strobes or relays activate as expected. Page 4 © JVA Technologies www.jva-fence.com...
- Page 6 CHANGING THE PROGRAMMING OPTIONS Default Installer PIN 012345 Default User PIN 1234 First you have to enter Programming mode. Command Key1 Key2 Key3 Key4 Key5 Key6 Key7 Key8 Key9 Enter Programming Mode Installer Pin When you have entered Programming mode you can begin to enter the following options to configure your Security Energizer.
- Page 7 Command Key1 Key2 Keys 3 and 4 Key5 Low Power Mode Power Level Percentage of High Power Mode Power Level 0.5% 1.0% 1.5% 2.0% 2.5% 3.0% 3.5% 4.0% 4.5% 5.0% Return Fence Alarm Voltage For High Power Fence Alarm Voltage (kV) Conventional Mode Fence Alarm Voltage (kV) Bi-Polar Return Fence Alarm Volt-...
- Page 8 Command Key1 Key2 Keys 3 and 4 Key5 Siren Cycles Input Type Normally Open (NO) Normally Closed (NC) Input 2 Function Gate Low Power Gate Entry/Exit Delay (S=Seconds, M=Minutes) Chime Mode None Door Chime Siren Fence Alarm Gate Beeps Plus Siren Combined Options 1 (add up the options you Maximum...
- Page 9 Command Key1 Key2 Keys 3 and 4 Key5 Combined Options 2 (like Combined Options 1) Siren Codes Gate Delay Type 4800 baud 9600 baud (Chirps 1 for armed, twice for disarmed) Auto Re-arm Time (S=Seconds, M = Minutes, D=Disabled Relay 1 Options Explained under “1.1.1 Relay Functions”...
- Page 10 1.6.1 Relay Functions The table below is for use for the relay programming options mentioned in the table on the previous page. Keys 3 Function Description and 4 Fence Triggers when Zone 1 is Armed and Return Voltage is below the Threshold Voltage Fence or Off Triggers when Zone 1 is Disarmed or Return Voltage is below the Threshold Voltage Armed...
- Page 11 Keys 3 Function Description and 4 Group Armed Triggers when group is Armed. Only configurable on group master. Group general Triggers on group general Alarm. Only configurable on group master. This Relay is completely controlled from a Host system such as Perimeter Patrol or a Host Control Keypad.
-
Page 12: Summary Of Keypad Functions
SUMMARY OF KEYPAD FUNCTIONS Default Installer PIN 012345 Default User PIN 1234 Command Key1 Key2 Key3 Key4 Key5 Key6 Key7 Key8 Key9 Key10 Arm/Disarm User PIN Silence Alarm (Standalone Energizer only) User PIN Enter Programming Mode Installer PIN Exit Programming Mode Change a User PIN, 4 Digits User PIN [New... - Page 13 Command Key1 Key2 Key3 Key4 Key5 Key6 Key7 Key8 Key9 Key10 keypad Alarm Beeper (Chime) On/Off Keypad Errror Tones (On/Off) Backlight Mode On/On With Keys/Off Display Keypad Model Re-analyse the Group Reset and Display Firmware Version Number 1 Reset and Return to Factory Defaults Power Boost Siren Test Battery Test...
- Page 14 Energizer Function Key1 Key2 Key3 Key4 Clear Alarm Memory Siren Test Battery Test Keypad Specific Function Key1 Key2 Key3 Key4 Re-Analyse the Energizer Group Keypress Beep On/Off Chimes On/Off Error Tones On/Off Keypad Alarm Tones On/Off Change Backlight Mode Display Keypad Model...
- Page 15 Z-Series Quick Start Manual Page 15...
- Page 16 DEALER fEncE...
