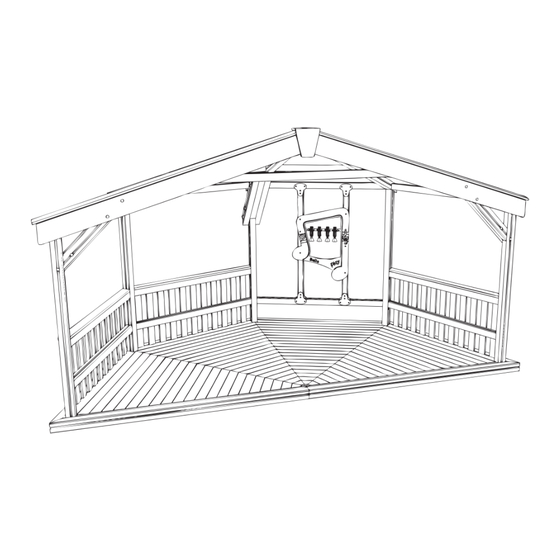

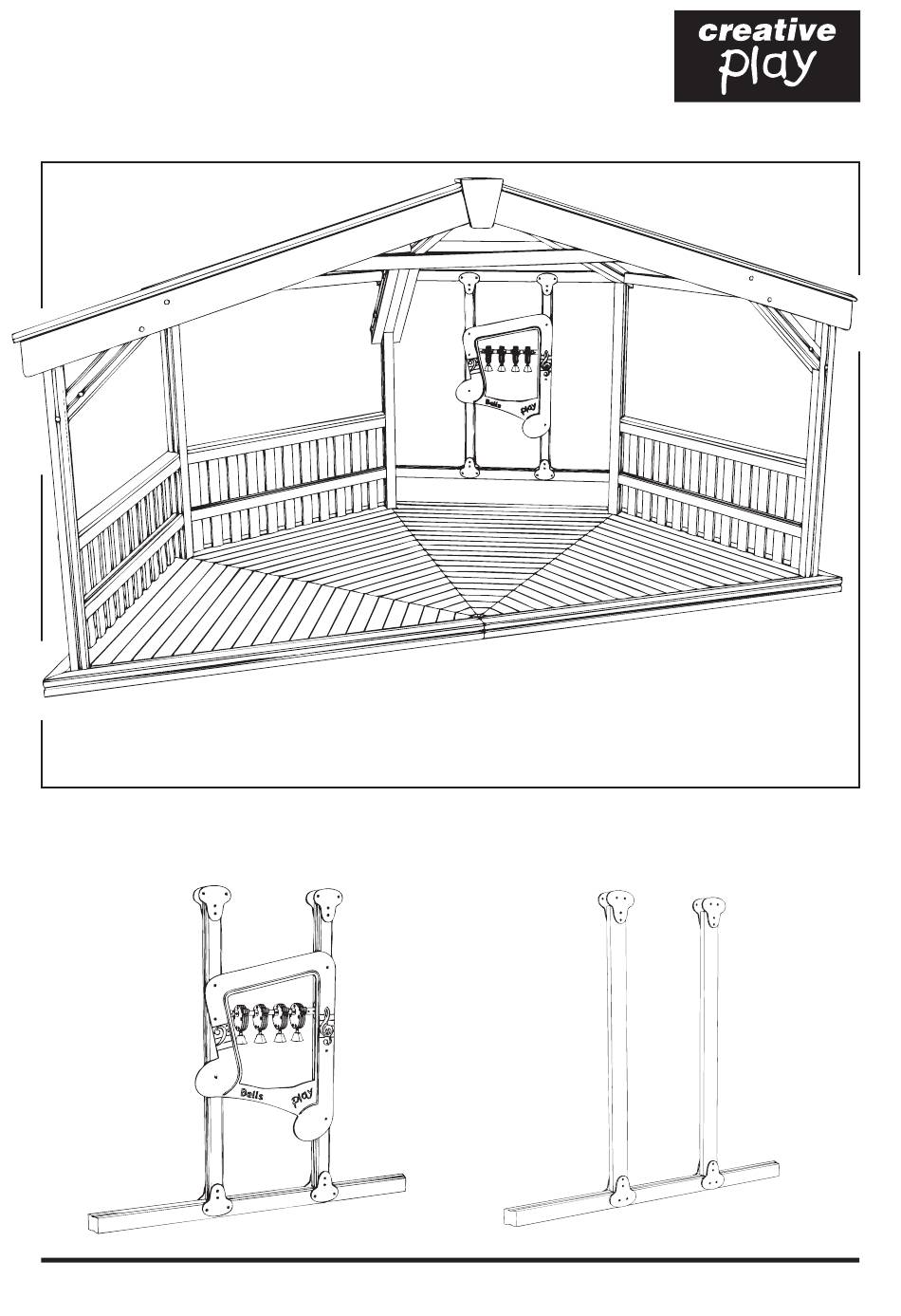

- Page 1 BELLS - OCTAVIA OPTION Installation Instructions 1 x board attachment shown above with MUSICAL PLAY BOARDS Can be used for any MUSIC playboards in our range 4,5 & 6m Full & Half Octagonal Shelters BOARD ATTACHMENT FOR REF: MP108(A) - BELLS OCTAVIA OPTION...
- Page 2 PARTS required BOARD ATTACHMENT REPLACES SIDE(S) It can not be used in conjunction with standard sides or filled sides (FM80 brass screws) (Pairs of - 90mm x 90mm T’s) (40mm brass screws) (90mm x 90mm UPRIGHT) (angle cleats/brackets) PRE-ASSEMBLED MUSIC PLAY BOARD (90mm x 90mm CROSS BAR)
- Page 3 Installation Instructions Attach T2 timber (crossbar) using angle cleats/brackets and 40mm brass screws 6m HALF SHELTER shown Crossbar will be inline with the SIDES support (400mm) REF: MP108(A) - BELLS OCTAVIA OPTION pg 3 of 5...
- Page 4 Installation Instructions Installation Instructions Attach T1 timber (uprights) 90mm x 90mm T’s and 80mm brass screws EXISTING SHELTER ROOF RAFTER TO UPRIGHT CENTRES 715mm REF: MP108(A) - BELLS OCTAVIA OPTION pg 4 of 5...
- Page 5 Installation Instructions Installation Instructions Installation Instructions FIX MUSIC PLAYBOARD ONTO UPRIGHTS FIX THE ASSEMBLED MUSIC PLAY BOARD ON TO THE TWO UPRIGHTS USING 6 X FM80 BRASS WOOD SCREWS FIX MUSIC PLAYBOARD ONTO UPRIGHTS FIX THE BAR ONTO THE TIMBER TO SUIT THE HIOLE IN THE PLAYBOARD FRAME USING 4 X FM80 BRASS WOOD SCREWS BEFORE TIGHTENING THE BAR INTO PLACE...
