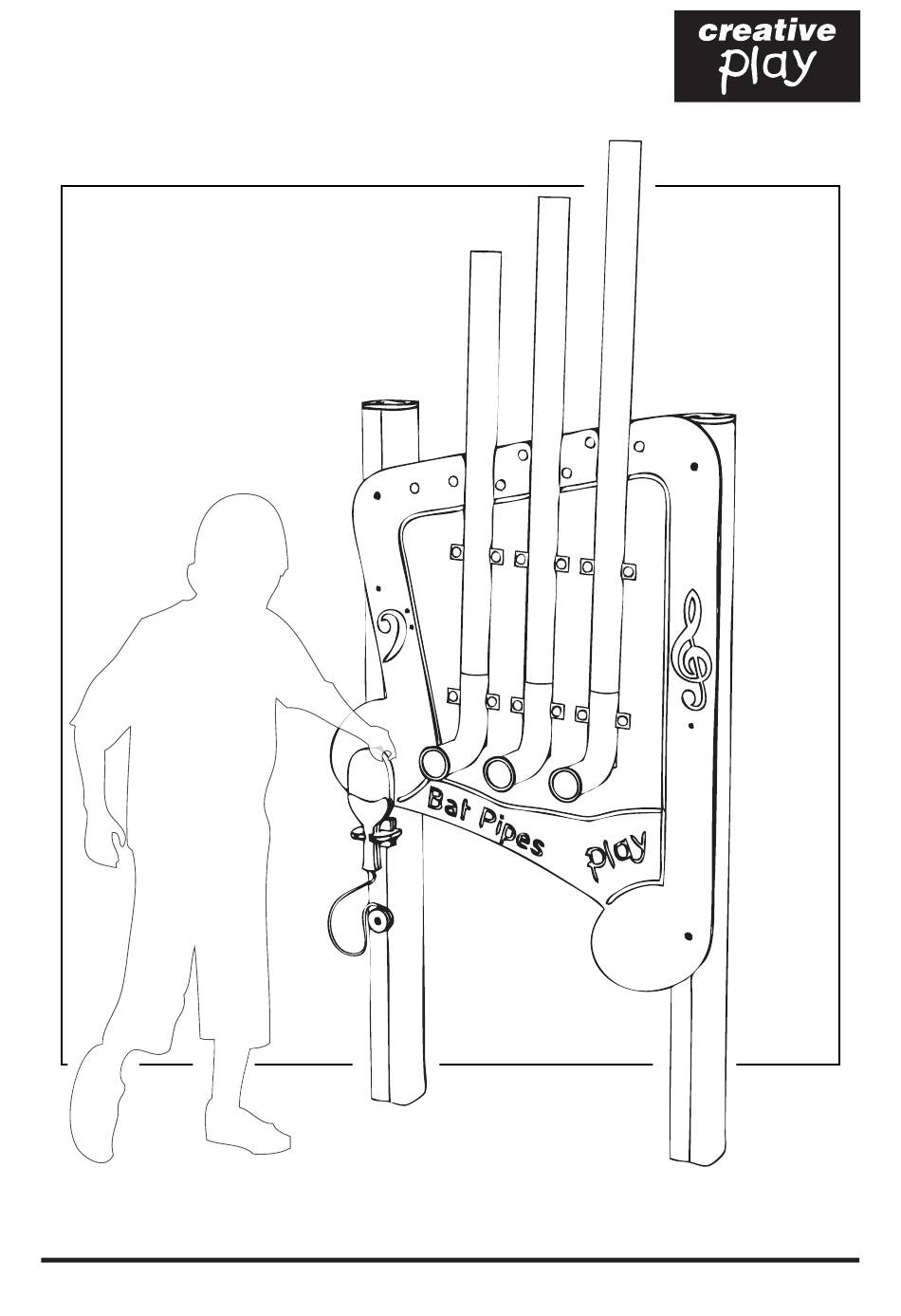

- Page 1 BATPIPES Installation Instructions REF: MP106 - BATPIPES pg 1 of 5...
- Page 2 PARTS required PRE-ASSEMBLED MUSIC FM80 BRASS WOOD PLAY BOARD SCREWS PLAYTEC RING RECESSED PLAYTEC CIRCLE PLAYTEC BLOCK OBLONG PLAYTEC PIECES PLAYTEC BEATER HOLDER PADDLE BEATER WITH STEEL CORD TOOLS required REF: MP106 - BATPIPES pg 2 of 5...
- Page 3 Foundation Details FINISHED GROUND LEVEL SOIL TIMBER SUPPORT POST CONCRETE REF: MP106 - BATPIPES pg 3 of 5...
- Page 4 USING 2 X FM80 BRASS WOOD SCREWS PUSH PLAYTEC BLOCK THROUGH THE HOLDER AND MATCH UP THE TWO OBLONG PLAYTECS PIECES TO THE HOLES FIX INTO TIMBER WITH 2 FM80 BRASS WOOD SCREWS. REF: MP106 - BATPIPES pg 4 of 5...
- Page 5 Additional Dimensions 0.26M 0.87M REF: MP106 - BATPIPES pg 5 of 5...
