I N S T A L L A T I O N M A N U A L

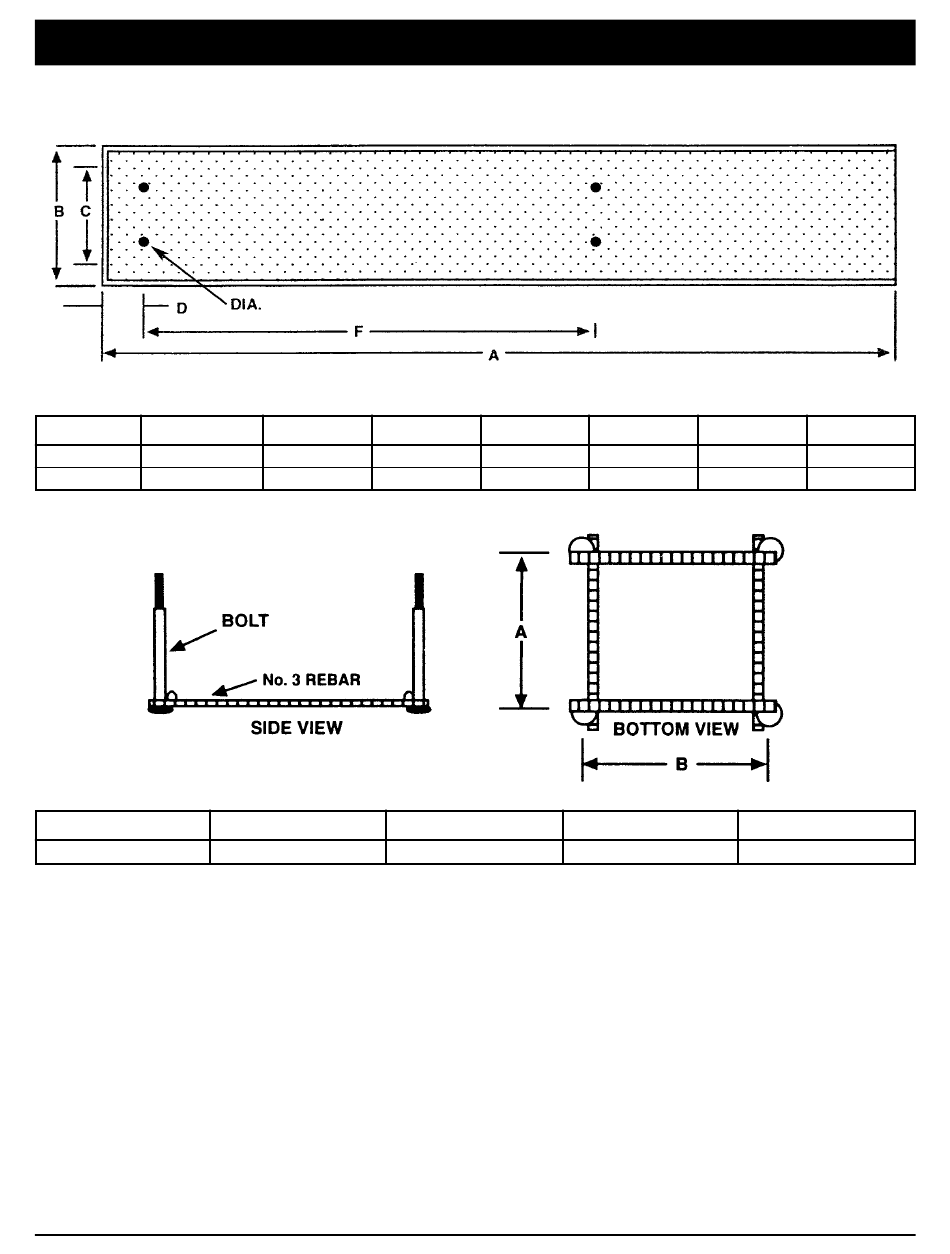

FIG. B – 6' EDGE DIVING BOARD
TABLE 4 – BOARD DIMENSIONS AND FULCRUM SETTINGS
Model #
Nominal Length
EDGE 6
6'
EDGE 8
8'
FIG. C – EDGE JIG
TABLE 5 – JIG DIMENSIONS
Jig Type
Edge Fiberglass
INSTALLATION INSTRUCTIONS: Edge Fiberglass Stand and Edge Diving Board
Be sure the concrete deck surrounding the anchor jig complies with the minimum dimensions as
shown in Figure A on pages 6.
Read and understand the ANSI/NSPI-5 2003 American National Standard for Residential Inground
swimming Pools and Table 1 and Table 2 on page 5 before you install Edge Fiberglass Stand and/or
Edge Diving Board.
The Edge four-bolt jig should be set in accordance with Table 3 on page 6. The diving board must be
placed on the deep end of the pool on centerline.
The tip of the diving board must be positioned directly over Pt. A as shown on page 5 and according
to the ANSI/NSPI-5 2003 Standard and Inter-Fab's Residential Pool Minimum Specifications
Make sure the jig anchor bolts project out of the concrete deck 1-1/2" for the Edge Stand with
ample concrete depth below the jig in accordance with Figure A on page 6. Do not install the Edge
Diving System if the deck does not meet the minimum requirements.
EDGE-IM Rev. 6/08 (BBK-EDGE INSTAL)
A
B
70.25"
17.25"
94.00"
17.25"
A
12"
E D G E ™ D I V I N G S Y S T E M
C
D
6.31"
4.00"
6.31"
9.00"
B
C
12"
6"
7
F
DIA.
42.50"
.625"
42.50"
.625"
BOLT
1/2" X 6"
