NRS Healthcare M11260 User Instructions

M11260 Long Support Rail - 760 mm (30")
General Safety Warning
This Product must be fitted be a suitably qualified
person. Please make sure that you read and
follow these instructions carefully. Failure to do
so can result in injury. Keep these instructions in
a safe place for future reference.
1.0 INTENDED USE
To provide stable support to assist the user raise and lower themselves for toileting. The rail can be raised
back to the wall when not in use or when transferring from the side

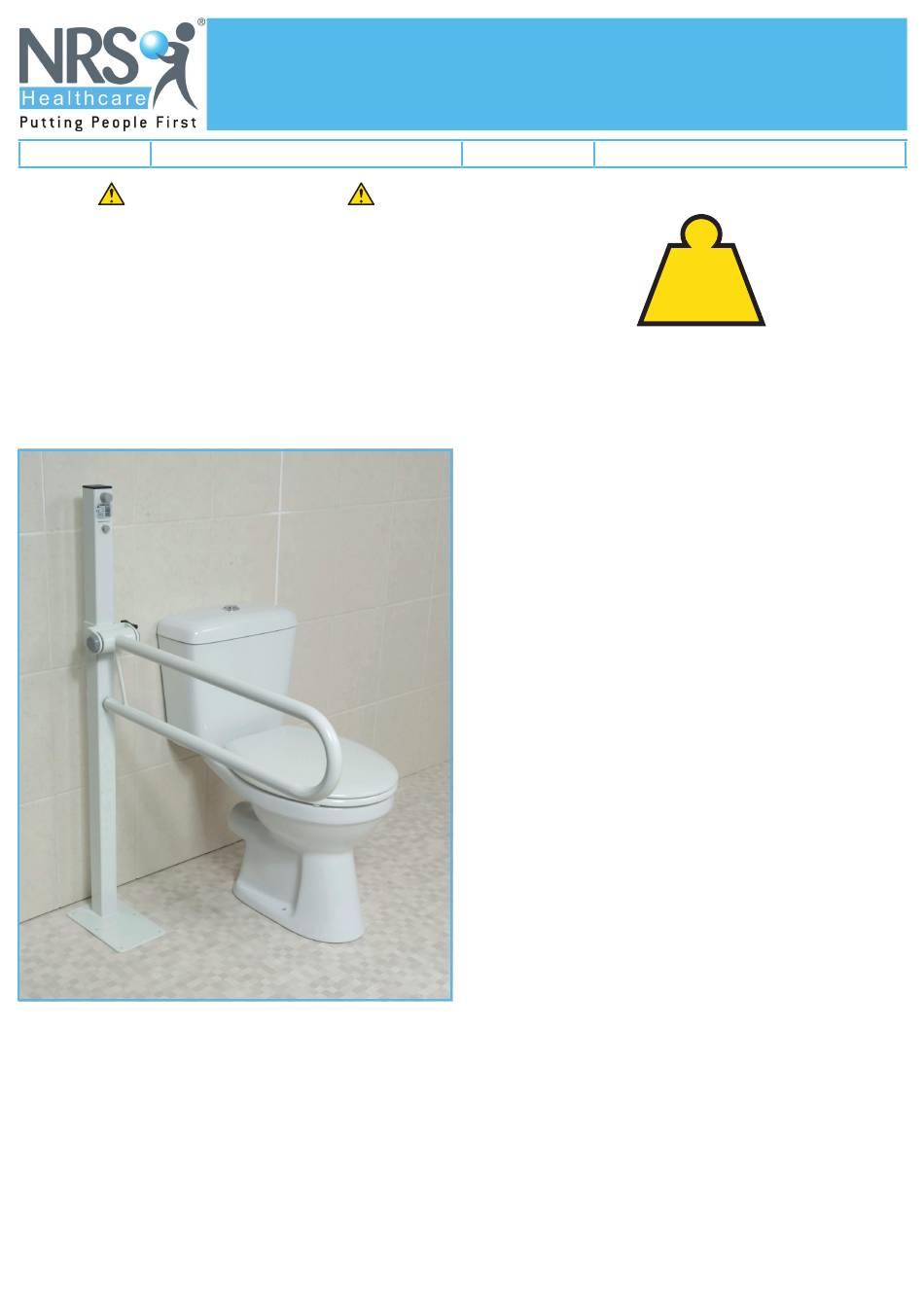

Figure 1: Folding Support Rail
2.0 SAFETY
• This support rail should only be secured to sound
wooden floors on timber joists or concrete floors,
using fixings appropriate to the floor type.
• This product must be installed by a suitably
qualified, competent, person.
• Always check for concealed electrical cables
and water pipes when installing; also check your
legal requirements relating to earth bonding of
extraneous metal parts.
USER INSTRUCTIONS
STANDARD FLOOR-FIXED FOLDING
SUPPORT RAIL
M20108
Maximum User Weight
• Do not exceed the maximum load - Note this is
based on the product being fitted to a suitable
surface using appropriate fixings
• Check floor fixings regularly, ensure all fixings
are secure, and there is no movement on the
floor stand
3.0 UNPACKING
Remove the packaging and check all parts carefully.
Contact your supplier immediately if parts are
missing or damaged and do not try and assemble.
4.0 INSTALLATION
1. Place stand in the required position.
2. Make sure the rail can be raised and lowered
without interference from other fixtures and
furniture and that transfers can be carried out
safely.
4.1 Floor board fixing:
1. Mark through all holes in the base plate.
2. Remove stand and drill pilot holes suitable for
the fixings.
3. Screw down using appropriate fixings.
4. Make sure screws go through floorboards and
into the floor joists.
4.2 Concrete floor fixing:
1. Mark through all holes in the base plate.
2. Remove the stand, then drill all holes using a
suitable masonry drill.
3. Remove dust and insert plugs. Replace stand
and secure using suitable fixings.
1. Using the black hand-wheel on the side of the
support rail, release the rail and slide up/down
the floor stand. Re-clamp the rail securely at the
appropriate height using the black hand-wheel.
1
Short Rail - 550 mm (21½")
16st
100kg
