Preparation

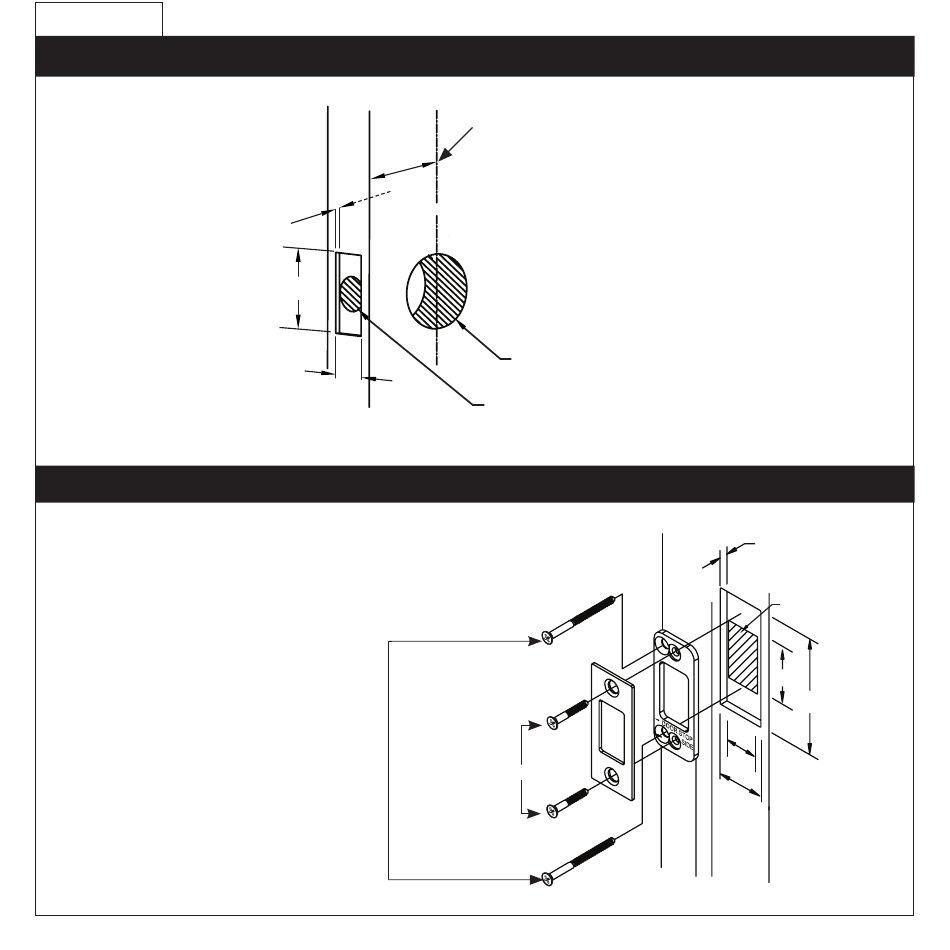

1. Door Prep
2-3/8" or 2-3/4" Backset
1/8" Deep
2 1/4"
2 1/8" Diameter Bore
1 "
1" Diameter Edge Bore
2. Door Jamb Prep
Step 1: Fasten Security Plate using two #10 x 3" Wood Screws (item #9).
Step 2: Fasten Strike Plate using two #8 x 3/4" Wood Screws (item #6).
3/16" Deep
11/4" Deep
#10 x 3" Wood Screws
11/4"
2-3/4" 2 3/4"
3/4"
#8 x 3/4" Wood Screws
1 1/8"
