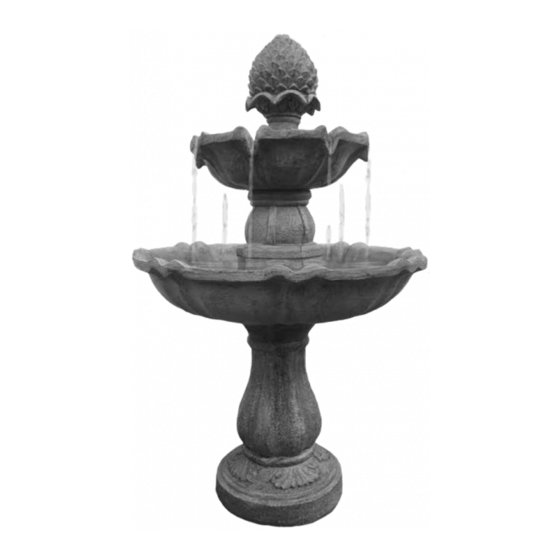

- Page 3 Bernini™ Fountain on the next page. Please note, images of parts are not to scale with one another. About Calvari: Calvari is a quaint Italian village of a little over 60 people – sometimes the simplest things are the best. Imagine a historic town square with a well-worn fountain that is known by few but beloved by all who have had the chance to experience its tranquility.
-
Page 4: Table Of Contents
CONTENTS Step 1: Fountain Bowl Installation Large Bowl Locking System Step 2: Water Pump, Middle Tier, Small Bowl, Finial Installation & Water Pump Connection Water Pump Installation Middle Tier Installation Small Bowl Installation Finial installation Water Pump Installation Step 3: Setting Up Your Fountain Fill Your Fountain Operating Your Fountain Troubleshooting and Maintenance... - Page 5 Parts for your Bernini ™ Fountain: Middle Tier Finial Large Bowl Small Bowl Power Cords & Plugs Leveling Shim Base...
-
Page 6: Step 1: Fountain Bowl Installation
Step 1: Step 1: Fountain Bowl Installation You will need: Large Bowl Base Remember if you need help contact Customer Care: 1+ (619) 449-2392... -
Page 7: Large Bowl Locking System
Large Bowl Locking System A look at how the Large Bowl locking system works on your Fountain. Bottom of Large Bowl Top of Base Note: You will notice that there are two different sized tabs on the bottom of the Large Bowl and there are two corresponding grooves in the top of the Base. -
Page 8: Step 2: Water Pump, Middle Tier, Small Bowl, Finial Installation & Water Pump Connection
Step 1: Step 2: Water Pump, Middle Tier, Small Bowl, Finial Installation & Water Pump Connection You will need: Small Bowl Finial Middle Tier Assembled Base & Power Cords Large Bowl & Plugs Remember if you need help contact Customer Care: 1+ (619) 449-2392... -
Page 9: Water Pump Installation
Water Pump Installation Step 1: Feed the Water Pump Power Cord down For the next step, you will install the Water Pump the pipe. into the Large Bowl. Be sure to leave approximately 4 to 5 inches of Step 2: Route the Water pump Electrical Power slack in the cord coming from the Water Pump Cord through the base of the fountain and through so the pump will sit on the bottom of the Large... -
Page 10: Middle Tier Installation
Middle Tier Installation The Middle Tier utilizes a key system that will Step 1: Turn the Middle Tier a quarter turn to lock lock the Middle Tier to the Large Bowl. Install the into place. Middle Tier onto the large bowl. Align the tabs on the Large Bowl with the notches in the Middle Tier. -
Page 11: Finial Installation
Finial Installation Step 1: The Finial also uses a key system that Step 2: After feeding the water tube down the will lock it to the middle of the Small Bowl (Black tube in the center of the small bowl, set the Finial arrow). -
Page 12: Water Pump Installation
Water Pump Installation Step 2: Ensure that the water tube is securely Step 1: Pull the Water Tube out of the pump connected to the Water Pump. cavity and connect the Water Tube to the Water Pump. Step 4: Install the Water Pump Door by aligning Step 3: Tuck the Water Pump back into the notch and sliding door down on the Middle Tier. - Page 13 At this point, your fountain should look like the image below. Go to the next page for the next step to setup STOP! your new Bernini™ Fountain. Remember if you need help contact Customer Care: 1+ (619) 449-2392...
-
Page 14: Step 3: Setting Up Your Fountain
Step 1: Step 3: Setting Up Your Fountain You will need: Water To Fill Your Fountain Fountain Assembled Remember if you need help contact Customer Care: 1+ (619) 449-2392... -
Page 15: Fill Your Fountain
Fill Your Fountain Fill the Fountain Tier until water pours over the spouts. Then fill the Large Bowl until the water is about 1 inch (2.5 centimeters) from the top of the bowl. Operating Your Fountain After you have filled your Fountain, grab both sides of the Large Bowl and quickly shake your Foun- tain for ten seconds. -
Page 16: Troubleshooting And Maintenance
To clean your fountain, drain of all water and disassemble. Use a mild soap and a soft cloth to clean the parts of your Bernini™ fountain. Your fountain bowl will form a natural patina finish which with time may appear lighter or whiter than the original color. This is normal. DO NOT SCRUB YOUR FOUNTAIN, AS THIS COULD CAUSE DAMAGE TO THE FINISH OF YOUR BERNINI™... -
Page 17: Water Pump Impeller
The impeller inside of the Water Pump is what pushes water up through your fountain, allowing you to enjoy the soothing sounds and wonderful sights of your Bernini™ Fountain. After long periods of usage, this part will need to be cleaned to make sure your foun- tain runs optimally. -
Page 18: Water Pump Connection
Door from the Middle Tier. Fountain back in Water Pump Connection If your Bernini™ Fountain Water Pump becomes disconnected from the water tube inside of the Middle Tier, use these instructions to reconnect your water pump. Step 1: Remove the door from... -
Page 19: Using Leveling Shims
Using Leveling Shims If you are having trouble getting water to flow evenly off of the spouts on your Bernini™ Fountain, you may need to level the surface that your fountain is placed on. With the included leveling shims, you do not need to move your fountain, just follow the instructions below to get even water flow. - Page 20 (1) year from the date of original purchase. If within one (1) year this product fails due to defect in material or workmanship, Bernini™ will repair, replace or supply any defective part at their discretion. The purchaser must contact Bernini™ and provide a description of the defective part, including digital pictures if requested, with this original purchase documentation as validation of warranty coverage.
