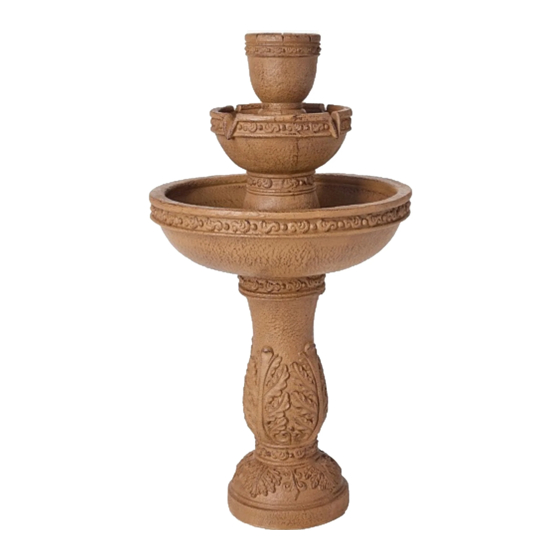

Summary of Contents for Bernini Como 4 In 1 Lithium Fountain

  • Page 2 This product comes with a one year limited warranty against materials and workmanship. Please review the list of accessories included with your Bernini™ Fountain on the next page. Please note, images of parts are not to scale with one another.
  • Page 3: Table Of Contents

    Contents Step 1: Base and Large Bowl Bowl Locking System Step 2: Fountain Bowl Installation Step 3: Battery Installation Connecting The Battery Inserting Battery Compartment Door Removing The Battery Compartment Door Step 4: Setting Up Your Fountain Fill Your Fountain Operating Your Fountain Step 5: Installation Instructions for Decor Tops Dancing Water Feature Installation...
  • Page 4 Parts to your new Bernini Fountain: ™ Large Bowl Fountain Tier with Water Pump Installed Battery Compart- ment Door Base Rubber Plug Planter/Bird Feeder/Vanishing Foam Ring Edge Bowl Foam Ring Center Plug...
  • Page 5 Connection Port Dancing Water Attachment Rechargeable Battery Bird Seed Bowl Battery Charger Leveling Shim...
  • Page 7 Step 1: Step 1: Step 1: Base & Large Bowl You will need: Large Bowl Base Remember if you need help contact Customer Care: 1+ (619) 449-2392...
  • Page 8: Bowl Locking System

    Bowl Locking System A look at how the bowl locking system works on your Fountain. Bottom of large bowl Top of base Note: You will notice that there are two different sized tabs on the bottom of the Large Bowl and there are two corresponding grooves in the top of the Base.
  • Page 9 STOP! At this point, your fountain should look like the im- age below. Go to the next page for the next step to setup your new Bernini™ Fountain. Remember if you need help contact Customer Care: 1+ (619) 449-2392...
  • Page 10: Step 2: Fountain Bowl Installation

    Step 2: Fountain Bowl Installation You will need: Fountain Tier Assembled Base with Water Pump & Large Bowl Installed Remember if you need help contact Customer Care: 1+ (619) 449-2392...
  • Page 11 Step 1: Feed the Water Pump cord down For the next step, the Fountain Tier will the pipe. The cord will be connected to the install into the middle of the Large Bowl Connection Port at a later step. assembled in step 1. Rest the Fountain Tier on the side of the large bowl.
  • Page 12 STOP! At this point, your Fountain should look like the image on the left. Go to the next page for the next step to setup your new Bernini™ Fountain. Remember if you need help contact Customer Care: 1+ (619) 449-2392...
  • Page 13: Step 3: Battery Installation

    Step 3: Battery Installation You will need: Fountain Connection Port assembled Battery Rechargeable Compartment Battery Door Remember if you need help contact Customer Care: 1+ (619) 449-2392...
  • Page 14: Connecting The Battery

    Connecting The Battery Step 1: In the open Battery Compartment, you will see two cords hanging down that you must connect to the Connection Port. If you do not see the two cables inside the battery compartment, reach up into the Base and gently pull them down until they are hanging inside the Battery Compartment.
  • Page 15 Connecting The Battery (Cont.) Diagram 2. Step 3: Place your Connection Port inside the designated angled area located at the back of your Fountain Base. (Diagram 2) Step 4: Place the Battery inside of the compartment in front of the Connection Port (Diagram 2). There is a notch in the lower corner of the Battery Compartment Door that allows for the optional Solar Panel wire to extend out from the battery compartment door.
  • Page 16: Inserting Battery Compartment Door

    At this point, your fountain should look like the image on the left. Go to the next page for the next STOP! step to setup your new Bernini™ Fountain. Remember if you need help contact Customer Care: 1+ (619) 449-2392...
  • Page 17: Step 4: Setting Up Your Fountain

    Step 4: Setting Up Your Fountain You will need: Water To Fill Your Fountain Fountain Assembled Remember if you need help contact Customer Care: 1+ (619) 449-2392...
  • Page 18: Fill Your Fountain

    The on-board control panel is located towards the top of the base, just below the Large Bowl. See the diagram below to see how the all-new on-board controls work for your Bernini™ Fountain. 1-4 Hour Daily Timer 1-4 Hour Timer...
  • Page 19 BUTTON DESCRIPTION Three hour operation: press the A button three times and your fountain will automatically shut-off after three hours of operation. Four hour operation: press the A button four times and your foun- tain will automatically shut-off after four hours of operation. How To Use This Function: A (1-4 Hour Timer) 1.
  • Page 20 Status light will blink for the number hours you have selected Status Light when using the timer functions (buttons A and B). You can now try your Bernini™ Fountain to see if everything is working correctly! Turn your Fountain on and if you see water flowing from STOP! the outlet in the middle of the Fountain Tier, go to the next page and select one of the many decorative options for your fountain.
  • Page 21: Step 5: Installation Instructions For Decor Tops

    Step 5: Installation Instructions for Decor Tops You will need: Bird Seed Bowl Foam Ring Foam Ring Rubber Plug Center Plug Dancing Water Planter/Bird Attachment Feeder/Vanishing Edge Bowl Remember if you need help contact Customer Care: 1+ (619) 449-2392...
  • Page 22: Dancing Water Feature Installation

    Step 3: Enjoy the relaxing Step 1: Find the Dancing Dancing Water attachment to and calming sound of your Water attachment. the outlet in the middle of the new Bernini Fountain. fountain bowl. Dancing Water Feature and Spray Pattern Dancing Water Attachment...
  • Page 23: Planter/Bird Feeder/Vanishing Edge Bowl Installation

    Planter/Bird Feeder/Vanishing Edge Bowl Installation Vanishing Edge Bowl Installation To prepare as the Vanishing Edge Bowl start by installing the Foam Ring and Rub- ber Plug into the bottom. Rubber Plug Foam Ring Step 1: Install the Foam Ring and Rubber Plug into the bot- tom tight and snug.
  • Page 24: Planter Installation

    Planter Installation To prepare as the Bowl as a Self-Watering Planter ensure that the smaller rubber plug is NOT installed. The small hole is where the planter gets water. Step 1: Lift the Bird Feeder Step 2: Turn Planter Finial over. Step 3: If already installed re- bowl out of the Planter Finial.
  • Page 25: Troubleshooting And Maintenance

    To clean your Fountain, drain of all water and disassemble. Use a mild soap and a soft cloth to clean the parts of your Bernini™ Fountain. Your Fountain Bowl will form a natural patina finish which with time may appear lighter or whiter than the original color. This is normal.
  • Page 26: Cleaning The Water Pump's Parts

    Cleaning the Water Pump’s Parts Water Pump Air Filters After about six weeks of usage, you may want to clean the Water Pump’s filter and impeller to keep your Bernini™ Fountain in tip-top shape. Begin by disconnecting the Step 2: Pull the water Step 3: Wash the filters pump from the Fountain Tier.
  • Page 27 Is your fountain making a loud noise or do you not see water flowing? Try Priming the Water Pump If you find the water pump is running, but water is not flowing from your fountain, or you hear a loud grinding noise coming from your fountain, not to worry, you can try priming the water pump: Begin by turning your fountain off.
  • Page 28: Using Leveling Shims

    Using Leveling Shims If you are having trouble getting water to flow evenly off of the spouts on your Bernini™ Fountain, you may need to level the surface that your Fountain was placed on. With the included leveling shims, you do not need to move your Fountain, just follow the instructions below to get even water flow.
  • Page 29: Water Pump Connection

    Water Pump Connection If your Bernini™ Fountain did not come with the Water Pump already connected to the tube inside of the Fountain Bowl or if the Water Pump gets disconnected from the Fountain Tier, use these instructions to reconnect your Water Pump.
  • Page 30 Troubleshooting Guide PROBLEM SOLUTION Check battery is installed correctly: See installing battery section. Check that battery is fully charged: See charging battery section. Pump is on but no water flow: Check water level. Water Not Flowing Pump is on but no water flow: Check pump is free of debris, kinks or obstructions. See Troubleshooting section.
  • Page 31 (1) year from the date of original purchase. If within one (1) year this product fails due to defect in material or workmanship, Bernini™ will repair, replace or supply any defective part at their option. The purchaser must contact Bernini™ and provide a description of the defective part, including digital pictures if requested, with this original purchase documentation as validation of warranty coverage.
  • Page 32 Santee, California 92071 World Wide Patents Pending Email: customercare@berninifountains.com On the web: www.berninifountains.com Facebook & Pinterest: Bernini Fountain Company Instagram:@berninifountains Twitter: @yrdllc © Yeiser Research & Development, LLC; 2019. All rights reserved. Made in China 001164 BC4I1HLF rev 4g us...
