6.2 REMOVAL OF THE DD15 & DD16 WATER MANIFOLD
Remove as follows:
1. Disconnect the batteries.
2. Drain the engine coolant.
3. Remove the air cleaner.
4. Remove the exhaust manifold heat shields.
5. Remove the Exhaust Gas Recirculation (EGR) hot pipe. Refer to section .
NOTE:
Hold water manifold doser coolant line fitting with a separate wrench while removing the
coolant lines.
6. Disconnect and remove doser coolant lines and remove retaining clips.
7. Disconnect EGR cooler vent line.
8. Disconnect the outlet coolant temperature sensor electrical harness connector.
9. Remove EGR actuator coolant outlet line.
10. Remove upper radiator hose.

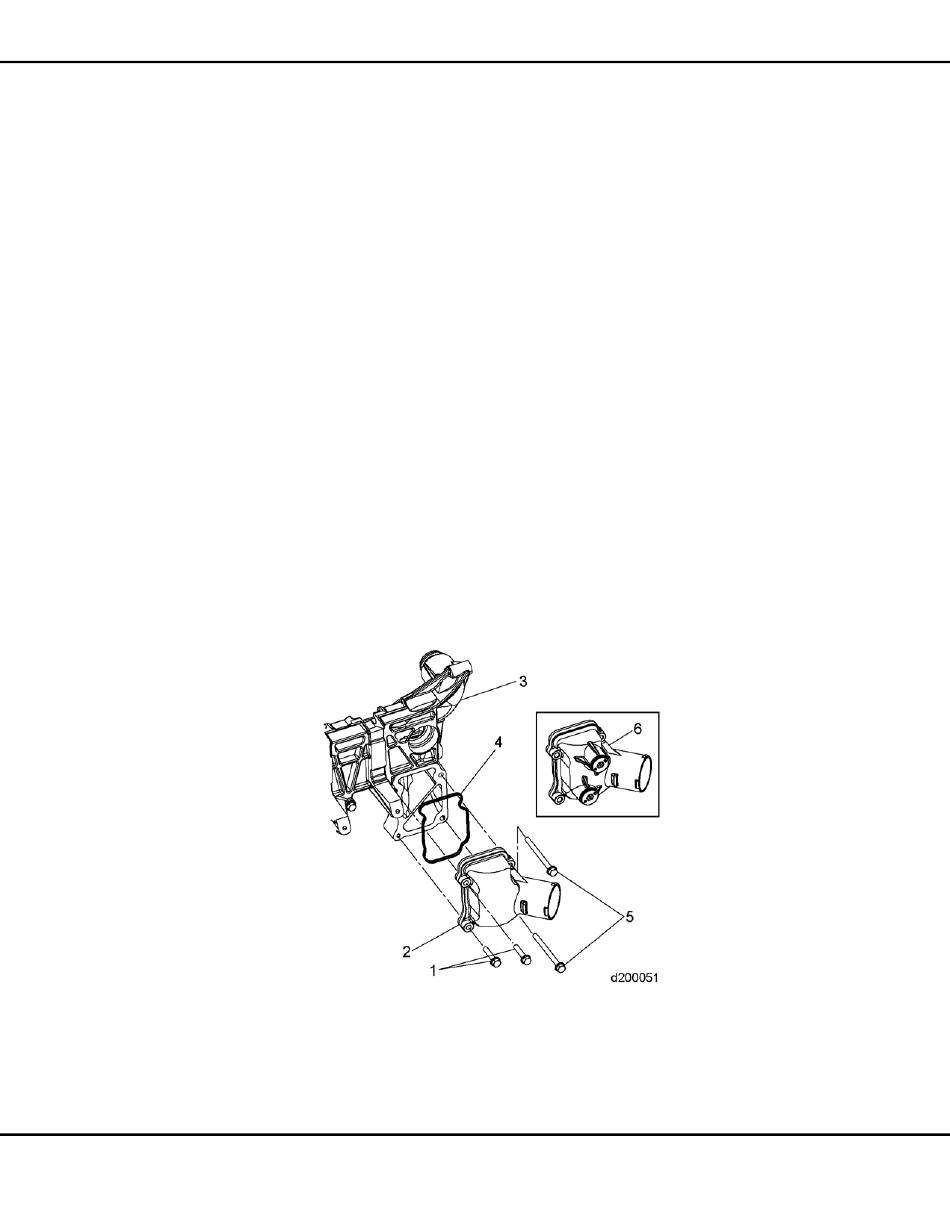

11. Remove four coolant outlet elbow bolts (1) and remove the coolant outlet elbow (2).
Remove and discard the gasket (4).
12. Remove EGR cooler. Refer to section .
