I use my PTO on a K.W with a detroit in it I set the trailer brand leave the tractor break off. I have a release, it's for the trailer. On the trailer that I use to unload boxes with rollers on it. And I can't get the cruise control to bump up to run my PTO with R. P. M. But when I ****. The tractor break cruise will work.

-1

1 comments:

Mr. Anderson

February 10, 2025

To adjust the cruise control on a Detroit Diesel EPA07 MBE 4000 to increase RPM for PTO operation in a Kenworth truck:

1. Engage the cruise control system by ensuring the SPDCNTL switch is in the ON position.
2. Momentarily press the SET/CST switch to activate cruise control.
3. The engine RPM should increase to a pre-defined speed.
4. Use the SET/CST and RSM/ACC switches to raise or lower the engine RPM as needed.

Before activating cruise control, ensure:
- The cruise enable switch has been turned ON.
- The clutch (if equipped) and service brake have been activated once after engine start.

This process allows the engine RPM to be controlled for PTO operation.

This answer is automatically generated

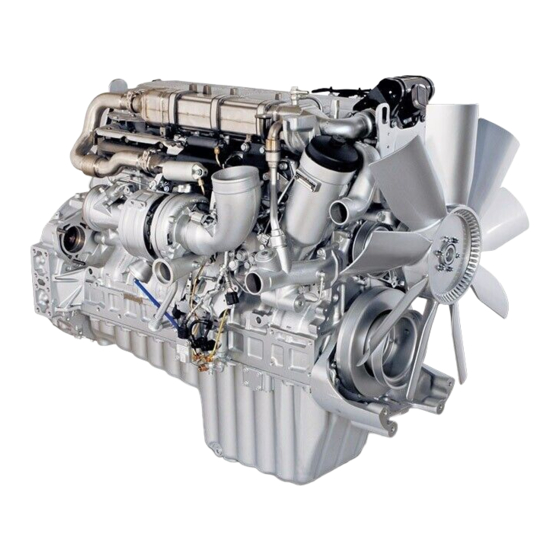

Summary of Contents for Detroit Diesel EPA07 MBE 4000

Page 3 EPA07 MBE 4000 OPERATOR'S MANUAL To the Operator experienced, trained personnel to provide prompt preventive This guide contains instructions on maintenance and skilled engine the safe operation and preventive repairs. maintenance of your Detroit The information and speciﬁcations Diesel EPA07 MBE 4000 engine.
Page 4 It contains important operating, maintenance, and safety instructions. Trademark Information DDC®, Detroit Diesel®, DDEC®, Optimized Idle®, Diagnostic Link®, reliabilt®, POWER Trac®, POWER COOL®, and POWER GUARD® All information subject to change without notice. DDC-SVC-MAN-0041 Copyright © 2009 DETROIT DIESEL CORPORATION...
Page 5: Table Of Contents
EPA07 MBE 4000 OPERATOR'S MANUAL TABLE OF CONTENTS INTRODUCTION .................. NON-GENUINE AND REBUILT COMPONENT QUALITY ALERT .. PERSONNEL REQUIREMENTS ............. ENGINE CONVERSIONS AND MODIFICATIONS ......CAUTION SUMMARY ................ENGINE OPERATION ..............PREVENTIVE MAINTENANCE ............ELECTRICAL SYSTEM ..............COOLING SYSTEM .................
Page 6 DATA RECORDING CAPABILITY ..........40 ENGINE BRAKES ............... 40 ENGINE PROTECTION .............. 41 CALIFORNIA ENGINE IDLE LIMITING ........41 IDLE SHUTDOWN TIMER ............42 DDEC VI OPERATION ..............42 All information subject to change without notice. DDC-SVC-MAN-0041 Copyright © 2009 DETROIT DIESEL CORPORATION...
Page 7 EPA07 MBE 4000 OPERATOR'S MANUAL STOP ENGINE OVERRIDE SWITCH ......... 43 IMMEDIATE SPEED REDUCTION ..........44 RED STOP LAMP ................ 44 DIAGNOSTIC TOOL ..............44 FLASHING MALFUNCTION CODES ........44 DDEC VI ENGINE DRIVING TIPS ............47 ACCELERATING THE VEHICLE ............. 47 CRUISE CONTROL .................
Page 8 HOW TO REPLACE THE LUBE OIL AND FILTER ......84 REPLACE LUBRICATING OIL AND FILTER ....... 84 HOW TO SELECT DIESEL FUEL ........... 87 QUALITY ..................87 All information subject to change without notice. DDC-SVC-MAN-0041 Copyright © 2009 DETROIT DIESEL CORPORATION...
Page 9 EPA07 MBE 4000 OPERATOR'S MANUAL FUEL CONTAMINATION ............. 87 BIODIESEL ................88 PROHIBITED ADDITIVES ............88 USED LUBRICATING OIL ............88 FUEL ADDITIVES WITH SULFUR OR SULFATED ASH ..88 GASOLINE ................89 HOW TO REPLACE THE FUEL FILTERS ........89 REPLACE MAIN FUEL FILTER ELEMENT .........
Page 10 PROCEDURE FOR RESTORING TO SERVICE AN ENGINE THAT HAS BEEN IN EXTENDED STORAGE ......135 CUSTOMER ASSISTANCE ..............137 ROAD SERVICE IN THE U.S. OR CANADA ........139 WORKING WITH DETROIT DIESEL SERVICE OUTLETS .... 139 viii All information subject to change without notice. DDC-SVC-MAN-0041...
Page 11 EPA07 MBE 4000 OPERATOR'S MANUAL STEP ONE ................... 140 STEP TWO .................. 140 STEP THREE ................140 SPECIFICATIONS ................141 FUEL AND LUBRICATING OIL FILTERS ........141 OIL PAN CAPACITY ..............141 POWER COOL ENGINE PRODUCTS ..........141 POWER COOL FULLY FORMULATED IEG COOLANT ..... 141 POWER COOL 2000 AND 3000 SUPPLEMENTAL COOLANT ADDITIVE ..................
Page 13: Introduction
EPA07 MBE 4000 OPERATOR'S MANUAL INTRODUCTION This guide is intended for use or owner. The owner is responsible by the operator of an MBE 4000 for determining the suitability of diesel engine used in the following components to maintain emissions...
Page 14: Personnel Requirements
ﬂuids, such as fuel, coolant and lubricating oil, to maintain long engine life. The use of ﬂuids that do not meet Detroit Diesel speciﬁcations may result in early wear out or engine failure. Personnel Requirements...
Page 15: Caution Summary
EPA07 MBE 4000 OPERATOR'S MANUAL CAUTION SUMMARY The following cautions must be observed by the operator of the vehicle or equipment in which this HOT EXHAUST engine is installed and/or by those During parked regeneration the performing basic engine preventive exhaust gases will be extremely maintenance.
Page 16: Preventive Maintenance
USED ENGINE OIL cap slowly to relieve pressure. To avoid injury to skin from contact with the contaminants in used engine oil, wear protective gloves and apron. All information subject to change without notice. DDC-SVC-MAN-0041 Copyright © 2009 DETROIT DIESEL CORPORATION...
Page 17 EPA07 MBE 4000 OPERATOR'S MANUAL PERSONAL INJURY FIRE To avoid injury from the To avoid injury from combustion projection of tools or other of heated lubricating-oil vapors, objects that may fall on or behind stop the engine immediately if an the vibration damper of an oil leak is detected.
Page 18: Electrical System
To avoid injury from electrical voltage. shock, do not touch battery terminals, alternator terminals, or wiring cables while the engine is operating. All information subject to change without notice. DDC-SVC-MAN-0041 Copyright © 2009 DETROIT DIESEL CORPORATION...
Page 19: Cooling System
EPA07 MBE 4000 OPERATOR'S MANUAL Cooling System Air Intake System Observe the following cautions when Observe the following cautions when servicing the cooling system. working on the air intake system. HOT COOLANT PERSONAL INJURY To avoid scalding from the To avoid injury from hot surfaces,...
Page 20: Fuel System
To avoid injury from ﬁre, keep all potential ignition sources away from diesel fuel, including open ﬂames, sparks, and electrical resistance heating elements. Do not smoke when refueling. All information subject to change without notice. DDC-SVC-MAN-0041 Copyright © 2009 DETROIT DIESEL CORPORATION...
Page 21: Compressed Air
EPA07 MBE 4000 OPERATOR'S MANUAL Compressed Air Observe the following cautions when FIRE using compressed air. To avoid injury from ﬁre, do not smoke or allow open ﬂames when working on an operating engine. EYE INJURY To avoid injury from ﬂying debris...
Page 22 CAUTION SUMMARY Figure 1 Hot Surfaces External and Internal Caution Figure 2 Heavy Aftertreatment Device Caution All information subject to change without notice. DDC-SVC-MAN-0041 Copyright © 2009 DETROIT DIESEL CORPORATION...
Page 23: Engine Identification
EPA07 MBE 4000 OPERATOR'S MANUAL ENGINE IDENTIFICATION The MBE 4000 engine has a certiﬁcation label, engine model and serial number for identiﬁcation. Engine Components For a general view of the MBE 4000 engine, showing major components, see Figure 3 for the left-hand side, and Figure 4 for the right-hand side.
Page 24 6. Smart Injector Adaptor Frame (Internal) 15. Dipstick and Oil Fill 7. Constant Throttle Valve (Internal) 8. Electrostatic Crankcase Breather Figure 3 Major Engine Components, Left Side All information subject to change without notice. DDC-SVC-MAN-0041 Copyright © 2009 DETROIT DIESEL CORPORATION...
Page 25 EPA07 MBE 4000 OPERATOR'S MANUAL 1. Air Intake Elbow 8. EGR Cooler Bracket 2. Turbocharger 9. Grid Heater 10. EGR Valve 3. Fuel Doser Valve 11. EGR Coolant Return 4. Flywheel Housing 12. Coolant Outlet 5. Hot EGR Cooler Pipe 13.
Page 26 2. Intake Throttle Valve 6. Fuel Cut-off 3. Intake Manifold Pressure/Temper- 7. Fuel Line Pressure Sensor ature Sensor 4. Doser Block Asembly Figure 5 Left Side Sensor Locations All information subject to change without notice. DDC-SVC-MAN-0041 Copyright © 2009 DETROIT DIESEL CORPORATION...
Page 27 EPA07 MBE 4000 OPERATOR'S MANUAL 1. EPV-1 4. EGR Delta-P Sensorr 2. Wastegate Actuator 5. Oil Pressure/Temperature Sensor 3. Turbocharger Pressure/Tempera- ture Sensor Figure 6 Right Side Sensor Locations All information subject to change without notice. DDC-SVC-MAN-0041 Copyright © 2009 DETROIT DIESEL CORPORATION...
Page 28: Engine Model And Serial Number Designation
The engine type reference, OM 460 LA is the production code. The engine model All information subject to change without notice. DDC-SVC-MAN-0041 Copyright © 2009 DETROIT DIESEL CORPORATION...
Page 29: Certification Labels
EPA07 MBE 4000 OPERATOR'S MANUAL Certiﬁcation Labels (CARB) emission standards. An emission label is attached to the The MBE 4000 engine complies cylinder head cover, as required by with all United States Environmental law. See Figure 9. Protection Agency (USEPA) and...
Page 30: Operating Instructions For Starting The Engine
(EG) Watch for any signs of engine or propylene glycol (PG) base problems when starting or driving. If antifreeze solution in the required All information subject to change without notice. DDC-SVC-MAN-0041 Copyright © 2009 DETROIT DIESEL CORPORATION...
Page 31: Lubrication System Checks
EPA07 MBE 4000 OPERATOR'S MANUAL concentration. In extremely NOTICE: hot environments, properly Insufﬁcient lubrication at startup can inhibited water may be used in cause serious damage to engine the summer. Keep the coolant components. level at the bottom of the ﬁller neck to allow for expansion of the coolant.
Page 32: Extended Storage
Refer to “How to Select Diesel Fuel” in the “HOW-TO SECTION” of this guide. Make sure the fuel shutoff valve (if used) is open. Figure 11 Oil Fill Tube All information subject to change without notice. DDC-SVC-MAN-0041 Copyright © 2009 DETROIT DIESEL CORPORATION...
Page 33 EPA07 MBE 4000 OPERATOR'S MANUAL NOTICE: NOTICE: Prolonged use of the starting motor Engines equipped with starting and engine fuel pump to prime the devices dependent on compressed fuel system can result in damage to air or gas reservoirs should always the starter, fuel pump and injectors.
Page 34: Adding Fuel
“HOW-TO SECTION” of this guide. Priming the Fuel System — Prime the fuel system as follows: 1. If equipped with a hand pump on the fuel ﬁlter or fuel/water All information subject to change without notice. DDC-SVC-MAN-0041 Copyright © 2009 DETROIT DIESEL CORPORATION...
Page 35 EPA07 MBE 4000 OPERATOR'S MANUAL Lubricant or Manufacturer Part Number Battery Explosion and Acid Burn No. 71032; No. Shell Oil Co. 71306 To avoid injury from battery explosion or contact with battery Texaco, Inc. No. 955 acid, work in a well ventilated Quaker State No.
Page 36: Starting The Engine-For The First Time
Red Stop Lamp (RSL)/Stop □ Work in well ventilated area. Engine will come on. This is the □ Do not work near open ﬂames, result of the Detroit Diesel Electronic pilot ﬂames (gas or oil Controls (DDEC®) diagnosing heaters), or sparks.
Page 37: Electric Starter
EPA07 MBE 4000 OPERATOR'S MANUAL 3. If the engine doesn't start after Start the engine after the lights go 30 seconds, stop. Try again after out. If starting a vehicle, start the waiting two minutes. The engine engine with foot off the foot pedal.
Page 38: Running The Engine
Run the engine at part throttle for the engine until the cause of the about ﬁve minutes to allow it to warm concern has been investigated and up before applying a load. All information subject to change without notice. DDC-SVC-MAN-0041 Copyright © 2009 DETROIT DIESEL CORPORATION...
Page 39: Avoid Unnecessary Idling
EPA07 MBE 4000 OPERATOR'S MANUAL corrected. Authorized Detroit Diesel NOTICE: service outlets are properly equipped Stopping a turbocharged engine to perform this service. immediately after high-speed operation without allowing a Avoid Unnecessary Idling sufﬁcient cool-down period may Whenever possible, avoid unnecessary cause damage to the turbocharger, idling.
Page 40: Routine Engine Start
□ Get medical attention in alternator and/or equipment immediately. damage. Routine Engine Start Following are procedures for a routine everyday engine start. All information subject to change without notice. DDC-SVC-MAN-0041 Copyright © 2009 DETROIT DIESEL CORPORATION...
Page 41: Starting The Engine-Routine
EPA07 MBE 4000 OPERATOR'S MANUAL NOTE: If you drain the fuel/water separator completely, you may have to prime the ENGINE EXHAUST fuel system. To avoid injury from inhaling engine exhaust, always operate NOTE: the engine in a well-ventilated As a safety function, the electronic area.
Page 42: Checking The Coolant Level (Cold Check)
Checking the Coolant Level (Cold Check) Check coolant level as follows: 1. Ensure that all coolant plugs in the bottom of the radiator and on All information subject to change without notice. DDC-SVC-MAN-0041 Copyright © 2009 DETROIT DIESEL CORPORATION...
Page 43: Monitoring Engine Operation
EPA07 MBE 4000 OPERATOR'S MANUAL Battery Charge The battery charge indicator light HOT COOLANT (See Figure 14) must go out once the engine starts. To avoid scalding from the expulsion of hot coolant, never remove the cooling system pressure cap while the engine is at operating temperature.
Page 44: Oil Pressure
600 to 850 rpm if the in the engine or turbocharger. parameters in the Common Powertrain Controller (CPC) are set to the default range. Change the idle speed as follows: All information subject to change without notice. DDC-SVC-MAN-0041 Copyright © 2009 DETROIT DIESEL CORPORATION...
Page 45: Shutting Down After High Load Operation
EPA07 MBE 4000 OPERATOR'S MANUAL Shutting Down After High Load Operation After high load operation, do the following: NOTICE: After high load operation, if the engine has been running at full output or the coolant temperature has been high, allow the engine to idle for one or two minutes without load.
Page 46: Emergency Running Mode
When in emergency running mode, the engine operates at a constant 1300 rpm. This allows you to move the vehicle to a service location. All information subject to change without notice. DDC-SVC-MAN-0041 Copyright © 2009 DETROIT DIESEL CORPORATION...
Page 47: Cold Weather Operation
EPA07 MBE 4000 OPERATOR'S MANUAL cooling across each tube and reduces header to tube stress and possible failure. Winter fronts should only be used when the ambient temperature remains below -12.2°C (10°F). Figure 15 Typical SEO Switch and Warning Lamps...
Page 48: Ddec Vi System
The Accelerator Pedal Assembly (AP) eliminates the need for any throttle linkage. All information subject to change without notice. DDC-SVC-MAN-0041 Copyright © 2009 DETROIT DIESEL CORPORATION...
Page 49: Common Powertrain Controller
EPA07 MBE 4000 OPERATOR'S MANUAL The data is then compared to the characteristic maps or lines stored in the MCM. From these data, quantity and timing of injection are calculated and the unit pumps are actuated accordingly through the solenoid valves.
Page 50: Ddec Features
Speed Mode and maintain a targeted speed (MPH or RPM) by increasing or decreasing fueling. The targeted speed can be selected and adjusted with dash-mounted switches. See Figure All information subject to change without notice. DDC-SVC-MAN-0041 Copyright © 2009 DETROIT DIESEL CORPORATION...
Page 51 EPA07 MBE 4000 OPERATOR'S MANUAL set vehicle speed. The vehicle speed must be above Min. Cruise Set Speed and below Max. Cruise Set Speed. It LOSS OF VEHICLE CONTROL is recommended that Max Cruise Set Speed be set to the default to allow...
Page 52: Data Recording Capability
Engine brakes are enabled by a dash-mounted On/Off switch with a separate intensity switch to select low, medium or high braking power. All information subject to change without notice. DDC-SVC-MAN-0041 Copyright © 2009 DETROIT DIESEL CORPORATION...
Page 53: Engine Protection
EPA07 MBE 4000 OPERATOR'S MANUAL Engine brakes will supply braking power even when in Cruise Control. MCM will control the amount of PERSONAL INJURY engine braking with respect to the To avoid injury from engine Cruise Control set speed. The...
Page 54: Idle Shutdown Timer
This feature is an optional 1 – 100 minute idle shutdown system. Figure 19 Warning Lamps and Its purpose is to conserve fuel by SEO Switch All information subject to change without notice. DDC-SVC-MAN-0041 Copyright © 2009 DETROIT DIESEL CORPORATION...
Page 55: Stop Engine Override Switch
EPA07 MBE 4000 OPERATOR'S MANUAL The engine will only operate at Stop Engine Override Switch reduced rpm until the battery voltage This feature allows the operator to reaches a point where the MCM will override the automatic stop engine no longer function and the engine sequence.
Page 56: Immediate Speed Reduction
The ﬂashing code feature may be Diagnostic Tool activated by satisfying one of the The diagnostic tool for DDEC VI is following conditions: DDDL 7.0. which requires at least a All information subject to change without notice. DDC-SVC-MAN-0041 Copyright © 2009 DETROIT DIESEL CORPORATION...
Page 57 EPA07 MBE 4000 OPERATOR'S MANUAL □ Engine speed is <100 rpm and □ Vehicle speed is <3 mph and Park the SEO switch is put in the ON Brake is activated and the SEO position. switch is put in the ON position.
Page 58 Inactive Codes – The inactive codes will be ﬂashed on the AWL (Check Engine) in the order of most recent to least recent occurrence based on engine hours. All information subject to change without notice. DDC-SVC-MAN-0041 Copyright © 2009 DETROIT DIESEL CORPORATION...
Page 59: Ddec Vi Engine Driving Tips
EPA07 MBE 4000 OPERATOR'S MANUAL DDEC VI ENGINE DRIVING TIPS Cruise Control Driving with an electronically controlled engine feels different from For added driver convenience and driving with a mechanically governed comfort, DDEC VI also features a engine. Cruise Control option that works just like the system in your car.
Page 60 Before Cruise Key ON Control Activates Service Brake Switch Clutch Release Switch (Manual Trans only) Cruise Control Enable Switch Table 2 Input Status to Activate Cruise Control All information subject to change without notice. DDC-SVC-MAN-0041 Copyright © 2009 DETROIT DIESEL CORPORATION...
Page 61: Engine Brakes And Cruise Control
EPA07 MBE 4000 OPERATOR'S MANUAL Use Cruise Control after down shifting cruise set speed. If your speed on a hill to pull the hill. Hitting the continues to increase, the MCM will RSM/ACL Switch (not the Set Switch) increase the engine retarders' braking will keep the truck accelerating in the power progressively.
Page 63: Engine Brake System
EPA07 MBE 4000 OPERATOR'S MANUAL ENGINE BRAKE SYSTEM Exhaust Certain MBE 4000 vehicle engines Brake/Constant-Throttle are equipped with engine brakes, commonly referred to as retarders. Valves Before operating the vehicle, you When the driver activates the engine must familiarize yourself with the...
Page 64 Controlling the exhaust to the turbine by removing the necessary exhaust through the small entry, the EGR through the EGR system. valve now controls the brake effect All information subject to change without notice. DDC-SVC-MAN-0041 Copyright © 2009 DETROIT DIESEL CORPORATION...
Page 65: Anti-Lock Braking Systems
EPA07 MBE 4000 OPERATOR'S MANUAL The engine brake is activated by or when the vehicle slows down to a the Common Powertrain Controller pre-set speed, depending on DDEC (CPC). In engine braking mode, an programming. This prevents stalling engine rpm range of up to 2500 rpm the engine.
Page 66: Descending A Long, Steep Grade
Get to know how much determine if your engine brake slowing power your engine brake system is operating properly by can provide. So get to know All information subject to change without notice. DDC-SVC-MAN-0041 Copyright © 2009 DETROIT DIESEL CORPORATION...
Page 67: Driving On Wet Or Slippery Pavement
EPA07 MBE 4000 OPERATOR'S MANUAL your engine brake system before climbing hills and do not exceed a safe control speed. LOSS OF VEHICLE CONTROL 4. Check your progressive braking To avoid injury from loss of switch often for proper position,...
Page 68 Never skip a step when operating the progressive braking system. Always go from OFF to LOW and then to a higher position. All information subject to change without notice. DDC-SVC-MAN-0041 Copyright © 2009 DETROIT DIESEL CORPORATION...
Page 69: Engine Systems
EPA07 MBE 4000 OPERATOR'S MANUAL ENGINE SYSTEMS Air System The engine systems are the following: The outside air drawn into the Fuel System engine passes through the air ﬁlter and is pulled into the turbocharger The fuel system consists of DDEC, and compressed.
Page 70: Electrical System
EGR cooler, past control, and are mixed with the intake manifold charge air. All information subject to change without notice. DDC-SVC-MAN-0041 Copyright © 2009 DETROIT DIESEL CORPORATION...
Page 71: Aftertreatment System
EPA07 MBE 4000 OPERATOR'S MANUAL AFTERTREATMENT SYSTEM In order to meet current emissions key to successful regeneration is high regulations, the traditional mufﬂer has exhaust temperature for an extended been replaced by a new Aftertreatment period of time. Without adequate Device (ATD).
Page 72: Operating Requirements
Not all vehicles may be equipped ﬁlter. with a Regen request switch due to application or user speciﬁcation. Parked Regeneration Procedure Regeneration of the ATS is fundamental for the oxidation of All information subject to change without notice. DDC-SVC-MAN-0041 Copyright © 2009 DETROIT DIESEL CORPORATION...
Page 73: Hazardous Applications
EPA07 MBE 4000 OPERATOR'S MANUAL NOTE: The procedure will take up to 40 minutes (depends on engine type and the amount of soot accumulated in the ﬁlter). To initiate a parked regeneration, perform the following: The regeneration will take up to 40 1.
Page 74: Dpf Stationary Regen Only = 0-Disabled
Aftertreatment warranty considerations. The record System Technician's Guide (7SE63), must include information such as: or contact the Detroit Diesel Customer □ Date of cleaning or replacement Support Center at 313–592–5800. □ Vehicle mileage at the time of cleaning or replacement All information subject to change without notice.
Page 75: Driver Actions
EPA07 MBE 4000 OPERATOR'S MANUAL DRIVER ACTIONS Indicator Name Description Driver Action Lamp SOLID: Exhaust is at high temperature and vehicle is at low speed High Exhaust or parked. System No change in driving Temperature style is required. FLASHING: A Parked...
Page 76 Lamp Regeneration must Indicates that a Parked be performed. Regeneration MUST be Check Engine Lamp performed. ENGINE DERATE Red Stop Lamp (RSL) Table 3 Driver Actions All information subject to change without notice. DDC-SVC-MAN-0041 Copyright © 2009 DETROIT DIESEL CORPORATION...
Page 77: Instrument Panel Lamps
EPA07 MBE 4000 OPERATOR'S MANUAL INSTRUMENT PANEL LAMPS Lamp Indicator Description Results Vehicle can be Amber Indicates a fault with the driven to end of Warning engine controls. shift. Call for Lamp (AWL) service. Indicates a major engine Move the vehicle...
Page 78 At the start of every ignition cycle (a bulb check). □ Never ﬂashes For any emission related fault (light out when the fault is inactive) Table 5 Lamp Activation Conditions All information subject to change without notice. DDC-SVC-MAN-0041 Copyright © 2009 DETROIT DIESEL CORPORATION...
Page 79: Maintenance
EPA07 MBE 4000 OPERATOR'S MANUAL MAINTENANCE When performed on a regular basis, Important: If the engine is stored for changing the engine oil and ﬁlters is more than 18 months, the oil must be the least costly way of obtaining safe changed and the lubrication system and reliable vehicle operation.
Page 80: Short-Haul
□ Maintenance Interval Table, Complete each maintenance operation Severe Service (listed in Table 7) at the required interval. □ Maintenance Interval Table, Short Haul (listed in Table 8) All information subject to change without notice. DDC-SVC-MAN-0041 Copyright © 2009 DETROIT DIESEL CORPORATION...
Page 81: Maintenance Tables
EPA07 MBE 4000 OPERATOR'S MANUAL Maintenance Tables Short-Haul Long-Haul Procedure Severe (hrs) (hrs) (hrs) Engine Oil and Filter 300 - or 3 500 - or 6 — Months months — — Fuel Filter Valve Lash Adjustment 600 then every —...
Page 82 All items are described in refer to section “Preventive Maintenance Intervals” I – Inspect, service, test, correct or replace as necessary. R – Replace. Table 7 Maintenance Intervals (Severe Service) All information subject to change without notice. DDC-SVC-MAN-0041 Copyright © 2009 DETROIT DIESEL CORPORATION...
Page 83 EPA07 MBE 4000 OPERATOR'S MANUAL 15 30 45 60 75 90 105 120 135 150 165 180 Miles (X 1000) Km (X 1000) 25 50 75 100 125 150 169 193 217 241 266 290 Item Procedure 1. Lubricating R R R Oil/Filter 2.
Page 84 All items are described in refer to section “Preventive Maintenance Intervals.” I – Inspect, service test, correct or replace as necessary. R – Replace. Table 9 Maintenance Intervals (Long Haul) All information subject to change without notice. DDC-SVC-MAN-0041 Copyright © 2009 DETROIT DIESEL CORPORATION...
Page 85: Preventive Maintenance Intervals
EPA07 MBE 4000 OPERATOR'S MANUAL Preventive Maintenance Intervals This section describes the items listed in the tables. As the operator of a vehicle, routine “Daily” inspections of the engine and chassis should be performed. This will provide the best opportunity to...
Page 86: Item 2 - Cooling System
Check for oil leaks after starting the 2. Check all cooling system pipes engine. and hoses for damage and leaks; All information subject to change without notice. DDC-SVC-MAN-0041 Copyright © 2009 DETROIT DIESEL CORPORATION...
Page 87: Item 3 - Valve Lash Checking And Adjustment
EPA07 MBE 4000 OPERATOR'S MANUAL ensure they are positioned to service categories (Severe, Short Haul, avoid chaﬁng, and are securely and Long Haul) require a “ﬁrst time” fastened. valve lash adjustment at a shorter interval. After the initial adjustment, 3. Check the outside of the radiator all others are based on the same and condenser for blockage.
Page 88: Item 5 - Fuel/Water Separator
Figure 27 Minor Rib Cracking Auto Tensioner – Auto tensioners are usually maintenance free for the life of the engine. However, routine inspections should be performed. All information subject to change without notice. DDC-SVC-MAN-0041 Copyright © 2009 DETROIT DIESEL CORPORATION...
Page 89: Item 7- Air System
EPA07 MBE 4000 OPERATOR'S MANUAL One method of determining when NOTICE: ﬁlters are plugged to the extent that Do not allow the air inlet restriction they need replacing is based on the to exceed 5.0 kPa (20 in. H2 fuel pressure at the fuel ﬁlter housing.
Page 91: Item 12 - Repto Torsional Damper Checking
EPA07 MBE 4000 OPERATOR'S MANUAL Item 12 – REPTO Torsional replace the damper. Regardless Damper Checking of the condition, the torsional coupling must be replaced at The REPTO accessory drive is an normal engine overhaul. option on the MBE4000 engine. The drive provides continuous live power 2.
Page 92: Required Maintenance Operations
2. Visually inspect all lines and hoses. Listen for any sound of leaking. Make sure all pipes and hoses are undamaged, correctly All information subject to change without notice. DDC-SVC-MAN-0041 Copyright © 2009 DETROIT DIESEL CORPORATION...
Page 93: How-To Section
EPA07 MBE 4000 OPERATOR'S MANUAL HOW-TO SECTION This section covers Detroit Diesel's NOTICE: recommendations on how to select Lubricating oil must have a sulfated lubricating oil, diesel fuel, and coolant ash level less than 1.0% mass; and includes basic engine maintenance currently referred to as CJ–4 oil...
Page 94: Synthetic Oils
Continued use of a single SAE class recommended oil drain intervals. will result in frequent oil changes. For this reason, view the temperature ranges for the various SAE classes. All information subject to change without notice. DDC-SVC-MAN-0041 Copyright © 2009 DETROIT DIESEL CORPORATION...
Page 95: The Use Of Supplemental Additives
EPA07 MBE 4000 OPERATOR'S MANUAL The Use of Supplemental When to Change Oil Additives The length of time an engine may Lubricants meeting the Detroit operate before an oil change depends Diesel speciﬁcations outlined in this upon the lubricant and fuel used,...
Page 96: Disposing Of Waste Oil
Filters should be used to maintain a clean system, not to clean up a contaminated system. Replace Lubricating Oil and Filter Drain oil as follows: All information subject to change without notice. DDC-SVC-MAN-0041 Copyright © 2009 DETROIT DIESEL CORPORATION...
Page 97 EPA07 MBE 4000 OPERATOR'S MANUAL 7. Insert a new ﬁlter element into the cap. 8. Insert the element and cap assembly into the housing. Torque the cap to 25 N·m (18 lb·ft). 9. Drain the oil from the oil pan.
Page 98 14. Stop the engine. Check the oil position. Monitor the oil pressure level again after approximately gauge. ﬁve minutes. If necessary, add oil All information subject to change without notice. DDC-SVC-MAN-0041 Copyright © 2009 DETROIT DIESEL CORPORATION...
Page 99: How To Select Diesel Fuel
EPA07 MBE 4000 OPERATOR'S MANUAL up to the maximum ﬁll level on Requirements – Lubricating Oil, Fuel the oil dipstick. and Filters (7SE270), available from authorized Detroit Diesel distributors. How to Select Diesel Fuel NOTICE: Detroit Diesel engines in 2007...
Page 100: Biodiesel
Used Lubricating Oil — Do not use data supporting their merit. It is fuel blended with used lubricating oil. not the policy of Detroit Diesel Detroit Diesel speciﬁcally prohibits Corporation to test, evaluate, approve the use of used lubricating oil in diesel or endorse such products.
Page 101: Gasoline
EPA07 MBE 4000 OPERATOR'S MANUAL Gasoline — The addition of An optional fuel/water separator may be installed in place of the standard gasoline to diesel fuel will create a primary ﬁlter. serious ﬁre hazard. The presence of gasoline in diesel fuel will reduce...
Page 102 If the fuel does not stay in the housing the element is not seated properly, repeat steps 1 and 2. All information subject to change without notice. DDC-SVC-MAN-0041 Copyright © 2009 DETROIT DIESEL CORPORATION...
Page 103: Cleaning
EPA07 MBE 4000 OPERATOR'S MANUAL Fuel/Water Separator Preﬁlter tighten ﬁrmly, using hands Element Cleaning only. Clean the preﬁlter element as follows: 1. Loosen the bleed screw. See Figure 38. 2. Unscrew the drain plug and drain the fuel in the preﬁlter.
Page 104: Replace Davco 382 Fuel Pro®Fuel/Water Separator Element
30 second attempts. Replace Davco 382 Fuel Pro®Fuel/Water Separator Element Replace the fuel/water separator element as follows: Figure 39 Davco 382 Fuel Pro®Fuel/Water Separator All information subject to change without notice. DDC-SVC-MAN-0041 Copyright © 2009 DETROIT DIESEL CORPORATION...
Page 105: Replace Davco 382/382E Fuel Pro® Fuel Filter Element
EPA07 MBE 4000 OPERATOR'S MANUAL 1. Remove the vent cap, open the 10. Start the engine and raise the rpm drain valve and drain fuel into for one minute to purge the air. approved container, until level is After the air is purged stop the below the collar.
Page 106 7. Dispose of the used element and temperature and cool to the touch, grommet in an environmentally place a suitable container under responsible manner, according the ﬁlter. All information subject to change without notice. DDC-SVC-MAN-0041 Copyright © 2009 DETROIT DIESEL CORPORATION...
Page 107 EPA07 MBE 4000 OPERATOR'S MANUAL to federal (EPA) and/or state NOTICE: recommendations. To avoid cover or vent cap damage, 8. Check to make sure the sealing do not use tools to tighten the vent grommet is included in the base cap.
Page 108: Engine Out Of Fuel - How To Restart
1. If the engine is equipped with a and tighten by hand only. hand priming pump located on the fuel ﬁlter module, operate the All information subject to change without notice. DDC-SVC-MAN-0041 Copyright © 2009 DETROIT DIESEL CORPORATION...
Page 109: How To Clean The Engine
EPA07 MBE 4000 OPERATOR'S MANUAL priming pump for two to three NOTICE: minutes or until resistance is felt. To prevent damage to engine 2. If the engine is equipped with components, keep the water only a priming port located on moving at all times while cleaning.
Page 110: Degreasing
For types of coolant, Refer to the”How to Select Coolant" section. 4. If the HVAC unit is connected to the cooling system, open the regulating valves all the way. All information subject to change without notice. DDC-SVC-MAN-0041 Copyright © 2009 DETROIT DIESEL CORPORATION...
Page 111: How To Select Coolant
EPA07 MBE 4000 OPERATOR'S MANUAL “How to Select Coolant” section in this guide. HOT COOLANT How to Select Coolant To avoid scalding from the expulsion of hot coolant, never This section covers selection of remove the cooling system the required coolant for MBE 4000 pressure cap while the engine is engines.
Page 112: Approved Coolants
The approved and preferred coolants for MBE 4000 are .Listed in Table 12. Once installed, these coolants should be maintained according to the procedures discussed under Maintenance in this section. All information subject to change without notice. DDC-SVC-MAN-0041 Copyright © 2009 DETROIT DIESEL CORPORATION...
Page 113: Ethylene Glycol / Water + Conventional
EPA07 MBE 4000 OPERATOR'S MANUAL Coolant Fill Option Product Ethylene Glycol and Water + DDC Power Cool Conventional Corrosion Inhibitors Commercial Equivalent of DDC Power Fully Formulated TMC RP-329 Type A Cool Antifreeze and Water Propylene Glycol and Water + Fully formulated TMC RP-330 "Type...
Page 114: Mixing Eg Or Pg Antifreeze And Water
(IEG only), and possible silicate dropout. An antifreeze concentration below 33% (33% antifreeze, 67% water) offers too little freeze and/or corrosion protection and is not recommended. All information subject to change without notice. DDC-SVC-MAN-0041 Copyright © 2009 DETROIT DIESEL CORPORATION...
Page 115: Recycled Antifreeze
EPA07 MBE 4000 OPERATOR'S MANUAL Always verify that the freeze point Strip. If chemical analysis is used, and nitrite concentration of the elements in the coolant must fall antifreeze/water mix are correct by within the limits as listed in Table 13 ®...
Page 116: Water Only + Sca, Water Only + Oat Inhibitor
Detroit Diesel-approved conventional SCA or OAT corrosion inhibitors must be added to the water to provide required corrosion and All information subject to change without notice. DDC-SVC-MAN-0041 Copyright © 2009 DETROIT DIESEL CORPORATION...
Page 117: Water Requirements
EPA07 MBE 4000 OPERATOR'S MANUAL Power Cool 3000 Coolant Concentration Limits Boron 125 – 500 PPM Nitrite 900 – 3200 PPM Nitrate 0 – 1000 PPM Silicon 50 – 250 PPM Phosphorous 0 PPM 8.0 – 11.0 Table 14 Power Cool 3000 Concentration Limits (5% Power Cool...
Page 118: Automotive Type Coolants
Detroit Diesel cooling system and its low boiling engines. point. Maximum Allowable...
Page 119: Coolant Inhibitor Test Intervals
EPA07 MBE 4000 OPERATOR'S MANUAL (or equivalent sulfamic acid/sodium Coolant Inhibitor Test Intervals carbonate cleaner) and ﬂushed. The coolant inhibitor level should be POWER COOL cleaners are checked at the intervals listed in Table listed in Table POWER COOL Cooling System Cleaners...
Page 120: Maintenance Intervals
□ Cavitation protection to protect wet sleeve cylinder liners. Maintenance Intervals — Check the nitrite concentration at the regular intervalslisted in Table 17 with a Power Trac 3–Way Test Strip. All information subject to change without notice. DDC-SVC-MAN-0041 Copyright © 2009 DETROIT DIESEL CORPORATION...
Page 121 EPA07 MBE 4000 OPERATOR'S MANUAL Coolant Interval Action Test nitrite concentration 20,000 Miles (32,000 km) Antifreeze / Water + with test strip. Add SCA or or 3 Months* SCA Inhibitor (DDC dilute coolant as needed. 300,000 Miles Drain and clean system.
Page 122: Sca Test Procedures
In this case the EG or PG should nitrite concentration. Freeze/boil over contain no inhibitors and should protection is determined by glycol conform to ASTM D4985. This concentration. will dilute the over-concentrated inhibitors. All information subject to change without notice. DDC-SVC-MAN-0041 Copyright © 2009 DETROIT DIESEL CORPORATION...
Page 123: Need Release Coolant Filters (Non-Oat Systems)
EPA07 MBE 4000 OPERATOR'S MANUAL Discard unused strips if they have turned light pink or tan. HOT COOLANT A factory coolant analysis program is available through authorized Detroit To avoid scalding from the Diesel service outlets. Part numbers expulsion of hot coolant, never...
Page 124: Dropout
□ Restored inhibitor levels to prevent The wet gel can be removed by using corrosion a non-acid (alkali) type heavy-duty cleaner, such as Detroit Diesel Power □ Cavitation protection to protect Cool On-Line Cleaner (sodium wet sleeve cylinder liners nitrite/sodium tetraborate). Part...
Page 125: Oat Coolant Drain Interval
EPA07 MBE 4000 OPERATOR'S MANUAL OAT Coolant Drain Interval — Power Cool SCAs — Power Cool A properly maintained OAT-inhibited SCAs are water-soluble chemical coolant will last 600,000 miles compounds. These products are (960,000 km), four (4) years, or available in coolant ﬁlter elements,...
Page 126: Summary Of Coolant Recommendations
ﬁll for all Detroit Diesel engines. This dosage is usually 7. Do not mix OAT and other included in the fully formulated coolants in the same engine.
Page 127: Coolant Life Of Glycol Coolant
EPA07 MBE 4000 OPERATOR'S MANUAL 9. Where antifreeze/boil over SCA as needed, indicated by the strip protection is required, use only test. To verify coolant acceptability, antifreeze that meets TMC submit a sample for coolant analysis RP-329 “Type A” EG or every 300,000 miles (480,000 km), TMC RP-330 “Type A”...
Page 128: Coolant Flushing And Changing
Make sure the coolant can ﬂow ﬂushing gun. unobstructed into the receptacle. 7. When the coolant has drained, install the coolant drain plug on the radiator. All information subject to change without notice. DDC-SVC-MAN-0041 Copyright © 2009 DETROIT DIESEL CORPORATION...
Page 129: Cooling System Inspecting
EPA07 MBE 4000 OPERATOR'S MANUAL 8. Add coolant in the speciﬁed 1. Inspect the radiator, condenser, concentration until the maximum water pump, engine oil cooler, mark on the surge tank is reached. freeze plugs, and heat exchanger for damage and leaks.
Page 130: Troubleshooting
Bring the vehicle to an authorized damaged. repair facility for service. There is internal damage to the Bring the vehicle to an authorized engine. repair facility for service. All information subject to change without notice. DDC-SVC-MAN-0041 Copyright © 2009 DETROIT DIESEL CORPORATION...
Page 131 EPA07 MBE 4000 OPERATOR'S MANUAL Problem—The Engine Turns Over Slowly Remedy Cause Test the batteries. Replace them, if The batteries are damaged or weak. needed. The ignition switch is damaged. Replace the ignition switch. The battery cables are damaged Replace the battery cables.
Page 132 The valves are not adjusted properly. Check the valve lash. There are other problems in the fuel Bring the vehicle to an authorized system. repair facility for service. All information subject to change without notice. DDC-SVC-MAN-0041 Copyright © 2009 DETROIT DIESEL CORPORATION...
Page 133 EPA07 MBE 4000 OPERATOR'S MANUAL Problem—The Engine Starts Only After Cranking for a Long Time Remedy Cause Add fuel and prime the fuel system, if The fuel tank is low or empty. necessary. Check the fuel lines for leaks and There are leaks in the fuel lines.
Page 134 Repair the fan wiring. The parameter settings in the MCM or Have an authorized repair facility Common Powertrain Controller (CPC) reprogram the control unit. are incorrect. All information subject to change without notice. DDC-SVC-MAN-0041 Copyright © 2009 DETROIT DIESEL CORPORATION...
Page 135 EPA07 MBE 4000 OPERATOR'S MANUAL Problem—The Engine Fan Is Constantly On Remedy Cause Check the operation of the fan override The fan override switch is on. switch. The fan hub is damaged. Replace the fan hub The parameter settings in the MCM or Have an authorized repair facility CPC are incorrect.
Page 136 Bring the vehicle to an authorized CPC. repair facility for service. There is internal damage to the Bring the vehicle to an authorized engine. repair facility for service. All information subject to change without notice. DDC-SVC-MAN-0041 Copyright © 2009 DETROIT DIESEL CORPORATION...
Page 137 EPA07 MBE 4000 OPERATOR'S MANUAL Problem—The Engine Is in Emergency Running Mode (constant speed 1,300 rpm) Cause Remedy Bring the vehicle to an authorized The MCM or CPC is damaged. repair facility for service. Bring the vehicle to an authorized...
Page 138 Have an authorized repair facility leaking. replace the heat exchanger. Bring the vehicle to an authorized There is an internal coolant leak. repair facility for service. All information subject to change without notice. DDC-SVC-MAN-0041 Copyright © 2009 DETROIT DIESEL CORPORATION...
Page 139 EPA07 MBE 4000 OPERATOR'S MANUAL Problem—There Is Foam in the Engine Oil Remedy Cause The oil level is too low or too high. Correct the oil level. The oil has not been changed within Change the oil. the recommended interval.
Page 140 The valve stem seals are loose or Have an authorized repair facility damaged. replace the seals. Have an authorized repair facility The piston rings are worn. replace the piston rings. All information subject to change without notice. DDC-SVC-MAN-0041 Copyright © 2009 DETROIT DIESEL CORPORATION...
Page 141 EPA07 MBE 4000 OPERATOR'S MANUAL Problem—Engine Brake Performance Is Poor Remedy Cause The engine brake control switch is Replace the switch damaged. The exhaust brake is not operating Have an authorized repair facility properly. check the operation of the valve.
Page 142 The poly-V belt is worn or damaged. Replace the belt. The alternator is damaged (has a Have an authorized repair facility damaged rectiﬁer or voltage regulator). replace the alternator. All information subject to change without notice. DDC-SVC-MAN-0041 Copyright © 2009 DETROIT DIESEL CORPORATION...
Page 143: Engine Storage
EPA07 MBE 4000 OPERATOR'S MANUAL ENGINE STORAGE When an engine is to be stored or 1. With the engine at ambient removed from operation for a period temperature and cool to the touch, of time, special precautions should drain engine crankcase oil into a be taken to protect the interior and suitable container.
Page 144: Extended Storage (More Than 30 Days)
(10) minutes. If draining the To prepare an engine for extended fuel tank is not convenient, use storage (more than 30 days), follow this procedure: All information subject to change without notice. DDC-SVC-MAN-0041 Copyright © 2009 DETROIT DIESEL CORPORATION...
Page 145 EPA07 MBE 4000 OPERATOR'S MANUAL a separate, portable supply of plug both to retain the fuel in the recommended fuel. engine. 10. Transmission: Follow the NOTE: manufacturer's recommendations If engines are stored where for prolonged storage. condensation of water in the fuel 11.
Page 146 17. Insert heavy paper strips between the pulleys and drive belts to prevent sticking. All information subject to change without notice. DDC-SVC-MAN-0041 Copyright © 2009 DETROIT DIESEL CORPORATION...
Page 147: Procedure For Restoring To Service An Engine That Has Been In Extended Storage
EPA07 MBE 4000 OPERATOR'S MANUAL 3. Wash the exterior of the engine NOTICE: with fuel oil to remove the Do not use plastic sheeting for rust preventive. Do not wash outdoor storage. Plastic is ﬁne electrical components. for indoor storage. When used 4.
Page 148 To avoid injury from inhaling engine exhaust, always operate the engine in a well-ventilated area. Engine exhaust is toxic. 14. After all preparations are completed, start the engine. All information subject to change without notice. DDC-SVC-MAN-0041 Copyright © 2009 DETROIT DIESEL CORPORATION...
Page 149: Customer Assistance
EPA07 MBE 4000 OPERATOR'S MANUAL CUSTOMER ASSISTANCE The satisfaction and good will of the owners of Detroit Diesel engines are of primary concern to Detroit Diesel and its distributor/dealer organizations.See Figure 41 for Detroit Diesel NAFTA On-Highway service regions. Figure 41...
Page 150 Phone: 949-753-7710 Phone: 519-661-0149 Fax: 949-753-7711 Fax: 519-661-0171 MEXICO REGION CANADA REGION Detroit Diesel Allison de Mexico, S.A. Detroit Diesel of Canada, Ltd. Av. Santa Rosa 58 150 Dufferin Ave., Suite 701 Col. Ampliacion Norte London ON N5A 5N6 San Juan Ixtacala, Tlanepantla Phone: 519-661-0149 C.P.
Page 151: Road Service In The U.s. Or Canada
If you require road service for any Service Outlets reason in the U.S. or Canada, you may call the 1–800–445–1980 customer As the owner of a Detroit Diesel assistance phone number. An operator product you have a complete network will assist you in determining what of Detroit Diesel service outlets in the type of service is required.
Page 152: Step One
Support Managers staff, depending on should follow when experiencing the nature of his/her problem. a problem with any Detroit Diesel Prior to this contacting the CSC, the Product or Part. Detroit Diesel fully customer should have the following...
Page 153: Specifications
EPA07 MBE 4000 OPERATOR'S MANUAL SPECIFICATIONS This section lists the various POWER Center (313 592–5800) if you need COOL engine products. this speciﬁc information. Fuel and Lubricating Oil POWER COOL ENGINE Filters PRODUCTS Consult with a Detroit Diesel Maintenance of the cooling system...
Page 154: Power Cool 2000 And 3000 Supplemental Coolant Additive
Half Gallon Jug – 6 23507855 For POWER COOL IEG Per Case Coolant 23507856 5 Gallon Pail 23507857 55 Gallon Drum Table 20 POWER COOL 3000 Supplemental Coolant Additive All information subject to change without notice. DDC-SVC-MAN-0041 Copyright © 2009 DETROIT DIESEL CORPORATION...
Page 155: Power Cool 3000 Supplemental Additive Coolant Filters
EPA07 MBE 4000 OPERATOR'S MANUAL POWER COOL 3000 Supplemental Additive Coolant Filters Coolant Type Part Number Description 4 Ounce (1 Pint 23507545 Equivalent) 8 Ounce (2 Pint 23508425 Equivalent) 12 Ounce (3 Pint 23508426 Equivalent) For POWER COOL IEG Coolant...
Page 156: Power Cool Plus Extended Life Oat Coolant
On-Line Cleaner 200105 5 Gallon Pail 200155 55 Gallon Drum Twin Pack 201549 Twin Pack – 2 Per Case Table 25 POWER COOL Cooling System Cleaners All information subject to change without notice. DDC-SVC-MAN-0041 Copyright © 2009 DETROIT DIESEL CORPORATION...
Page 157: Power Trac Coolant Testing And Analysis Products
EPA07 MBE 4000 OPERATOR'S MANUAL POWER TRAC Coolant Testing And Analysis Products Application Part Number Description Indicates Nitrite, 3-Way Coolant Test Molybdate & Glycol 23519401 Strips Levels (Single Foil Packs) Indicates Nitrite, 3-Way Coolant Test Molybdate & Glycol 23519402 Strips...

Detroit Diesel EPA07 MBE 4000 Operator's Manual

Introduction

Caution Summary

Engine Identification

Operating Instructions for Starting the Engine

Ddec VI System

Ddec VI Engine Driving Tips

Engine Brake System

Engine Systems

Aftertreatment System

Driver Actions

Instrument Panel Lamps

Maintenance

How-To Section

Troubleshooting

Engine Storage

Customer Assistance

Specifications

Quick Links

Need help?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Detroit Diesel EPA07 MBE 4000

Summary of Contents for Detroit Diesel EPA07 MBE 4000

Table of Contents
