NUMBER: 9 3–09 S.M. REF.: Listed in Table
2009
SUBJECT: TURBOCHARGER WASTEGATE
ADDITIONS, REVISIONS, OR UPDATES
Publication Number
DDC-SVC-MAN-0010
DDC-SVC-MAN-0010
DDC-SVC-MAN-0010
DDC-SVC-MAN-0010
DDC-SVC-MAN-0026
NOTE: Page numbers are based on the most recent version of the individual publication and may be adjusted throughout the annual print cycle.
Platform
EPA07 MBE
4000 DDEC VI
Troubleshooting Guide
EPA07 MBE
4000 DDEC VI
Troubleshooting Guide
EPA07 MBE
4000 DDEC VI
Troubleshooting Guide
EPA07 MBE
4000 DDEC VI
Troubleshooting Guide
EPA07 MBE 4000
Workshop Manual

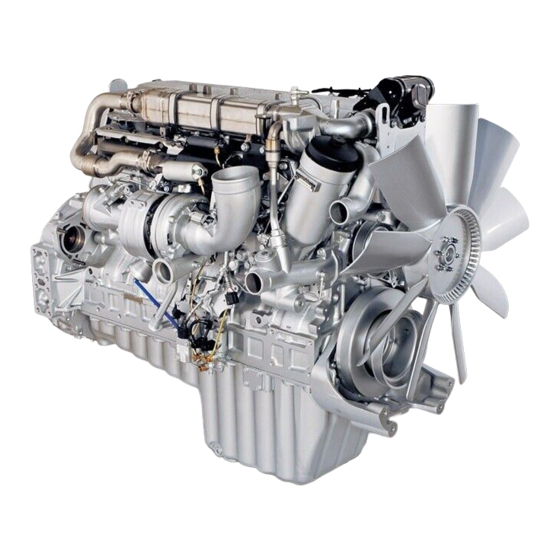

ENGINE: EPA07 MBE 4000 DATE: September
Section Title
98.1 SPN 2631/FMI 1
98.2 SPN 2631/FMI 2
11.7 Faulty
Turbocharger
Wastegate
11.7.1 Test Engine with
Replaced Turbocharger
Wastegate or EPV
6.7.4.1 Verification of
Wastegate Actuator
Operation
Change
Section has been
updated to include
Verification of
Wastegate Actuator
Operation
Section has been
updated to include
Verification of
Wastegate Actuator
Operation
Section has been
updated to include
Verification of
Wastegate Actuator
Operation
Section has been
updated to include
Verification of
Wastegate Actuator
Operation
Section has been
updated to include
Verification of
Wastegate Actuator
Operation
Page Number(s)
Add as section in
manual
Add as section in
manual
Add as section in
manual
Add as section in
manual
Add as section in
manual
