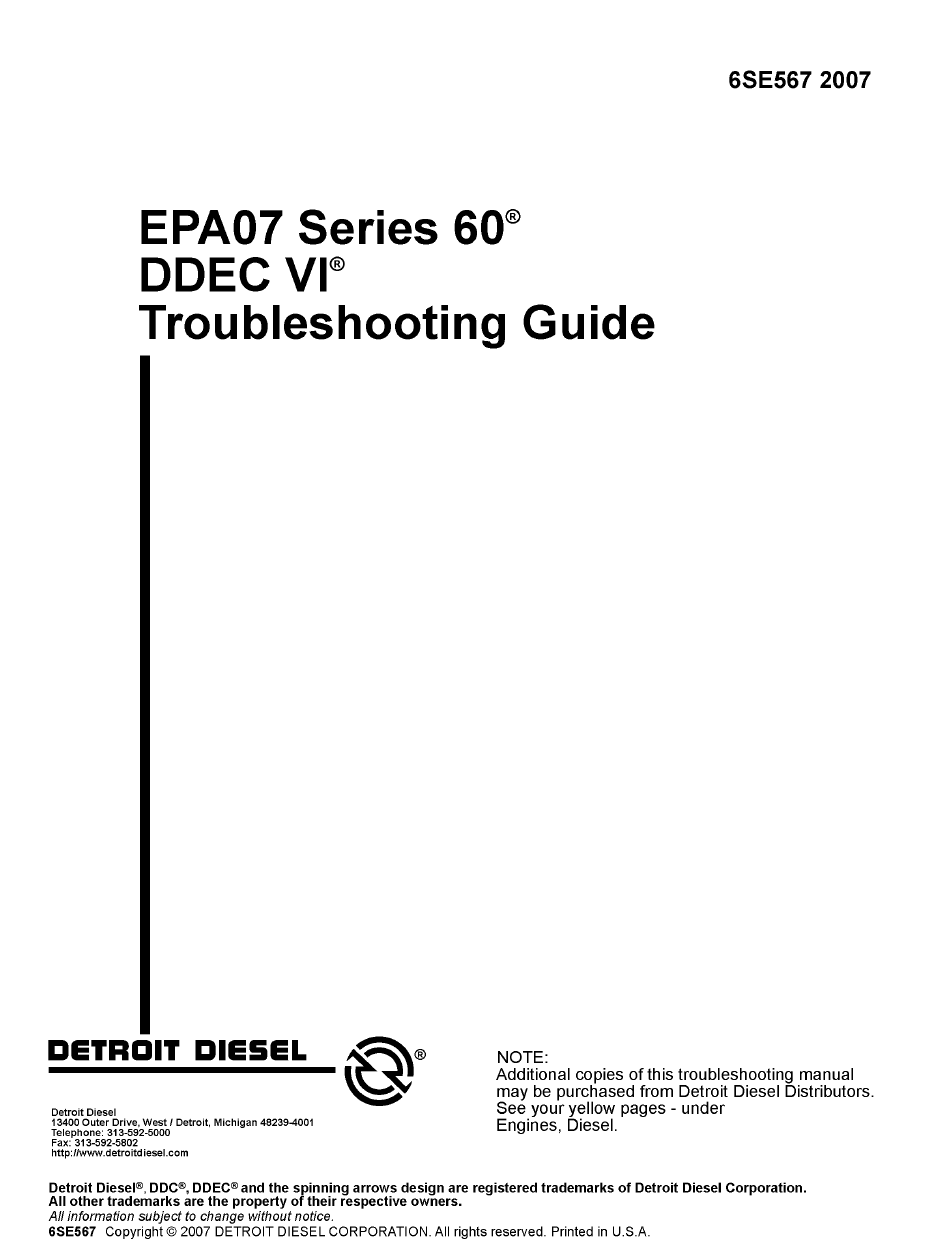

Detroit Diesel EPA07 Series 60 DDEC VI Troubleshooting Manual

Table of Contents

Quick Links

Download this manual

Table of Contents

Troubleshooting

Need help?

Do you have a question about the EPA07 Series 60 DDEC VI and is the answer not in the manual?

Questions and answers

Summary of Contents for Detroit Diesel EPA07 Series 60 DDEC VI

Page 3 Consider the following before servicing engines: TRADEMARK INFORMATION DDC®, Detroit Diesel®, DDEC®, Diagnostic Link®, Optimized Idle®, Optimized Idle®, Pro-Link®, and Series 60® are registered trademarks of Detroit Diesel Corporation. All other trademarks used are the property of their respective owners. MCM/CPC WARNING...
Page 4: Safety Instructions
As products become more and more advanced, technicians must become specialized in multiple areas. This manual is designed with that thought in mind. The Detroit Diesel 2007 Electronics Controls Troubleshooting Guide will provide you with concentrated information that will allow you to excel in 2007 Electronics Controls technology.
Page 5: Table Of Contents
PLUGGED FUEL FILTER(S) ..............FUEL PUMP .................... 4-10 4.10 AERATED FUEL ..................4-11 4.11 RESTRICTIVE AIR FILTER ..............4-12 4.12 LOW COMPRESSION ................4-13 4.13 EXTENDED CRANK TIME ..............4-19 All information subject to change without notice. Copyright © 2007 DETROIT DIESEL CORPORATION...
Page 6: Table Of Contents
11-4 11.3 INSUFFICIENT FUEL FLOW ..............11-4 11.4 HIGH FUEL TEMPERATURE RETURN ..........11-6 11.5 IMPROPER INJECTOR CALIBRATION SETTING ........11-8 11.6 LOW COMPRESSION PRESSURE ............11-8 All information subject to change without notice. Copyright © 2007 DETROIT DIESEL CORPORATION...
Page 7: Table Of Contents
SENSORS ....................17-37 17.8 INSTRUMENT PANEL LAMPS ..............17-51 ENGINE MANUFACTURER DIAGNOSTICS 18.1 ENGINE MANUFACTURER DIAGNOSTICS DEFINITIONS ....18-3 18.2 ENGINE MANUFACTURER DIAGNOSTICS PARAMETER DESCRIPTIONS ..................18-4 All information subject to change without notice. Copyright © 2007 DETROIT DIESEL CORPORATION...
Page 8: Table Of Contents
27-4 27.3 SPN 103/FMI 4 ..................27-5 SPN 108 - BAROMETRIC PRESSURE SENSOR CIRCUIT FAULT 28.1 SPN 108/FMI 3 ..................28-3 28.2 SPN 108/FMI 4 ..................28-3 All information subject to change without notice. Copyright © 2007 DETROIT DIESEL CORPORATION...
Page 9: Table Of Contents
SPN 247 (CPC) – MCM ENGINE HOURS DATA HIGHER OR LOWER THAN EXPECTED 38.1 SPN 247/FMI 0 ..................38-3 38.2 SPN 247/FMI 1 ..................38-3 38.3 SPN 247/FMI 9 ..................38-4 All information subject to change without notice. Copyright © 2007 DETROIT DIESEL CORPORATION...
Page 10: Table Of Contents
SPN 599/FMI 4 ..................47-3 SPN 600 (CPC) - CRUISE CONTROL COAST SWITCH SIGNAL ERRATIC OR MISSING 48.1 SPN 600/FMI 13 ..................48-3 48.2 SPN 600/FMI 19 ..................48-3 All information subject to change without notice. viii Copyright © 2007 DETROIT DIESEL CORPORATION...
Page 11: Table Of Contents
SPN 647 - SINGLE-SPEED FAN (LOW-SIDE DIGITAL OUTPUT #3) FAULT 58.1 SPN 647/FMI 3 ..................58-3 58.2 SPN 647/FMI 4 ..................58-4 58.3 SPN 647/FMI 5 ..................58-5 All information subject to change without notice. Copyright © 2007 DETROIT DIESEL CORPORATION...
Page 12: Table Of Contents
70-3 70.2 SPN 707/FMI 4 ..................70-3 SPN 708 (CPC) - ASG2 CHECK TRANS LAMP 71.1 SPN 708/FMI 3 ..................71-3 71.2 SPN 708/FMI 4 ..................71-3 All information subject to change without notice. Copyright © 2007 DETROIT DIESEL CORPORATION...
Page 13: Table Of Contents
SPN 1071 - TWO-SPEED FAN (AUX PWM #6) FAULT 81.1 SPN 1071/FMI 3 ..................81-3 81.2 SPN 1071/FMI 4 ..................81-4 81.3 SPN 1071/FMI 5 ..................81-5 All information subject to change without notice. Copyright © 2007 DETROIT DIESEL CORPORATION...
Page 14: Table Of Contents
SPN 2629 - TURBO COMPRESSOR OUT TEMP HIGH OR LOW 91.1 SPN 2629/FMI 3 ..................91-3 91.2 SPN 2629/FMI 4 ..................91-6 91.3 SPN 2629/FMI 20 ..................91-7 91.4 SPN 2629/FMI 21 ..................91-8 All information subject to change without notice. Copyright © 2007 DETROIT DIESEL CORPORATION...
Page 15: Table Of Contents
101.1 SPN 3250/FMI 0, 2, 3, 4, 10, 14, 31 ............101-3 SPN 3251 - DPF OUTLET PRESSURE ABOVE OR BELOW NORMAL OPERATING RANGE 102.1 SPN 3251/FMI 0, 1 OR 16 ............... 102-3 All information subject to change without notice. xiii Copyright © 2007 DETROIT DIESEL CORPORATION...
Page 16: Table Of Contents
112.1 SPN 3588/FMI 3 ..................112-3 112.2 SPN 3588/FMI 4 ..................112-4 112.3 SPN 3588/FMI 5 ..................112-5 SPN 3597 - PROPORTIONAL VALVE BANK 1 CIRCUIT 113.1 SPN 3597/FMI 3 ..................113-3 All information subject to change without notice. Copyright © 2007 DETROIT DIESEL CORPORATION...
Page 17 SPN 3720 - ASH LEVEL ABOVE NORMAL 126.1 SPN 3720/FMI 15 OR 16 ................. 126-3 SPN 4077 FUEL LINE PRESSURE SENSOR CIRCUIT FAULT 127.1 SPN 4077/FMI 3, 4 OR 14 ............... 127-3 All information subject to change without notice. Copyright © 2007 DETROIT DIESEL CORPORATION...
Page 18 128.1 SPN 4228/FMI 15 ..................128-3 128.2 SPN 4228/FMI 16 ..................128-4 DDEC VI SCHEMATICS 129.1 CRUISE CONTROL ................. 129-3 129.2 FAN CONTROL ..................129-4 129.3 OPTIMIZED IDLE ..................129-10 All information subject to change without notice. Copyright © 2007 DETROIT DIESEL CORPORATION...
Page 19 INTRODUCTION Section Page OVERVIEW ....................SCOPE AND USE OF THIS GUIDE ............SAFETY PRECAUTIONS ................
Page 21: Overview
This manual is designed with that thought in mind. Our goal at Detroit Diesel is to be the most customer focused and most responsive engine manufacturer in the world.
Page 22: Scope And Use Of This Guide
It is also suggested that other DDC outlets be contacted. e.g. if you are a dealer or user, contact your closest DDC Distributor. Ensure you have the engine serial number when you call. The phone number for Detroit Diesel Customer Service Center is 313-592-5800.
Page 23 Be aware that troubleshooting in this manual is mostly concerned with DDEC related codes. Codes associated with other components, e.g. transmissions, ECUs, ABS, etc. can be found in the related publication. All information subject to change without notice. Copyright © 2007 DETROIT DIESEL CORPORATION...
Page 24: Safety Precautions
SAFETY PRECAUTIONS SAFETY PRECAUTIONS The following safety precautions must be observed when working on a Detroit Diesel engine: PERSONAL INJURY To avoid injury from accidental engine startup while servicing the engine, disconnect/disable the starting system. All engine installations, especially those within enclosed spaces, should be equipped with an exhaust discharge pipe so that exhaust gases are delivered into the outside air.
Page 25 To avoid personal injury, spray the ﬂuid from the bottom of the valve into an appropriate container. The engine starting ﬂuid used in DDEC Ether Start Systems contains extremely ﬂammable and toxic substances. All information subject to change without notice. Copyright © 2007 DETROIT DIESEL CORPORATION...
Page 26 To avoid injury from ﬂying debris when using compressed air, wear adequate eye protection (face shield or safety goggles) and do not exceed 276 kPa (40 psi) air pressure. All information subject to change without notice. Copyright © 2007 DETROIT DIESEL CORPORATION...
Page 27 □ Do not place gas cylinders on their sides, but stand them upright when in use. □ Do not drop, drag, roll, or strike a cylinder forcefully. □ Always close valves completely when ﬁnished welding or cutting. All information subject to change without notice. Copyright © 2007 DETROIT DIESEL CORPORATION...
Page 28 PERSONAL INJURY To avoid injury from penetrating ﬂuids, do not put your Fluids under hands in front of ﬂuid under pressure. pressure can penetrate skin and clothing. All information subject to change without notice. 1-10 Copyright © 2007 DETROIT DIESEL CORPORATION...
Page 29 □ Wear adequate protective clothing (face shield, insulated gloves and apron, etc.). □ To prevent a buildup of potentially volatile vapors, keep the engine area well ventilated during operation. All information subject to change without notice. 1-11 Copyright © 2007 DETROIT DIESEL CORPORATION...
Page 30 Always disconnect the battery cable before working on the electrical system. PERSONAL INJURY To avoid injury from accidental engine startup while servicing the engine, disconnect/disable the starting system. All information subject to change without notice. 1-12 Copyright © 2007 DETROIT DIESEL CORPORATION...
Page 31 1.3.10 Diagnostic Equipment For mobile applications, Detroit Diesel Diagnostic Link 7.0 (DDDL 7.0) must be used by personnel other than the vehicle operator. The vehicle operator must maintain control of the vehicle while an assistant performs the diagnostic evaluations.
Page 32 To avoid injury when working near or on an operating engine, remove loose items of clothing and jewelry. Tie back or contain long hair that could be caught in any moving part causing injury. All information subject to change without notice. 1-14 Copyright © 2007 DETROIT DIESEL CORPORATION...
Page 33 This acid is extremely corrosive and, if touched by bare skin, may cause severe burns (the symptoms could be delayed for several hours). All information subject to change without notice. 1-15 Copyright © 2007 DETROIT DIESEL CORPORATION...
Page 35 LOW OIL PRESSURE Section Page IMPROPER ENGINE OIL LEVEL ............IMPROPER LUBRICATING OIL VISCOSITY .......... LUBRICATING OIL DILUTED WITH FUEL OIL OR ENGINE COOLANT FAULTY OIL PRESSURE GAUGE SENSOR .......... ROCKER ARM SHAFT PLUGS MISSING (NEW OR REBUILT ENGINES ONLY) ...................... RESTRICTED OIL COOLER ..............
Page 37: Improper Engine Oil Level
Test for Proper Engine Oil Level Perform the following steps to determine if properly ﬁlled oil pan resolved low oil pressure: 1. Connect Detroit Diesel Diagnostic Link (DDDL 7.0) to check the oil pressure. 2. Start and vary engine speed between 1800 - 2100 rpm.
Page 38: Improper Lubricating Oil Viscosity
[b] If DDDL 7.0 indicates oil pressure less than 241 kPa (35 psi) at 1800 rpm, shut down the engine and disconnect DDDL 7.0. Check the lubricating oil for fuel and water dilution; refer to section 2.3. All information subject to change without notice. Copyright © 2007 DETROIT DIESEL CORPORATION...
Page 39: Lubricating Oil Diluted With Fuel Oil Or Engine Coolant
[b] If DDDL 7.0 indicates oil pressure less than 241 kPa (35 psi) at 1800 rpm, shut down the engine and disconnect DDDL 7.0. Check for faulty oil pressure gage; refer to section 2.4. All information subject to change without notice. Copyright © 2007 DETROIT DIESEL CORPORATION...
Page 40: Faulty Oil Pressure Gauge Sensor
[b] If DDDL 7.0 indicates oil pressure less than 241 kPa (35 psi) at 1800 rpm, shut down the engine and disconnect DDDL 7.0. Refer to section 2.5. All information subject to change without notice. Copyright © 2007 DETROIT DIESEL CORPORATION...
Page 41: Rocker Arm Shaft Plugs Missing (New Or Rebuilt Engines Only)
Shaft plug must be installed 1.0 - 1.3 mm (0.040 -0.050 in.) below surface using J–36236. 3. Install rocker arm cover; refer to appropriate service manual, engine chapter. All information subject to change without notice. Copyright © 2007 DETROIT DIESEL CORPORATION...
Page 42 [b] If DDDL 7.0 indicates less than 241 kPa (35 psi) at 1800 rpm, shut down the engine and disconnect DDDL 7.0. Check the oil cooler for restriction; refer to section 2.6. All information subject to change without notice. Copyright © 2007 DETROIT DIESEL CORPORATION...
Page 43: Restricted Oil Cooler
[b] If DDDL 7.0 is indicating a lubricating oil temperature greater than 110°C (230°F) at 1800 rpm, shut down the engine and disconnect DDDL 7.0. Check pressure regulator valve; refer to section 2.7. All information subject to change without notice. Copyright © 2007 DETROIT DIESEL CORPORATION...
Page 44: Nonfunctional Or Sticking Oil Pressure Regulator Valve
5. Valve 2. Pressure Relief Valve Pin Location 6. Spring 3. Pressure Regulator Pin Location 7. Spring Seat 4. Valve Body Figure 2-1 Oil Pressure Regulator All information subject to change without notice. 2-10 Copyright © 2007 DETROIT DIESEL CORPORATION...
Page 45 [b] If DDDL 7.0 indicates less than 241 kPa (35 psi) at 1800 rpm, shut down the engine and disconnect DDDL 7.0; check bypass valve; refer to section 2.8. All information subject to change without notice. 2-11 Copyright © 2007 DETROIT DIESEL CORPORATION...
Page 46: Defective Bypass Valve
[b] If DDDL 7.0 indicates less than 241 kPa (35 psi), shut down the engine and disconnect DDDL 7.0, check pressure relief valve; refer to section 2.9. All information subject to change without notice. 2-12 Copyright © 2007 DETROIT DIESEL CORPORATION...
Page 47: Defective Pressure Relief Valve
[b] If DDDL 7.0 indicates less than 241 kPa (35 psi), at 1800 rpm, shut down the engine and disconnect DDDL 7.0, check pickup tube and screen assembly; refer to section 2.10. All information subject to change without notice. 2-13 Copyright © 2007 DETROIT DIESEL CORPORATION...
Page 48: Defective Pickup Screen Tube And Screen Assembly
[b] If DDDL 7.0 indicates less than 241 kPa (35 psi) at 1800 rpm, shut down the engine and disconnect DDDL 7.0, check crankshaft main bearings; refer to section 2.11. All information subject to change without notice. 2-14 Copyright © 2007 DETROIT DIESEL CORPORATION...
Page 49: Defective Crankshaft Main Bearing Shells
[b] If DDDL 7.0 indicates less than 241 kPa (35 psi) at 1800 rpm, shut down the engine and disconnect DDDL 7.0. Check the oil pump assembly; refer to section 2.11. All information subject to change without notice. 2-15 Copyright © 2007 DETROIT DIESEL CORPORATION...
Page 50: Defective Oil Pump Assembly
2. Manually rotate the oil pump drive gear. [a] If the drive gear rotates freely in the pump housing, call the Detroit Diesel Customer Support Center 313–592–5800. [b] If the drive gear did not rotate freely; refer to section 2.12.1.
Page 51: Detecting Internal Fuel Leaks
Used lube oil analysis can identify a potential source of engine trouble before it occurs. A program such as the Detroit Diesel Oil Analysis Program is recommended for monitoring crankcase oil in all engines. One of the most serious conditions used oil analysis can uncover is the presence of excessive fuel in the lube oil which should not exceed 2.5% maximum of oil...
Page 52 Since there is no known fuel leak tester available in the commercial market today, one must be fabricated. Use the following guidelines to help in fabricating: □ Although test fuel can be pressurized by variety of methods, Detroit Diesel recommends an air/fuel accumulator design capable of safely withstanding a minimum pressure of 345 kPa (50 psi).
Page 53 ﬁve minutes if the test time goes beyond ﬁve minutes it will become more difﬁcult to determine the faulty injector due to expected leakage at the injector plunger/body. Pay All information subject to change without notice. 2-19 Copyright © 2007 DETROIT DIESEL CORPORATION...
Page 54 If injector(s) are removed and reinstalled in the head, the injector nut 'O' ring seals should be replaced with new parts. 1. Fuel Leakage at Low Pressure Body Plug Figure 2-3 Unacceptable-Fuel Leakage at Low Pressure Body Plug All information subject to change without notice. 2-20 Copyright © 2007 DETROIT DIESEL CORPORATION...
Page 55 Unacceptable-Fuel Leakage at Injector Nut-toTube 'O' Ring Seal 1. Fuel Leakage at High Pressure Body Plug and or Body Crack Figure 2-5 Unacceptable-Fuel Leakage at High Pressure Body Plug and or Body Crack All information subject to change without notice. 2-21 Copyright © 2007 DETROIT DIESEL CORPORATION...
Page 56 Reinstall the rocker cover and start engine to purge the air from the fuel system. If the engine fails to start, it may be necessary to prime the fuel system. All information subject to change without notice. 2-22 Copyright © 2007 DETROIT DIESEL CORPORATION...
Page 57 MISFIRING CYLINDER Section Page POOR VEHICLE GROUND ..............AERATED FUEL ..................FAULTY FUEL INJECTOR ............... FAULTY MOTOR CONTROL MODULE ........... WORN OR DAMAGED VALVE OR CYLINDER KIT ........
Page 59: Poor Vehicle Ground
NOTE: Drive belts (Vee and poly-vee) should be replaced every 2,000 hours or 160,000 km (100,000 miles). 8. Verify negative lead repair; refer to section 3.1.1.1. All information subject to change without notice. Copyright © 2007 DETROIT DIESEL CORPORATION...
Page 60 [a] If the engine is not misﬁring, no further troubleshooting is required. Shut down the engine. [b] If the engine is misﬁring, check for aerated fuel. Shut down the engine; refer to section 3.2. All information subject to change without notice. Copyright © 2007 DETROIT DIESEL CORPORATION...
Page 61: Aerated Fuel
[a] If the engine is not misﬁring, no further troubleshooting is required. Shut down the engine. [b] If the engine is misﬁring,, shut down the engine and check for improper injector setting. All information subject to change without notice. Copyright © 2007 DETROIT DIESEL CORPORATION...
Page 62: Faulty Fuel Injector
1. Refer to section3.3 for the exhaust caution before preceding. Start the engine. 2. Run the engine speed up to the occurrence of the misﬁring. 3. Listen for misﬁring cylinder. All information subject to change without notice. Copyright © 2007 DETROIT DIESEL CORPORATION...
Page 63: Faulty Motor Control Module
[a] If the engine is not misﬁring, shut down the engine. No further troubleshooting is required. [b] If the engine is misﬁring, shut down the engine and check for worn or damaged valves and cylinder kits; refer to section 3.5. All information subject to change without notice. Copyright © 2007 DETROIT DIESEL CORPORATION...
Page 64: Worn Or Damaged Valve Or Cylinder Kit
Refer to section 3.5.1.2. 11. Compare the cylinder compression test results to speciﬁcations. [a] If cylinder pressure is below speciﬁcations, refer to section 3.5.1. [b] If cylinder pressure is within speciﬁcation, call Detroit Diesel Customer Support Center (313-592-5800). 3.5.1...
Page 65 2. Run the engine speed up to the occurrence of the misﬁring. 3. Listen for misﬁring cylinder. [a] If the engine is not misﬁring, no further troubleshooting is required. [b] If the engine is misﬁring, call the Detroit Diesel Customer Support Center 313–592–5800. 3.5.1.2...
Page 66 9. Disengage the locking tang on the harness plug connection, grasp the connector and gently pull it from the socket. 10. Remove the injector hold down clamps. All information subject to change without notice. 3-10 Copyright © 2007 DETROIT DIESEL CORPORATION...
Page 67 Disconnect both connectors at the valve cover for the injectors. PERSONAL INJURY To avoid injury when working on or near an operating engine, wear protective clothing, eye protection, and hearing protection. All information subject to change without notice. 3-11 Copyright © 2007 DETROIT DIESEL CORPORATION...
Page 68 22. The compression reading should be 3102-3793 kPa (450-550 psi) with no two cylinders differing by more than 276 kPa (40 psi). If compression readings are below speciﬁcations, repeat step 20 to be certain of the reading. All information subject to change without notice. 3-12 Copyright © 2007 DETROIT DIESEL CORPORATION...
Page 69 29. Install upper valve cover, insuring that the bolt hole are clear of dirt and oil as not to damage the lower rocker cover. 30. Check test results All information subject to change without notice. 3-13 Copyright © 2007 DETROIT DIESEL CORPORATION...
Page 71 STARTING DIFFICULTY – ENGINE ROTATES Section Page EMPTY FUEL TANK ................LOW BATTERY VOLTAGE ..............CORRODED OR DAMAGED BATTERY TERMINALS ......DEFECTIVE MAGNETIC SWITCH ............DEFECTIVE STARTER ................LOW CRANKING SPEED ................ FUEL SUPPLY VALVE ................PLUGGED FUEL FILTER(S) ..............FUEL PUMP ....................
Page 73: Empty Fuel Tank
Battery Replacement Perform the following steps for battery repair: 1. Remove and replace the battery; refer to OEM guidelines. 2. Verify battery replacement; refer to section 4.2.1.1. All information subject to change without notice. Copyright © 2007 DETROIT DIESEL CORPORATION...
Page 74: Corroded Or Damaged Battery Terminals
[a] If the engine starts and runs, no further troubleshooting is required. Shut down the engine. [b] If the engine fails to start and run, check the magnetic switch; refer to section 4.4. All information subject to change without notice. Copyright © 2007 DETROIT DIESEL CORPORATION...
Page 75: Defective Magnetic Switch
1. If the engine starts and runs, no further troubleshooting is required. Shut down the engine. 2. If the engine fails to start and run, check the starter; refer to section 4.5. All information subject to change without notice. Copyright © 2007 DETROIT DIESEL CORPORATION...
Page 76: Defective Starter
Perform the following steps for starter replacement: 1. Replace the starter; refer to the appropriate service manual, electrical equipment chapter. 2. Verify replacement of starter; refer to section 4.5.1.1. All information subject to change without notice. Copyright © 2007 DETROIT DIESEL CORPORATION...
Page 77: Low Cranking Speed
1. If the engine starts and runs, no further troubleshooting is required. Shut down the engine. 2. If the engine fails to start and run, check the fuel supply valve; refer to section 4.7. All information subject to change without notice. Copyright © 2007 DETROIT DIESEL CORPORATION...
Page 78: Fuel Supply Valve
1. If the engine starts and runs, no further troubleshooting is required. Shut down the engine. 2. If the engine fails to start and run, check the fuel ﬁlters; refer to section 4.8. All information subject to change without notice. Copyright © 2007 DETROIT DIESEL CORPORATION...
Page 79: Plugged Fuel Filter(S)
1. If the engine starts and runs, no further troubleshooting is required. Shut down the engine. 2. If the engine fails to start and run, check the fuel pump; refer to section 4.9. All information subject to change without notice. Copyright © 2007 DETROIT DIESEL CORPORATION...
Page 80: Fuel Pump
1. If the engine starts and runs, no further troubleshooting is required. Shut down the engine. 2. If the engine fails to start and run, check for aerated fuel; refer to section 4.10. All information subject to change without notice. 4-10 Copyright © 2007 DETROIT DIESEL CORPORATION...
Page 81 1. Attempt to start and run the engine. If the engine starts and runs, no further troubleshooting is required. Shut down the engine. 2. If the engine fails to start and run, check for a restrictive air ﬁlter; refer to section 4.11. All information subject to change without notice. 4-11 Copyright © 2007 DETROIT DIESEL CORPORATION...
Page 82: Restrictive Air Filter
1. Attempt to start and run the engine. If the engine starts and runs, no further troubleshooting is required. Shut down the engine. 2. If the engine fails to start and run, check compression; refer to section 4.12. All information subject to change without notice. 4-12 Copyright © 2007 DETROIT DIESEL CORPORATION...
Page 83: Low Compression
1. Perform a cylinder compression test. Refer to section 4.12.1.2. 2. Compare cylinder compression test results to speciﬁcations. [a] If cylinder pressure is below speciﬁcations; refer to section 4.12.1. [b] If cylinder pressure is within speciﬁcations, call Detroit Diesel Customer Support Center (313-592-5800). 4.12.1...
Page 84 1. Attempt to start and run the engine. If the engine starts and runs, no further troubleshooting is required. Shut down the engine. 2. If the engine fails to start and run, call the Detroit Diesel Customer Support Center at 313–592–5800.
Page 85 9. Disengage the locking tang on the harness plug connection, grasp the connector and gently pull it from the socket. 10. Remove the injector hold down clamps. All information subject to change without notice. 4-15 Copyright © 2007 DETROIT DIESEL CORPORATION...
Page 86 Disconnect both connectors at the valve cover for the injectors. PERSONAL INJURY To avoid injury when working on or near an operating engine, wear protective clothing, eye protection, and hearing protection. All information subject to change without notice. 4-16 Copyright © 2007 DETROIT DIESEL CORPORATION...
Page 87 22. The compression reading should be 3102-3793 kPa (450-550 psi) with no two cylinders differing by more than 276 kPa (40 psi). If compression readings are below speciﬁcations, repeat step 20 to be certain of the reading. All information subject to change without notice. 4-17 Copyright © 2007 DETROIT DIESEL CORPORATION...
Page 88 29. Install upper valve cover, insuring that the bolt hole are clear of dirt and oil as not to damage the lower rocker cover. 30. Check test results All information subject to change without notice. 4-18 Copyright © 2007 DETROIT DIESEL CORPORATION...
Page 89: Extended Crank Time
4. Replace the fuel pressure regulator and retest the fuel pressure. If the fuel pressure is still not within specs, refer to section 4.13.1.4, “Fuel Pump Test.” All information subject to change without notice. 4-19 Copyright © 2007 DETROIT DIESEL CORPORATION...
Page 90 Bendix web site at http:\\www.bendix.com or call the Bendix Technical Assistance Center at 1-800-AIR-BRAKE, (1-800-247-2725). [b] If air compressor shaft is turning, replace the fuel pump. All information subject to change without notice. 4-20 Copyright © 2007 DETROIT DIESEL CORPORATION...
Page 91: Crank No Start
[b] If the resistance is greater than 140 Ω, go to step 6. 4. Disconnect the CMP Sensor. 5. Measure the resistance between pins 44 and 45 on the breakout box. All information subject to change without notice. 4-21 Copyright © 2007 DETROIT DIESEL CORPORATION...
Page 92 5. Start the engine. Does the engine start normally? [a] If yes, check the charging system diagnostics in the OEM manual. [b] If no, refer to section 4.14.3.1, “Battery Cable Voltage Drop Test.” All information subject to change without notice. 4-22 Copyright © 2007 DETROIT DIESEL CORPORATION...
Page 93 [a] If yes, repair bad connection or wire between the battery negative terminal and the starter ground terminal. [b] If no, refer to starter diagnostics in the OEM manual. All information subject to change without notice. 4-23 Copyright © 2007 DETROIT DIESEL CORPORATION...
Page 94 4. Replace the fuel pressure regulator and retest the fuel pressure. If the fuel pressure is still not within specs, refer to section 4.14.4.4, “Fuel Pump Test.” All information subject to change without notice. 4-24 Copyright © 2007 DETROIT DIESEL CORPORATION...
Page 95: Engine Timing
Check Cam timing, refer to section 12.11, “Incorrect Camshaft Timing” in the EPA07 Series 60 Service Manual (6SE2007). 4.14.6 Low Compression Perform DDDL 7.0 compression test service routine, based on results then perform Manual Compression Test, (refer to section 4.12.1.2). All information subject to change without notice. 4-25 Copyright © 2007 DETROIT DIESEL CORPORATION...
Page 97 NO START - ENGINE WILL NOT ROTATE Section Page DISCHARGED BATTERY ................ DEFECTIVE MAGNETIC SWITCH ............DEFECTIVE STARTER ................INTERNAL ENGINE DAMAGE ..............
Page 99: Discharged Battery
1. If the engine starts and runs, no further troubleshooting is required. Shut down the engine. 2. If the engine fails to start or run, check the magnetic switch; refer to section 5.2. All information subject to change without notice. Copyright © 2007 DETROIT DIESEL CORPORATION...
Page 100 1. If the engine starts and runs, no further troubleshooting is required. Shut down the engine. 2. If the engine fails to start or run, check the starter; refer to section All information subject to change without notice. Copyright © 2007 DETROIT DIESEL CORPORATION...
Page 101 1. If the engine starts and runs, no further troubleshooting is required. Shut down the engine. 2. If the engine fails to crank, check for internal engine damage. Refer to section 5.4. All information subject to change without notice. Copyright © 2007 DETROIT DIESEL CORPORATION...
Page 102: Internal Engine Damage
1. If the engine starts and runs, no further troubleshooting is required. Shut down the engine. 2. If the engine fails to start, call the Detroit Diesel Customer Support Center at 313–592–5800. All information subject to change without notice.
Page 103: Defective Turbocharger
EXCESSIVE OIL CONSUMPTION Section Page EXTERNAL OIL LEAKS ................LEAKING OIL COOLER CORE ............... DEFECTIVE AIR COMPRESSOR ............DEFECTIVE TURBOCHARGER ............. WORN OR DAMAGED VALVE OR CYLINDER KIT ........
Page 105: External Oil Leaks
[a] If no oil leaks are observed, no further troubleshooting is required Retest for oil consumption. [b] If external oil leaks are still present, repeat section 6.1.1. All information subject to change without notice. Copyright © 2007 DETROIT DIESEL CORPORATION...
Page 106: Leaking Oil Cooler Core
2. Verify replacement of oil cooler core; refer to section 6.2.1.1. 3. If there is oil in the cooling system ﬂush the cooling system and replace the coolant ﬁlter. Refer to the appropriate service manual. All information subject to change without notice. Copyright © 2007 DETROIT DIESEL CORPORATION...
Page 107 Test Engine for Reduced Oil Consumption Perform a lube oil consumption report as follows:, 1. Call the Detroit Diesel Customer Support Center (313–592–5800) for a form. 2. Review the oil consumption report. [a] If the oil consumption report data is within speciﬁcations, check for defective air compressor.
Page 108: Defective Air Compressor
[a] If the engine crankcase pressure remained the same, check the turbocharger; refer to section 6.4. [b] If the engine crankcase pressure decreased, replace the air compressor; refer to section 6.3.1. All information subject to change without notice. Copyright © 2007 DETROIT DIESEL CORPORATION...
Page 109 Shut down the engine. [b] If the engine crankcase pressure is less than1.25 kPa (5 in. H O), shut down the engine; no further troubleshooting is required. All information subject to change without notice. Copyright © 2007 DETROIT DIESEL CORPORATION...
Page 110 6.5. [b] If the engine crankcase pressure is 1.25 kPa (5 in. H O) or less, no further troubleshooting is required. All information subject to change without notice. Copyright © 2007 DETROIT DIESEL CORPORATION...
Page 111 10. Compare the cylinder compression test results to speciﬁcations. [a] If the cylinder compression is below speciﬁcations, repair worn or damaged valve(s) or cylinder kit; refer to section 6.5.1. [b] If the cylinder compression is within speciﬁcation, call Detroit Diesel Customer Support Center (313-592-5800). 6.5.1...
Page 112 1. Perform a crankcase pressure test if reading is below 1.25 kPa (5psi) no further troubleshooting is required. 2. If the crankcase pressure test is reading over.25 kPa (5 psi), call the Detroit Diesel Customer Support Center at 313–592–5800. 6.5.1.2...
Page 113 9. Disengage the locking tang on the harness plug connection, grasp the connector and gently pull it from the socket. 10. Remove the injector hold down clamps. All information subject to change without notice. 6-11 Copyright © 2007 DETROIT DIESEL CORPORATION...
Page 114 Disconnect both connectors at the valve cover for the injectors. PERSONAL INJURY To avoid injury when working on or near an operating engine, wear protective clothing, eye protection, and hearing protection. All information subject to change without notice. 6-12 Copyright © 2007 DETROIT DIESEL CORPORATION...
Page 115 22. The compression reading should be 3102-3793 kPa (450-550 psi) with no two cylinders differing by more than 276 kPa (40 psi). If compression readings are below speciﬁcations, repeat step 20 to be certain of the reading. All information subject to change without notice. 6-13 Copyright © 2007 DETROIT DIESEL CORPORATION...
Page 116 29. Install upper valve cover, insuring that the bolt hole are clear of dirt and oil as not to damage the lower rocker cover. 30. Check test results All information subject to change without notice. 6-14 Copyright © 2007 DETROIT DIESEL CORPORATION...
Page 117 EXCESSIVE CRANKCASE PRESSURE Section Page OBSTRUCTION OR DAMAGE TO ROCKER COVER BREATHER ..DEFECTIVE AIR COMPRESSOR ............DEFECTIVE TURBOCHARGER ............. WORN OR DAMAGED VALVE OR CYLINDER KIT ........
Page 119: Obstruction Or Damage To Rocker Cover Breather
[b] If the engine crankcase pressure is greater than 1.25 kPa (5 in. H O), check the air compressor; refer to section 7.2. Shut down the engine. All information subject to change without notice. Copyright © 2007 DETROIT DIESEL CORPORATION...
Page 120 Air Compressor Repair Perform the following steps to repair the defective air compressor: 1. Remove the air compressor from the engine; refer to appropriate service manual, special equipment chapter. All information subject to change without notice. Copyright © 2007 DETROIT DIESEL CORPORATION...
Page 121 Shut down the engine. [b] If the engine crankcase pressure is not within 1.25 kPa (5 in. H O), check the turbocharger, refer to section 7.3. Shut down the engine. All information subject to change without notice. Copyright © 2007 DETROIT DIESEL CORPORATION...
Page 122 2. If the engine crankcase pressure is greater than 1.25 kPa (5 in. H O), check for a worn or damaged valve or cylinder kit; refer to section 7.4. All information subject to change without notice. Copyright © 2007 DETROIT DIESEL CORPORATION...
Page 123 10. Compare the cylinder compression test results to speciﬁcations. [a] If the cylinder compression is below speciﬁcations, repair worn or damaged valve(s) or cylinder kit; refer to section 7.4.1. [b] If the cylinder compression is within speciﬁcation, call Detroit Diesel Customer Support Center (313-592-5800). 7.4.1...
Page 124 9. Remove the vehicle from the chassis dynamometer. 10. Compare the cylinder pressure test results to speciﬁcations. [a] If cylinder pressure is within speciﬁcations, no further troubleshooting is required. [b] If cylinder pressure is not within speciﬁcations, call Detroit Diesel Customer Support Center at 313–592–5800. 7.4.1.2...
Page 125 Using rocker arm lifter (J–35996–A), see Figure 7-2, lift the assembly straight up and off of the head and place in a clean area on the bench. Figure 7-2 Rocker Arm/Shaft Assembly Removal/Installation All information subject to change without notice. Copyright © 2007 DETROIT DIESEL CORPORATION...
Page 126 Disconnect both connectors at the valve cover for the injectors. PERSONAL INJURY To avoid injury when working on or near an operating engine, wear protective clothing, eye protection, and hearing protection. All information subject to change without notice. 7-10 Copyright © 2007 DETROIT DIESEL CORPORATION...
Page 127 22. The compression reading should be 3102-3793 kPa (450-550 psi) with no two cylinders differing by more than 276 kPa (40 psi). If compression readings are below speciﬁcations, repeat step 20 to be certain of the reading. All information subject to change without notice. 7-11 Copyright © 2007 DETROIT DIESEL CORPORATION...
Page 128 29. Install upper valve cover, insuring that the bolt hole are clear of dirt and oil as not to damage the lower rocker cover. 30. Check test results All information subject to change without notice. 7-12 Copyright © 2007 DETROIT DIESEL CORPORATION...
Page 129 EXCESSIVE EXHAUST SMOKE - BLACK OR GRAY Section Page IMPROPER GRADE OF DIESEL FUEL ..........RESTRICTED AIR CLEANER ELEMENT ..........RESTRICTED OR CRACKED CHARGE AIR COOLER ......FAULTY EXHAUST SYSTEM ..............FAULTY FUEL INJECTOR ............... DEFECTIVE TURBOCHARGER .............
Page 131: Improper Grade Of Diesel Fuel
Shut down the engine. [b] If the engine exhaust smoke is excessively black or gray, shut down the engine. Check the air ﬁlter; refer to section 8.2. All information subject to change without notice. Copyright © 2007 DETROIT DIESEL CORPORATION...
Page 132: Restricted Air Cleaner Element
Shut down the engine. [b] If the engine exhaust emission is excessively black or gray, shut down the engine. Check the charge air cooler; refer to section 8.3. All information subject to change without notice. Copyright © 2007 DETROIT DIESEL CORPORATION...
Page 133: Restricted Or Cracked Charge Air Cooler
Perform the following steps to replace the charge air cooler: 1. Replace the charge air cooler, refer to OEM guidelines. 2. Verify replacement of the charge air cooler; refer to section 8.3.2.1. All information subject to change without notice. Copyright © 2007 DETROIT DIESEL CORPORATION...
Page 134 Shut down the engine. [b] If the engine exhaust emission is excessively black or gray, shut down the engine. Check the faulty exhaust system; refer to section 8.4. All information subject to change without notice. Copyright © 2007 DETROIT DIESEL CORPORATION...
Page 135: Faulty Exhaust System
Shut down the engine. [b] If the engine exhaust emission is excessively black or gray, shut down the engine. Check the fuel injectors; refer to section 8.5. All information subject to change without notice. Copyright © 2007 DETROIT DIESEL CORPORATION...
Page 136 1. Refer to section 8.5 for exhaust caution before proceeding. Start the engine. 2. Run the engine speed to full load. 3. Visually inspect the exhaust for excessive smoke. All information subject to change without notice. Copyright © 2007 DETROIT DIESEL CORPORATION...
Page 137 [a] If the engine exhaust emission appears normal, no further troubleshooting is required. Shut down the engine. [b] If the engine exhaust emission is excessive, shut down the engine. Call Detroit Diesel Customer Support Center (313-592-5800). All information subject to change without notice.
Page 139 EXCESSIVE BLUE SMOKE Section Page DEFECTIVE TURBOCHARGER ............. WORN OR DAMAGED VALVE OR CYLINDER KIT ........
Page 141 Figure 9-1. 1. Flexible Coupling 3. Charge Air Cooler Inlet Duct 2. Charge Air Cooler Outlet Duct Figure 9-1 Charge Air Cooler and Related Parts All information subject to change without notice. Copyright © 2007 DETROIT DIESEL CORPORATION...
Page 142 [b] If the engine exhaust smoke is excessively black or gray, shut down the engine. Check for worn or damaged valve or cylinder kit; refer to section 9.2. All information subject to change without notice. Copyright © 2007 DETROIT DIESEL CORPORATION...
Page 143 Refer to section 9.2.1.2. 11. Compare the cylinder compression test results to speciﬁcations. [a] If cylinder pressure is below speciﬁcations, refer to section 9.2.1. [b] If cylinder pressure is within speciﬁcations, call Detroit Diesel Customer Support Center (313-592-5800). 9.2.1...
Page 144 [a] If the engine exhaust smoke emission appears normal, no further troubleshooting is required. Shut down the engine. [b] If the engine exhaust smoke is excessively black or gray, call the Detroit Diesel Customer Support Center (313-592-5800). Shut down the engine.
Page 145 9. Disengage the locking tang on the harness plug connection, grasp the connector and gently pull it from the socket. 10. Remove the injector hold down clamps. All information subject to change without notice. Copyright © 2007 DETROIT DIESEL CORPORATION...
Page 146 Disconnect both connectors at the valve cover for the injectors. PERSONAL INJURY To avoid injury when working on or near an operating engine, wear protective clothing, eye protection, and hearing protection. All information subject to change without notice. Copyright © 2007 DETROIT DIESEL CORPORATION...
Page 147 22. The compression reading should be 3102-3793 kPa (450-550 psi) with no two cylinders differing by more than 276 kPa (40 psi). If compression readings are below speciﬁcations, repeat step 20 to be certain of the reading. All information subject to change without notice. Copyright © 2007 DETROIT DIESEL CORPORATION...
Page 148 29. Install upper valve cover, insuring that the bolt hole are clear of dirt and oil as not to damage the lower rocker cover. 30. Check test results All information subject to change without notice. 9-10 Copyright © 2007 DETROIT DIESEL CORPORATION...
Page 149 EXCESSIVE WHITE SMOKE Section Page 10.1 IMPROPER GRADE OF FUEL ..............10-3 10.2 DEFECTIVE FUEL PUMP ............... 10-4 10.3 AERATED FUEL ..................10-6 10.4 IMPROPER INJECTOR CALIBRATION SETTING ........10-7 10.5 IMPROPER VALVE CLEARANCE OR INJECTOR HEIGHT, WORN OR DAMAGED CAMSHAFT LOBES AND ROLLERS ........10-8 10.6 FAULTY FUEL INJECTOR ...............
Page 151: Improper Grade Of Fuel
Shut down the engine. [b] If the engine exhaust smoke is excessively white, shut down the engine. Check the fuel pump; refer to section 10.2. All information subject to change without notice. 10-3 Copyright © 2007 DETROIT DIESEL CORPORATION...
Page 152: Defective Fuel Pump
1. Replace the drive hubs or coupling; refer to appropriate service manual, fuel system chapter. 2. Verify the drive hubs and coupling replacement; refer to section 10.2.1.1. All information subject to change without notice. 10-4 Copyright © 2007 DETROIT DIESEL CORPORATION...
Page 153 [a] If the engine exhaust emission appears normal, no further troubleshooting is required. Shut down the engine. [b] If the engine exhaust emission is excessively white, shut down the engine. Check for aerated fuel; refer to section 10.3. All information subject to change without notice. 10-5 Copyright © 2007 DETROIT DIESEL CORPORATION...
Page 154 Shut down the engine. [b] If the engine exhaust emission is excessively white, shut down the engine. Check for improper injector calibration setting; refer to section 10.4. All information subject to change without notice. 10-6 Copyright © 2007 DETROIT DIESEL CORPORATION...
Page 155: Improper Injector Calibration Setting
[b] If the engine exhaust emission is excessively white, shut down the engine. Check for improper valve clearance or injector height, worn or damaged camshaft lobes and rollers; refer to section 10.5. All information subject to change without notice. 10-7 Copyright © 2007 DETROIT DIESEL CORPORATION...
Page 156: Improper Valve Clearance Or Injector Height, Worn Or Damaged Camshaft Lobes And Rollers
Shut down the engine. [b] If the engine exhaust emission is excessively white, shut down the engine. Check for faulty fuel injector; refer to section 10.6. All information subject to change without notice. 10-8 Copyright © 2007 DETROIT DIESEL CORPORATION...
Page 157 [a] If the engine exhaust emission appears normal, no further troubleshooting is required. Shut down the engine. [b] If the engine exhaust emission is excessively white, shut down the engine. Call the Detroit Diesel Customer Support Center (313–592–5800). All information subject to change without notice. 10-9...
Page 159 ROUGH RUNNING OR STALLING Section Page 11.1 LOW BATTERY VOLTAGE ..............11-3 11.2 AERATED FUEL ..................11-4 11.3 INSUFFICIENT FUEL FLOW ..............11-4 11.4 HIGH FUEL TEMPERATURE RETURN ..........11-6 11.5 IMPROPER INJECTOR CALIBRATION SETTING ........11-8 11.6 LOW COMPRESSION PRESSURE ............11-8...
Page 161: Low Battery Voltage
[a] If the engine is not running rough or stalling, no further troubleshooting is required. Shut down the engine. [b] If the engine is running rough or stalling shut down the engine. Check for aerated fuel; refer to section 11.2. All information subject to change without notice. 11-3 Copyright © 2007 DETROIT DIESEL CORPORATION...
Page 162 [b] If the fuel rate is less than 246 L/hr (65 gal/hr), resolve the insufﬁcient fuel ﬂow; refer to section 11.3.1. 11.3.1 Insufﬁcient Fuel Flow Resolution Perform the following steps to resolve the insufﬁcient fuel ﬂow: All information subject to change without notice. 11-4 Copyright © 2007 DETROIT DIESEL CORPORATION...
Page 163 Shut down the engine. [b] If the engine is running rough or stalling, shut down the engine. Check for high fuel temperature return; refer to section 11.4. All information subject to change without notice. 11-5 Copyright © 2007 DETROIT DIESEL CORPORATION...
Page 164: High Fuel Temperature Return
88-96°C (190-210°F). [a] If the engine is not running rough or stalling, no further troubleshooting is required. Shut down the engine. All information subject to change without notice. 11-6 Copyright © 2007 DETROIT DIESEL CORPORATION...
Page 165 SERIES 60 DDEC VI TROUBLESHOOTING GUIDE [b] If the engine is running rough or stalling, shut down the engine. Check for improper injector calibration setting; refer to section 11.5. All information subject to change without notice. 11-7 Copyright © 2007 DETROIT DIESEL CORPORATION...
Page 166 To determine if improper injector calibration setting is causing rough running or stalling, perform the following steps: 1. Test for improper injector setting. 2. Compare the calibration code(s) shown on the Detroit Diesel Diagnostic Link display with the two digit calibration code(s) on the injector(s). See Figure 11-1. Figure 11-1 Injector Calibration Code [a] If the calibration codes match, check compression pressure;...
Page 167 6. Clean and remove the rocker cover, it is not necessary to remove the bottom rocker cover. If equipped with Jake Brakes remove the Jake Brake assembly. All information subject to change without notice. 11-9 Copyright © 2007 DETROIT DIESEL CORPORATION...
Page 168 16. Lubricate the shaft with clean engine oil. With sleeves in place, carefully reinstall the shaft through each rocker arm shaft. Make sure cup plug end faces inboard. All information subject to change without notice. 11-10 Copyright © 2007 DETROIT DIESEL CORPORATION...
Page 169 Disconnect both connectors at the valve cover for the injectors. PERSONAL INJURY To avoid injury when working on or near an operating engine, wear protective clothing, eye protection, and hearing protection. All information subject to change without notice. 11-11 Copyright © 2007 DETROIT DIESEL CORPORATION...
Page 170 22. The compression reading should be 3102-3793 kPa (450-550 psi) with no two cylinders differing by more than 276 kPa (40 psi). If compression readings are below speciﬁcations, repeat step 20 to be certain of the reading. All information subject to change without notice. 11-12 Copyright © 2007 DETROIT DIESEL CORPORATION...
Page 171 [a] If the engine is not running rough or stalling, no further troubleshooting is required. Shut down the engine. [b] If the engine is running rough or stalling, shut down the engine. Call Detroit Diesel Customer Support Center (313-592-5800). All information subject to change without notice.
Page 173 LOW POWER Section Page 12.1 FACTORS THAT AFFECT WHEEL HORSEPOWER ......12-3 12.2 LOW HORSEPOWER INTERVIEW ............12-6 12.3 AERATED FUEL ..................12-12 12.4 HIGH FUEL PRESSURE ................. 12-13 12.5 HIGH FUEL TEMPERATURE RETURN ..........12-16 12.6 RESTRICTED AIR CLEANER ELEMENT ..........12-17 12.7 RESTRICTED OR CRACKED CHARGE AIR COOLER OR LEAKING INTAKE MANIFOLD .................
Page 175: Factors That Affect Wheel Horsepower
Injector Codes Incorrect injector codes will limit fuel delivery. Valve Lash Incorrect valve lash will alter the combustion process such that power is compromised. All information subject to change without notice. 12-3 Copyright © 2007 DETROIT DIESEL CORPORATION...
Page 176 Excessive use of vehicle electrical power will cause increased use of the alternator. This will increase the parasitic load on the engine. Tire Pressure Under inﬂated tires will signiﬁcantly increase driveline resistance to rotation. All information subject to change without notice. 12-4 Copyright © 2007 DETROIT DIESEL CORPORATION...
Page 177 Unusual applications such as triple drive axles, PTO's, pumps, high air compressor duty cycle, etc., will have higher parasitic loses resulting in less horsepower at the wheels. Table 12-1 Factors Affecting Wheel Horsepower All information subject to change without notice. 12-5 Copyright © 2007 DETROIT DIESEL CORPORATION...
Page 178: Low Horsepower Interview
To determine if low horsepower is causing a power concern, use the driver questionnaire, the troubleshooting tree, and the low power troubleshooting chart. For an example of the driver questionnaire see Figure 12-1. Figure 12-1 Driver Questionnaire All information subject to change without notice. 12-6 Copyright © 2007 DETROIT DIESEL CORPORATION...
Page 179 DDEC equipped engine must not use or read any diagnostic tool while the vehicle/vessel is moving. 1. If the problem is repeatable, take the vehicle for a drive with Detroit Diesel Diagnostic Link (DDDL 7.0) connected and note the conditions when the problem occurs. Be prepared to take snapshot data using DDDL 7.0.
Page 180 10. If the problem occurs at a speciﬁc engine rpm, unplug the oil, coolant, and air temperature sensors, and note any changes to the problem. Gather this data and contact DDC Customer Support Center at 313-592-5800. All information subject to change without notice. 12-8 Copyright © 2007 DETROIT DIESEL CORPORATION...
Page 181 SERIES 60 DDEC VI TROUBLESHOOTING GUIDE 12.2.2 Troubleshooting Tree Following is the troubleshooting tree for low horsepower: Figure 12-2 Troubleshooting Tree All information subject to change without notice. 12-9 Copyright © 2007 DETROIT DIESEL CORPORATION...
Page 182 NOTE: Service information letter instructions published following the date of this document take precedence. Possible causes of low power and symptoms are listed in Table 12-2. All information subject to change without notice. 12-10 Copyright © 2007 DETROIT DIESEL CORPORATION...
Page 183 — — refer to section 12.1 Debris in Fuel Tank - Air Vent Plugged — — refer to section 12.1 Table 12-2 Low Power Troubleshooting Chart All information subject to change without notice. 12-11 Copyright © 2007 DETROIT DIESEL CORPORATION...
Page 184 2. Visually inspect all fuel lines between the fuel tank and fuel pump for leaks. 3. Repair damaged components as required; refer to OEM guidelines. 4. Verify aerated fuel resolution; refer to section 12.3.1.1. All information subject to change without notice. 12-12 Copyright © 2007 DETROIT DIESEL CORPORATION...
Page 185: High Fuel Pressure
1. Fuel Pump 2. Fitting Figure 12-3 Supply Fuel Temperature Sensor 2. Attach a calibrated gauge capable of reading 0-517 kPa (0-75 psi) to the fuel pump. All information subject to change without notice. 12-13 Copyright © 2007 DETROIT DIESEL CORPORATION...
Page 186 [a] If the fuel pressure is within speciﬁcation listed in Table 12-3, check for high fuel temperature return; refer to section 12.5. [b] If the fuel pressure is greater than speciﬁcations listed in Table 12-3, refer to section 12.4.1. All information subject to change without notice. 12-14 Copyright © 2007 DETROIT DIESEL CORPORATION...
Page 187 Shut down the engine. [b] If lack of power occurred during the test drive, shut down the engine. Check for high fuel temperature return; refer to section 12.5. All information subject to change without notice. 12-15 Copyright © 2007 DETROIT DIESEL CORPORATION...
Page 188 Engine exhaust is toxic. 1. Start and run the engine. 2. Test drive the vehicle to ensure lack of power has been resolved. All information subject to change without notice. 12-16 Copyright © 2007 DETROIT DIESEL CORPORATION...
Page 189 ENGINE EXHAUST To avoid injury from inhaling engine exhaust, always operate the engine in a well-ventilated area. Engine exhaust is toxic. 1. Start and run the engine. All information subject to change without notice. 12-17 Copyright © 2007 DETROIT DIESEL CORPORATION...
Page 190: Restricted Or Cracked Charge Air Cooler Or Leaking Intake Manifold
2. If the intake manifold doesn't leak, verify replacement of the charge air cooler; refer to section 12.7.2.1. 3. If the intake manifold leaks, repair intake manifold; refer to section 12.7.2. All information subject to change without notice. 12-18 Copyright © 2007 DETROIT DIESEL CORPORATION...
Page 191 Shut down the engine. [b] If lack of power occurred during the test drive, shut down the engine. Check the exhaust system; refer to section 12.8. All information subject to change without notice. 12-19 Copyright © 2007 DETROIT DIESEL CORPORATION...
Page 192 3. Install the aftertreatment test pipes (J-48388-1) for 5 inch exhaust, or aftertreatment test pipes (J-48388-2) for 4 inch exhaust. Deactivate the pressure and temperature sensors using DDDL 7.0. 4. Verify exhaust system resolution; refer to section 12.8.1.1. All information subject to change without notice. 12-20 Copyright © 2007 DETROIT DIESEL CORPORATION...
Page 193: High Inlet Air Temperature
Perform the following steps to replace the radiator fan, drive and or shroud: 1. Remove and replace the radiator fan, drive and/or shroud; refer to OEM guidelines. 2. Verify replacement; refer to section 12.9.1.1. All information subject to change without notice. 12-21 Copyright © 2007 DETROIT DIESEL CORPORATION...
Page 194: High Altitude Operation
[b] If your vehicle is operating at or below sea level and there is a lack of power, refer to section 12.11. All information subject to change without notice. 12-22 Copyright © 2007 DETROIT DIESEL CORPORATION...
Page 196: Incorrect Camshaft Timing
Shut down the engine. [b] If lack of power occurred during the test drive, shut down the engine. Call the Detroit Diesel Customer Support Center (313-592-5800). All information subject to change without notice. 12-24 Copyright © 2007 DETROIT DIESEL CORPORATION...
Page 197: Power Verification With Chassis Dynamometer
For direct engine cooling, Detroit Diesel recommends the use of a 368 m3 /min (13,000 ft3 /min) or greater capacity barrel-type ram air fan. This should be portable so that it can be conveniently placed three to ﬁve feet (approximately one to two meters) in front of the truck and aimed directly...
Page 198 □ When loading the vehicle on the dynamometer, make sure the vehicle is positioned onto the rollers as straight as possible. □ For direct engine cooling, Detroit Diesel recommends the use of a 368 m3 /min (13,000 ft3 /min) or greater capacity barrel-type ram air fan. This should be portable so that it can be conveniently placed three to ﬁve feet (approximately one to two meters) in front...
Page 199 470 / 515 @ 1800 1650 @ 1200 Note: All ratings certiﬁed with diesel fuel no. 2, unless otherwise speciﬁed. Table 12-4 Minimum Acceptable Wheel HP All information subject to change without notice. 12-27 Copyright © 2007 DETROIT DIESEL CORPORATION...
Page 201: Faulty Thermostats
HIGH ENGINE COOLANT TEMPERATURE Section Page 13.1 IMPROPER ENGINE COOLANT LEVEL ..........13-3 13.2 INSUFFICIENT RADIATOR AIR CIRCULATION ........13-5 13.3 FAULTY PRESSURE CONTROL CAP ............ 13-6 13.4 DEFECTIVE COOLANT HOSES ............. 13-7 13.5 FAN BELTS ARE INCORRECTLY ADJUSTED ........13-8 13.6 INOPERATIVE THERMO-MODULATED FAN .........
Page 203: Improper Engine Coolant Level
[b] Repair any external leaks and perform the procedure in found in section 13.1.1.3. [c] If there are no external leaks perform the procedure found in section 13.2. All information subject to change without notice. 13-3 Copyright © 2007 DETROIT DIESEL CORPORATION...
Page 204 [b] If the engine coolant temperature is not 88-96°C (190-210°F), shut down the engine. Check for insufﬁcient radiator air circulation. Refer to section 13.2. All information subject to change without notice. 13-4 Copyright © 2007 DETROIT DIESEL CORPORATION...
Page 205: Insufficient Radiator Air Circulation
Shut down the engine. [b] If the engine coolant temperature is not 88-96°C (190-210°F), shut down the engine. Check the pressure control cap; refer to section 13.3. All information subject to change without notice. 13-5 Copyright © 2007 DETROIT DIESEL CORPORATION...
Page 206: Faulty Pressure Control Cap
[a] If the engine coolant temperature is normal, no further troubleshooting is required. Shut down the engine. [b] If the engine coolant temperature is not normal, shut down the engine. Check coolant hoses; refer to section 13.4. All information subject to change without notice. 13-6 Copyright © 2007 DETROIT DIESEL CORPORATION...
Page 207: Defective Coolant Hoses
[c] If the engine coolant temperature is not 88-96°C (190-210°F) and no leaks are found, shut down the engine. Check fan belts; refer to section 13.5. All information subject to change without notice. 13-7 Copyright © 2007 DETROIT DIESEL CORPORATION...
Page 208: Fan Belts Are Incorrectly Adjusted
Shut down the engine. [b] If the engine coolant temperature is not 88-96°C (190-210°F), shut down the engine. Check thermo-modulated fan; refer to section 13.6. All information subject to change without notice. 13-8 Copyright © 2007 DETROIT DIESEL CORPORATION...
Page 209: Inoperative Thermo-Modulated Fan
Shut down the engine. [b] If the engine coolant temperature is not 88-96°C (190-210°F), shut down the engine. Check thermostats; refer to section 13.7. All information subject to change without notice. 13-9 Copyright © 2007 DETROIT DIESEL CORPORATION...
Page 210 Shut down the engine. [b] If the engine coolant temperature is not 88-96°C (190-210°F), shut down the engine. Check water pump; refer to section 13.8. All information subject to change without notice. 13-10 Copyright © 2007 DETROIT DIESEL CORPORATION...
Page 211: Faulty Water Pump
13.9. [b] If the torque 68 N·m (50 lb·ft) is not satisﬁed and the impeller is slipping, refer to section 13.8.1. All information subject to change without notice. 13-11 Copyright © 2007 DETROIT DIESEL CORPORATION...
Page 212 Shut down the engine. [b] If the engine coolant temperature is not 88-96°C (190-210°F), shut down the engine. Check combustion gases in coolant; refer to section 13.9. All information subject to change without notice. 13-12 Copyright © 2007 DETROIT DIESEL CORPORATION...
Page 213: Combustion Gases In Coolant
6. Clean and remove the rocker cover, it is not necessary to remove the bottom rocker cover. If equipped with Jake Brakes remove the Jake Brake assembly. All information subject to change without notice. 13-13 Copyright © 2007 DETROIT DIESEL CORPORATION...
Page 214 16. Lubricate the shaft with clean engine oil. With sleeves in place, carefully reinstall the shaft through each rocker arm shaft. Make sure cup plug end faces inboard. All information subject to change without notice. 13-14 Copyright © 2007 DETROIT DIESEL CORPORATION...
Page 215 18. Disconnect both connectors at the valve cover for the injectors. NOTE: Disconnect both connectors at the valve cover for the injectors. All information subject to change without notice. 13-15 Copyright © 2007 DETROIT DIESEL CORPORATION...
Page 216 19. Attach cylinder compression gauge (J–6692–B) to the ﬁrst adaptor. See Figure 13-3. Figure 13-3 Attach Cylinder Compression Gauge J 6692–B 20. Reconnect the batteries. All information subject to change without notice. 13-16 Copyright © 2007 DETROIT DIESEL CORPORATION...
Page 217 29. Install upper valve cover, insuring that the bolt hole are clear of dirt and oil as not to damage the lower rocker cover. 30. Check test results All information subject to change without notice. 13-17 Copyright © 2007 DETROIT DIESEL CORPORATION...
Page 218 Shut down the engine. [b] If the engine coolant temperature is not 88-96°C (190-210°F), shut down the engine. Check radiator coolant ﬂow; refer to section 13.10. All information subject to change without notice. 13-18 Copyright © 2007 DETROIT DIESEL CORPORATION...
Page 219: Abnormal Radiator Coolant Flow
3. Observe the string for ﬂow and direction as well as the ﬁll and bleed lines. Continue observation while varying the engine speed between 1800 - 2100 rpm. [a] If a balanced coolant ﬂow is observed in the sight, call Detroit Diesel Customer Support Center (313-592-5800). Shut down the engine.
Page 220 [a] If the engine coolant temperature is 88-96°C (190-210°F), no further troubleshooting is required. Shut down the engine. [b] If the engine coolant temperature is not 88-96°C (190-210°F), shut down the engine. Call the Detroit Diesel Customer Support Center at 313–592–5800. All information subject to change without notice. 13-20...
Page 221 LOW COOLANT TEMPERATURE Section Page 14.1 FAULTY THERMOSTATS ............... 14-3...
Page 223: Thermostat Replacement
Shut down the engine. [b] If the engine coolant temperature is not 88-96°C (190-210°F), shut down the engine. Contact DDC Customer Support Center (313-592-5800). All information subject to change without notice. 14-3 Copyright © 2007 DETROIT DIESEL CORPORATION...
Page 225: Software Version
POOR FUEL ECONOMY Section Page 15.1 SOFTWARE VERSION ................15-3...
Page 227 3. Verify that the engine hardware has been campaigned or modiﬁed to the latest version. [a] If you are uncertain or unable to determine that the engine has been campaigned or modiﬁed to the latest version, please contact the Detroit Diesel Customer Support Center (313-592-5800).
Page 229: Air Compressor Troubleshooting
AIR COMPRESSOR Section Page 16.1 AIR COMPRESSOR TROUBLESHOOTING ........... 16-3...
Page 231 Troubleshooting information for the Bendix® air compressor can be found on the Bendix web site at http:\\www.bendix.com or call the Bendix Technical Assistance Center at 1-800-AIR-BRAKE, (1-800-247-2725). All information subject to change without notice. 16-3 Copyright © 2007 DETROIT DIESEL CORPORATION...
Page 233 DDEC VI SYSTEM Section Page 17.1 DDEC VI SYSTEM--HOW IT WORKS ............. 17-3 17.2 MOTOR CONTROL MODULE ..............17-3 17.3 COMMON POWERTRAIN CONTROLLER ..........17-11 17.4 WIRES AND WIRING ................17-21 17.5 CONDUIT AND LOOM ................17-35 17.6 TAPE AND TAPING ................. 17-36 17.7 SENSORS ....................
Page 235: Ddec Vi System--How It Works
17.2 MOTOR CONTROL MODULE The engine mounted Motor Control Module (MCM) includes control logic to provide overall engine management. See Figure 17-1. 1. 21–pin Connector (OEM Responsibility) 2. 120–pin Connector (Detroit Diesel Responsibility) Figure 17-1 Motor Control Module NOTE: Do NOT ground the MCM. This can result in false codes being logged.
Page 236 Needle Control Valve (cyl 1) - pin 2 DOC Outlet Temp Sensor DPF Outlet Pressure Sensor Table 17-1 MCM Connector – Series 60 (1 of 4) All information subject to change without notice. 17-4 Copyright © 2007 DETROIT DIESEL CORPORATION...
Page 237 Sensor Ground Engine Oil Pressure Sensor Sensor Ground Sensor Power Supply EGR Valve Position Table 17-2 MCM Connector – Series 60 (2 of 4) – C Sample All information subject to change without notice. 17-5 Copyright © 2007 DETROIT DIESEL CORPORATION...
Page 238 Intake Manifold Pressure Sensor Sensor Ground DOC Inlet Temp Sensor Intake Air Throttle Valve Table 17-3 MCM Connector – Series 60 (3 of 4) – C Sample All information subject to change without notice. 17-6 Copyright © 2007 DETROIT DIESEL CORPORATION...
Page 239 Sensor Ground DPF Outlet Temp Sensor Sensor Power Supply DPF Inlet Pressure Sensor Table 17-4 MCM Connector – Series 60 (4 of 4) – C Sample All information subject to change without notice. 17-7 Copyright © 2007 DETROIT DIESEL CORPORATION...
Page 240 Series 60 engine (see Figure 17-2). Figure 17-2 Series 60 Engine 120–pin Connector and 21–pin Connector Tie-wrapped to Brackets All information subject to change without notice. 17-8 Copyright © 2007 DETROIT DIESEL CORPORATION...
Page 241 21–Pin Connector to the MCM The pinout for the 31–pin pigtail on the Engine Harness is listed in Table 17-6. The OEM is responsible for wiring to this connector. All information subject to change without notice. 17-9 Copyright © 2007 DETROIT DIESEL CORPORATION...
Page 242 *Fused at 15 amps † Optional for MBE 900 and HDE. Must use 14 AWG wire and fuse at 20A. Table 17-6 31–pin MCM Pigtail Connector All information subject to change without notice. 17-10 Copyright © 2007 DETROIT DIESEL CORPORATION...
Page 243: Common Powertrain Controller
The CPC is the interface between the MCM and the vehicle/equipment for engine control and manages other vehicle/equipment functions. See Figure 17-3. Figure 17-3 The Common Powertrain Controller All information subject to change without notice. 17-11 Copyright © 2007 DETROIT DIESEL CORPORATION...
Page 244 VIH.See Figure 17-4 for the CPC dimensions. Figure 17-4 CPC Dimensions NOTE: The CPC should be mounted with the connectors pointing down. All information subject to change without notice. 17-12 Copyright © 2007 DETROIT DIESEL CORPORATION...
Page 245 The ambient operating temperature range is –40°F to 185°F (-40°C to 85°C). 17.3.1.2 Water Intrusion The CPC is not water tight and cannot be subject to water spray. It must be mounted in an enclosed, protected environment. All information subject to change without notice. 17-13 Copyright © 2007 DETROIT DIESEL CORPORATION...
Page 246 CPC Vehicle Interface Harness The OEM supplied Vehicle Interface Harness (VIH) connects the CPC to the MCM and other vehicle systems (see Figure 17-6). Figure 17-6 Vehicle Interface Harness All information subject to change without notice. 17-14 Copyright © 2007 DETROIT DIESEL CORPORATION...
Page 247 Operating the CPC and/or MCM between 8 and 11 volts may result in degraded engine operation. (Transient operation in this range during engine starting is considered normal for 12 volt systems.) All information subject to change without notice. 17-15 Copyright © 2007 DETROIT DIESEL CORPORATION...
Page 248 A battery isolator is not required. However, some applications require a battery that is dedicated to the engine and completely isolated from the rest of the vehicle. Commercially available battery isolators can be used. All information subject to change without notice. 17-16 Copyright © 2007 DETROIT DIESEL CORPORATION...
Page 249 Switches must remain closed for 30 seconds after ignition is off for the MCM and CPC to write non-volatile data. NOTE: It is recommended that both the positive (+) and negative (-) battery leads be disconnected. All information subject to change without notice. 17-17 Copyright © 2007 DETROIT DIESEL CORPORATION...
Page 250 To avoid injury from ﬁre, additional loads should not be placed on existing circuits. Additional loads may blow the fuse (or trip the circuit breaker) and cause the circuit to overheat and burn. All information subject to change without notice. 17-18 Copyright © 2007 DETROIT DIESEL CORPORATION...
Page 251 CPC, the 21–pin connector at the MCM, the 31–pin MCM pigtail connector and the 10–pin DPF connector. NOTE: The CPC connectors are not water tight and cannot be subject to water spray. All information subject to change without notice. 17-19 Copyright © 2007 DETROIT DIESEL CORPORATION...
Page 252 The SAE J1708/J1587 nine-pin data link connector is required. DDC recommends that the OEM-supplied Data Link Connector be conveniently positioned in a well protected location facilitating subsequent Detroit Diesel Diagnostic Link 7.0 (DDDL 7.0) usage (i.e., reprogramming, diagnostics, etc.). NOTE: REQUIRED: The J1939 data link must be wired to this connector.
Page 253: Wires And Wiring
SERIES 60 DDEC VI TROUBLESHOOTING GUIDE 17.4 WIRES AND WIRING Detroit Diesel Corporation recommends color coding and hot stamping wire numbers in contrasting colors at intervals of four inches or less. 17.4.1 General Requirements NOTE: Avoid renumbering DDC circuits since all troubleshooting guides reference the circuit numbers shown in the schematic.
Page 254 P/N: HDT-48-00 to assure gas tight connections. NOTICE: If a separate seal is required, be sure to install the seal onto the wire before stripping the insulation. All information subject to change without notice. 17-22 Copyright © 2007 DETROIT DIESEL CORPORATION...
Page 255 5. Grasp the contact approximately one inch behind the contact crimp barrel. Hold the connector with the rear grommet facing you. See Figure 17-10. Figure 17-10 Pushing Contact Into Grommet All information subject to change without notice. 17-23 Copyright © 2007 DETROIT DIESEL CORPORATION...
Page 256 Table 17-14. Tool Kent-Moore Part Number Removing (12 AWG) J–37451 Removing (16-18 AWG) J–34513-1 Table 17-14 Removal Tools for Deutsch Terminals All information subject to change without notice. 17-24 Copyright © 2007 DETROIT DIESEL CORPORATION...
Page 257 Figure 17-13 Removal Tool Insertion 3. Pull contact cable assembly out of the connector. Keep reverse tension on the cable and forward tension on the tool. All information subject to change without notice. 17-25 Copyright © 2007 DETROIT DIESEL CORPORATION...
Page 258 □ No more than one strand in a 16 strand wire may be cut or missing. □ Use Sn 60 solder with rosin core ﬂux. □ The exposed wire must be clean before the splice is soldered. All information subject to change without notice. 17-26 Copyright © 2007 DETROIT DIESEL CORPORATION...
Page 259 3. Use a suitable electronic soldering iron to heat the wires. Apply the solder to the heated wire and clip (not to the soldering iron) allowing sufﬁcient solder ﬂow into the splice joint. All information subject to change without notice. 17-27 Copyright © 2007 DETROIT DIESEL CORPORATION...
Page 260 Kent-Moore J–39848 Terminal Crimper for Weather Pack Kent-Moore J–35606 Terminal Crimper for Deutsch Kent-Moore J–34182 Terminal Crimper for Metri-Pack 150 Kent-Moore J–35123 Recommended Splicing Tools Table 17-17 All information subject to change without notice. 17-28 Copyright © 2007 DETROIT DIESEL CORPORATION...
Page 261 Table 17-18 Applied Load Criteria for Terminals 7. Shrink the splice clip insulative casing with a heat gun to seal the splice (see Figure 17-17, C). All information subject to change without notice. 17-29 Copyright © 2007 DETROIT DIESEL CORPORATION...
Page 262 12 in. (.3 m) apart. 8. Loop the lead back over the spliced joint and tape. See Figure 17-16. Figure 17-17 Splicing Straight Leads - Alternate Method 1 All information subject to change without notice. 17-30 Copyright © 2007 DETROIT DIESEL CORPORATION...
Page 263 7. Slide the shrink tubing over the crimped splice clip (see Figure 17-18, C). 8. Shrink tubing with a heat gun to seal the splice (see Figure 17-18, D). All information subject to change without notice. 17-31 Copyright © 2007 DETROIT DIESEL CORPORATION...
Page 264 9. Loop the lead back over the spliced joint and tape. See Figure 17-16. Figure 17-18 Splicing Straight Leads - Alternate Method 2 All information subject to change without notice. 17-32 Copyright © 2007 DETROIT DIESEL CORPORATION...
Page 265 3. Repeat step 2 to apply a second layer of protection (if required by splicing guidelines). All information subject to change without notice. 17-33 Copyright © 2007 DETROIT DIESEL CORPORATION...
Page 266 (6 mm) past the splice must be used to complete the splice. 2. Heat shrink a minimum of two layers of heat shrink tubing. 3. Tape the spliced wires to each other. Refer to section 17.5. All information subject to change without notice. 17-34 Copyright © 2007 DETROIT DIESEL CORPORATION...
Page 267: Conduit And Loom
* If non-metallic loom is used, secure the ends with tightly wrapped nylon straps to prevent unraveling. Conduit should cover the wires without binding and without being excessively large. All information subject to change without notice. 17-35 Copyright © 2007 DETROIT DIESEL CORPORATION...
Page 268: Tape And Taping
The tape must be crossed over butted conduit ends. The tape must be extended a minimum of 1 in. (25 mm) in each direction at all branches. All information subject to change without notice. 17-36 Copyright © 2007 DETROIT DIESEL CORPORATION...
Page 269: Sensors
The sensors integrated into the Engine Harness are factory-installed (refer to section 17.7.1). The sensors integrated into the Vehicle Interface Harness are installed by the OEM (refer to section 17.7.2). All information subject to change without notice. 17-37 Copyright © 2007 DETROIT DIESEL CORPORATION...
Page 270 Detects water in the fuel ﬁlter that alerts the owner/driver that the (MBE 900 only) fuel ﬁlter needs to be dried out. Table 17-21 Function of Factory-installed Sensors All information subject to change without notice. 17-38 Copyright © 2007 DETROIT DIESEL CORPORATION...
Page 271 SERIES 60 DDEC VI TROUBLESHOOTING GUIDE See Figure 17-20 for the location of the sensors for the DOC and DPF. Figure 17-20 Sensor Location for the DOC and DPF All information subject to change without notice. 17-39 Copyright © 2007 DETROIT DIESEL CORPORATION...
Page 272 The OEM harness must be securely fastened every six (6) in. It is required that the harness be fastened within six (6) in. of the sensor. All information subject to change without notice. 17-40 Copyright © 2007 DETROIT DIESEL CORPORATION...
Page 273 Temperature Override Disable feature or for Optimized Idle. For additional information on these features refer to Chapter 5. NOTE: This sensor is optional. Figure 17-21 Ambient Air Temperatures Sensor Dimensions All information subject to change without notice. 17-41 Copyright © 2007 DETROIT DIESEL CORPORATION...
Page 274 Sensor Enable J1939 3 – J1587 4 – ECAN MID for Ambient 0 — 255 VEPS, DRS Air Temp Table 17-23 Ambient Air Temperature Sensor Parameters All information subject to change without notice. 17-42 Copyright © 2007 DETROIT DIESEL CORPORATION...
Page 275 (-40 to 125°C). Exposure to temperatures beyond this range may result in unacceptable component life, or degraded sensor accuracy. Figure 17-23 Engine Coolant Level Sensor Speciﬁcations All information subject to change without notice. 17-43 Copyright © 2007 DETROIT DIESEL CORPORATION...
Page 276 The OEM must connect the ECL Sensor probe as shown in the next illustration (see Figure 17-24). Polarity of the ground and signal must be correct for proper operation. Figure 17-24 Engine Coolant Level Sensor Installation for CPC All information subject to change without notice. 17-44 Copyright © 2007 DETROIT DIESEL CORPORATION...
Page 277 3 = Dual Level Float Sensor (FTL), ﬁxed threshold/FTL Gentec 4 = Single Level Probe Sensor, ﬁxed threshold Table 17-24 Enabling the Engine Coolant Level Sensor All information subject to change without notice. 17-45 Copyright © 2007 DETROIT DIESEL CORPORATION...
Page 278 See Figure 17-26 and Figure 17-27. Figure 17-26 Turbo Compressor In Temperature Sensor Figure 17-27 Turbo Compressor In Temperature Sensor Installation All information subject to change without notice. 17-46 Copyright © 2007 DETROIT DIESEL CORPORATION...
Page 279 Cruise Control and Vehicle Speed Limiting. The VSS signal type can be changed v NOTE: DDC does not approve of the use of signal generator sensors. Figure 17-28 Vehicle Speed Sensor All information subject to change without notice. 17-47 Copyright © 2007 DETROIT DIESEL CORPORATION...
Page 280 The Vehicle Speed Sensor is wired to the 21–pin #3 connector of the CPC as listed in Table 17-27. CPC Connector/Pin Function 3/13 VSS (+) 3/14 VSS (-) Table 17-27 Vehicle Speed Sensor Wiring All information subject to change without notice. 17-48 Copyright © 2007 DETROIT DIESEL CORPORATION...
Page 281 SERIES 60 DDEC VI TROUBLESHOOTING GUIDE See Figure 17-29 for the installation of the Magnetic VSS. Figure 17-29 Magnetic Vehicle Speed Sensor Installation – CPC All information subject to change without notice. 17-49 Copyright © 2007 DETROIT DIESEL CORPORATION...
Page 282 Speed 17.7.6.3 VSS Anti-tamper If the sensor appears to be working improperly, but the vehicle speed is not zero, VSS Anti-Tamper will log a VSS fault. All information subject to change without notice. 17-50 Copyright © 2007 DETROIT DIESEL CORPORATION...
Page 283: Instrument Panel Lamps
Truck may be driven to end Lamp (MIL) illuminate at the same time of the shift. Call for service as the Amber Warning Lamp Table 17-29 Instrument Panel Lamps All information subject to change without notice. 17-51 Copyright © 2007 DETROIT DIESEL CORPORATION...
Page 285: Engine Manufacturer Diagnostics Definitions
ENGINE MANUFACTURER DIAGNOSTICS Section Page 18.1 ENGINE MANUFACTURER DIAGNOSTICS DEFINITIONS ....18-3 18.2 ENGINE MANUFACTURER DIAGNOSTICS PARAMETER DESCRIPTIONS ..................18-4...
Page 287 Typical Duration – length of time fault needs to be present to become active, may also include number of drive cycles which need to be completed for fault to become active All information subject to change without notice. 18-3 Copyright © 2007 DETROIT DIESEL CORPORATION...
Page 288: Engine Manufacturer Diagnostics Parameter Descriptions
Intake Air Throttle (Position Sensor) Typical Enabling Conditions Engine coolant temperature > 60°C Monitor Sequence None Execution Frequency Continuous when enabling conditions are met Typical Duration 5 seconds All information subject to change without notice. 18-4 Copyright © 2007 DETROIT DIESEL CORPORATION...
Page 289 Typical Enabling Conditions RPM: 1400–1700,Torque: 1400–2300 N·m Monitor Sequence None Execution Frequency Continuous when enabling conditions are met Typical Duration 10 seconds every second drive cycle All information subject to change without notice. 18-5 Copyright © 2007 DETROIT DIESEL CORPORATION...
Page 290: Spn 108/Fmi 3
< 0.10 V Monitored Parameter Engine Coolant Outlet Temperature Sensor Typical Enabling Conditions Always Enabled Monitor Sequence None Execution Frequency Always Enabled Typical Duration 2 seconds All information subject to change without notice. 18-6 Copyright © 2007 DETROIT DIESEL CORPORATION...
Page 291: Spn 132/Fmi1
Engine Oil Temperature Circuit Failed Low, voltage of sensor < 0.1026 V Monitored Parameter Engine Oil Temperature Sensor Typical Enabling Conditions Always Enabled Monitor Sequence None Execution Frequency Always Enabled Typical Duration 2 seconds All information subject to change without notice. 18-7 Copyright © 2007 DETROIT DIESEL CORPORATION...
Page 292 EGR Delta Pressure Sensor Circuit Low, voltage of sensor < 0.15 V Monitored Parameter EGR Delta Pressure Sensor Typical Enabling Conditions Always Enabled Monitor Sequence None Execution Frequency Always Enabled Typical Duration 2 seconds All information subject to change without notice. 18-8 Copyright © 2007 DETROIT DIESEL CORPORATION...
Page 293: Spn 625/Fmi 2
Monitored Parameter CAN Communication between CPC and MCM Typical Enabling Conditions CAN communication status = error Monitor Sequence None Execution Frequency Always Enabled Typical Duration 1 second All information subject to change without notice. 18-9 Copyright © 2007 DETROIT DIESEL CORPORATION...
Page 294 Typical Enabling Conditions Diagnostic Message Inconsistent Number of Frames Received by CPC From MCM = implausible Monitor Sequence None Execution Frequency Always Enabled Typical Duration 7.5 seconds All information subject to change without notice. 18-10 Copyright © 2007 DETROIT DIESEL CORPORATION...
Page 295: Spn 625/Fmi 9
= missing, = error Monitored Parameter Turbocharger- VGT Actuator Typical Enabling Conditions Always enabled Monitor Sequence None Execution Frequency Always enabled Typical Duration 7 seconds All information subject to change without notice. 18-11 Copyright © 2007 DETROIT DIESEL CORPORATION...
Page 296 Monitored Parameter Fuel Injector - Needle Control Cyl 1 Typical Enabling Conditions Always enabled Monitor Sequence None Execution Frequency Always enabled Typical Duration < 5 seconds All information subject to change without notice. 18-12 Copyright © 2007 DETROIT DIESEL CORPORATION...
Page 297 Monitored Parameter Fuel Injector - Needle Control Cyl 3 Typical Enabling Conditions Always enabled Monitor Sequence None Execution Frequency Always enabled Typical Duration < 5 seconds All information subject to change without notice. 18-13 Copyright © 2007 DETROIT DIESEL CORPORATION...
Page 298 Monitored Parameter Fuel Injector - Needle Control Cyl 5 Typical Enabling Conditions Always enabled Monitor Sequence None Execution Frequency Always enabled Typical Duration < 5 seconds All information subject to change without notice. 18-14 Copyright © 2007 DETROIT DIESEL CORPORATION...
Page 299 Typical Enabling Conditions Engine speed > 400 RPM:, time > 1.2 seconds Monitor Sequence None Execution Frequency Continuous when enabling conditions are met Typical Duration 2 seconds All information subject to change without notice. 18-15 Copyright © 2007 DETROIT DIESEL CORPORATION...
Page 300: Spn 1172/Fmi 2
> 2.9677 volts Monitored Parameter Intake Manifold Temperature Sensor Typical Enabling Conditions Always Enabled Monitor Sequence None Execution Frequency Always Enabled Typical Duration 2 seconds All information subject to change without notice. 18-16 Copyright © 2007 DETROIT DIESEL CORPORATION...
Page 301 Engine in high_box No. 2 (Refer to Hbox and Lbox Tab for Calibrations) = 1400–1700 RPM:,Torque: 1400–2300 N·m Monitor Sequence None Continuous when enabling conditions are met Execution Frequency Typical Duration 60 seconds All information subject to change without notice. 18-17 Copyright © 2007 DETROIT DIESEL CORPORATION...
Page 302 Intake Throttle Valved Position> = 0% RPM: 1400–1700, Torque: 1400–2300 N·m > 120 Seconds Monitor Sequence None Execution Frequency Continuous when enabling conditions are met Typical Duration 10 seconds All information subject to change without notice. 18-18 Copyright © 2007 DETROIT DIESEL CORPORATION...
Page 303: Spn 2659/Fmi 0
EGR Valve Circuit Failed Low, driver status = Short Circuit to Ground Monitored Parameter EGR Output Driver Circuit Typical Enabling Conditions Always Enabled Monitor Sequence None Execution Frequency Always Enabled Typical Duration 1.8 seconds All information subject to change without notice. 18-19 Copyright © 2007 DETROIT DIESEL CORPORATION...
Page 304: Spn 2791/Fmi 4
Monitored Parameter Fuel Injector - Needle Control Bank 1 Typical Enabling Conditions Always Enabled Monitor Sequence None Execution Frequency Always Enabled Typical Duration < 5 seconds All information subject to change without notice. 18-20 Copyright © 2007 DETROIT DIESEL CORPORATION...
Page 305: Spn 2797/Fmi 4
Monitored Parameter Fuel Injector - Needle Control Bank 2 Typical Enabling Conditions Always Enabled Monitor Sequence None Execution Frequency Always Enabled Typical Duration < 5 seconds All information subject to change without notice. 18-21 Copyright © 2007 DETROIT DIESEL CORPORATION...
Page 306: Spn 2798/Fmi 4
DPF Outlet Temperature Sensor Failed High, voltage of sensor > 2 volts Monitored Parameter DPF Outlet Temp Typical Enabling Conditions Always Enabled Monitor Sequence None Execution Frequency Always Enabled Typical Duration 2 seconds All information subject to change without notice. 18-22 Copyright © 2007 DETROIT DIESEL CORPORATION...
Page 307 Engine RPM: < 1800 min-1 Monitored Parameter Diesel Particulate Filter Typical Enabling Conditions Always Enabled Monitor Sequence None Execution Frequency Always Enabled Typical Duration 0 seconds All information subject to change without notice. 18-23 Copyright © 2007 DETROIT DIESEL CORPORATION...
Page 308: Spn 3509/Fmi 3
> 2.9677 volts (MUX1-CH1), Compressor temperature-in, detect voltage > 2.9677 volts (MUX1-CH2) Typical Enabling Conditions Always Enabled Monitor Sequence None Execution Frequency Always Enabled Typical Duration 2 seconds All information subject to change without notice. 18-24 Copyright © 2007 DETROIT DIESEL CORPORATION...
Page 309: Spn 3510/Fmi 3
RPM: 1400–1700, Torque: 1700–2300 N·m Intake air throttle position < 10% Monitor Sequence None Execution Frequency Continuous when enabling conditions are met Typical Duration 30 seconds All information subject to change without notice. 18-25 Copyright © 2007 DETROIT DIESEL CORPORATION...
Page 310 Intake air throttle position < 10% RPM: 1400–1700, Torque: 1400–2300 N·m Monitor Sequence None Execution Frequency Continuous when enabling conditions are met Typical Duration 30 seconds All information subject to change without notice. 18-26 Copyright © 2007 DETROIT DIESEL CORPORATION...
Page 311: Spn 3597/Fmi 3
Proportional Valve Bank 2 Circuit Failed Low, driver status = Short Circuit Monitored Parameter MCM internal power supply Typical Enabling Conditions Always Enabled Monitor Sequence None Execution Frequency Always Enabled Typical Duration 2 seconds All information subject to change without notice. 18-27 Copyright © 2007 DETROIT DIESEL CORPORATION...
Page 312 RPM: 575–650, Torque: –100–150 N·m > 270 seconds RPM: 1400–1700, Torque: 1700–2300 N·m > 15 seconds Monitor Sequence None Execution Frequency Continuous when enabling conditions are met Typical Duration 0 seconds All information subject to change without notice. 18-28 Copyright © 2007 DETROIT DIESEL CORPORATION...
Page 313 DPF Outlet Pressure Circuit Failed Low, voltage of sensor < 0.1515 volts Monitored Parameter DPF Outlet Pressure Sensor Typical Enabling Conditions Always Enabled Monitor Sequence None Execution Frequency Always Enabled Typical Duration 2 seconds All information subject to change without notice. 18-29 Copyright © 2007 DETROIT DIESEL CORPORATION...
Page 314 Typical Enabling Conditions When there is no circuit continuity on relevant cylinder or injector bank Monitor Sequence None Execution Frequency Always Enabled Typical Duration < 5 seconds All information subject to change without notice. 18-30 Copyright © 2007 DETROIT DIESEL CORPORATION...
Page 315 Typical Enabling Conditions When there is no circuit continuity on relevant cylinder or injector bank Monitor Sequence None Execution Frequency Always Enabled Typical Duration < 5 seconds All information subject to change without notice. 18-31 Copyright © 2007 DETROIT DIESEL CORPORATION...
Page 316 Typical Enabling Conditions When there is no circuit continuity on relevant cylinder or injector bank Monitor Sequence None Execution Frequency Always Enabled Typical Duration < 5 seconds All information subject to change without notice. 18-32 Copyright © 2007 DETROIT DIESEL CORPORATION...
Page 317 Typical Enabling Conditions When there is no circuit continuity on relevant cylinder or injector bank Monitor Sequence None Execution Frequency Always Enabled Typical Duration < 5 seconds All information subject to change without notice. 18-33 Copyright © 2007 DETROIT DIESEL CORPORATION...
Page 319 SPN 27 - EGR VALVE POSITION CIRCUIT FAULT Section Page 19.1 SPN 27/FMI 3 ................... 19-3 19.2 SPN 27/FMI 4 ................... 19-4 19.3 SPN 27/FMI 7 ................... 19-7...
Page 321: Spn 27/Fmi 3
4. Start and bring engine up to operating temperature (over 140°F/60°C). 5. Verify operation is satisfactory and no warning lamps illuminate. If warning lamps illuminate, troubleshoot the codes. If assistance is required, call the Detroit Diesel Customer Support Center at 313–592–5800.
Page 322: Spn 27/Fmi 4
[a] If yes, replace the EGR valve. Refer to section 19.2.1.1. [b] If no, repair the short to ground on circuit 65 of the 120–pin MCM connector. Refer to section 19.2.1.1. All information subject to change without notice. 19-4 Copyright © 2007 DETROIT DIESEL CORPORATION...
Page 323 [a] If yes, replace the EDV. Refer to section 19.2.1.1. [b] If no, repair the short to ground on circuits 62 and/or 64 of the 120–pin MCM connector. Refer to section 19.2.1.1.. All information subject to change without notice. 19-5 Copyright © 2007 DETROIT DIESEL CORPORATION...
Page 324 4. Start and bring engine up to operating temperature (over 140°F/60°C). 5. Verify operation is satisfactory and no warning lamps illuminate. If warning lamps illuminate, troubleshoot the codes. If assistance is required, call the Detroit Diesel Customer Support Center at 313–592–5800.
Page 325: Spn 27/Fmi 7
6. Disconnect the EGR valve connector. 7. Inspect the connector for bent, spread or corroded pins. [a] If damage is found, repair as necessary. [b] If no damage is found, contact the Detroit Diesel Customer Support Center at 313–592–5800. 19.3.1.1...
Page 327 SPN 51 - INTAKE THROTTLE VALVE ABOVE OR BELOW NORMAL OPERATING RANGE Section Page 20.1 SPN 51/FMI 2, 3 OR 4 ................20-3...
Page 329 20.1 SPN 51/FMI 2, 3 OR 4 The troubleshooting procedures for this SPN can be found in the Aftertreatment System Technician's Guide (7SE63), refer to Chapter 7. All information subject to change without notice. 20-3 Copyright © 2007 DETROIT DIESEL CORPORATION...
Page 331 SPN 70 (CPC) - J1939 PARK BRAKE SWITCH SIGNAL ERRATIC OR MISSING Section Page 21.1 SPN 70/FMI 13 ..................21-3 21.2 SPN 70/FMI 19 ..................21-3...
Page 333: Spn 168/Fmi 0
[b] If no, connect ServiceLink to determine which modules are conﬁgured for the vehicle and their communication status. Once this is done, follow the appropriate module communication troubleshooting procedures for the affected module. All information subject to change without notice. 21-3 Copyright © 2007 DETROIT DIESEL CORPORATION...
Page 335: Spn 84/Fmi 2
SPN 84 (CPC) - J1939 WHEEL-BASED VEHICLE SPEED SIGNAL ERRATIC OR MISSING Section Page 22.1 SPN 84/FMI 13 ..................22-3 22.2 SPN 84/FMI 19 ..................22-3...
Page 337: Spn 84/Fmi 4
[b] If no, connect ServiceLink to determine which modules are conﬁgured for the vehicle and their communication status. Once this is done, follow the appropriate module communication troubleshooting procedures for the affected module. All information subject to change without notice. 22-3 Copyright © 2007 DETROIT DIESEL CORPORATION...
Page 339 SPN 84 (CPC) – VEHICLE SPEED SENSOR Section Page 23.1 SPN 84/FMI 2 ................... 23-3 23.2 SPN 84/FMI 3 ................... 23-3 23.3 SPN 84/FMI 4 ................... 23-4 23.4 SPN 84/FMI 6 ................... 23-4 23.5 SPN 84/FMI 8 ................... 23-5...
Page 341 4. Start and bring engine up to operating temperature (over 140°F/60°C). 5. Verify operation is satisfactory and no warning lamps illuminate. If warning lamps illuminate, troubleshoot the codes. If assistance is required, call the Detroit Diesel Customer Support Center at 313–592–5800.
Page 342 4. Start and bring engine up to operating temperature (over 140°F/60°C). 5. Verify operation is satisfactory and no warning lamps illuminate. If warning lamps illuminate, troubleshoot the codes. If assistance is required, call the Detroit Diesel Customer Support Center at 313–592–5800.
Page 343 SERIES 60 DDEC VI TROUBLESHOOTING GUIDE 23.5 SPN 84/FMI 8 Contact the Detroit Diesel Support Center at 313–592–5800. All information subject to change without notice. 23-5 Copyright © 2007 DETROIT DIESEL CORPORATION...
Page 345: Spn 91/Fmi 2
SPN 91 (CPC) – ACCELERATOR PEDAL SENSOR FAULT Section Page 24.1 SPN 91/FMI 2 ................... 24-3 24.2 SPN 91/FMI 3 ................... 24-4 24.3 SPN 91/FMI 4 ................... 24-5...
Page 347: Spn 91/Fmi 3
[b] If the voltage is less than 4.5, repair the open circuit between pin C of the AP harness connector and pin 8 of the CPC #1 connector.Refer to section 24.1.1.1. 5. Turn OFF the ignition. 6. Disconnect the CPC #1 connector. All information subject to change without notice. 24-3 Copyright © 2007 DETROIT DIESEL CORPORATION...
Page 348 4. Start and bring engine up to operating temperature (over 140°F/60°C). 5. Verify operation is satisfactory and no warning lamps illuminate. If warning lamps illuminate, troubleshoot the codes. If assistance is required, call the Detroit Diesel Customer Support Center at 313–592–5800.
Page 349 4. Start and bring engine up to operating temperature (over 140°F/60°C). 5. Verify operation is satisfactory and no warning lamps illuminate. If warning lamps illuminate, troubleshoot the codes. If assistance is required, call the Detroit Diesel Customer Support Center at 313–592–5800.
Page 350 4. Start and bring engine up to operating temperature (over 140°F/60°C). 5. Verify operation is satisfactory and no warning lamps illuminate. If warning lamps illuminate, troubleshoot the codes. If assistance is required, call the Detroit Diesel Customer Support Center at 313–592–5800.
Page 351 SPN 94 – FUEL COMPENSATION PRESSURE SENSOR CIRCUIT FAULT Section Page 25.1 SPN 94/FMI 3 OR 4 ................. 25-3...
Page 353 25.1 SPN 94/FMI 3 OR 4 The troubleshooting procedures for this SPN can be found in the Aftertreatment System Technician's Guide (7SE63), refer to Chapter 8. All information subject to change without notice. 25-3 Copyright © 2007 DETROIT DIESEL CORPORATION...
Page 355: Spn 100/Fmi 1
SPN 100 — ENGINE OIL PRESSURE OUTSIDE OF NORMAL OPERATING RANGE Section Page 26.1 SPN 100/FMI 1 ..................26-3 26.2 SPN 100/FMI 3 ..................26-4 26.3 SPN 100/FMI 4 ..................26-6 26.4 SPN 100/FMI 18 ..................26-8...
Page 357: Spn 100/Fmi 3
[a] If the relief valve does not open at the set pressure or sticks open, repair or replace a faulty oil pressure relief valve as required. Refer to section 26.1.1.1. [b] If the relief valve is ﬁne, refer to section 26.1.1.1. All information subject to change without notice. 26-3 Copyright © 2007 DETROIT DIESEL CORPORATION...
Page 358: Spn 100/Fmi 4
4. Start and bring engine up to operating temperature (over 140°F/60°C). 5. Verify operation is satisfactory and no warning lamps illuminate. If warning lamps illuminate, troubleshoot the codes. If assistance is required, call the Detroit Diesel Customer Support Center at 313–592–5800.
Page 359 [b] If no voltage is present, go to step 5 (see Figure 26-2). Figure 26-2 120–pin MCM Connector 5. Measure the voltage between pin 2 of the EOP Sensor harness connector and ground. All information subject to change without notice. 26-5 Copyright © 2007 DETROIT DIESEL CORPORATION...
Page 360 4. Start and bring engine up to operating temperature (over 140°F/60°C). 5. Verify operation is satisfactory and no warning lamps illuminate. If warning lamps illuminate, troubleshoot the codes. If assistance is required, call the Detroit Diesel Customer Support Center at 313–592–5800.
Page 361 2. Reconnect any electrical connections that were disconnected to perform the diagnosis. 3. Clear codes with DDDL 7.0 or latest version. 4. Start and bring engine up to operating temperature (over 140°F/60°C). All information subject to change without notice. 26-7 Copyright © 2007 DETROIT DIESEL CORPORATION...
Page 362 [a] If oil is above maximum level with no oil previously added, go to step 5. [b] If oil is not above maximum level, contact Detroit Diesel Customer Support Center (313–592–5800). 5. Check for possible fuel in oil.
Page 363 4. Start and bring engine up to operating temperature (over 140°F/60°C). 5. Verify operation is satisfactory and no warning lamps illuminate. If warning lamps illuminate, troubleshoot the codes. If assistance is required, call the Detroit Diesel Customer Support Center at 313–592–5800.
Page 365: Spn 103/Fmi 0
SPN 103 – TURBO NO REVOLUTION Section Page 27.1 SPN 103/FMI 0 ..................27-3 27.2 SPN 103/FMI 1 ..................27-4 27.3 SPN 103/FMI 4 ..................27-5...
Page 367: Spn 103/Fmi 1
[a] If the test passed, replace the Turbo Speed Sensor (TSS). Refer to section 27.1.1.1. [b] If the test failed, refer to section 6.5 in the Series 60 Service Manual (6SE2007). All information subject to change without notice. 27-3 Copyright © 2007 DETROIT DIESEL CORPORATION...
Page 368 4. Start and bring engine up to operating temperature (over 140°F/60°C). 5. Verify operation is satisfactory and no warning lamps illuminate. If warning lamps illuminate, troubleshoot the codes. If assistance is required, call the Detroit Diesel Customer Support Center at 313–592–5800.
Page 369 4. Start and bring engine up to operating temperature (over 140°F/60°C). 5. Verify operation is satisfactory and no warning lamps illuminate. If warning lamps illuminate, troubleshoot the codes. If assistance is required, call the Detroit Diesel Customer Support Center at 313–592–5800.
Page 371 SPN 108 - BAROMETRIC PRESSURE SENSOR CIRCUIT FAULT Section Page 28.1 SPN 108/FMI 3 ..................28-3 28.2 SPN 108/FMI 4 ..................28-3...
Page 373 SERIES 60 DDEC VI TROUBLESHOOTING GUIDE 28.1 SPN 108/FMI 3 This diagnosis is typically the Barometric Pressure Sensor circuit failed low. If SPN 108/FMI 3 is present contact the Detroit Diesel Customer Support Center at 313–592–5800 for MCM replacement authorization. 28.2 SPN 108/FMI 4 This diagnosis is typically the Barometric Pressure Sensor circuit failed high.
Page 375: Spn 110/Fmi 0
SPN 110 — COOLANT TEMPERATURE ABOVE OR BELOW NORMAL OPERATING RANGE Section Page 29.1 SPN 110/FMI 0 ..................29-3 29.2 SPN 110/FMI 3 ..................29-3 29.3 SPN 110/FMI 4 ..................29-6 29.4 SPN 110/FMI 14 ..................29-7 29.5 SPN 110/FMI 16 ..................29-8...
Page 377 4. Start and bring engine up to operating temperature (over 140°F/60°C). 5. Verify operation is satisfactory and no warning lamps illuminate. If warning lamps illuminate, troubleshoot the codes. If assistance is required, call the Detroit Diesel Customer Support Center at 313–592–5800.
Page 378: Spn 110/Fmi 4
[b] If the resistance is less than 4 kΩ, go to step 7. 7. Turn the ignition ON (key On, engine OFF). 8. Measure the voltage between pins 1 and 2 of the ECT Sensor harness connector. All information subject to change without notice. 29-4 Copyright © 2007 DETROIT DIESEL CORPORATION...
Page 379 4. Start and bring engine up to operating temperature (over 140°F/60°C). 5. Verify operation is satisfactory and no warning lamps illuminate. If warning lamps illuminate, troubleshoot the codes. If assistance is required, call the Detroit Diesel Customer Support Center at 313–592–5800.
Page 380 4. Start and bring engine up to operating temperature (over 140°F/60°C). 5. Verify operation is satisfactory and no warning lamps illuminate. If warning lamps illuminate, troubleshoot the codes. If assistance is required, call the Detroit Diesel Customer Support Center at 313–592–5800.
Page 381 4. Start and bring engine up to operating temperature (over 140°F/60°C). 5. Verify operation is satisfactory and no warning lamps illuminate. If warning lamps illuminate, troubleshoot the codes. If assistance is required, call the Detroit Diesel Customer Support Center at 313–592–5800.
Page 382 4. Start and bring engine up to operating temperature (over 140°F/60°C). 5. Verify operation is satisfactory and no warning lamps illuminate. If warning lamps illuminate, troubleshoot the codes. If assistance is required, call the Detroit Diesel Customer Support Center at 313–592–5800.
Page 383: Spn 111/Fmi 1
SPN 111 (CPC) – COOLANT LEVEL OUTSIDE NORMAL OPERATING RANGE Section Page 30.1 SPN 111/FMI 1 ..................30-3 30.2 SPN 111/FMI 3 ..................30-5 30.3 SPN 111/FMI 4 ..................30-7...
Page 385: Spn 111/Fmi 3
Figure 30-1 Engine Coolant Level Sensor Mounted in Radiator Top Tank [a] If the coolant level in the reservoir is not within limit, refer to section 30.1.2. All information subject to change without notice. 30-3 Copyright © 2007 DETROIT DIESEL CORPORATION...
Page 386 4. Check for coolant in oil. 5. Check for loose or faulty radiator cap. 6. When these checks and subsequent repairs are ﬁnished, Refer to section 30.1.2.1. All information subject to change without notice. 30-4 Copyright © 2007 DETROIT DIESEL CORPORATION...
Page 387: Spn 111/Fmi 4
4. Start and bring engine up to operating temperature (over 140°F/60°C). 5. Verify operation is satisfactory and no warning lamps illuminate. If warning lamps illuminate, troubleshoot the codes. If assistance is required, call the Detroit Diesel Customer Support Center at 313–592–5800.
Page 388 [a] If the voltage is greater than 2.75 volts, repair the open between pin 2 of the CPC #3 connector and the ECL Sensor harness. Refer to section 30.2.1.1. All information subject to change without notice. 30-6 Copyright © 2007 DETROIT DIESEL CORPORATION...
Page 389 4. Start and bring engine up to operating temperature (over 140°F/60°C). 5. Verify operation is satisfactory and no warning lamps illuminate. If warning lamps illuminate, troubleshoot the codes. If assistance is required, call the Detroit Diesel Customer Support Center at 313–592–5800.
Page 390 [b] If the resistance is greater than 5 Ω, go to step 7. 7. Measure the resistance between pin 2 of the ECL Sensor harness connector and ground. All information subject to change without notice. 30-8 Copyright © 2007 DETROIT DIESEL CORPORATION...
Page 391 4. Start and bring engine up to operating temperature (over 140°F/60°C). 5. Verify operation is satisfactory and no warning lamps illuminate. If warning lamps illuminate, troubleshoot the codes. If assistance is required, call the Detroit Diesel Customer Support Center at 313–592–5800.
Page 393 SPN 132 - AIR MASS FLOW NOT NORMAL Section Page 31.1 SPN 132/FMI1 ..................31-3...
Page 395 2. Perform pressure check/visual inspection of the following and repair as necessary. Plugged inlet air ﬁlters □ Charge air cooler leaks □ Leaking intake manifold □ Exhaust leaks/plugging □ All information subject to change without notice. 31-3 Copyright © 2007 DETROIT DIESEL CORPORATION...
Page 397 SPN 168 – BATTERY VOLTAGE OUTSIDE NORMAL OPERATING RANGE Section Page 32.1 SPN 168/FMI 0 ..................32-3 32.2 SPN 168/FMI 1 ..................32-4...
Page 399 4. Start and bring engine up to operating temperature (over 140°F/60°C). 5. Verify operation is satisfactory and no warning lamps illuminate. If warning lamps illuminate, troubleshoot the codes. If assistance is required, call the Detroit Diesel Customer Support Center at 313–592–5800.
Page 400 21/8, 21/9 and CPC 2/2). See Figure 32-1. [a] If resistance is greater than 0.5 Ω in any wire, repair or replace the wire and connector.Refer to section 32.2.2.1. All information subject to change without notice. 32-4 Copyright © 2007 DETROIT DIESEL CORPORATION...
Page 401 [a] If the current drop is more than 0.2 volts in any wire, repair or replace the ground circuit wires and connector. Refer to section 32.2.2.1. [b] If the current drop is less than 0.2 volts in any wire, go to step 4. All information subject to change without notice. 32-5 Copyright © 2007 DETROIT DIESEL CORPORATION...
Page 402 4. Start and bring engine up to operating temperature (over 140°F/60°C). 5. Verify operation is satisfactory and no warning lamps illuminate. If warning lamps illuminate, troubleshoot the codes. If assistance is required, call the Detroit Diesel Customer Support Center at 313–592–5800.
Page 403: Spn 171/Fmi 9
SPN 171 (CPC) - J1587 AMBIENT AIR TEMPERATURE SENSOR DATA NOT RECEIVED Section Page 33.1 SPN 171/FMI 9 ..................33-3 33.2 SPN 171/FMI 14 ..................33-3...
Page 405 Diesel Customer Support Center at 313–592–5088. 33.2 SPN 171/FMI 14 This is typically J1587 Ambient Air Temperature Sensor data not received this ignition cycle. Call the Detroit Diesel Customer Support Center at 313–592–5088. All information subject to change without notice. 33-3...
Page 407: Spn 174/Fmi 3
SPN 174 – SUPPLY FUEL TEMPERATURE FAULT Section Page 34.1 SPN 174/FMI 3 ..................34-3 34.2 SPN 174/FMI 4 ..................34-5...
Page 409: Spn 174/Fmi 4
6. Measure the resistance across pins 1 and 2 of the SFT Sensor. See Figure 34-1. Figure 34-1 Supply Fuel Temperature Sensor [a] If the resistance is greater than 4k Ω, replace SFT Sensor. Refer to section 34.1.1.1. All information subject to change without notice. 34-3 Copyright © 2007 DETROIT DIESEL CORPORATION...
Page 410 2. Reconnect any electrical connections that were disconnected to perform the diagnosis. 3. Clear codes with DDDL 7.0 or latest version. 4. Start and bring engine up to operating temperature (over 140°F/60°C). All information subject to change without notice. 34-4 Copyright © 2007 DETROIT DIESEL CORPORATION...
Page 411 SERIES 60 DDEC VI TROUBLESHOOTING GUIDE 5. Verify operation is satisfactory and no warning lamps illuminate. If warning lamps illuminate, troubleshoot the codes. If assistance is required, call the Detroit Diesel Customer Support Center at 313–592–5800. 34.2 SPN 174/FMI 4 SPN 174/FMI 4 indicates a SFT Sensor short to ground.
Page 413: Spn 175/Fmi 3
SPN 175 – ENGINE OIL TEMPERATURE OUT OF NORMAL RANGE Section Page 35.1 SPN 175/FMI 3 ..................35-3 35.2 SPN 175/FMI 4 ..................35-5 35.3 SPN 175/FMI 14 ..................35-5...
Page 415: Spn 175/Fmi 4
[b] If the voltage is less than 2.75 volts, repair the open circuit between pin 2of the EOT Sensor harness connector and pin 108 of the 120–pin MCM connector. Refer to section 35.1.1.1. All information subject to change without notice. 35-3 Copyright © 2007 DETROIT DIESEL CORPORATION...
Page 416 4. Start and bring engine up to operating temperature (over 140°F/60°C). 5. Verify operation is satisfactory and no warning lamps illuminate. If warning lamps illuminate, troubleshoot the codes. If assistance is required, call the Detroit Diesel Customer Support Center at 313–592–5800.
Page 417 4. Start and bring engine up to operating temperature (over 140°F/60°C). 5. Verify operation is satisfactory and no warning lamps illuminate. If warning lamps illuminate, troubleshoot the codes. If assistance is required, call the Detroit Diesel Customer Support Center at 313–592–5800.
Page 418 4. Start and bring engine up to operating temperature (over 140°F/60°C). 5. Verify operation is satisfactory and no warning lamps illuminate. If warning lamps illuminate, troubleshoot the codes. If assistance is required, call the Detroit Diesel Customer Support Center at 313–592–5800.
Page 419: Spn 190/Fmi 2
SPN 190 - ENGINE SPEED HIGH Section Page 36.1 SPN 190/FMI 2 ..................36-3...
Page 421 This is an information code only. SPN 190/FMI 2 is active when the MCM detects an engine speed greater than 2,500 rpm for a speciﬁc amount of time. The driver should be questioned about vehicle driving conditions. All information subject to change without notice. 36-3 Copyright © 2007 DETROIT DIESEL CORPORATION...
Page 423: Spn 191/Fmi 9
SPN 191 (CPC) - J1939 ETC1 MESSAGE MISSING AND TRANSMISSION OUTPUT SHAFT SPEED SIGNAL ERRATIC OR MISSING Section Page 37.1 SPN 191/FMI 9 ..................37-3 37.2 SPN 191/FMI 13 ..................37-3 37.3 SPN 191/FMI 19 ..................37-4...
Page 425 [b] If no, connect ServiceLink to determine which modules are conﬁgured for the vehicle and their communication status. Once this is done, follow the appropriate module communication troubleshooting procedures for the affected module. All information subject to change without notice. 37-3 Copyright © 2007 DETROIT DIESEL CORPORATION...
Page 426 [b] If no, connect ServiceLink to determine which modules are conﬁgured for the vehicle and their communication status. Once this is done, follow the appropriate module communication troubleshooting procedures for the affected module. All information subject to change without notice. 37-4 Copyright © 2007 DETROIT DIESEL CORPORATION...
Page 427: Spn 247/Fmi 0
SPN 247 (CPC) – MCM ENGINE HOURS DATA HIGHER OR LOWER THAN EXPECTED Section Page 38.1 SPN 247/FMI 0 ..................38-3 38.2 SPN 247/FMI 1 ..................38-3 38.3 SPN 247/FMI 9 ..................38-4...
Page 429: Spn 247/Fmi 9
The CPC digital outputs have the same SPN as some MCM faults. DDDL 7.0 makes the distinction between the MCM and CPC when diagnosing a fault. All information subject to change without notice. 38-3 Copyright © 2007 DETROIT DIESEL CORPORATION...
Page 430 The CPC digital outputs have the same SPN as some MCM faults. DDDL 7.0 makes the distinction between the MCM and CPC when diagnosing a fault. All information subject to change without notice. 38-4 Copyright © 2007 DETROIT DIESEL CORPORATION...
Page 431: Spn 411/Fmi 0
SPN 411 — EGR DIFFERENTIAL PRESSURE OR DELTA P SENSOR CIRCUIT OUTSIDE OF NORMAL OPERATING RANGE Section Page 39.1 SPN 411/FMI 0 ..................39-3 39.2 SPN 411/FMI 3 ..................39-4 39.3 SPN 411/FMI 4 ..................39-6 39.4 SPN 411/FMI 13 ..................39-8...
Page 433: Spn 411/Fmi 3
[a] If no EGR tube obstructions are found, replace the EGR Delta P Sensor. Refer to section 39.1.1.1. [b] If EGR tube obstructions are found clean or replace tubes as necessary. Refer to section 39.1.1.1. All information subject to change without notice. 39-3 Copyright © 2007 DETROIT DIESEL CORPORATION...
Page 434: Spn 411/Fmi 4
4. Start and bring engine up to operating temperature (over 140°F/60°C). 5. Verify operation is satisfactory and no warning lamps illuminate. If warning lamps illuminate, troubleshoot the codes. If assistance is required, call the Detroit Diesel Customer Support Center at 313–592–5800.
Page 435 [b] If the resistance is greater than 5 Ω, go to step 12. 12. Measure the resistance between pin 3 of the EGR Delta P Sensor harness connector and ground.. All information subject to change without notice. 39-5 Copyright © 2007 DETROIT DIESEL CORPORATION...
Page 436 4. Start and bring engine up to operating temperature (over 140°F/60°C). 5. Verify operation is satisfactory and no warning lamps illuminate. If warning lamps illuminate, troubleshoot the codes. If assistance is required, call the Detroit Diesel Customer Support Center at 313–592–5800.
Page 437 4. Start and bring engine up to operating temperature (over 140°F/60°C). 5. Verify operation is satisfactory and no warning lamps illuminate. If warning lamps illuminate, troubleshoot the codes. If assistance is required, call the Detroit Diesel Customer Support Center at 313–592–5800.
Page 438 4. Start and bring engine up to operating temperature (over 140°F/60°C). 5. Verify operation is satisfactory and no warning lamps illuminate. If warning lamps illuminate, troubleshoot the codes. If assistance is required, call the Detroit Diesel Customer Support Center at 313–592–5800.
Page 439: Spn 412/Fmi 3
SPN 412 - EGR TEMPERATURE IS OUTSIDE OF THE NORMAL RANGE Section Page 40.1 SPN 412/FMI 3 ..................40-3 40.2 SPN 412/FMI 4 ..................40-6 40.3 SPN 412/FMI 16 ..................40-8 40.4 SPN 412/FMI 20 ..................40-9...
Page 441 6. Measure the resistance across pins 1 and 2 of the EGR Temperature Sensor. [a] If the resistance is not within the range listed in Table 40-1, replace the EGR Temperature Sensor. Refer to section 40.1.1.1. All information subject to change without notice. 40-3 Copyright © 2007 DETROIT DIESEL CORPORATION...
Page 442: Spn 412/Fmi 4
[a] If the voltage is between 2.75 and 3.25 volts, repair the open circuit between pin 1 of the EGR Temperature Sensor harness connector and pin 52 of the 120–pin MCM connector. See Figure 40-1. Refer to section 40.1.1.1. All information subject to change without notice. 40-4 Copyright © 2007 DETROIT DIESEL CORPORATION...
Page 443 4. Start and bring engine up to operating temperature (over 140°F/60°C). 5. Verify operation is satisfactory and no warning lamps illuminate. If warning lamps illuminate, troubleshoot the codes. If assistance is required, call the Detroit Diesel Customer Support Center at 313–592–5800.
Page 444 Temperature Sensor harness connector and ground. Refer to section 40.2.1.1. [b] If the resistance is greater than 5 Ω, repeat steps 3 through 4. If the results are the same, contact the Detroit Diesel Customer Support Center (313–5925044). All information subject to change without notice.
Page 445 4. Start and bring engine up to operating temperature (over 140°F/60°C). 5. Verify operation is satisfactory and no warning lamps illuminate. If warning lamps illuminate, troubleshoot the codes. If assistance is required, call the Detroit Diesel Customer Support Center at 313–592–5800.
Page 446 4. Start and bring engine up to operating temperature (over 140°F/60°C). 5. Verify operation is satisfactory and no warning lamps illuminate. If warning lamps illuminate, troubleshoot the codes. If assistance is required, call the Detroit Diesel Customer Support Center at 313–592–5800.
Page 447 4. Start and bring engine up to operating temperature (over 140°F/60°C). 5. Verify operation is satisfactory and no warning lamps illuminate. If warning lamps illuminate, troubleshoot the codes. If assistance is required, call the Detroit Diesel Customer Support Center at 313–592–5800.
Page 449: Spn 523/Fmi 9
SPN 523 (CPC) - TRANSMISSION CURRENT GEAR SIGNAL ERRATIC OR MISSING Section Page 41.1 SPN 523/FMI 19 ..................41-3 41.2 SPN 523/FMI 13 ..................41-3...
Page 451 [b] If no, connect ServiceLink to determine which modules are conﬁgured for the vehicle and their communication status. Once this is done, follow the appropriate module communication troubleshooting procedures for the affected module. All information subject to change without notice. 41-3 Copyright © 2007 DETROIT DIESEL CORPORATION...
Page 453 SPN 524 (CPC) - J1939 ETC2 MESSAGE IS MISSING Section Page 42.1 SPN 523/FMI 9 ..................42-3...
Page 455 [b] If no, connect ServiceLink to determine which modules are conﬁgured for the vehicle and their communication status. Once this is done, follow the appropriate module communication troubleshooting procedures for the affected module. All information subject to change without notice. 42-3 Copyright © 2007 DETROIT DIESEL CORPORATION...
Page 457: Spn 527/Fmi 9
SPN 527 (CPC) - J1939 CCVS MESSAGE MISSING Section Page 43.1 SPN 527/FMI 9 ..................43-3...
Page 459 [b] If no, connect ServiceLink to determine which modules are conﬁgured for the vehicle and their communication status. Once this is done, follow the appropriate module communication troubleshooting procedures for the affected module. All information subject to change without notice. 43-3 Copyright © 2007 DETROIT DIESEL CORPORATION...
Page 461: Spn 558/Fmi 1
SPN 558 (CPC) - IDLE VALIDATION SWITCH Section Page 44.1 SPN 558/FMI 1 ..................44-3 44.2 SPN 558/FMI 3 ..................44-3 44.3 SPN 558/FMI 4 ..................44-5...
Page 463: Spn 558/Fmi 4
IVS #2 should be routed from Validation Switch pin 6 to pin 3 of the CPC #1 connector. □ 5. If wiring checks OK, contact the Detroit Diesel Customer Support Center (313–592–5800). 44.2 SPN 558/FMI 3 This diagnostic condition is typically an open circuit.
Page 464 4. Start and bring engine up to operating temperature (over 140°F/60°C). 5. Verify operation is satisfactory and no warning lamps illuminate. If warning lamps illuminate, troubleshoot the codes. If assistance is required, call the Detroit Diesel Customer Support Center at 313–592–5800.
Page 465 #1 connector and pin 5 of the Idle Validation Switch connector. Refer to section 44.3.1.1. [b] If the resistance is greater than 5 Ω, replace the Idle Validation Switch. Refer to section 44.3.1.1. All information subject to change without notice. 44-5 Copyright © 2007 DETROIT DIESEL CORPORATION...
Page 466 4. Start and bring engine up to operating temperature (over 140°F/60°C). 5. Verify operation is satisfactory and no warning lamps illuminate. If warning lamps illuminate, troubleshoot the codes. If assistance is required, call the Detroit Diesel Customer Support Center at 313–592–5800.
Page 467 SPN 596 (CPC) - CRUISE CONTROL ENABLE SWITCH SIGNAL ERRATIC OR MISSING Section Page 45.1 SPN 596/FMI 13 ..................45-3 45.2 SPN 596/FMI 19 ..................45-3...
Page 469 [b] If no, connect ServiceLink to determine which modules are conﬁgured for the vehicle and their communication status. Once this is done, follow the appropriate module communication troubleshooting procedures for the affected module. All information subject to change without notice. 45-3 Copyright © 2007 DETROIT DIESEL CORPORATION...
Page 471 SPN 597 (CPC) - SERVICE BRAKE SWITCH SIGNAL ERRATIC OR MISSING Section Page 46.1 SPN 597/FMI 13 ..................46-3 46.2 SPN 597/FMI 19 ..................46-3...
Page 473 [b] If no, connect ServiceLink to determine which modules are conﬁgured for the vehicle and their communication status. Once this is done, follow the appropriate module communication troubleshooting procedures for the affected module. All information subject to change without notice. 46-3 Copyright © 2007 DETROIT DIESEL CORPORATION...
Page 475: Spn 599/Fmi 4
SPN 599 (CPC) - CRUISE CONTROL SWITCHES NOT FUNCTIONING PROPERLY Section Page 47.1 SPN 599/FMI 4 ..................47-3...
Page 477 4. Start and bring engine up to operating temperature (over 140°F/60°C). 5. Verify operation is satisfactory and no warning lamps illuminate. If warning lamps illuminate, troubleshoot the codes. If assistance is required, call the Detroit Diesel Customer Support Center at 313–592–5800.
Page 479 SPN 600 (CPC) - CRUISE CONTROL COAST SWITCH SIGNAL ERRATIC OR MISSING Section Page 48.1 SPN 600/FMI 13 ..................48-3 48.2 SPN 600/FMI 19 ..................48-3...
Page 481 [b] If no, connect ServiceLink to determine which modules are conﬁgured for the vehicle and their communication status. Once this is done, follow the appropriate module communication troubleshooting procedures for the affected module. All information subject to change without notice. 48-3 Copyright © 2007 DETROIT DIESEL CORPORATION...
Page 483 SPN 602 (CPC) - CRUISE CONTROL ACCELERATE SWITCH SIGNAL ERRATIC OR MISSING Section Page 49.1 SPN 602/FMI 13 ..................49-3 49.2 SPN 602/FMI 19 ..................49-3...
Page 485 [b] If no, connect ServiceLink to determine which modules are conﬁgured for the vehicle and their communication status. Once this is done, follow the appropriate module communication troubleshooting procedures for the affected module. All information subject to change without notice. 49-3 Copyright © 2007 DETROIT DIESEL CORPORATION...
Page 487 SPN 609 - MCM FAULT (ERRONEOUS DATA) Section Page 50.1 SPN 609/FMI 12 ..................50-3 50.2 SPN 609/FMI 14 ..................50-4...
Page 489 2. Check the MCM parameters to ensure they are correct for the vehicle conﬁguration. [a] If parameters are not correct, reset parameters on the MCM. [b] If parameters are correct, contact Detroit Diesel Customer Support Center (313–592–5800) for authorization to replace the MCM. Set parameters on the new MCM.
Page 490 1. Check to ensure the MCM is correct for the engine. [a] If MCM is correct for the engine, go to step 2. [b] If MCM is not correct for the engine, contact Detroit Diesel Customer Support Center (313–592–5800) for authorization to replace the MCM. Set parameters on the new MCM.
Page 491: Spn 615/Fmi 9
SPN 615 (CPC) - J1939 DM1 MESSAGE FROM TRANSMISSION MISSING Section Page 51.1 SPN 615/FMI 9 ..................51-3...
Page 493 [b] If no, connect ServiceLink to determine which modules are conﬁgured for the vehicle and their communication status. Once this is done, follow the appropriate module communication troubleshooting procedures for the affected module. All information subject to change without notice. 51-3 Copyright © 2007 DETROIT DIESEL CORPORATION...
Page 495 SPN 625 - CAN FAULT Section Page 52.1 SPN 625/FMI 2 ..................52-3 52.2 SPN 625/FMI 9 ..................52-5...
Page 497 9. Measure the resistance between pin 1 of the CPC #4 connector and ground. [a] If the resistance is greater than 5 Ω, go to the next step. All information subject to change without notice. 52-3 Copyright © 2007 DETROIT DIESEL CORPORATION...
Page 498 4. Start and bring engine up to operating temperature (over 140°F/60°C). 5. Verify operation is satisfactory and no warning lamps illuminate. If warning lamps illuminate, troubleshoot the codes. If assistance is required, call the Detroit Diesel Customer Support Center at 313–592–5800.
Page 499 9. Measure the resistance between pin 1 of the CPC #4 connector and ground. [a] If the resistance is greater than 5 Ω, go to the next step. All information subject to change without notice. 52-5 Copyright © 2007 DETROIT DIESEL CORPORATION...
Page 500 4. Start and bring engine up to operating temperature (over 140°F/60°C). 5. Verify operation is satisfactory and no warning lamps illuminate. If warning lamps illuminate, troubleshoot the codes. If assistance is required, call the Detroit Diesel Customer Support Center at 313–592–5800.
Page 501: Spn 628/Fmi 13 (All Fault Descriptions)
SPN 628 (CPC) - MULTIPLE FAULTS Section Page 53.1 SPN 628/FMI 13 (ALL FAULT DESCRIPTIONS) ........53-3 53.2 SPN 628/FMI 14 ..................53-3...
Page 503 CPC with the latest software release. 53.2 SPN 628/FMI 14 SPN 628/FMI 14 indicates an XFLASH failure. Replace the CPC and reprogram with the latest software release. All information subject to change without notice. 53-3 Copyright © 2007 DETROIT DIESEL CORPORATION...
Page 505: Spn 629/Fmi 2
SPN 629 (CPC) - MULTIPLE FAULTS Section Page 54.1 SPN 629/FMI 2 ..................54-3 54.2 SPN 629/FMI 12 ..................54-4...
Page 507 There are multiple fault descriptions for SPN 629/FMI 2. The troubleshooting solution is the same for any and all fault descriptions: Replace the CPC and reprogram with the latest software release. All information subject to change without notice. 54-3 Copyright © 2007 DETROIT DIESEL CORPORATION...
Page 508 There are multiple fault descriptions for SPN 629/FMI 12. The troubleshooting solution is the same for any and all fault descriptions: Replace the CPC and reprogram with the latest software release. All information subject to change without notice. 54-4 Copyright © 2007 DETROIT DIESEL CORPORATION...
Page 509 SPN 630 (CPC) - MULTIPLE FAULTS Section Page 55.1 SPN 630/FMI 14 ..................55-3...
Page 511 □ MCM contains more MUs than the current CPC2 software version is able to store. Reprogram the CPC with the latest software release. □ MCM is reporting inconsistent static fault code data. Reprogram the MCM with the latest software release. All information subject to change without notice. 55-3 Copyright © 2007 DETROIT DIESEL CORPORATION...
Page 513: Spn 636/Fmi 1
SPN 636 — CRANKSHAFT POSITION SENSOR OUTSIDE OF NORMAL OPERATING CONDITIONS Section Page 56.1 SPN 636/FMI 1 ..................56-3 56.2 SPN 636/FMI 3 ..................56-4 56.3 SPN 636/FMI 4 ..................56-6 56.4 SPN 636/FMI 7 ..................56-7 56.5 SPN 636/FMI 8 ..................56-9 56.6 SPN 636/FMI 14 ..................
Page 515: Spn 636/Fmi 3
[a] If the ﬂywheel is out of position, repair or replace, as required. Refer to section 56.1.1.1. [b] If the ﬂywheel is not out of position, go to step 4. 4. Check crankshaft axial play. All information subject to change without notice. 56-3 Copyright © 2007 DETROIT DIESEL CORPORATION...
Page 516: Spn 636/Fmi 4
4. Start and bring engine up to operating temperature (over 140°F/60°C). 5. Verify operation is satisfactory and no warning lamps illuminate. If warning lamps illuminate, troubleshoot the codes. If assistance is required, call the Detroit Diesel Customer Support Center at 313–592–5800.
Page 517 A depth micrometer can be used. [a] If the gap setting is correct, repeat steps 1 and 2. If the results are the same, call the Detroit Diesel Customer Support Center (313–592–5800). All information subject to change without notice.
Page 518: Spn 636/Fmi 7
4. Start and bring engine up to operating temperature (over 140°F/60°C). 5. Verify operation is satisfactory and no warning lamps illuminate. If warning lamps illuminate, troubleshoot the codes. If assistance is required, call the Detroit Diesel Customer Support Center at 313–592–5800.
Page 519: Spn 636/Fmi 8
120–pin MCM connector. [a] If the resistance is greater than 5 Ω, reconnect the 120–pin MCM connector and review steps 2 through 7. If the results are the same, call the Detroit Diesel Customer Support Center (313–592–5800). [b] If the resistance is less than 5 Ω, repair the short to ground between pin 2 of the CKP Sensor harness connector and pin 43 of the 120–pin MCM connector.
Page 520 4. Start and bring engine up to operating temperature (over 140°F/60°C). 5. Verify operation is satisfactory and no warning lamps illuminate. If warning lamps illuminate, troubleshoot the codes. If assistance is required, call the Detroit Diesel Customer Support Center at 313–592–5800.
Page 521 MCM 120–pin connector and the CKP Sensor connector. Refer to section 56.5.1.1. [b] If the resistance is less than 3 Ω, replace the CKP Sensor. Refer to section 56.5.1.1. All information subject to change without notice. 56-9 Copyright © 2007 DETROIT DIESEL CORPORATION...
Page 522 4. Start and bring engine up to operating temperature (over 140°F/60°C). 5. Verify operation is satisfactory and no warning lamps illuminate. If warning lamps illuminate, troubleshoot the codes. If assistance is required, call the Detroit Diesel Customer Support Center at 313–592–5800.
Page 523 MCM 120–pin connector and that the wiring from CKP Sensor pin 2 to pin 43 of the MCM 120–pin connector is correct. See Figure 56-4. Figure 56-4 Crankshaft Position Sensor All information subject to change without notice. 56-11 Copyright © 2007 DETROIT DIESEL CORPORATION...
Page 525: Spn 641/Fmi 7
SPN 641 - SMART REMOTE ACTUATOR 5 (VGT) ABNORMAL OPERATION Section Page 57.1 SPN 641/FMI 7 ..................57-3 57.2 SPN 641/FMI 8 ..................57-5 57.3 SPN 641/FMI 9 ..................57-6 57.4 SPN 641/FMI 11 ..................57-7 57.5 SPN 641/FMI 14 ..................57-9 57.6 SPN 641/FMI 31 ..................
Page 527: Spn 641/Fmi 8
5. Physically move the sector gear on the turbocharger from 1 to 2, see Figure 57-1. 1. Alignment Hole – Alignment pin ﬁts into housing 2. Reference Indentation – Sector shaft covers one-half of indentation Figure 57-1 Moving the Sector Gear All information subject to change without notice. 57-3 Copyright © 2007 DETROIT DIESEL CORPORATION...
Page 528: Spn 641/Fmi 9
4. Start and bring engine up to operating temperature (over 140°F/60°C). 5. Verify operation is satisfactory and no warning lamps illuminate. If warning lamps illuminate, troubleshoot the codes. If assistance is required, call the Detroit Diesel Customer Support Center at 313–592–5800.
Page 529 4. Start and bring engine up to operating temperature (over 140°F/60°C). 5. Verify operation is satisfactory and no warning lamps illuminate. If warning lamps illuminate, troubleshoot the codes. If assistance is required, call the Detroit Diesel Customer Support Center at 313–592–5800.
Page 530 4. Start and bring engine up to operating temperature (over 140°F/60°C). 5. Verify operation is satisfactory and no warning lamps illuminate. If warning lamps illuminate, troubleshoot the codes. If assistance is required, call the Detroit Diesel Customer Support Center at 313–592–5800.
Page 531: Spn 641/Fmi 14
Refer to section 57.3.1.1. [b] If the resistance is less than 3 Ω, replace the turbo actuator. Refer to section 57.3.1.1. 10. Remove the turbo actuator. All information subject to change without notice. 57-7 Copyright © 2007 DETROIT DIESEL CORPORATION...
Page 532 13. Remove the turbocharger and inspect for signs of foreign material contamination. [a] If foreign material damage is found, repair the source of material entry and contact the Detroit Diesel Customer Support Center at 313–592–5800 for turbocharger replacement authorization. [b] If no foreign material damage is found but there is no free movement, contact the Detroit Diesel Customer Support Center at 313–592–5800 for turbocharger...
Page 533 4. Start and bring engine up to operating temperature (over 140°F/60°C). 5. Verify operation is satisfactory and no warning lamps illuminate. If warning lamps illuminate, troubleshoot the codes. If assistance is required, call the Detroit Diesel Customer Support Center at 313–592–5800.
Page 534 12. Remove the turbocharger and inspect for signs of foreign material contamination. [a] If foreign material damage is found, repair the source of material entry and contact the Detroit Diesel Customer Support Center at 313–592–5800 for turbocharger replacement authorization. All information subject to change without notice.
Page 535 4. Start and bring engine up to operating temperature (over 140°F/60°C). 5. Verify operation is satisfactory and no warning lamps illuminate. If warning lamps illuminate, troubleshoot the codes. If assistance is required, call the Detroit Diesel Customer Support Center at 313–592–5800.
Page 536 [b] If the resistance is greater than 3 Ω, repair the harness between pin 4 of the turbo actuator harness connector and pin 75 of the MCM 120–pin connector. Refer to section 57.6.1.1. All information subject to change without notice. 57-12 Copyright © 2007 DETROIT DIESEL CORPORATION...
Page 537 4. Start and bring engine up to operating temperature (over 140°F/60°C). 5. Verify operation is satisfactory and no warning lamps illuminate. If warning lamps illuminate, troubleshoot the codes. If assistance is required, call the Detroit Diesel Customer Support Center at 313–592–5800.
Page 539: Spn 647/Fmi 3
SPN 647 - SINGLE-SPEED FAN (LOW-SIDE DIGITAL OUTPUT #3) FAULT Section Page 58.1 SPN 647/FMI 3 ..................58-3 58.2 SPN 647/FMI 4 ..................58-4 58.3 SPN 647/FMI 5 ..................58-5...
Page 541: Spn 647/Fmi 4
4. Start and bring engine up to operating temperature (over 140°F/60°C). 5. Verify operation is satisfactory and no warning lamps illuminate. If warning lamps illuminate, troubleshoot the codes. If assistance is required, call the Detroit Diesel Customer Support Center at 313–592–5800.
Page 542 4. Start and bring engine up to operating temperature (over 140°F/60°C). 5. Verify operation is satisfactory and no warning lamps illuminate. If warning lamps illuminate, troubleshoot the codes. If assistance is required, call the Detroit Diesel Customer Support Center at 313–592–5800.
Page 543 4. Start and bring engine up to operating temperature (over 140°F/60°C). 5. Verify operation is satisfactory and no warning lamps illuminate. If warning lamps illuminate, troubleshoot the codes. If assistance is required, call the Detroit Diesel Customer Support Center at 313–592–5800.
Page 545 SPN 651 – INJECTOR #1 NEEDLE VALVE NOT OPERATING NORMALLY Section Page 59.1 SPN 651/FMI 14 ..................59-3...
Page 547 9. Measure the resistance between the positive battery post and pin 11of the MCM 120–pin connector. [a] If the resistance is greater than 3 Ω, contact the Detroit Diesel Customer Support Center at 313–592–5800 for MCM replacement authorization. All information subject to change without notice.
Page 548 16. Measure the resistance between pin 1 on the valve cover side of the injector harness and pin 2 of the injector #1 harness connector. [a] If the resistance is less than 3 Ω, go to step 17. All information subject to change without notice. 59-4 Copyright © 2007 DETROIT DIESEL CORPORATION...
Page 549 4. Start and bring engine up to operating temperature (over 140°F/60°C). 5. Verify operation is satisfactory and no warning lamps illuminate. If warning lamps illuminate, troubleshoot the codes. If assistance is required, call the Detroit Diesel Customer Support Center at 313–592–5800.
Page 551 SPN 652 – INJECTOR #2 NEEDLE VALVE NOT OPERATING NORMALLY Section Page 60.1 SPN 652/FMI 14 ..................60-3...
Page 553 9. Measure the resistance between the positive battery post and pin 11of the MCM 120–pin connector. [a] If the resistance is greater than 3 Ω, contact the Detroit Diesel Customer Support Center at 313–592–5800 for MCM replacement authorization. All information subject to change without notice.
Page 554 16. Measure the resistance between pin 3 on the valve cover side of the injector harness and pin 2 of the injector #2 harness connector. [a] If the resistance is less than 3 Ω, go to step 17. All information subject to change without notice. 60-4 Copyright © 2007 DETROIT DIESEL CORPORATION...
Page 555 [b] If the resistance is less than 3 Ω, repair the short to ground between pin 3 of the Front Injector Harness 12–pin connector and pin 22 of the 120–pin MCM connector. Refer to section 60.1.1.1. All information subject to change without notice. 60-5 Copyright © 2007 DETROIT DIESEL CORPORATION...
Page 556 4. Start and bring engine up to operating temperature (over 140°F/60°C). 5. Verify operation is satisfactory and no warning lamps illuminate. If warning lamps illuminate, troubleshoot the codes. If assistance is required, call the Detroit Diesel Customer Support Center at 313–592–5800.
Page 557 SPN 653 – INJECTOR #3 NEEDLE VALVE NOT OPERATING NORMALLY Section Page 61.1 SPN 653/FMI 14 ..................61-3...
Page 559 9. Measure the resistance between the positive battery post and pin 11of the MCM 120–pin connector. [a] If the resistance is greater than 3 Ω, contact the Detroit Diesel Customer Support Center at 313–592–5800 for MCM replacement authorization. All information subject to change without notice.
Page 560 16. Measure the resistance between pin 5 on the valve cover side of the injector harness and pin 2 of the injector #3 harness connector. [a] If the resistance is less than 3 Ω, go to step 17. All information subject to change without notice. 61-4 Copyright © 2007 DETROIT DIESEL CORPORATION...
Page 561 [b] If the resistance is less than 3 Ω, repair the short to ground between pin 5 of the Front Injector Harness 12–pin connector and pin 24 of the 120–pin MCM connector. Refer to section 61.1.1.1. All information subject to change without notice. 61-5 Copyright © 2007 DETROIT DIESEL CORPORATION...
Page 562 4. Start and bring engine up to operating temperature (over 140°F/60°C). 5. Verify operation is satisfactory and no warning lamps illuminate. If warning lamps illuminate, troubleshoot the codes. If assistance is required, call the Detroit Diesel Customer Support Center at 313–592–5800.
Page 563 SPN 654 – INJECTOR #4 NEEDLE VALVE NOT OPERATING NORMALLY Section Page 62.1 SPN 654/FMI 14 ..................62-3...
Page 565 [a] If voltage is present, repair the short to power between pin 9 of the Rear Injector Harness 12–pin connector and pin 21 of the 120–pin MCM connector. See Figure 62-1. Refer to section 62.1.1.1. All information subject to change without notice. 62-3 Copyright © 2007 DETROIT DIESEL CORPORATION...
Page 566 62.1 SPN 654/FMI 14 [b] If no voltage is present, contact the Detroit Diesel Customer Support Center at 313–592–5800 for MCM replacement authorization. Figure 62-1 120–pin MCM Connector 9. Turn the ignition OFF. 10. Disconnect the Rear Injector Harness 12–pin connector.
Page 567 4. Start and bring engine up to operating temperature (over 140°F/60°C). 5. Verify operation is satisfactory and no warning lamps illuminate. If warning lamps illuminate, troubleshoot the codes. If assistance is required, call the Detroit Diesel Customer Support Center at 313–592–5800.
Page 569 SPN 655 – INJECTOR #5 NEEDLE VALVE NOT OPERATING NORMALLY Section Page 63.1 SPN 655/FMI 14 ..................63-3...
Page 571 [a] If voltage is present, repair the short to power between pin 9 of the Rear Injector Harness 12–pin connector and pin 21 of the 120–pin MCM connector. See Figure 63-1. Refer to section 63.1.1.1. All information subject to change without notice. 63-3 Copyright © 2007 DETROIT DIESEL CORPORATION...
Page 572 63.1 SPN 655/FMI 14 [b] If no voltage is present, contact the Detroit Diesel Customer Support Center at 313–592–5800 for MCM replacement authorization. Figure 63-1 120–pin MCM Connector 9. Turn the ignition OFF. 10. Disconnect the Rear Injector Harness 12–pin connector.
Page 573 4. Start and bring engine up to operating temperature (over 140°F/60°C). 5. Verify operation is satisfactory and no warning lamps illuminate. If warning lamps illuminate, troubleshoot the codes. If assistance is required, call the Detroit Diesel Customer Support Center at 313–592–5800.
Page 575 SPN 656 – INJECTOR #6 NEEDLE VALVE NOT OPERATING NORMALLY Section Page 64.1 SPN 656/FMI 14 ..................64-3...
Page 577 [a] If voltage is present, repair the short to power between pin 9 of the Rear Injector Harness 12–pin connector and pin 21 of the 120–pin MCM connector. See Figure 64-1. Refer to section 64.1.1.1. All information subject to change without notice. 64-3 Copyright © 2007 DETROIT DIESEL CORPORATION...
Page 578 64.1 SPN 656/FMI 14 [b] If no voltage is present, contact the Detroit Diesel Customer Support Center at 313–592–5800 for MCM replacement authorization. Figure 64-1 120–pin MCM Connector 9. Turn the ignition OFF. 10. Disconnect the Rear Injector Harness 12–pin connector.
Page 579 4. Start and bring engine up to operating temperature (over 140°F/60°C). 5. Verify operation is satisfactory and no warning lamps illuminate. If warning lamps illuminate, troubleshoot the codes. If assistance is required, call the Detroit Diesel Customer Support Center at 313–592–5800.
Page 581: Spn 703/Fmi 3
SPN 703 (CPC) - ASG2 BACKUP LAMP Section Page 65.1 SPN 703/FMI 3 ..................65-3 65.2 SPN 703/FMI 4 ..................65-3...
Page 583 The CPC digital outputs have the same SPN as some MCM faults. DDDL 7.0 makes the distinction between the MCM and CPC when diagnosing a fault. All information subject to change without notice. 65-3 Copyright © 2007 DETROIT DIESEL CORPORATION...
Page 585: Spn 704/Fmi 3
SPN 704 (CPC) - HIGH EXHAUST SYSTEM TEMPERATURE LAMP Section Page 66.1 SPN 704/FMI 3 ..................66-3 66.2 SPN 704/FMI 4 ..................66-3...
Page 587: Spn 704/Fmi 4
The CPC digital outputs have the same SPN as some MCM faults. DDDL 7.0 makes the distinction between the MCM and CPC when diagnosing a fault. All information subject to change without notice. 66-3 Copyright © 2007 DETROIT DIESEL CORPORATION...
Page 589: Spn 704 - Turbo Actuator Control (Aux
SPN 704 - TURBO ACTUATOR CONTROL (AUX PWM #10) Section Page 67.1 SPN 704/FMI 3 ..................67-3 67.2 SPN 704/FMI 4 ..................67-4 67.3 SPN 704/FMI 5 ..................67-5...
Page 591 4. Start and bring engine up to operating temperature (over 140°F/60°C). 5. Verify operation is satisfactory and no warning lamps illuminate. If warning lamps illuminate, troubleshoot the codes. If assistance is required, call the Detroit Diesel Customer Support Center at 313–592–5800.
Page 592 4. Start and bring engine up to operating temperature (over 140°F/60°C). 5. Verify operation is satisfactory and no warning lamps illuminate. If warning lamps illuminate, troubleshoot the codes. If assistance is required, call the Detroit Diesel Customer Support Center at 313–592–5800.
Page 593 [a] If the resistance is less than 3 Ω, re-verify this procedure. If the results are the same contact the Detroit Diesel Customer Support Center (313–5925800). [b] If the resistance is greater than 3 Ω, repair the open circuit in the wire between pin 3 of the turbo actuator connector and pin 35 of the MCM 120–pin connector.
Page 594 4. Start and bring engine up to operating temperature (over 140°F/60°C). 5. Verify operation is satisfactory and no warning lamps illuminate. If warning lamps illuminate, troubleshoot the codes. If assistance is required, call the Detroit Diesel Customer Support Center at 313–592–5800.
Page 595: Spn 705/Fmi 3
SPN 705 (CPC) - MALFUNCTION INDICATOR LAMP Section Page 68.1 SPN 705/FMI 3 ..................68-3 68.2 SPN 705/FMI 4 ..................68-3...
Page 597 The CPC digital outputs have the same SPN as some MCM faults. DDDL 7.0 makes the distinction between the MCM and CPC when diagnosing a fault. All information subject to change without notice. 68-3 Copyright © 2007 DETROIT DIESEL CORPORATION...
Page 599: Spn 706/Fmi 3
SPN 706 (CPC) - ASG2 CHECK TRANS TEMP LAMP Section Page 69.1 SPN 706/FMI 3 ..................69-3 69.2 SPN 706/FMI 4 ..................69-3...
Page 601 The CPC digital outputs have the same SPN as some MCM faults. DDDL 7.0 makes the distinction between the MCM and CPC when diagnosing a fault. All information subject to change without notice. 69-3 Copyright © 2007 DETROIT DIESEL CORPORATION...
Page 603: Spn 707/Fmi 3
SPN 707 (CPC) - AMBER WARNING LAMP Section Page 70.1 SPN 707/FMI 3 ..................70-3 70.2 SPN 707/FMI 4 ..................70-3...
Page 605 The CPC digital outputs have the same SPN as some MCM faults. DDDL 7.0 makes the distinction between the MCM and CPC when diagnosing a fault. All information subject to change without notice. 70-3 Copyright © 2007 DETROIT DIESEL CORPORATION...
Page 607: Spn 708/Fmi 3
SPN 708 (CPC) - ASG2 CHECK TRANS LAMP Section Page 71.1 SPN 708/FMI 3 ..................71-3 71.2 SPN 708/FMI 4 ..................71-3...
Page 609 The CPC digital outputs have the same SPN as some MCM faults. DDDL 7.0 makes the distinction between the MCM and CPC when diagnosing a fault. All information subject to change without notice. 71-3 Copyright © 2007 DETROIT DIESEL CORPORATION...
Page 611: Spn 709/Fmi 3
SPN 709 (CPC) - RED STOP LAMP Section Page 72.1 SPN 709/FMI 3 ..................72-3 72.2 SPN 709/FMI 4 ..................72-3...
Page 613 The CPC digital outputs have the same SPN as some MCM faults. DDDL 7.0 makes the distinction between the MCM and CPC when diagnosing a fault. All information subject to change without notice. 72-3 Copyright © 2007 DETROIT DIESEL CORPORATION...
Page 615: Spn 711/Fmi 3
SPN 711 (CPC) - DPF REGEN LAMP Section Page 73.1 SPN 711/FMI 3 ..................73-3 73.2 SPN 711/FMI 4 ..................73-3...
Page 617 The CPC digital outputs have the same SPN as some MCM faults. DDDL 7.0 makes the distinction between the MCM and CPC when diagnosing a fault. All information subject to change without notice. 73-3 Copyright © 2007 DETROIT DIESEL CORPORATION...
Page 619: Spn 713/Fmi 3
SPN 713 (CPC) - TOP2 LOCKOUT SOLENOID Section Page 74.1 SPN 713/FMI 3 ..................74-3 74.2 SPN 713/FMI 4 ..................74-3 74.3 SPN 713/FMI 5 ..................74-3 74.4 SPN 713/FMI 7 ..................74-3...
Page 621 The CPC digital outputs have the same SPN as some MCM faults. DDDL 7.0 makes the distinction between the MCM and CPC when diagnosing a fault. All information subject to change without notice. 74-3 Copyright © 2007 DETROIT DIESEL CORPORATION...
Page 623: Spn 714/Fmi 3
SPN 714 (CPC) - TOP2 SHIFT SOLENOID Section Page 75.1 SPN 714/FMI 3 ..................75-3 75.2 SPN 714/FMI 4 ..................75-3 75.3 SPN 714/FMI 5 ..................75-3...
Page 625 The CPC digital outputs have the same SPN as some MCM faults. DDDL 7.0 makes the distinction between the MCM and CPC when diagnosing a fault. All information subject to change without notice. 75-3 Copyright © 2007 DETROIT DIESEL CORPORATION...
Page 627: Spn 715/Fmi 3
SPN 715 (CPC) - VEHICLE POWER SHUTDOWN Section Page 76.1 SPN 715/FMI 3 ..................76-3 76.2 SPN 715/FMI 4 ..................76-3 76.3 SPN 715/FMI 5 ..................76-3...
Page 629 The CPC digital outputs have the same SPN as some MCM faults. DDDL 7.0 makes the distinction between the MCM and CPC when diagnosing a fault. All information subject to change without notice. 76-3 Copyright © 2007 DETROIT DIESEL CORPORATION...
Page 631: Spn 723/Fmi 3
SPN 723 – CAMSHAFT POSITION SENSOR FAULT Section Page 77.1 SPN 723/FMI 3 ..................77-3 77.2 SPN 723/FMI 4 ..................77-5 77.3 SPN 723/FMI 8 ..................77-6 77.4 SPN 723/FMI 14 ..................77-7...
Page 633: Spn 723/Fmi 4
44 of the MCM 120 pin connector. Refer to section 77.1.1.1. [b] If the resistance is less than 5 Ω, go to step 6. All information subject to change without notice. 77-3 Copyright © 2007 DETROIT DIESEL CORPORATION...
Page 634 4. Start and bring engine up to operating temperature (over 140°F/60°C). 5. Verify operation is satisfactory and no warning lamps illuminate. If warning lamps illuminate, troubleshoot the codes. If assistance is required, call the Detroit Diesel Customer Support Center at 313–592–5800.
Page 635: Spn 723/Fmi 8
6. Measure the resistance between pin 1 of the CMP harness connector and ground. [a] If the resistance is greater than 5 Ω, go to step 7. All information subject to change without notice. 77-5 Copyright © 2007 DETROIT DIESEL CORPORATION...
Page 636 4. Start and bring engine up to operating temperature (over 140°F/60°C). 5. Verify operation is satisfactory and no warning lamps illuminate. If warning lamps illuminate, troubleshoot the codes. If assistance is required, call the Detroit Diesel Customer Support Center at 313–592–5800.
Page 637 4. Start and bring engine up to operating temperature (over 140°F/60°C). 5. Verify operation is satisfactory and no warning lamps illuminate. If warning lamps illuminate, troubleshoot the codes. If assistance is required, call the Detroit Diesel Customer Support Center at 313–592–5800.
Page 639: Spn 904/Fmi 9
SPN 904 (CPC) - J1939 EBC2 MESSAGE MISSING AND FRONT AXLE SPEED SIGNAL ERRATIC OR MISSING Section Page 78.1 SPN 904/FMI 9 ..................78-3 78.2 SPN 904/FMI 13 ..................78-3 78.3 SPN 904/FMI 19 ..................78-4...
Page 641 [b] If no, connect ServiceLink to determine which modules are conﬁgured for the vehicle and their communication status. Once this is done, follow the appropriate module communication troubleshooting procedures for the affected module. All information subject to change without notice. 78-3 Copyright © 2007 DETROIT DIESEL CORPORATION...
Page 642 [b] If no, connect ServiceLink to determine which modules are conﬁgured for the vehicle and their communication status. Once this is done, follow the appropriate module communication troubleshooting procedures for the affected module. All information subject to change without notice. 78-4 Copyright © 2007 DETROIT DIESEL CORPORATION...
Page 643: Spn 973/Fmi 9
SPN 973 (CPC) - J1939 EBC1 MESSAGE MISSING AND ENGINE RETARDER SELECTION SIGNAL IS ERRATIC OR MISSSING Section Page 79.1 SPN 973/FMI 9 ..................79-3 79.2 SPN 973/FMI 13 ..................79-3 79.3 SPN 973/FMI 19 ..................79-4...
Page 645 [b] If no, connect ServiceLink to determine which modules are conﬁgured for the vehicle and their communication status. Once this is done, follow the appropriate module communication troubleshooting procedures for the affected module. All information subject to change without notice. 79-3 Copyright © 2007 DETROIT DIESEL CORPORATION...
Page 646 [b] If no, connect ServiceLink to determine which modules are conﬁgured for the vehicle and their communication status. Once this is done, follow the appropriate module communication troubleshooting procedures for the affected module. All information subject to change without notice. 79-4 Copyright © 2007 DETROIT DIESEL CORPORATION...
Page 647: Spn 986/Fmi 9
SPN 986 (CPC) - J1939 CM1 MESSAGE IS MISSING Section Page 80.1 SPN 986/FMI 9 ..................80-3...
Page 649 [b] If no, connect ServiceLink to determine which modules are conﬁgured for the vehicle and their communication status. Once this is done, follow the appropriate module communication troubleshooting procedures for the affected module. All information subject to change without notice. 80-3 Copyright © 2007 DETROIT DIESEL CORPORATION...
Page 651: Spn 1071/Fmi 3
SPN 1071 - TWO-SPEED FAN (AUX PWM #6) FAULT Section Page 81.1 SPN 1071/FMI 3 ..................81-3 81.2 SPN 1071/FMI 4 ..................81-4 81.3 SPN 1071/FMI 5 ..................81-5...
Page 653: Spn 1071/Fmi 4
4. Start and bring engine up to operating temperature (over 140°F/60°C). 5. Verify operation is satisfactory and no warning lamps illuminate. If warning lamps illuminate, troubleshoot the codes. If assistance is required, call the Detroit Diesel Customer Support Center at 313–592–5800.
Page 654 4. Start and bring engine up to operating temperature (over 140°F/60°C). 5. Verify operation is satisfactory and no warning lamps illuminate. If warning lamps illuminate, troubleshoot the codes. If assistance is required, call the Detroit Diesel Customer Support Center at 313–592–5800.
Page 655 4. Start and bring engine up to operating temperature (over 140°F/60°C). 5. Verify operation is satisfactory and no warning lamps illuminate. If warning lamps illuminate, troubleshoot the codes. If assistance is required, call the Detroit Diesel Customer Support Center at 313–592–5800.
Page 657: Spn 1072/Fmi 4
SPN 1072 – JAKE BRAKES STAGE 1 (AUX PWM #7) OPEN OR SHORT Section Page 82.1 SPN 1072/FMI 4 ..................82-3 82.2 SPN 1072/FMI 5 ..................82-4...
Page 659: Spn 1072/Fmi 5
4. Start and bring engine up to operating temperature (over 140°F/60°C). 5. Verify operation is satisfactory and no warning lamps illuminate. If warning lamps illuminate, troubleshoot the codes. If assistance is required, call the Detroit Diesel Customer Support Center at 313–592–5800.
Page 660 4. Start and bring engine up to operating temperature (over 140°F/60°C). 5. Verify operation is satisfactory and no warning lamps illuminate. If warning lamps illuminate, troubleshoot the codes. If assistance is required, call the Detroit Diesel Customer Support Center at 313–592–5800.
Page 661: Spn 1073/Fmi 4
SPN 1073 – JAKE BRAKE STAGE 2 (AUX PWM #13) OPEN OR SHORT Section Page 83.1 SPN 1073/FMI 4 ..................83-3 83.2 SPN 1073/FMI 5 ..................83-4...
Page 663: Spn 1073/Fmi 5
4. Start and bring engine up to operating temperature (over 140°F/60°C). 5. Verify operation is satisfactory and no warning lamps illuminate. If warning lamps illuminate, troubleshoot the codes. If assistance is required, call the Detroit Diesel Customer Support Center at 313–592–5800.
Page 664 4. Start and bring engine up to operating temperature (over 140°F/60°C). 5. Verify operation is satisfactory and no warning lamps illuminate. If warning lamps illuminate, troubleshoot the codes. If assistance is required, call the Detroit Diesel Customer Support Center at 313–592–5800.
Page 665: Spn 1172/Fmi 4
SPN 1172 -TURBO COMPRESSOR IN TEMP HIGH OR LOW Section Page 84.1 SPN 1172/FMI 2 ..................84-3 84.2 SPN 1172/FMI 3 ..................84-3 84.3 SPN 1172/FMI 4 ..................84-6...
Page 667 4. Start and bring engine up to operating temperature (over 140°F/60°C). 5. Verify operation is satisfactory and no warning lamps illuminate. If warning lamps illuminate, troubleshoot the codes. If assistance is required, call the Detroit Diesel Customer Support Center at 313–592–5800.
Page 668 [b] If the voltage is greater than 2.75 volts, repair the open between pin 1 of the Turbo Compressor Inlet Temperature Sensor and pin 86 of the 120–pin MCM connector. Refer to section 84.2.1.1. All information subject to change without notice. 84-4 Copyright © 2007 DETROIT DIESEL CORPORATION...
Page 669 4. Start and bring engine up to operating temperature (over 140°F/60°C). 5. Verify operation is satisfactory and no warning lamps illuminate. If warning lamps illuminate, troubleshoot the codes. If assistance is required, call the Detroit Diesel Customer Support Center at 313–592–5800.
Page 670 4. Start and bring engine up to operating temperature (over 140°F/60°C). 5. Verify operation is satisfactory and no warning lamps illuminate. If warning lamps illuminate, troubleshoot the codes. If assistance is required, call the Detroit Diesel Customer Support Center at 313–592–5800.
Page 671: Spn 1590/Fmi 9
SPN 1590 (CPC) - J1939 ACC1 MESSAGE FROM ADAPTIVE CRUISE CONTROL IS MISSING Section Page 85.1 SPN 1590/FMI 9 ..................85-3...
Page 673 [b] If no, connect ServiceLink to determine which modules are conﬁgured for the vehicle and their communication status. Once this is done, follow the appropriate module communication troubleshooting procedures for the affected module. All information subject to change without notice. 85-3 Copyright © 2007 DETROIT DIESEL CORPORATION...
Page 675: Spn 1624/Fmi 9
SPN 1624 (CPC) - J1939 TCO1 MESSAGE IS MISSING AND TACHOGRAPH VEHICLE SPEED SIGNAL IS ERRATIC AND MISSING Section Page 86.1 SPN 1624/FMI 9 ..................86-3 86.2 SPN 1624/FMI 13 ..................86-3 86.3 SPN 1624/FMI 19 ..................86-4...
Page 677 [b] If no, connect ServiceLink to determine which modules are conﬁgured for the vehicle and their communication status. Once this is done, follow the appropriate module communication troubleshooting procedures for the affected module. All information subject to change without notice. 86-3 Copyright © 2007 DETROIT DIESEL CORPORATION...
Page 678 [b] If no, connect ServiceLink to determine which modules are conﬁgured for the vehicle and their communication status. Once this is done, follow the appropriate module communication troubleshooting procedures for the affected module. All information subject to change without notice. 86-4 Copyright © 2007 DETROIT DIESEL CORPORATION...
Page 679 SPN 1636 – INTAKE AIR TEMPERATURE OUTSIDE OF NORMAL OPERATING RANGE Section Page 87.1 SPN 1636/FMI 3 ..................87-3 87.2 SPN 1636/FMI 4 ..................87-5 87.3 SPN 1636/FMI 20 ..................87-6 87.4 SPN 1636/FMI 21 ..................87-7 87.5 SPN 1636/FMI 31 ..................87-8...
Page 681: Spn 1636/Fmi 3
Intake Air Temperature Sensor Wiring [b] If the resistance is less than 4k Ω, go to step 6. 6. Turn the ignition switch to the ON position. All information subject to change without notice. 87-3 Copyright © 2007 DETROIT DIESEL CORPORATION...
Page 682 4. Start and bring engine up to operating temperature (over 140°F/60°C). 5. Verify operation is satisfactory and no warning lamps illuminate. If warning lamps illuminate, troubleshoot the codes. If assistance is required, call the Detroit Diesel Customer Support Center at 313–592–5800.
Page 683: Spn 1636/Fmi 4
4. Start and bring engine up to operating temperature (over 140°F/60°C). 5. Verify operation is satisfactory and no warning lamps illuminate. If warning lamps illuminate, troubleshoot the codes. If assistance is required, call the Detroit Diesel Customer Support Center at 313–592–5800.
Page 684: Spn 1636/Fmi 20
4. Start and bring engine up to operating temperature (over 140°F/60°C). 5. Verify operation is satisfactory and no warning lamps illuminate. If warning lamps illuminate, troubleshoot the codes. If assistance is required, call the Detroit Diesel Customer Support Center at 313–592–5800.
Page 685: Spn 1636/Fmi 21
4. Start and bring engine up to operating temperature (over 140°F/60°C). 5. Verify operation is satisfactory and no warning lamps illuminate. If warning lamps illuminate, troubleshoot the codes. If assistance is required, call the Detroit Diesel Customer Support Center at 313–592–5800.
Page 686: Spn 1636/Fmi 31
4. Start and bring engine up to operating temperature (over 140°F/60°C). 5. Verify operation is satisfactory and no warning lamps illuminate. If warning lamps illuminate, troubleshoot the codes. If assistance is required, call the Detroit Diesel Customer Support Center at 313–592–5800.
Page 687: Spn 1716/Fmi 9
SPN 1716 (CPC) - J1939 ERC1 MESSAGE IS MISSING Section Page 88.1 SPN 1716/FMI 9 ..................88-3...
Page 689 [b] If no, connect ServiceLink to determine which modules are conﬁgured for the vehicle and their communication status. Once this is done, follow the appropriate module communication troubleshooting procedures for the affected module. All information subject to change without notice. 88-3 Copyright © 2007 DETROIT DIESEL CORPORATION...
Page 691: Spn 1845/Fmi 9
SPN 1845 (CPC) - J1939 TCFG2 MESSAGE IS MISSING Section Page 89.1 SPN 1845/FMI 9 ..................89-3...
Page 693 [b] If no, connect ServiceLink to determine which modules are conﬁgured for the vehicle and their communication status. Once this is done, follow the appropriate module communication troubleshooting procedures for the affected module. All information subject to change without notice. 89-3 Copyright © 2007 DETROIT DIESEL CORPORATION...
Page 695: Spn 2623/Fmi 4
SPN 2623 (CPC) - PWM ACCELERATOR PEDAL GAS1 AND GAS2 SIGNAL MISSING Section Page 90.1 SPN 2623/FMI 4 ..................90-3 90.2 SPN 2623/FMI 14 ..................90-3...
Page 697 [b] If no, connect ServiceLink to determine which modules are conﬁgured for the vehicle and their communication status. Once this is done, follow the appropriate module communication troubleshooting procedures for the affected module. All information subject to change without notice. 90-3 Copyright © 2007 DETROIT DIESEL CORPORATION...
Page 699: Spn 2629/Fmi 3
SPN 2629 - TURBO COMPRESSOR OUT TEMP HIGH OR LOW Section Page 91.1 SPN 2629/FMI 3 ..................91-3 91.2 SPN 2629/FMI 4 ..................91-6 91.3 SPN 2629/FMI 20 ..................91-7 91.4 SPN 2629/FMI 21 ..................91-8...
Page 701 6. Measure the resistance across pins 1 and 2 of the TCO Sensor. [a] If the resistance is not within the range listed in Table 91-1, replace the TCO Sensor. Refer to section 91.1.1.1 All information subject to change without notice. 91-3 Copyright © 2007 DETROIT DIESEL CORPORATION...
Page 702: Spn 2629/Fmi 4
TCO Sensor harness connector and pin 52 of the 120–pin MCM connector. See Figure 91-1. Refer to section 91.1.1.1. Figure 91-1 Turbo Compressor Outlet Temperature Sensor All information subject to change without notice. 91-4 Copyright © 2007 DETROIT DIESEL CORPORATION...
Page 703 4. Start and bring engine up to operating temperature (over 140°F/60°C). 5. Verify operation is satisfactory and no warning lamps illuminate. If warning lamps illuminate, troubleshoot the codes. If assistance is required, call the Detroit Diesel Customer Support Center at 313–592–5800.
Page 704 [a] If the resistance is less than 5k Ω, repair the short circuit between pin 2 of the TCO Sensor connector and ground. Refer to section 91.2.1.1. [b] If the resistance is greater than 5k Ω, contact the Detroit Diesel Customer Support Center (313–592–5800) for authorization to replace the MCM.
Page 705 4. Start and bring engine up to operating temperature (over 140°F/60°C). 5. Verify operation is satisfactory and no warning lamps illuminate. If warning lamps illuminate, troubleshoot the codes. If assistance is required, call the Detroit Diesel Customer Support Center at 313–592–5800.
Page 706 [a] Inspect the connectors for damage, corrosion, spread or bent pins. Repair if necessary. Refer to section 91.4.1.1. [b] If the connectors are OK, replace the Turbo Out Temperature Sensor. Refer to section 91.4.1.1. All information subject to change without notice. 91-8 Copyright © 2007 DETROIT DIESEL CORPORATION...
Page 707 4. Start and bring engine up to operating temperature (over 140°F/60°C). 5. Verify operation is satisfactory and no warning lamps illuminate. If warning lamps illuminate, troubleshoot the codes. If assistance is required, call the Detroit Diesel Customer Support Center at 313–592–5800.
Page 709: Spn 2659/Fmi 1
SPN 2659 - EGR FLOW NOT NORMAL Section Page 92.1 SPN 2659/FMI 0 ..................92-3 92.2 SPN 2659/FMI 1 ..................92-4...
Page 711 4. Start and bring engine up to operating temperature (over 140°F/60°C). 5. Verify operation is satisfactory and no warning lamps illuminate. If warning lamps illuminate, troubleshoot the codes. If assistance is required, call the Detroit Diesel Customer Support Center at 313–592–5800.
Page 712 4. Start and bring engine up to operating temperature (over 140°F/60°C). 5. Verify operation is satisfactory and no warning lamps illuminate. If warning lamps illuminate, troubleshoot the codes. If assistance is required, call the Detroit Diesel Customer Support Center at 313–592–5800.
Page 713: Spn 2791/Fmi 7
SPN 2791 – EGR VALVE (AUX PWM #1) FAILED OR OPEN CIRCUIT Section Page 93.1 SPN 2791/FMI 3 ..................93-3 93.2 SPN 2791/FMI 4 ..................93-4 93.3 SPN 2791/FMI 5 ..................93-4 93.4 SPN 2791/FMI 7 ..................93-6...
Page 715 4. Start and bring engine up to operating temperature (over 140°F/60°C). 5. Verify operation is satisfactory and no warning lamps illuminate. If warning lamps illuminate, troubleshoot the codes. If assistance is required, call the Detroit Diesel Customer Support Center at 313–592–5800.
Page 716 4. Start and bring engine up to operating temperature (over 140°F/60°C). 5. Verify operation is satisfactory and no warning lamps illuminate. If warning lamps illuminate, troubleshoot the codes. If assistance is required, call the Detroit Diesel Customer Support Center at 313–592–5800.
Page 717 4. Start and bring engine up to operating temperature (over 140°F/60°C). 5. Verify operation is satisfactory and no warning lamps illuminate. If warning lamps illuminate, troubleshoot the codes. If assistance is required, call the Detroit Diesel Customer Support Center at 313–592–5800.
Page 718 7. Inspect the connector for bent, spread or corroded pins. [a] If connector damage is found, repair as necessary. Refer to section 93.4.1.1. [b] If no damage is found, contact the Detroit Diesel Customer Support Center at 313–592–5800 for further assistance.
Page 719: Spn 2795/Fmi 9
SPN 2795 - CAN COMMUNICATION ERROR Section Page 94.1 SPN 2795/FMI 9 ..................94-3...
Page 721 [b] If the resistance is less than 5 Ω, go to step 10. 10. Measure the resistance between pin 4 of the turbo actuator connector and pin 75 of the MCM 120–pin connector. All information subject to change without notice. 94-3 Copyright © 2007 DETROIT DIESEL CORPORATION...
Page 722 4. Start and bring engine up to operating temperature (over 140°F/60°C). 5. Verify operation is satisfactory and no warning lamps illuminate. If warning lamps illuminate, troubleshoot the codes. If assistance is required, call the Detroit Diesel Customer Support Center at 313–592–5800.
Page 723: Spn 2797/Fmi 5
SPN 2797 - INJECTOR #1, 2, OR 3 NEEDLE OR SPILL CONTROL VALVE NOT OPERATING NORMALLY Section Page 95.1 SPN 2797/FMI 3 ..................95-3 95.2 SPN 2797/FMI 4 ..................95-4 95.3 SPN 2797/FMI 5 ..................95-6 95.4 SPN 2797/FMI 6 ..................95-7...
Page 725: Spn 2797/Fmi 6
4. Start and bring engine up to operating temperature (over 140°F/60°C). 5. Verify operation is satisfactory and no warning lamps illuminate. If warning lamps illuminate, troubleshoot the codes. If assistance is required, call the Detroit Diesel Customer Support Center at 313–592–5800.
Page 726 [b] If the resistance is less than 3 Ω, replace the under valve cover Injector Harness. Refer to section 95.2.1.1. 11. Disconnect the 120–pin MCM connector. All information subject to change without notice. 95-4 Copyright © 2007 DETROIT DIESEL CORPORATION...
Page 727 MCM 120–pin connector and pin 10 of the Front Injector Harness 12–pin connector. Refer to section 95.2.1.1. [b] If the resistance is greater than 3 Ω, call the Detroit Diesel Customer Support Center at 313–592–5800 for MCM replacement authorization. 95.2.1.1...
Page 728 4. Start and bring engine up to operating temperature (over 140°F/60°C). 5. Verify operation is satisfactory and no warning lamps illuminate. If warning lamps illuminate, troubleshoot the codes. If assistance is required, call the Detroit Diesel Customer Support Center at 313–592–5800.
Page 729 [b] If the resistance is less than 3 Ω, replace the under valve cover Injector Harness. Refer to section 95.4.1.1. 11. Disconnect the 120–pin MCM connector. All information subject to change without notice. 95-7 Copyright © 2007 DETROIT DIESEL CORPORATION...
Page 730 MCM 120–pin connector and pin 9 of the Front Injector Harness 12–pin connector. Refer to section 95.4.1.1. [b] If the resistance is greater than 3 Ω, call the Detroit Diesel Customer Support Center at 313–592–5800 for MCM replacement authorization. 95.4.1.1...
Page 731: Spn 2798/Fmi 5
SPN 2798 - INJECTOR #4, 5, OR 6 NEEDLE OR SPILL CONTROL VALVE NOT OPERATING NORMALLY Section Page 96.1 SPN 2798/FMI 3 ..................96-3 96.2 SPN 2798/FMI 4 ..................96-4 96.3 SPN 2798/FMI 5 ..................96-6 96.4 SPN 2798/FMI 6 ..................96-7...
Page 733: Spn 2798/Fmi 6
4. Start and bring engine up to operating temperature (over 140°F/60°C). 5. Verify operation is satisfactory and no warning lamps illuminate. If warning lamps illuminate, troubleshoot the codes. If assistance is required, call the Detroit Diesel Customer Support Center at 313–592–5800.
Page 734 10. Measure the resistance between pin 5 on the valve cover side of the Rear Injector Harness 12–pin connector and ground. If you are using J-48671–10, measure between injector #5 pin 1 and ground. All information subject to change without notice. 96-4 Copyright © 2007 DETROIT DIESEL CORPORATION...
Page 735 MCM 120–pin connector and pin 10 of the Rear Injector Harness 12–pin connector. Refer to section 96.2.1.1. [b] If the resistance is greater than 3 Ω, call the Detroit Diesel Customer Support Center at 313–592–5800 for MCM replacement authorization. 96.2.1.1...
Page 736 4. Start and bring engine up to operating temperature (over 140°F/60°C). 5. Verify operation is satisfactory and no warning lamps illuminate. If warning lamps illuminate, troubleshoot the codes. If assistance is required, call the Detroit Diesel Customer Support Center at 313–592–5800.
Page 737 [a] If the resistance is greater than 3 Ω, replace injector #4. Refer to section 96.4.1.1. [b] If the resistance is less than 3 Ω, go to step 9. 9. Disconnect injector #5. All information subject to change without notice. 96-7 Copyright © 2007 DETROIT DIESEL CORPORATION...
Page 738 16. Measure the resistance between pin 11 of the Rear Injector Harness 12–pin connector and ground. [a] If the resistance is greater than 3 Ω, call the Detroit Diesel Customer Support Center at 313–592–5800 for MCM replacement authorization. [b] If the resistance is less than 3 Ω, repair the short to ground between pin 9 of the MCM 120–pin connector and pin 11 of the Rear Injector Harness 12–pin connector.
Page 739 4. Start and bring engine up to operating temperature (over 140°F/60°C). 5. Verify operation is satisfactory and no warning lamps illuminate. If warning lamps illuminate, troubleshoot the codes. If assistance is required, call the Detroit Diesel Customer Support Center at 313–592–5800.
Page 741: Spn 2900/Fmi 9
SPN 2900 (CPC) - J1939 ETC7 MESSAGE IS MISSING Section Page 97.1 SPN 2900/FMI 9 ..................97-3...
Page 743 [b] If no, connect ServiceLink to determine which modules are conﬁgured for the vehicle and their communication status. Once this is done, follow the appropriate module communication troubleshooting procedures for the affected module. All information subject to change without notice. 97-3 Copyright © 2007 DETROIT DIESEL CORPORATION...
Page 745 SPN 3050 - ENGINE AIR FLOW ABOVE OR BELOW NORMAL OPERATING RANGE Section Page 98.1 SPN 3050 ....................98-3...
Page 747 SERIES 60 DDEC VI TROUBLESHOOTING GUIDE 98.1 SPN 3050 The troubleshooting procedures for this SPN can be found in the Aftertreatment System Technician's Guide (7SE63). All information subject to change without notice. 98-3 Copyright © 2007 DETROIT DIESEL CORPORATION...
Page 749 SPN 3242 - DOC INLET TEMPERATURE SENSOR ABOVE OR BELOW NORMAL OPERATING RANGE Section Page 99.1 SPN 3242/FMI 2, 3, 4 OR 10 ..............99-3...
Page 751 99.1 SPN 3242/FMI 2, 3, 4 OR 10 The troubleshooting procedures for this SPN can be found in the Aftertreatment System Technician's Guide (7SE63), refer to Chapter 9. All information subject to change without notice. 99-3 Copyright © 2007 DETROIT DIESEL CORPORATION...
Page 753 SPN 3246 - DPF OUTLET TEMPERATURE SENSOR OPERATING ABOVE OR BELOW NORMAL Section Page 100.1 SPN 3246/FMI 0, 2, 3, 4, 10, 14, 31 ............100-3...
Page 755 100.1 SPN 3246/FMI 0, 2, 3, 4, 10, 14, 31 The troubleshooting procedures for this SPN can be found in the Aftertreatment System Technician's Guide (7SE63), refer to Chapter 10. All information subject to change without notice. 100-3 Copyright © 2007 DETROIT DIESEL CORPORATION...
Page 757 SPN 3250 - DPF INLET TEMPERATURE SENSOR ABOVE OR BELOW NORMAL OPERATING RANGE Section Page 101.1 SPN 3250/FMI 0, 2, 3, 4, 10, 14, 31 ............101-3...
Page 759 101.1 SPN 3250/FMI 0, 2, 3, 4, 10, 14, 31 The troubleshooting procedures for this SPN can be found in the Aftertreatment System Technician's Guide (7SE63), refer to Chapter 11. All information subject to change without notice. 101-3 Copyright © 2007 DETROIT DIESEL CORPORATION...
Page 761 SPN 3251 - DPF OUTLET PRESSURE ABOVE OR BELOW NORMAL OPERATING RANGE Section Page 102.1 SPN 3251/FMI 0, 1 OR 16 ............... 102-3...
Page 763 102.1 SPN 3251/FMI 0, 1 OR 16 The troubleshooting procedures for this SPN can be found in the Aftertreatment System Technician's Guide (7SE63), refer to Chapter 12. All information subject to change without notice. 102-3 Copyright © 2007 DETROIT DIESEL CORPORATION...
Page 765 SPN 3471 - ELECTRONIC DOSING VALVE SENSOR ABOVE OR BELOW NORMAL OPERATING RANGE Section Page 103.1 SPN 3471/FMI 1, 3, 4 OR 5 ..............103-3...
Page 767 103.1 SPN 3471/FMI 1, 3, 4 OR 5 The troubleshooting procedures for this SPN can be found in the Aftertreatment System Technician's Guide (7SE63), refer to Chapter 13. All information subject to change without notice. 103-3 Copyright © 2007 DETROIT DIESEL CORPORATION...
Page 769 SPN 3480 - FUEL LINE PRESSURE SENSOR ABOVE OR BELOW NORMAL OPERATING RANGE Section Page 104.1 SPN 3480/FMI 1, 2 OR 14 ............... 104-3...
Page 771 104.1 SPN 3480/FMI 1, 2 OR 14 The troubleshooting procedures for this SPN can be found in the Aftertreatment System Technician's Guide (7SE63), refer to Chapter 14. All information subject to change without notice. 104-3 Copyright © 2007 DETROIT DIESEL CORPORATION...
Page 773 SPN 3482 - FUEL CUTOFF VALVE SENSOR ABOVE OR BELOW NORMAL OPERATING RANGE Section Page 105.1 SPN 3482/FMI 3, 4, 5 OR 7 ..............105-3...
Page 775 105.1 SPN 3482/FMI 3, 4, 5 OR 7 The troubleshooting procedures for this SPN can be found in the Aftertreatment System Technician's Guide (7SE63), refer to Chapter 15. All information subject to change without notice. 105-3 Copyright © 2007 DETROIT DIESEL CORPORATION...
Page 777 SPN 3509 - MULTIPLEXER 1 CHANNEL 1 OR 2 SHORT OR OPEN CIRCUIT HIGH Section Page 106.1 SPN 3509/FMI 3 ..................106-3...
Page 779 Inlet Temperature Sensor exceeds 2.97 volts, which may be caused by a short circuit, or more likely an open circuit. This is an information code only indicating a default value will be used for the sensor input. All information subject to change without notice. 106-3 Copyright © 2007 DETROIT DIESEL CORPORATION...
Page 781: Spn 3510/Fmi 2
SPN 3510 - MULTIPLEXER 2 CHANNEL 1 OR 2 SHORT OR OPEN CIRCUIT HIGH Section Page 107.1 SPN 3510/FMI 3 ..................107-3...
Page 783 This is an information code only indicating a default value will be used for the other sensor inputs. All information subject to change without notice. 107-3 Copyright © 2007 DETROIT DIESEL CORPORATION...
Page 785 SPN 3510 – ACCELERATOR PEDAL SUPPLY OUTSIDE OF NORMAL OPERATING RANGE Section Page 108.1 SPN 3510/FMI 2 ..................108-3 108.2 SPN 3510/FMI 3 ..................108-5 108.3 SPN 3510/FMI 4 ..................108-6...
Page 787 [b] If the voltage is less than 4.5, repair the open circuit between pin 1 of the AP harness connector and pin 8 of the CPC #1 connector. Refer to section 108.1.1.1. 5. Turn the ignition OFF. 6. Disconnect the CPC #1 connector. All information subject to change without notice. 108-3 Copyright © 2007 DETROIT DIESEL CORPORATION...
Page 788 4. Start and bring engine up to operating temperature (over 140°F/60°C). 5. Verify operation is satisfactory and no warning lamps illuminate. If warning lamps illuminate, troubleshoot the codes. If assistance is required, call the Detroit Diesel Customer Support Center at 313–592–5800.
Page 789 4. Start and bring engine up to operating temperature (over 140°F/60°C). 5. Verify operation is satisfactory and no warning lamps illuminate. If warning lamps illuminate, troubleshoot the codes. If assistance is required, call the Detroit Diesel Customer Support Center at 313–592–5800.
Page 790 [a] If the resistance is less than 5 Ω, repair the short circuit between pin 2 of the AP connector and ground. Refer to section 108.3.1.1. [b] If the resistance is greater than 5 Ω, replace the Accelerator Pedal. Refer to section 108.3.1.1. All information subject to change without notice. 108-6 Copyright © 2007 DETROIT DIESEL CORPORATION...
Page 791 4. Start and bring engine up to operating temperature (over 140°F/60°C). 5. Verify operation is satisfactory and no warning lamps illuminate. If warning lamps illuminate, troubleshoot the codes. If assistance is required, call the Detroit Diesel Customer Support Center at 313–592–5800.
Page 793 SPN 3511 - MULTIPLEXER 3 CHANNEL 1 0R 2 SHORT OR OPEN CIRCUIT HIGH Section Page 109.1 SPN 3511/FMI 3 ..................109-3...
Page 795 Sensor exceeds 2.97 volts, which may be caused by a short circuit, or more likely an open circuit. This is an information code only indicating a default value will be used for the sensor input. All information subject to change without notice. 109-3 Copyright © 2007 DETROIT DIESEL CORPORATION...
Page 797: Spn 3556/Fmi 0 Or 1
SPN 3556 - ELECTRONIC DOSING VALVE ABOVE OR BELOW NORMAL OPERATING RANGE Section Page 110.1 SPN 3556/FMI 0 OR 1 ................110-3...
Page 799 110.1 SPN 3556/FMI 0 OR 1 The troubleshooting procedures for this SPN can be found in the Aftertreatment System Technician's Guide (7SE63), refer to Chapter 16. All information subject to change without notice. 110-3 Copyright © 2007 DETROIT DIESEL CORPORATION...
Page 801: Spn 3563/Fmi 0
SPN 3563– INTAKE MANIFOLD PRESSURE OUTSIDE NORMAL RANGE Section Page 111.1 SPN 3563/FMI 0 ..................111-3 111.2 SPN 3563/FMI 1 ..................111-4 111.3 SPN 3563/FMI 3 ..................111-5 111.4 SPN 3563/FMI 4 ..................111-6 111.5 SPN 3563/FMI 20 ..................111-8 111.6 SPN 3563/FMI 21 ..................
Page 803: Spn 3563/Fmi 1
4. Start and bring engine up to operating temperature (over 140°F/60°C). 5. Verify operation is satisfactory and no warning lamps illuminate. If warning lamps illuminate, troubleshoot the codes. If assistance is required, call the Detroit Diesel Customer Support Center at 313–592–5800.
Page 804: Spn 3563/Fmi 4
4. Start and bring engine up to operating temperature (over 140°F/60°C). 5. Verify operation is satisfactory and no warning lamps illuminate. If warning lamps illuminate, troubleshoot the codes. If assistance is required, call the Detroit Diesel Customer Support Center at 313–592–5800.
Page 805 4. Start and bring engine up to operating temperature (over 140°F/60°C). 5. Verify operation is satisfactory and no warning lamps illuminate. If warning lamps illuminate, troubleshoot the codes. If assistance is required, call the Detroit Diesel Customer Support Center at 313–592–5800.
Page 806 [a] If the voltage is between 4.5 and 5.5 volts, repair the open circuit between pin 1 of the IMP Sensor harness connector and pin 105 of the 120–pin MCM connector. Refer to section 111.4.1.1. All information subject to change without notice. 111-6 Copyright © 2007 DETROIT DIESEL CORPORATION...
Page 807 4. Start and bring engine up to operating temperature (over 140°F/60°C). 5. Verify operation is satisfactory and no warning lamps illuminate. If warning lamps illuminate, troubleshoot the codes. If assistance is required, call the Detroit Diesel Customer Support Center at 313–592–5800.
Page 808 [a] If the barometric pressure is within range for your altitude, go to step 6. [b] If the barometric pressure is not within range for your altitude, contact the Detroit Diesel Customer Support Center at 313–592–5800 for MCM replacement authorization.
Page 809 8200 2485 74.4 8400 2545 73.8 8600 2606 73.3 8800 2667 72.7 9000 2727 72.2 9200 2788 71.6 9400 2848 71.1 9600 2909 70.6 9800 2970 All information subject to change without notice. 111-9 Copyright © 2007 DETROIT DIESEL CORPORATION...
Page 810: Spn 3563/Fmi 21
7. Inspect the Intake Manifold Pressure Sensor connector for bent, spread or corroded pins. [a] If damage is found, repair the connector as necessary. Refer to section 111.5.1.1. All information subject to change without notice. 111-10 Copyright © 2007 DETROIT DIESEL CORPORATION...
Page 811 4. Start and bring engine up to operating temperature (over 140°F/60°C). 5. Verify operation is satisfactory and no warning lamps illuminate. If warning lamps illuminate, troubleshoot the codes. If assistance is required, call the Detroit Diesel Customer Support Center at 313–592–5800.
Page 812 [a] If the barometric pressure is within range for your altitude, go to step 6. [b] If the barometric pressure is not within range for your altitude, contact the Detroit Diesel Customer Support Center at 313–592–5800 for MCM replacement authorization.
Page 813 8200 2485 74.4 8400 2545 73.8 8600 2606 73.3 8800 2667 72.7 9000 2727 72.2 9200 2788 71.6 9400 2848 71.1 9600 2909 70.6 9800 2970 All information subject to change without notice. 111-13 Copyright © 2007 DETROIT DIESEL CORPORATION...
Page 814 7. Inspect the Intake Manifold Pressure Sensor connector for bent, spread or corroded pins. [a] If damage is found, repair the connector as necessary. Refer to section 111.6.1.1. All information subject to change without notice. 111-14 Copyright © 2007 DETROIT DIESEL CORPORATION...
Page 815 4. Start and bring engine up to operating temperature (over 140°F/60°C). 5. Verify operation is satisfactory and no warning lamps illuminate. If warning lamps illuminate, troubleshoot the codes. If assistance is required, call the Detroit Diesel Customer Support Center at 313–592–5800.
Page 817: Spn 3588/Fmi 3
SPN 3588 - ETHER START (LOW-SIDE DIGITAL OUTPUT #8) FAULT Section Page 112.1 SPN 3588/FMI 3 ..................112-3 112.2 SPN 3588/FMI 4 ..................112-4 112.3 SPN 3588/FMI 5 ..................112-5...
Page 819: Spn 3588/Fmi 4
70 of the 120–pin MCM connector. Refer to section 112.1.1.1. [b] If the voltage is less than 4.5 volts, go to step 5. 5. Review steps 1 through 4. If the results are the same, contact the Detroit Diesel Customer Support Center (313–592–5800).
Page 820 4. Start and bring engine up to operating temperature (over 140°F/60°C). 5. Verify operation is satisfactory and no warning lamps illuminate. If warning lamps illuminate, troubleshoot the codes. If assistance is required, call the Detroit Diesel Customer Support Center at 313–592–5800.
Page 821 4. Start and bring engine up to operating temperature (over 140°F/60°C). 5. Verify operation is satisfactory and no warning lamps illuminate. If warning lamps illuminate, troubleshoot the codes. If assistance is required, call the Detroit Diesel Customer Support Center at 313–592–5800.
Page 823 SPN 3597 - PROPORTIONAL VALVE BANK 1 CIRCUIT Section Page 113.1 SPN 3597/FMI 3 ..................113-3...
Page 825 [b] If the resistance is greater than 5 Ω, go to step 16. 16. Measure the resistance between pin 93 of the MCM 120–pin connector and ground. All information subject to change without notice. 113-3 Copyright © 2007 DETROIT DIESEL CORPORATION...
Page 826 MCM 120–pin connector and the rear injector valve cover connector, turbo actuator connector and or fan control solenoid. Refer to section 113.1.1.1. [b] If the resistance is greater than 5 Ω, contact the Detroit Diesel Customer Support Center at 313–592–5800 for MCM replacement.
Page 827 SPN 3603 (CPC) - J1939 ESS MESSAGE IS MISSING Section Page 114.1 SPN 3603/FMI 9 ..................114-3...
Page 829 [b] If no, connect ServiceLink to determine which modules are conﬁgured for the vehicle and their communication status. Once this is done, follow the appropriate module communication troubleshooting procedures for the affected module. All information subject to change without notice. 114-3 Copyright © 2007 DETROIT DIESEL CORPORATION...
Page 831 SPN 3609 - DPF INLET PRESSURE SENSOR ABOVE OR BELOW NORMAL OPERATING RANGE Section Page 115.1 SPN 3609FMI 2, 3, 4, 10, 20 OR 21 ............115-3...
Page 833 115.1 SPN 3609FMI 2, 3, 4, 10, 20 OR 21 The troubleshooting procedures for this SPN can be found in the Aftertreatment System Technician's Guide (7SE63), refer to Chapter 17. All information subject to change without notice. 115-3 Copyright © 2007 DETROIT DIESEL CORPORATION...
Page 835 SPN 3610 - DPF OUTLET PRESSURE SENSOR ABOVE OR BELOW NORMAL OPERATING RANGE Section Page 116.1 SPN 3610/FMI 2, 3, 4, 14, 20 OR 21 ............116-3...
Page 837 116.1 SPN 3610/FMI 2, 3, 4, 14, 20 OR 21 The troubleshooting procedures for this SPN can be found in the Aftertreatment System Technician's Guide (7SE63), refer to Chapter 18. All information subject to change without notice. 116-3 Copyright © 2007 DETROIT DIESEL CORPORATION...
Page 839 SPN 3659 – INJECTOR #1 SPILL VALVE NOT OPERATING NORMALLY Section Page 117.1 SPN 3659/FMI 14 ..................117-3...
Page 841 9. Measure the resistance between the positive battery post and pin 11of the MCM 120–pin connector. [a] If the resistance is greater than 3 Ω, contact the Detroit Diesel Customer Support Center at 313–592–5800 for MCM replacement authorization. All information subject to change without notice.
Page 842 4 of the injector #1 harness connector. If using J-48671–10, measure between injector #1 pin 4 and the injector #1 harness connector pin 4. All information subject to change without notice. 117-4 Copyright © 2007 DETROIT DIESEL CORPORATION...
Page 843 4. Start and bring engine up to operating temperature (over 140°F/60°C). 5. Verify operation is satisfactory and no warning lamps illuminate. If warning lamps illuminate, troubleshoot the codes. If assistance is required, call the Detroit Diesel Customer Support Center at 313–592–5800.
Page 845 SPN 3660 - INJECTOR #2 SPILL VALVE NOT OPERATING NORMALLY Section Page 118.1 SPN 3660/FMI 14 ..................118-3...
Page 847 9. Measure the resistance between the positive battery post and pin 11of the MCM 120–pin connector. [a] If the resistance is greater than 3 Ω, contact the Detroit Diesel Customer Support Center at 313–592–5800 for MCM replacement authorization. All information subject to change without notice.
Page 848 4 of the injector #2 harness connector. If using J-48671–10, measure between injector #2 pin 4 and the injector #2 harness connector pin 4. All information subject to change without notice. 118-4 Copyright © 2007 DETROIT DIESEL CORPORATION...
Page 849 4. Start and bring engine up to operating temperature (over 140°F/60°C). 5. Verify operation is satisfactory and no warning lamps illuminate. If warning lamps illuminate, troubleshoot the codes. If assistance is required, call the Detroit Diesel Customer Support Center at 313–592–5800.
Page 851 SPN 3661 - INJECTOR #3 SPILL VALVE NOT OPERATING NORMALLY Section Page 119.1 SPN 3661/FMI 14 ..................119-3...
Page 853 9. Measure the resistance between the positive battery post and pin 11of the MCM 120–pin connector. [a] If the resistance is greater than 3 Ω, contact the Detroit Diesel Customer Support Center at 313–592–5800 for MCM replacement authorization. All information subject to change without notice.
Page 854 4 of the injector #3 harness connector. If using J-48671–10, measure between injector #3 pin 4 and the injector #3 harness connector pin 4. All information subject to change without notice. 119-4 Copyright © 2007 DETROIT DIESEL CORPORATION...
Page 855 4. Start and bring engine up to operating temperature (over 140°F/60°C). 5. Verify operation is satisfactory and no warning lamps illuminate. If warning lamps illuminate, troubleshoot the codes. If assistance is required, call the Detroit Diesel Customer Support Center at 313–592–5800.
Page 857 SPN 3662 - INJECTOR #4 SPILL VALVE NOT OPERATING NORMALLY Section Page 120.1 SPN 3662/FMI 14 ..................120-3...
Page 859 [a] If voltage is present, repair the short to power between pin 11 of the Rear Injector Harness 12–pin connector and pin 7 of the 120–pin MCM connector. See Figure 120-1. Refer to section 120.1.1.1 All information subject to change without notice. 120-3 Copyright © 2007 DETROIT DIESEL CORPORATION...
Page 860 120.1 SPN 3662/FMI 14 [b] If no voltage is present, contact the Detroit Diesel Customer Support Center at 313–592–5800 for MCM replacement authorization. Figure 120-1 120–pin MCM Connector 9. Turn the ignition OFF. 10. Disconnect the Rear Injector Harness 12–pin connector.
Page 861 4. Start and bring engine up to operating temperature (over 140°F/60°C). 5. Verify operation is satisfactory and no warning lamps illuminate. If warning lamps illuminate, troubleshoot the codes. If assistance is required, call the Detroit Diesel Customer Support Center at 313–592–5800.
Page 863 SPN 3663 - INJECTOR #5 SPILL VALVE NOT OPERATING NORMALLY Section Page 121.1 SPN 3663/FMI 14 ..................121-3...
Page 865 [a] If voltage is present, repair the short to power between pin 11 of the Rear Injector Harness 12–pin connector and pin 9 of the 120–pin MCM connector. See Figure 121-1. Refer to section 121.1.1.1. All information subject to change without notice. 121-3 Copyright © 2007 DETROIT DIESEL CORPORATION...
Page 866 121.1 SPN 3663/FMI 14 [b] If no voltage is present, contact the Detroit Diesel Customer Support Center at 313–592–5800 for MCM replacement authorization. Figure 121-1 120–pin MCM Connector 9. Turn the ignition OFF. 10. Disconnect the Rear Injector Harness 12–pin connector.
Page 867 4. Start and bring engine up to operating temperature (over 140°F/60°C). 5. Verify operation is satisfactory and no warning lamps illuminate. If warning lamps illuminate, troubleshoot the codes. If assistance is required, call the Detroit Diesel Customer Support Center at 313–592–5800.
Page 869 SPN 3664 - INJECTOR #6 SPILL VALVE NOT OPERATING NORMALLY Section Page 122.1 SPN 3664/FMI 14 ..................122-3...
Page 871 [b] If no voltage is present, go to step 8. 8. Measure for voltage between pin 11 on the MCM side of the Rear Injector Harness 12–pin connector and ground. All information subject to change without notice. 122-3 Copyright © 2007 DETROIT DIESEL CORPORATION...
Page 872 122-1. Refer to section 122.1.1.1. Figure 122-1 120–pin MCM Connector [b] If no voltage is present, contact the Detroit Diesel Customer Support Center at 313–592–5800 for MCM replacement authorization. 9. Turn the ignition OFF. 10. Disconnect the Rear Injector Harness 12–pin connector.
Page 873 4. Start and bring engine up to operating temperature (over 140°F/60°C). 5. Verify operation is satisfactory and no warning lamps illuminate. If warning lamps illuminate, troubleshoot the codes. If assistance is required, call the Detroit Diesel Customer Support Center at 313–592–5800.
Page 875 SPN 3695 (CPC) - DPF REGEN MUX SWITCH MESSAGES NOT OPERATING NORMALLY Section Page 123.1 SPN 3695/FMI 9 ..................123-3 123.2 SPN 3695/FMI 13 ..................123-4 123.3 SPN 3695/FMI 14 ..................123-4 123.4 SPN 3695/FMI 19 ..................123-5...
Page 877 [b] If no, connect ServiceLink to determine which modules are conﬁgured for the vehicle and their communication status. Once this is done, follow the appropriate module communication troubleshooting procedures for the affected module. All information subject to change without notice. 123-3 Copyright © 2007 DETROIT DIESEL CORPORATION...
Page 878 [c] If only a “J1939 Error” fault is present, go to step 2. 2. Has the CPC been recently reprogrammed? [a] If yes, check the proper conﬁguration of the CPC. All information subject to change without notice. 123-4 Copyright © 2007 DETROIT DIESEL CORPORATION...
Page 879 [b] If no, connect ServiceLink to determine which modules are conﬁgured for the vehicle and their communication status. Once this is done, follow the appropriate module communication troubleshooting procedures for the affected module. All information subject to change without notice. 123-5 Copyright © 2007 DETROIT DIESEL CORPORATION...
Page 881 SPN 3719 - SOOT LEVEL ABOVE NORMAL Section Page 124.1 SPN 3719/FMI 0, 15,16,OR 31 ..............124-3...
Page 883 124.1 SPN 3719/FMI 0, 15,16,OR 31 The troubleshooting procedures for this SPN can be found in the Aftertreatment System Technician's Guide (7SE63), refer to Chapter 19. All information subject to change without notice. 124-3 Copyright © 2007 DETROIT DIESEL CORPORATION...
Page 885 SPN 3798 - PROPORTIONAL VALVE BANK 2 CIRCUIT Section Page 125.1 SPN 3798/FMI 4 ..................125-3...
Page 887 [b] If no, go to step 15. 15. Turn the ignition OFF. 16. Disconnect the MCM 120–pin connector. 17. Measure the resistance between pin 62 of the MCM 120–pin connector and ground. All information subject to change without notice. 125-3 Copyright © 2007 DETROIT DIESEL CORPORATION...
Page 888 MCM 120–pin connector and the front injector valve cover connector, EGR Valve, Fuel Cutoff Valve and or Electronic Dosing Valve. Refer to section 125.1.1.1. [b] If the resistance is greater than 5 Ω, contact the Detroit Diesel Customer Support Center at 313–592–5800 for MCM replacement.
Page 889 SPN 3720 - ASH LEVEL ABOVE NORMAL Section Page 126.1 SPN 3720/FMI 15 OR 16 ................. 126-3...
Page 891 126.1 SPN 3720/FMI 15 OR 16 The troubleshooting procedures for this SPN can be found in the Aftertreatment System Technician's Guide (7SE63), refer to Chapter 20. All information subject to change without notice. 126-3 Copyright © 2007 DETROIT DIESEL CORPORATION...
Page 893 SPN 4077 FUEL LINE PRESSURE SENSOR CIRCUIT FAULT Section Page 127.1 SPN 4077/FMI 3, 4 OR 14 ............... 127-3...
Page 895 127.1 SPN 4077/FMI 3, 4 OR 14 The troubleshooting procedures for this SPN can be found in the Aftertreatment System Technician's Guide (7SE63), refer to Chapter 21. All information subject to change without notice. 127-3 Copyright © 2007 DETROIT DIESEL CORPORATION...
Page 897 SPN 4228 - VGT TEMPERATURE WARNING Section Page 128.1 SPN 4228/FMI 15 ..................128-3 128.2 SPN 4228/FMI 16 ..................128-4...
Page 899 3. Remove and inspect turbo and actuator cooler lines and ﬁttings. [a] If coolant lines or ﬁttings are kinked or plugged, repair/replace the damaged component. Refer to section 128.1.1.1. [b] If coolant lines are not damaged and problem still persists, contact the Detroit Diesel Customer Support Center at 313–592–5800. 128.1.1.1...
Page 900 3. Remove and inspect turbo and actuator cooler lines and ﬁttings. [a] If coolant lines or ﬁttings are kinked or plugged, repair/replace the damaged component. Refer to section 128.2.1.1. [b] If coolant lines are not damaged and problem still persists, contact the Detroit Diesel Customer Support Center at 313–592–5800. 128.2.1.1...
Page 901 DDEC VI SCHEMATICS Section Page 129.1 CRUISE CONTROL ................. 129-3 129.2 FAN CONTROL ..................129-4 129.3 OPTIMIZED IDLE ..................129-10...
Page 903: Cruise Control
SERIES 60 DDEC VI TROUBLESHOOTING GUIDE 129.1 CRUISE CONTROL See Figure 129-1 for a diagram of the Cruise Control circuit. Figure 129-1 Cruise Control Circuit All information subject to change without notice. 129-3 Copyright © 2007 DETROIT DIESEL CORPORATION...
Page 904 Single-speed Fan – Fan Type 4 This fan type must be used if the current exceeds 2A. See Figure 129-2. Figure 129-2 Single-speed Fan – Fan Type 4 All information subject to change without notice. 129-4 Copyright © 2007 DETROIT DIESEL CORPORATION...
Page 905 Single-speed Fan – Fan Type 7 This fan type can be used if the current is less than 2.0 A. See Figure 129-3. Figure 129-3 Single-speed Fan – Fan Type 7 All information subject to change without notice. 129-5 Copyright © 2007 DETROIT DIESEL CORPORATION...
Page 906 Fan Control Override is enabled or when the conditions are met for Fan Engine Brake. See Figure 129-4. Figure 129-4 Dual Fan – Fan Type 6 All information subject to change without notice. 129-6 Copyright © 2007 DETROIT DIESEL CORPORATION...
Page 907 This conﬁguration uses two digital outputs, Fan Control #1 and Fan Control #2, to drive a two-speed fan. See Figure 129-5. Figure 129-5 Two-speed Fan ( Fan type 0 or 1) All information subject to change without notice. 129-7 Copyright © 2007 DETROIT DIESEL CORPORATION...
Page 908 DDEC VI uses a pulse width modulated (PWM) output to drive a variable speed fan. See Figure 129-6 Figure 129-6 Variable Speed Fan without Fan Speed Feedback (Fan Type 3) All information subject to change without notice. 129-8 Copyright © 2007 DETROIT DIESEL CORPORATION...
Page 909 DDEC VI uses a pulse width modulated (PWM) output to drive a variable speed fan. See Figure 129-7. Figure 129-7 Variable Speed Fan with Fan Speed Feedback (Fan Type 2) All information subject to change without notice. 129-9 Copyright © 2007 DETROIT DIESEL CORPORATION...
Page 910 129.3 OPTIMIZED IDLE 129.3 OPTIMIZED IDLE See Figure 129-8 for the Optimized Idle overall system schematic. Figure 129-8 Optimized Idle System All information subject to change without notice. 129-10 Copyright © 2007 DETROIT DIESEL CORPORATION...
Page 911 Corroded or Damaged Battery Terminal Repair, 4-4 Test with Repaired Battery Terminals, 4-4 DDEC VI System--How It Works, 17-3 Harnesses, 17-3 Defective Air Compressor, 7-4, 6-6 Air Compressor Removal, 6-7 All information subject to change without notice. Index-1 Copyright © 2007 DETROIT DIESEL CORPORATION...
Page 912 Test Engine with Replaced Starter, 4-7 Defective Turbocharger, 9-3, 7-6, 6-8–8-9 Turbocharger Replacement, 9-4, 7-6, 6-8–8-9 Test Engine with New Turbocharger, 7-6, 6-8 Test Engine with Replaced Turbocharger, 9-4, 8-9 All information subject to change without notice. Index-2 Copyright © 2007 DETROIT DIESEL CORPORATION...
Page 913 Faulty Fuel Injector Repair, 3-6, 8-8 Veriﬁcation of Repair, 3-6, 8-8 Test the Engine with Repaired Fuel Injector, 10-9 Faulty Oil Pressure Gauge Sensor, 2-6 Oil Pressure Gage Sensor Replacement, 2-6 All information subject to change without notice. Index-3 Copyright © 2007 DETROIT DIESEL CORPORATION...
Page 914 Test the Engine with Resolved High Fuel Temperature, 12-16 High Inlet Air Temperature, 12-21 Radiator Fan, Drive and Shroud Replacement, 12-21 Test the Engine with Radiator Fan, Fan Drive, or Fan Shroud Replacement, 12-22 All information subject to change without notice. Index-4 Copyright © 2007 DETROIT DIESEL CORPORATION...
Page 915 Insufﬁcient Fuel Flow Resolution, 11-4 Insufﬁcient Radiator Air Circulation, 13-5 Exterior Radiator Repair, 13-5 Radiator Shroud Repair, 13-5 Test Engine with Repaired Exterior Radiator and Shrouding, 13-5 All information subject to change without notice. Index-5 Copyright © 2007 DETROIT DIESEL CORPORATION...
Page 916 21–pin connector, 17-9 31–pin pigtail connector, 17-10 Connector Brackets, 17-8 Engine Harness, 17-4 Nonfunctional or Sticking Oil Pressure Regulator Valve, 2-10 Oil Pressure Regulator Valve Repair, 2-11 All information subject to change without notice. Index-6 Copyright © 2007 DETROIT DIESEL CORPORATION...
Page 917 Test Engine with Replaced Air Filter, 4-12 Rocker Arm Shaft Plugs Missing (New or Rebuilt Engines Only), 2-7 Leaking Rocker Arm Shaft Plug Repair, 2-7 Missing Rocker Arm Shaft Plug Repair, 2-7 All information subject to change without notice. Index-7 Copyright © 2007 DETROIT DIESEL CORPORATION...
Page 918: Spn 100/Fmi 18
Check for Open, 26-6 SPN 103/FMI 0, 27-3 Check Equipment, 27-3 SPN 103/FMI 1, 27-4 Check Equipment, 27-4 SPN 103/FMI 4, 27-5 Check for Short, 27-5 All information subject to change without notice. Index-8 Copyright © 2007 DETROIT DIESEL CORPORATION...
Page 919 Check for Open Circuit, 30-5 SPN 111/FMI 4, 30-7 Check for Short to Ground, 30-7 SPN 1172/FMI 3, 84-3 Check for Open, 84-3 SPN 1172/FMI 4, 84-6 All information subject to change without notice. Index-9 Copyright © 2007 DETROIT DIESEL CORPORATION...
Page 920 Erratic Transmission Output Speed Shaft Signal Check, 37-4 SPN 191/FMI 9 Missing ETC1 Message Check, 37-3 SPN 2629/FMI 3, 91-3 Open Circuit/Short to Power Check, 91-3 All information subject to change without notice. Index-10 Copyright © 2007 DETROIT DIESEL CORPORATION...
Page 921 Check for Short to Power, 112-3 SPN 3588/FMI 4, 112-4 Check for Short, 112-4 SPN 3588/FMI 5, 112-5 Check for Open, 112-5 SPN 3659/FMI 14, 117-3 All information subject to change without notice. Index-11 Copyright © 2007 DETROIT DIESEL CORPORATION...
Page 922 SPN 609/FMI 12, 50-3 Check MCM Parameters, 50-3 SPN 609/FMI 14, 50-4 Check MCM, 50-4 SPN 625/FMI 2, 52-3 SPN 625/FMI 9, 52-5 Check the Data Link, 52-5 All information subject to change without notice. Index-12 Copyright © 2007 DETROIT DIESEL CORPORATION...
Page 923: Spn 636/Fmi 14
SPN 656/FMI 14, 64-3 Open Circuit, Short to Ground and Short to Power Check, 64-3 SPN 704/FMI 3, 67-3 Check for Short to Power, 67-3 SPN 704/FMI 4, 67-4 All information subject to change without notice. Index-13 Copyright © 2007 DETROIT DIESEL CORPORATION...
Page 924 Deutsch terminals, 17-24 Wires Recommendations, 17-21 Requirements, 17-21 Worn or Damaged Valve or Cylinder Kit, 9-5, 7-7–6-9 Worn or Damaged Valve or Cylinder Kit Repair, 9-5, 7-7–3-8 All information subject to change without notice. Index-14 Copyright © 2007 DETROIT DIESEL CORPORATION...
Page 925 Veriﬁcation of Repair for Worn or Damaged Valve or Cylinder Kit, 3-9 Worn or Damaged Valve(s) or Cylinder Kit(s) Repair, 6-9 Test Engine with Repaired Cylinder Head Valve(s), and Cylinder Kit, 6-10 All information subject to change without notice. Index-15 Copyright © 2007 DETROIT DIESEL CORPORATION...

Detroit Diesel EPA07 Series 60 DDEC VI Troubleshooting Manual

Introduction

Safety Precautions

2 Lowoilpressure

Misfiring Cylinder

No Start - Engine will Not Rotate

Excessive Oil Consumption

Excessive Crankcase Pressure

Excessive Exhaust Smoke - Black or Gray

Excessive Blue Smoke

Excessive White Smoke

Rough Running or Stalling

Low Power

High Engine Coolant Temperature

Low Coolant Temperature

Poor Fuel Economy

Air Compressor

Quick Links

Troubleshooting

Need help?

Questions and answers

Related Manuals for Detroit Diesel EPA07 Series 60 DDEC VI

Summary of Contents for Detroit Diesel EPA07 Series 60 DDEC VI
