DEMO MANUAL DC2692A
ASSEMBLY OPTIONS
ASSEMBLY TYPE
DC2692A-A
DC2692A-B
QUICK START PROCEDURE
1. Download and install QuikEval™ from:
http://www.linear.com/quikeval
2. Connect a DC590 controller or DC2026 Linduino
the DC590 emulator firmware to the DC2692A with the
supplied ribbon cable.
3. Connect low noise analog power supplies as shown
in Figure 1. Refer to the data sheet for other supply
options.
4. Connect the controller to the host PC's USB port and
run QuikEval. The DC2692A software will be down-
loaded and installed, after which the GUI will appear
2
PART NUMBER
LTC2662-16
LTC2662-12

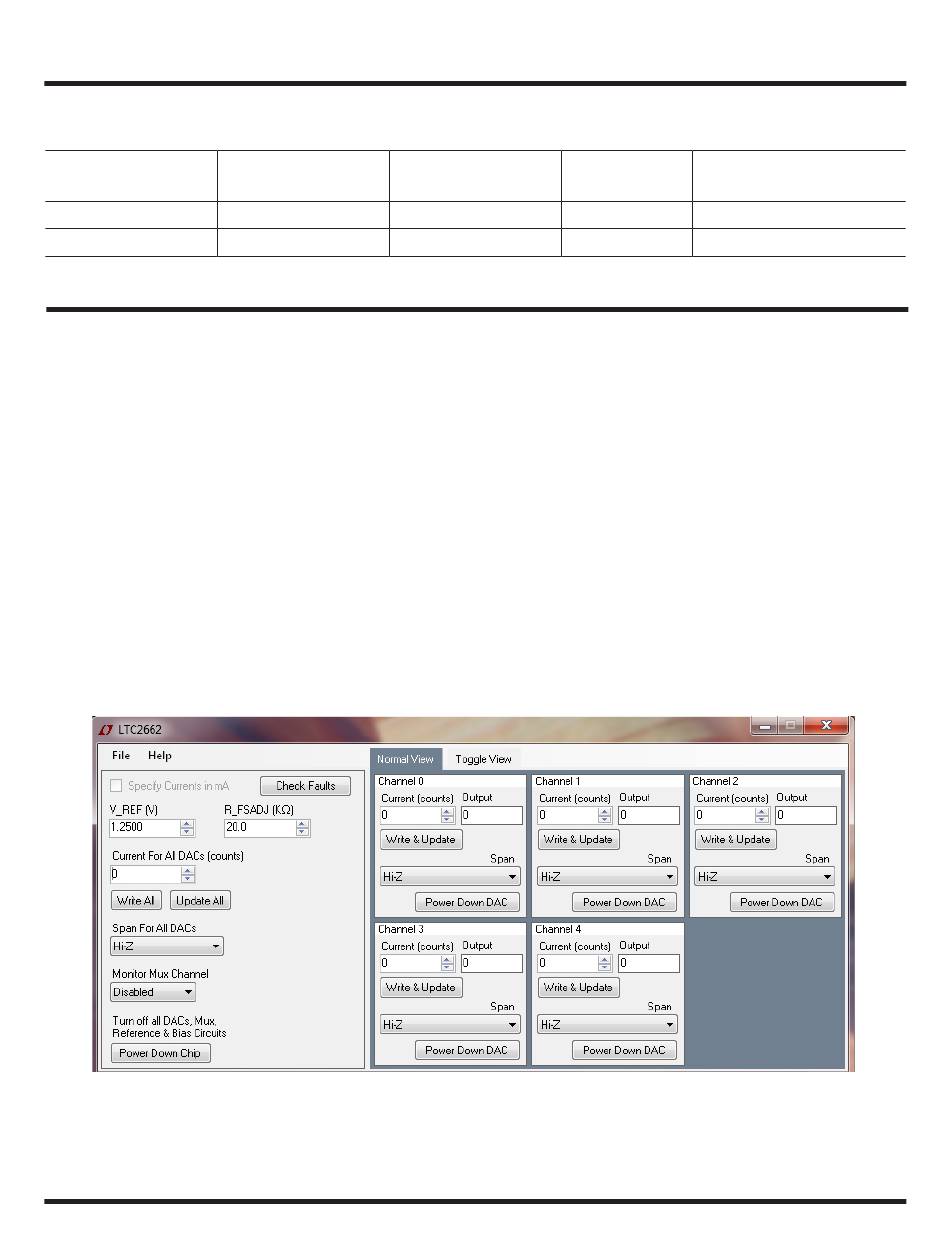

Figure 2. Main Control Panel
DAC CHANNELS
5
5
as shown in Figure 2. The control panel gives access
to all of the LTC2662's functionality including per-
channel SoftSpan ranges, toggling, power-down, etc.
Detailed instructions are provided in the Help menu.
with
®
Using External Reference for the DC2692
To use an external reference to drive the DC2692, move
the jumper named REF SEL (JP1) from the INT posi-
tion to the EXT position. Use the REF turret to drive the
reference voltage. If this is done after the DC2692 was
powered up, then the internal reference will need to be
disabled from the control register.
MAX CURRENT PER
BITS CHANNEL
16 300mA
12 300mA
dc2692af
