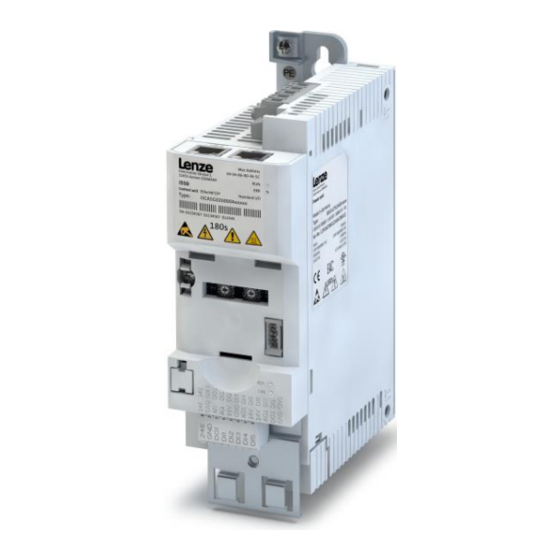

The procedural notes and circuit details described in this operation manual are only proposals. It is up to the user to check whether they can be adapted to the particular applications. Lenze does not take any responsibility for the suitability of the procedures and circuit proposals described.
Parameter witch are not visible on the keypad are marked in the manual as P (Without number) Parameters or selections with marking (*) are not available on all control unit types. Example: Lenze · Inverter i550 - Cabinet · Ethernet Manual · 0.1 EN · 12/2015...
The configured value is applied on next device restart or on network restart command 0x2360:0 (P508:0). Adress/Identifier setting: EtherNet/IP IP address: 0x23A1:1 (P510:1) EtherCAT Identifier: 0x2361:4 (P510:4) Active Adress/Identifier: EtherNet/IP IP address: 0x2382:1 (P511:1) EtherCAT Explicit device identifier: 0x2362:4 (P511:4) Lenze · Inverter i550 - Cabinet · Ethernet Manual · 0.1 EN · 12/2015...
EtherCAT Link/Activity LED: Not used Flickering if link is detected and active Fig. 3: Fieldbus connector LED 2.4 Status LED See the chapter of the corresponding fieldbus Lenze · Inverter i550 - Cabinet · Ethernet Manual · 0.1 EN · 12/2015...
Defines the I&M1 System designation of the I/O device. 0x2381:6 I&M1 Installation site (*) i550 -- ... [--] ... -- Defines the I&M1 Installation site of the I/O device. Lenze · Inverter i550 - Cabinet · Ethernet Manual · 0.1 EN · 12/2015...
Displays the bus error2 of the I/O device. 7: IP address error 8: Station name problem 9: DataExch left 10: Stack boot error 11: Stack online error Lenze · Inverter i550 - Cabinet · Ethernet Manual · 0.1 EN · 12/2015...
- Set 0x2860:1 (P201:1) “Default frequency setpoint” to “Network Frequency Setpoint” [5]. Save the parameter with 0x2022:3 (P700:3). 4. Install the GSDML-file in the Master PLC to use the i550 device over PROFINET. Lenze · Inverter i550 - Cabinet · Ethernet Manual · 0.1 EN · 12/2015...
Page 14
Go to the topological view and search the i550 in the Hardware-Catalog Double-click on it. 6. Go back to topological view and connect the i550 to the PLC using the mouse: 7. Select the correct IP address and station name if they were set before with Easy Starter.
Page 15
The configuration of the process data is automatically sent to the drive. Also the Bit-configuration of NetWordIN1 and NetWordOUT1. The Bit configuration can be adjusted using the “parameterization” (Baugruppeneinstellung) of the corre- sponding module. The default setting for the Lenze control word (NetWordIN1) and Lenze status word (NetWordOUT1) are as follow: Lenze control word (NetWordIN1)
Select the connection “Ethernet” in the Easy Starter Set the correct IP address of the device and add it. Now the objects of the inverter are accessible in Easy Starter. Lenze · Inverter i550 - Cabinet · Ethernet Manual · 0.1 EN · 12/2015...
Communic.error PROFINET communication stack initialization error (0x2859:4) (wrong station name / IP address during initializa- tion) 0x8193 33171 Configurable Inv cycl data PROFINET invalid cyclic data (IO data marked bad) (0x2859:5) Lenze · Inverter i550 - Cabinet · Ethernet Manual · 0.1 EN · 12/2015...
The termination of the last EtherCAT node is effected automatically by the slave. Switch topology The wiring can also be carried out in a star structure via an appropriate switch. For this, observe the additional runtimes. Lenze · Inverter i550 - Cabinet · Ethernet Manual · 0.1 EN · 12/2015...
The master transmits a telegram to the slave address. Each slave increments the address during the telegram cy- cle. A slave to whom a telegram is addressed recognizes the telegram by means of the address 0. Lenze · Inverter i550 - Cabinet · Ethernet Manual · 0.1 EN · 12/2015...
Page 20
-- ... [0] ... -- Set the explicit device identification value of the device with an object. (valid if rotary switches are set to 0) Lenze · Inverter i550 - Cabinet · Ethernet Manual · 0.1 EN · 12/2015...
Fault reaction for fieldbus : Fieldbus stack initialization error (Reference see P310:1) P515:5 0x2859:5 Invalid process data (*) i550 2:Trouble Fault reaction for fieldbus: Invalid process data (Reference see P310:1) Lenze · Inverter i550 - Cabinet · Ethernet Manual · 0.1 EN · 12/2015...
2. To use the i550 device over EtherCAT the ESI-file needs to be installed. 3. Add the EtherCAT master and the slave (i550) must be added to the Project. 4. The automatic configuration of the identifier of the slave can be used. (Alternatively an individual identifier can be set with Rotary Switch / Parameter) 5.
Connection to Engineering Tools 5.7 Connection to Engineering Tools The Lenze Controller provides a gateway function to establish an online connection to a field device via EtherCAT. Fig. 4: Example: EtherCAT bus system with a Lenze Controller 3231 C as gateway 1.
6 EtherNet/IP EtherNet/IP is supported from SW Version 02.01 Lenze implementation of CIP follows the standard and supports the two main types of EtherNet/IP communica- tion: Explicit Messaging (Parameter data transfer) and Implicit Messaging (Cyclic data transfer) 6.1 General Considerations 6.1.1 Network topology...
3 connection messages and in addition an overall EtherNet/IP timeout on unconnected services 0x23A1:10. For a connected class 3 connection the timeout is configured by the client, the reaction within the drive can be set in 0x2859:6. Lenze · Inverter i550 - Cabinet · Ethernet Manual · 0.1 EN · 12/2015...
Instance corresponds to the parameter's Index number and Attribute corresponds to drive parameter's subindex number. In the event the desired drive parameter has no index the user may set the attribute = Lenze · Inverter i550 - Cabinet · Ethernet Manual · 0.1 EN · 12/2015...
Input data is produced by the adapter and consumed by the scanner. The iSeries drives are always an adapter device. Depending on the assembly number the memory map of the data can have a different size and meaning. Lenze · Inverter i550 - Cabinet · Ethernet Manual · 0.1 EN · 12/2015...
The Identity Object instances parameters that may be read over Explicit Messaging. The iSeries drive shall sup- port the following Identity Object parameters: Lenze · Inverter i550 - Cabinet · Ethernet Manual · 0.1 EN · 12/2015...
3. Right click on the [Ethernet] network icon and select [New Module] under the Ethernet port of the Control- ler's EtherNet/IP scanner. Note: The project in RSLogix 5000 must be in the offline state to add the drive to the configuration. Lenze · Inverter i550 - Cabinet · Ethernet Manual · 0.1 EN · 12/2015...
Page 35
4. Select "ETHERNET MODULE Generic Ethernet Module" and click "Create". 5. For this example we will use Output Assembly 23 to control the drive and Input Assembly 73 to read status from the drive. Lenze · Inverter i550 - Cabinet · Ethernet Manual · 0.1 EN · 12/2015...
Page 36
"73" for the Input Assembly and size = "3". Enter "23" for the Output Assembly also with size = "3" and enter "130" as the Configuration Assembly with size = "0". Now click "OK" Lenze · Inverter i550 - Cabinet · Ethernet Manual · 0.1 EN · 12/2015...
Page 37
Request Packet Interval (RPI) of 10.0 milliseconds as for most inverter applications it is not necessary to poll the drive more frequently than 10.0 milliseconds. Select OK to finish the network configuration to the drive. Lenze · Inverter i550 - Cabinet · Ethernet Manual · 0.1 EN · 12/2015...
Page 38
RSLogix™ 5000. To begin, select "Controller Tags" from the navigation tree. Now right click next to any tag and select "New Tag…” Lenze · Inverter i550 - Cabinet · Ethernet Manual · 0.1 EN · 12/2015...
Page 39
It is often desirable to set a fault timeout condition to prevent the drive from operating in a runaway condition or loss of communications. In case the class#1 connection expires, the defined reac- tion in 0bject 0x2859 raised. Lenze · Inverter i550 - Cabinet · Ethernet Manual · 0.1 EN · 12/2015...
You can check the length of the object in the drive’s programming manual: To write a parameter value to the iSeries drive using EtherNet/IP explicit messaging set the following: Lenze · Inverter i550 - Cabinet · Ethernet Manual · 0.1 EN · 12/2015...
Page 41
To write assembly data to the i500 using EtherNet/IP explicit messaging set the following: Message Type = CIP Generic Class = 4 (Hex) Attribute = 3 Lenze · Inverter i550 - Cabinet · Ethernet Manual · 0.1 EN · 12/2015...
Page 42
2a with the Instance =1, and the attribute number as listed above. These variables are all data type SINT and must have the source length set to 1 byte. Lenze · Inverter i550 - Cabinet · Ethernet Manual · 0.1 EN · 12/2015...
Select the connection “Ethernet” in the Easy Starter Set the correct IP address of the device and add it. Now the objects of the inverter are accessible in Easy Starter. Lenze · Inverter i550 - Cabinet · Ethernet Manual · 0.1 EN · 12/2015...
6.10.1 EtherNet/IP LED status display The indication of module status is a single bicolor (red/green) indicator that represents the state of the entire product per the standard CIP definition. Lenze · Inverter i550 - Cabinet · Ethernet Manual · 0.1 EN · 12/2015...
This chapter describes the CIA402 Format This Format is normally used for EtherCAT and CAN With default settings the Lenze-State machine is active. For full compatibility with CIA402 state machine the CiA402 mode needs to be selected in 0x6060. (Selection: [2] “Velocity mode CIA402”) For detailed description about CiA402 state machine refer to CiA402 documents.
NOTE: Bit processed only when NetCtrl = 1 PID off (1 – off) NOTE: Bit processed only when NetCtrl = 1 DC Brake NOTE: Bit processed only when NetCtrl = 1 Lenze · Inverter i550 - Cabinet · Ethernet Manual · 0.1 EN · 12/2015...
Current Limit reached 0 = NOT in Current Limit 1 = in Current Limit DC Brake Active 0 = DC brake NOT active 1 = DC brake active Lenze · Inverter i550 - Cabinet · Ethernet Manual · 0.1 EN · 12/2015...
43: User-Netw. fault 1 44: User-Netw. fault 2 45: Process controller off 46: Set PID output to 0 47: PID integrator disabled 48: PID influence ramps active Lenze · Inverter i550 - Cabinet · Ethernet Manual · 0.1 EN · 12/2015...
Page 58
Function of Network Input Word Bit 14 (Reference see P505:0) P505:16 0x400E:16 NETWordIN1.15 i510 i550 0:Not connected Function of Network Input Word Bit 15 (Reference see P505:0) Lenze · Inverter i550 - Cabinet · Ethernet Manual · 0.1 EN · 12/2015...
Function of Network Bit 9 (Reference see P420:1) P420:20 0x2634:20 NETWordOUT1 - bit 10 i510 i550 72:Setpoint speed reached Function of Network Bit 10 (Reference see P420:1) Lenze · Inverter i550 - Cabinet · Ethernet Manual · 0.1 EN · 12/2015...
Page 60
Function of Network Bit 14 (Reference see P420:1) P420:25 0x2634:25 NETWordOUT1 - bit 15 i510 i550 0:Not connected Function of Network Bit 15 (Reference see P420:1) Lenze · Inverter i550 - Cabinet · Ethernet Manual · 0.1 EN · 12/2015...
