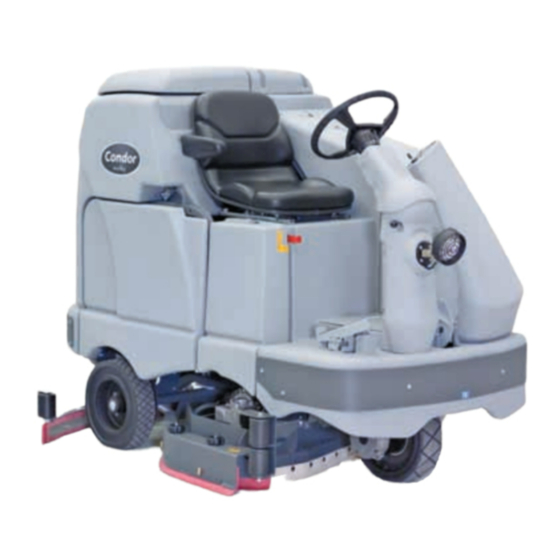

- Page 1 BR 1100S SBG SPECIAL Instructions For Use Original Instructions MODEL: 56380640 7/10 FORM NO. 56091001 A-English...
-
Page 2: Table Of Contents
Contact the Nilfi sk Customer Service Department immediately to fi le a freight damage claim. Refer to the unpacking instruction sheet included with the machine to remove the machine from the pallet. A-2 - FORM NO. 56091001 - BR 1100S SBG SPECIAL... -
Page 3: Cautions And Warnings
Do not use on surfaces having a gradient exceeding that marked on the machine. • All doors and covers are to be positioned as indicated in the instruction manual before using the machine. SAVE THESE INSTRUCTIONS FORM NO. 56091001 - BR 1100S SBG SPECIAL - A-3... -
Page 4: Know Your Machine
Solution Shut off Valve Drive Pedal, Directional/Speed Hopper (cylindrical models only) Drive and Steer Wheel Emergency Stop Switch / Battery Disconnect Scrub Deck Rear Wheel Battery Compartment (under recovery tank) A-4 - FORM NO. 56091001 - BR 1100S SBG SPECIAL... - Page 5 Machine Battery Connector Control Panel Squeegee Tilt Adjust Knob Operator Seat Adjustment Lever Control Circuit Breaker Auxiliary Circuit Breaker Side Broom Motor Circuit Breaker Side Access Panel Squeegee Height Adjust Knob FORM NO. 56091001 - BR 1100S SBG SPECIAL - A-5...
-
Page 6: Control Panel
Flow Flow Flow Regular Heavy Extreme Rate 1 Rate 2 Rate 3 Scrub Scrub Scrub (regular scrub) (heavy scrub) (extreme scrub) (press 1 time) (press 2 times) (press 3 times) A-6 - FORM NO. 56091001 - BR 1100S SBG SPECIAL... -
Page 7: Install The Batteries
Coat the terminals with spray-on battery terminal coating (available at most auto parts stores). Put one of the black rubber boots over each of the terminals and connect the Battery Pack Connector (20). FIGURE FORM NO. 56091001 - BR 1100S SBG SPECIAL - A-7... -
Page 8: Install The Brushes
Loosen the Black Knobs (CC) on top of the Idler Assemblies (DD) until they drop down far enough to disengage from the Notches (EE) and remove. Slide the brush into the housing, lift slightly, push and turn until it seats. Re-install the Idler Assemblies (DD) and Skirt Assemblies (BB). FIGURE A-8 - FORM NO. 56091001 - BR 1100S SBG SPECIAL... - Page 9 When using the detergent dispensing do not mix detergent in the tank, plain water should be used. CAUTION! Use only low-foaming, non-fl ammable liquid detergents intended for machine application. Water temperature should not exceed 130 degrees fahrenheit (54.4 degrees celsius) FIGURE FORM NO. 56091001 - BR 1100S SBG SPECIAL - A-9...
-
Page 10: Squeegee Installation
Height Adjust Knobs (28) so that the rear squeegee blade touches the fl oor evenly across its entire width and is bent over slightly as shown in the squeegee cross section. FIGURE 4 A-10 - FORM NO. 56091001 - BR 1100S SBG SPECIAL... -
Page 11: Detergent System
The system should be purged of previous detergent when switching to a different detergent. When installing a new cartridge, remove the Cap (AA) and place the cartridge in the detergent box. Install the Dry Break Cap (BB) and detergent hose as shown. FIGURE 5 FORM NO. 56091001 - BR 1100S SBG SPECIAL - A-11... - Page 12 A-12 / ENGLISH DETERGENT SYSTEM PREPARATION AND USE (ECOFLEX MODELS ONLY) FIGURE 6 PURGE Press (J) & (F) for 3 seconds to purge. A-12 - FORM NO. 56091001 - BR 1100S SBG SPECIAL...
-
Page 13: Operating The Machine
OFF. NOTE: The “Recovery Tank FULL” indicator is disabled when the wand mode is activated. The fl oat will stop the fl ow into the recovery tank. SERVICE NOTE: Refer to the service manual for detailed functional descriptions of all controls and optional programmability. FORM NO. 56091001 - BR 1100S SBG SPECIAL - A-13... - Page 14 A-14 / ENGLISH OPERATING THE MACHINE FIGURE 7 A-14 - FORM NO. 56091001 - BR 1100S SBG SPECIAL...
-
Page 15: After Use
Squeegee mount angle adjustment knob threads Once a month, apply light machine oil to lubricate the (BB): • Squeegee tool end wheels • Recovery Tank release latch • Brake Pedal (parking brake) linkage FORM NO. 56091001 - BR 1100S SBG SPECIAL - A-15... - Page 16 A-16 / ENGLISH FIGURE 8 A-16 - FORM NO. 56091001 - BR 1100S SBG SPECIAL...
-
Page 17: Charging The Batteries
Tighten the vent caps. Wash the tops of the batteries with a solution of baking soda and water (2 tablespoons of baking soda to 1 liter of water). FORM NO. 56091001 - BR 1100S SBG SPECIAL - A-17... -
Page 18: Squeegee Maintenance
Height Adjust Knobs (28) so that the rear squeegee blade touches the fl oor evenly across its entire width and is bent over slightly as shown in the squeegee cross section. FIGURE 10 A-18 - FORM NO. 56091001 - BR 1100S SBG SPECIAL... -
Page 19: Side Skirt Maintenance
Turn the Adjuster Collars (FF) (Up or Down) to where the blades just fold over enough when scrubbing that all the waste water is contained inside the skirting. NOTE: Make small adjustments to obtain good blade wiping. Do not lower the blades too much to where they fold over excessively and cause unneeded blade wear. FIGURE 11 FORM NO. 56091001 - BR 1100S SBG SPECIAL - A-19... -
Page 20: Troubleshooting
Purge system, straighten lines to remove any kinks Dry seal cap on detergent cartridge not sealed Reseat dry seal cap Detergent pump wiring Connect or reconnect wiring disconnected or backwards A-20 - FORM NO. 56091001 - BR 1100S SBG SPECIAL... - Page 21 Vibrations at the Hand Controls .11 m/s (ISO 5349-1) Uncertainty Vibrations at the Seat (EN 1032) <0.35m/s Vibrations at the Seat (EN 1032) Uncertainty 0.035m/s Gradeability Transport 16% (9 Cleaning 10.5% (6 FORM NO. 56091001 - BR 1100S SBG SPECIAL - A-21...
- Page 23 EN 61000, EN 50366 EC Machinery Directive 06/42/EC EN 12100-1, EN 12100-2, EN 294, EN 349 6.5.2010 Don Legatt, Engineering Director Nilfisk-Advance, Inc. Nilfisk-Advance A/S 14600 21st Avenue North Sognevej 25 Plymouth, MN 55447 USA DK-2605 Brøndby, Denmark ©Nilfisk-Advance Incorporated, 2010 .pas...
- Page 24 Nilfi sk-Advance A/S Sognevej 25 DK-2605 Brøndby Denmark Tel: +45 43 23 81 00 Fax: +45 43 43 77 00 www.nilfi sk-advance.com...
