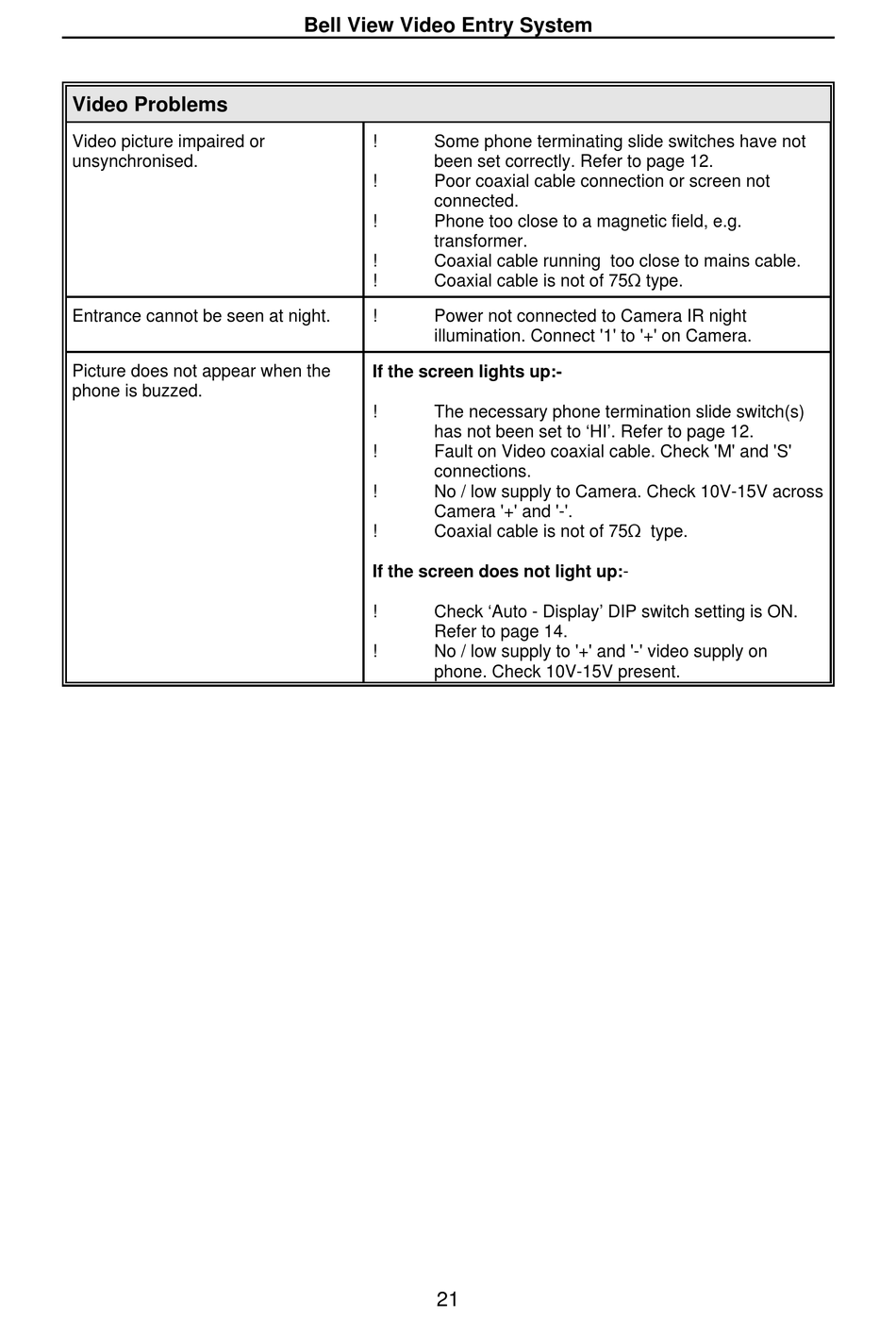

Video Problems
Video picture impaired or
unsynchronised.
Entrance cannot be seen at night.
Picture does not appear when the
phone is buzzed.
Bell View Video Entry System
!
Some phone terminating slide switches have not
been set correctly. Refer to page 12.
!
Poor coaxial cable connection or screen not
connected.
!
Phone too close to a magnetic field, e.g.
transformer.
!
Coaxial cable running too close to mains cable.
!
Coaxial cable is not of 75S type.
!
Power not connected to Camera IR night
illumination. Connect '1' to '+' on Camera.
If the screen lights up:-
!
The necessary phone termination slide switch(s)
has not been set to 'HI'. Refer to page 12.
!
Fault on Video coaxial cable. Check 'M' and 'S'
connections.
!
No / low supply to Camera. Check 10V-15V across
Camera '+' and '-'.
!
Coaxial cable is not of 75S type.
If the screen does not light up:-
!
Check 'Auto - Display' DIP switch setting is ON.
Refer to page 14.
!
No / low supply to '+' and '-' video supply on
phone. Check 10V-15V present.
