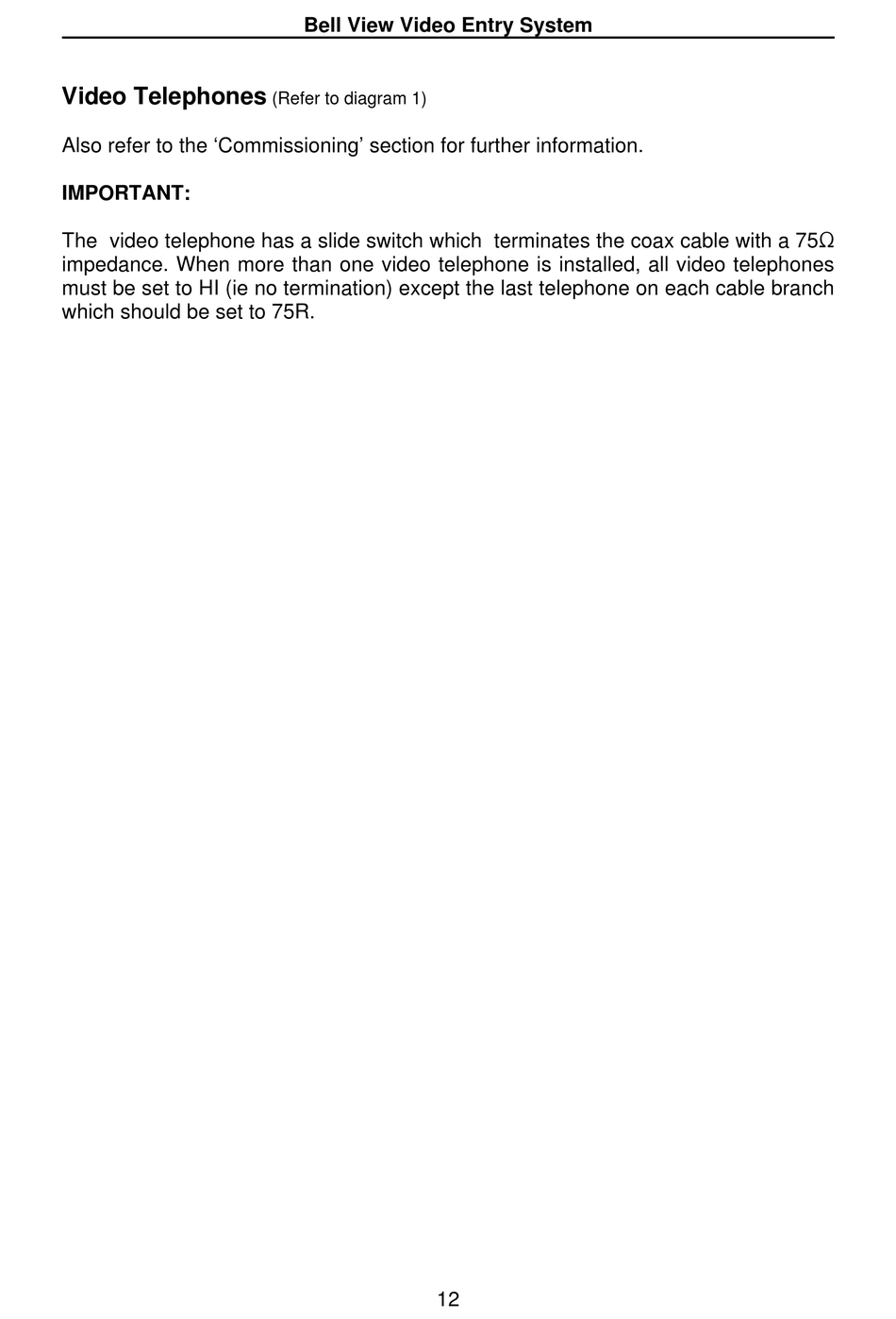

Bell View Video Entry System
Video Telephones
(Refer to diagram 1)
Also refer to the 'Commissioning' section for further information.
IMPORTANT:
The video telephone has a slide switch which terminates the coax cable with a 75S
impedance. When more than one video telephone is installed, all video telephones
must be set to HI (ie no termination) except the last telephone on each cable branch
which should be set to 75R.
